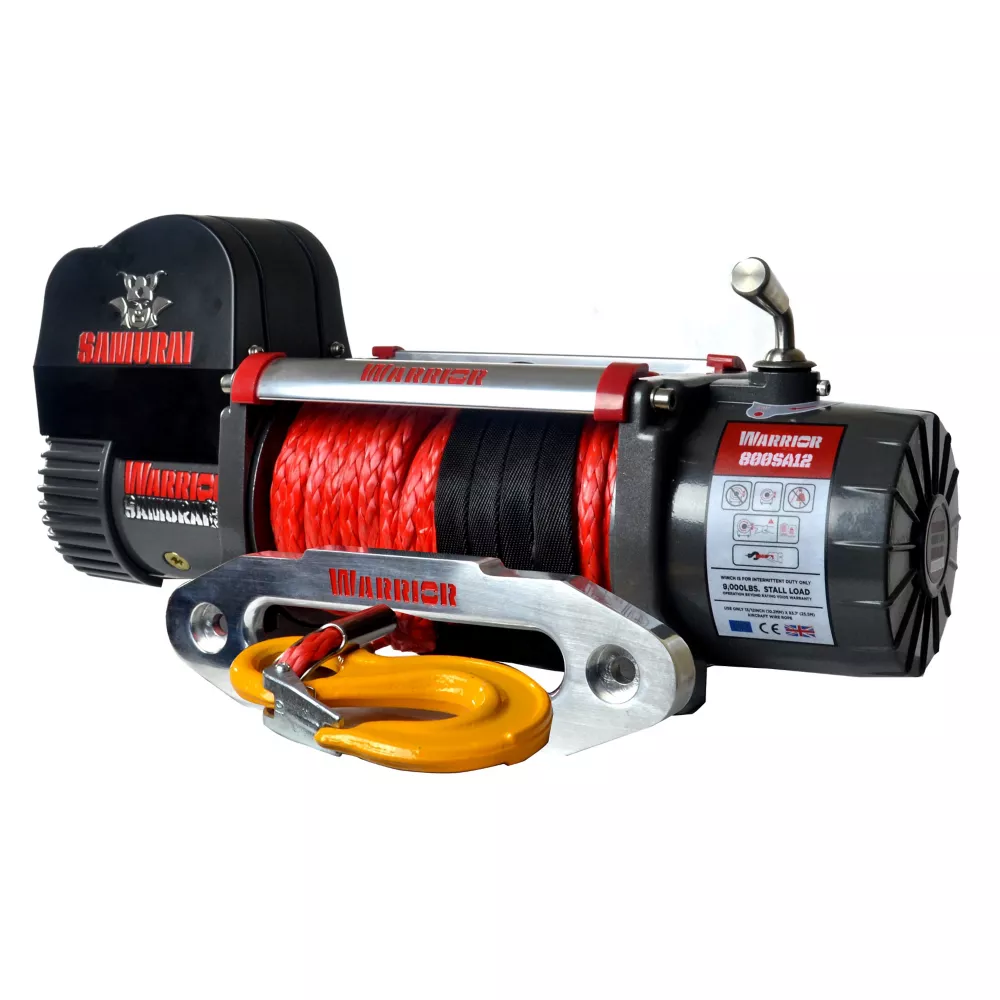

Warrior Samurai DK2 Electric Planetary Gear Winch 12V 20 000 lb Capacity ARMORTEK Synthetic Rope Truck & SUV Winches Truck & Automotive

Warrior Winches are excited to announce the arrival of the colossal Samurai 20000lb electric Winch with ARMORTEK synthetic rope. ARMORTEK is 70% stronger than wire and designed for the toughest of applications & tested in the most extreme environments imaginable, this great piece of kit boasts a massive 7.5 hp Series wound motor, which is housed in full steel supports, ensuring this immense Warrior is ready for any battle. This 12V Beast comes packed with all the features you would expect from the Samurai Range, the motor and gearbox are fully double sealed. Heavy duty high spec motor boasts brass internals, and includes all the external fittings including the Aluminum Hawse fairleads. The Samurai S20000-SR smooth planetary gearing is solid steel. All this is backed up by the unrivalled Warrior Lifetime Limited Warranty.

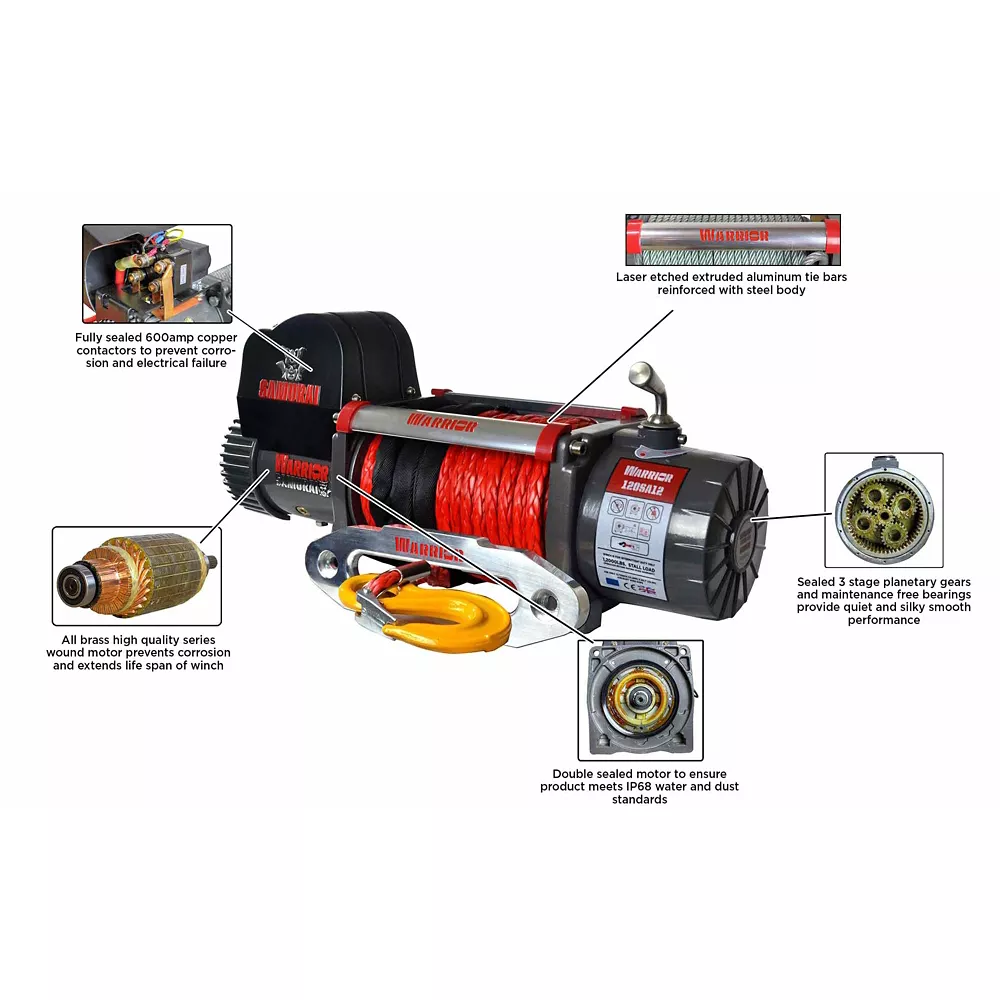

All Brass (no corrosion) Series Wound Motor
Double Sealed Motor & Sealed Waterproof Contactor
Steel Contactor Cover for Added Protection, Sealed 3 Stage Planetary Gears
Double Sealed Drum (Gearbox/Motor)
Alloy Aluminum Hawse fairlead
High quality steel drum supports
Reinforced plastic contactor cover
Heavy duty battery leads
Isolation switch
Stainless steel mounting hardware
Built-in wireless remote (12V)
7.5HP
Braking action: Auto in the drum
Drum size: 3.5 in. x 8.5 in. (Diameter x Length)
Cable size: 0.47 in. x 87 ft. (Diameter x Length)
Mount Pattern: 10 in. x 4.5 in.
Dimensions: 24 in. x 8.6 in. x 10.7 in.
Weight: 159 lb.
Gearing Ratio: 430:1

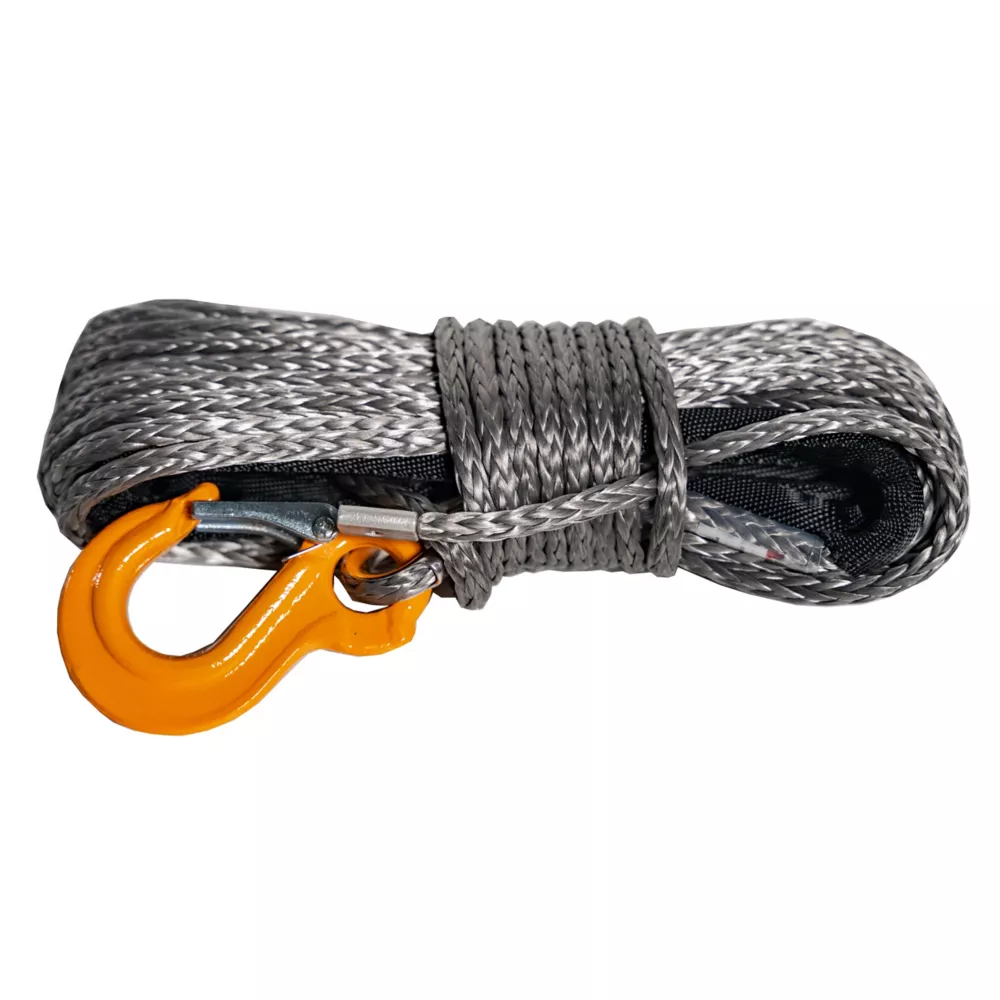

Includes: 87 Foot ARMORTEK Synthetic rope, Cast iron Hook, Alloy Aluminum Hawse Fairlead, Battery leads & isolation switch
Video depicts Samurai 12,000 lb. line pull S12000-SR Winch
British military specifications and design
More information: https://detailk2.com/samurai-20000-sr-info

Limited Lifetime Warranty

Warrior Samurai DK2 Electric Planetary Gear Winch 12V 20 000 lb Capacity ARMORTEK Synthetic Rope Truck & SUV Winches Truck & Automotive> Truck Accessories> Truck Towing Supplies> Truck & SUV Winches

Specification	Description
Brand	DK2
Country of Origin	Imported
Braking Mechanism	Automatic
Capacity	20,000 lb.
Clutch Type	Manual
Compatibility	N/A
Engine Brand	N/A
Engine Displacement	0 cc
Engine Type	2-cycle
Fairlead Included	Yes
Fairlead Type	Alloy Aluminum Hawse
Features	Solid brass wound motor, Wireless remote, steel drum
Gear Ratios	430:1
Horsepower	7.5 HP
Line Diameter	0.5 in.
Line Length	87 ft.
Line Pull Capacity	20,000 lb.
Line Speed	3.6 ft./lb. 20,000 lb.
Mounting Bolt Length	10 in.
Mounting Bolt Width	4.5 in.
Number of Speeds	N/A
Power Type	Electric
Primary Material	Steel
Product Height	10.7 in.
Product Length	24 in.
Product Weight	159 lb.
Product Width	8.6 in.
Line Type	Rope
Voltage	12 V
Warranty	Limited Lifetime
Motor Type	Electric
Manufacturer PartNumber	S20000-SR

DK2 12V Electric Warrior Samurai Planetary Gear Winch, 20,000 lb. Capacity, ARMORTEK Synthetic Rope Specifications expand/collapse Specification Description Brand DK2 Country of origin Imported brake mechanism Automatic capacity 20,000 lbs. Clutch Type Manual Compatibility N/A Engine Make N/A Engine Displacement 0 cc Engine Type 2-Stroke Fairlead Included Yes Fairlead Type Hawse Aluminum Alloy Features Solid Brass Wound Motor, Remote Control cordless, steel drum Gear ratios 430:1 Power 7.5 HP Line diameter 0.5 in. Line length 87 ft. Line pulling capacity 20,000 lbs. Line speed 3.6 ft/lb. 20,000 lbs. Mounting bolt length 10 in. Mounting bolt width 4.5 in. Number of Speeds N/A Power Type Electric Main Material Steel Product Height 10.7 in. Product length 24 in. Product weight 159 lbs. Product width 8.6 in. Line Type Cord Voltage 12V Limited Lifetime Warranty Motor Type Electric Manufacturer Part Number S20000-SR
