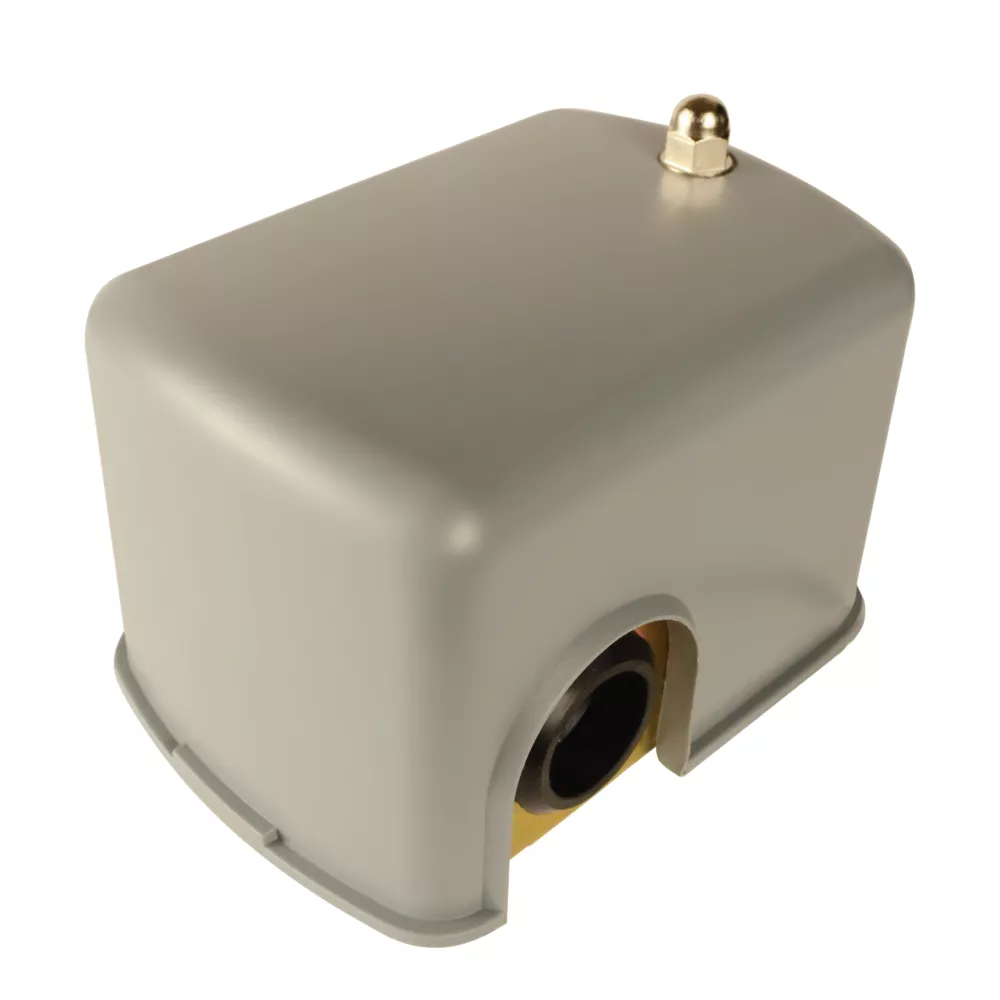

Water Source Well System Pressure Switch 30/50 PSI Pump Parts & Accessories Farm & Ranch

This Water Source Well System Pressure Switch signals the pump to start when the water system drops to 30 PSI (factory set) and stops at 50 PSI (factory set). This well pump pressure switch is to be used with submersible well or jet pumps. It can be wired 115-volt or 230-volt. This pump pressure switch must be used in conjunction with a well pressure tank. The air pressure in the well tank, when empty of all water, must be set to 28 PSI, or the switch will not operate properly.

Signals the pump to start when the water system drops to 30 psi (factory set) and stops at 50 psi (factory set)
Can be wired 115 volt or 230 volt
Well pump pressure switch for use with submersible well or jet pumps (that can create up to 50 pounds of pressure)

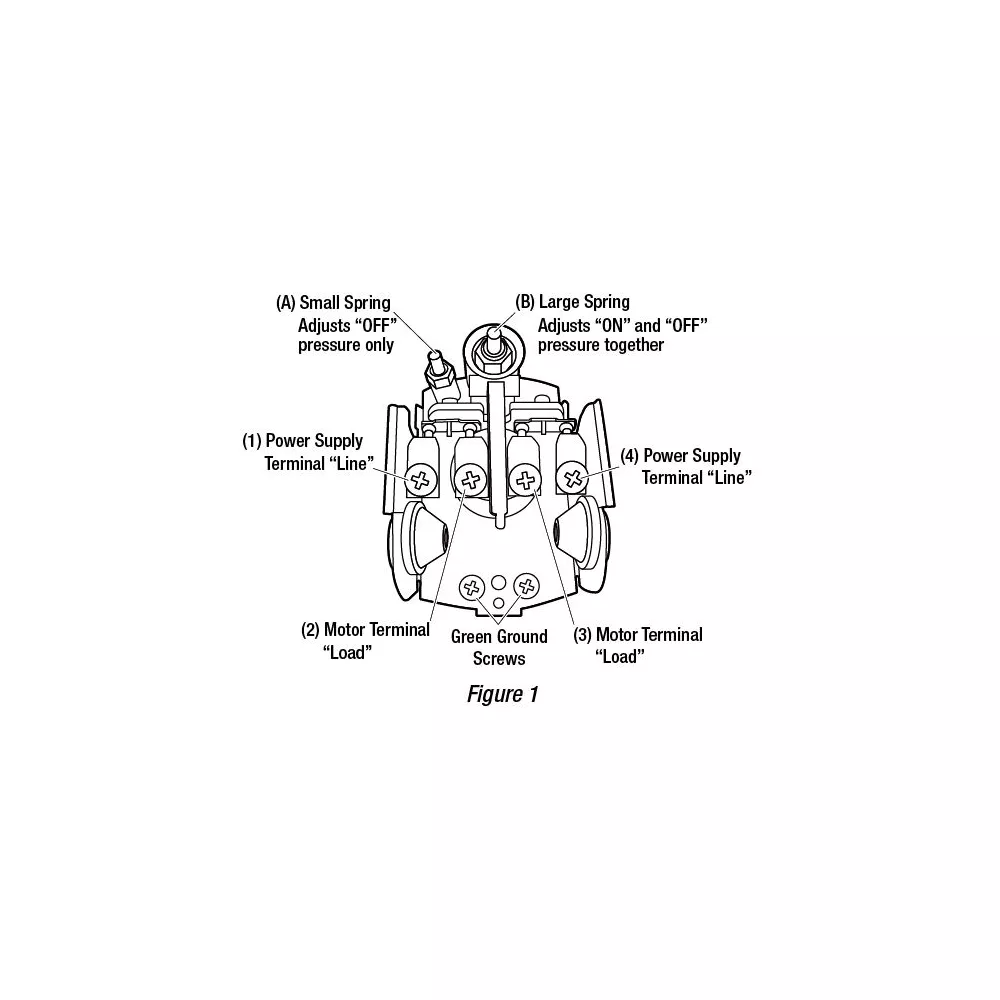

Motor wires are connected to the 2 middle posts (color does not matter)
Breaker box wires are connected to 2 outside posts (color does not matter)
2-spring design of pump pressure switch allows for adjustment of cut-in and cut-out pressure settings
Adjustments to springs should only be made by users with good knowledge of well systems
Tank must be in good condition in order for this to work properly

Water Source Well System Pressure Switch 30/50 PSI Pump Parts & Accessories Farm & Ranch> Tanks & Pumps> Pump Parts & Accessories

Specification	Description
Brand	Water Source
Country of Origin	Imported
Compatibility	30/50 psi
Package Quantity	1
Primary Color	Gray
Primary Material	Steel
Product Height	4 in.
Product Length	3 in.
Product Weight	0.90625 lb.
Product Width	4 in.
Pump Accessory Type	Switches
Manufacturer PartNumber	PS3050
