Zeeline by Milton 12V 12 GPM Portable Fuel Transfer Pump Kit Fuel Transfer Pumps Truck & Automotive

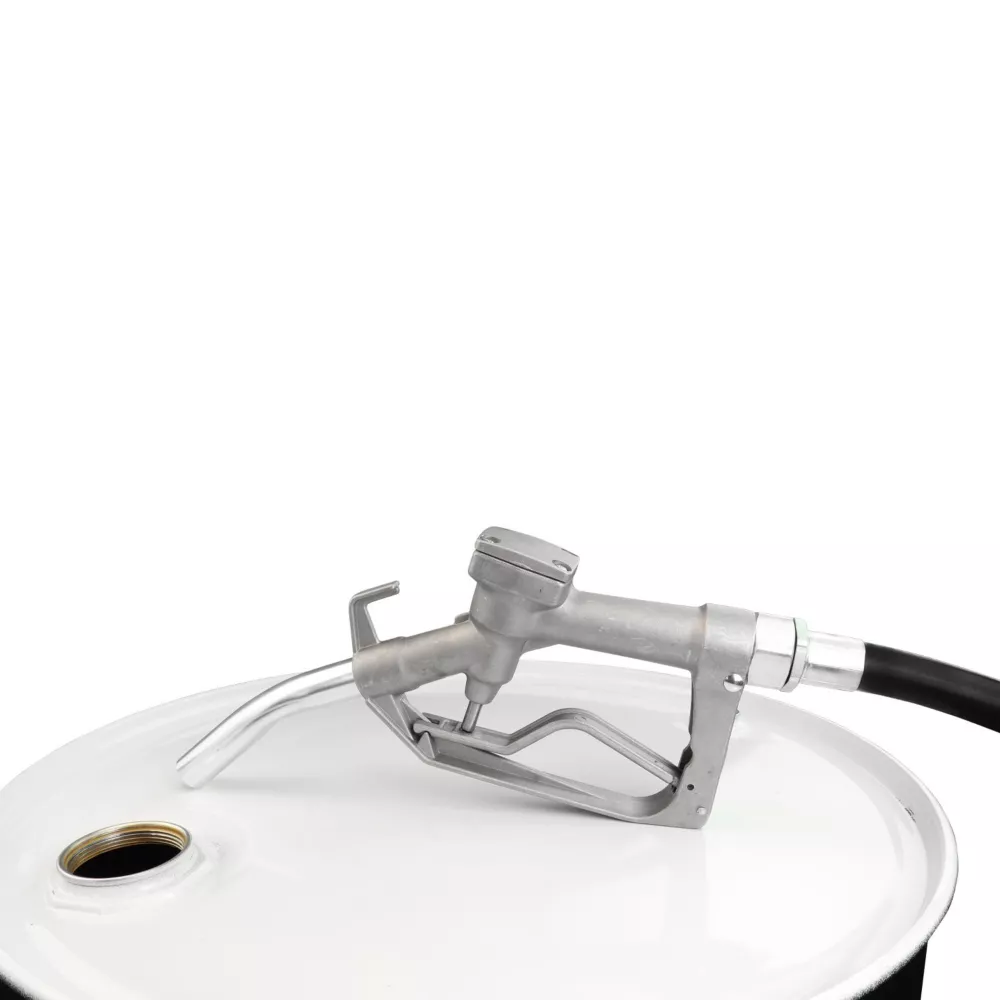

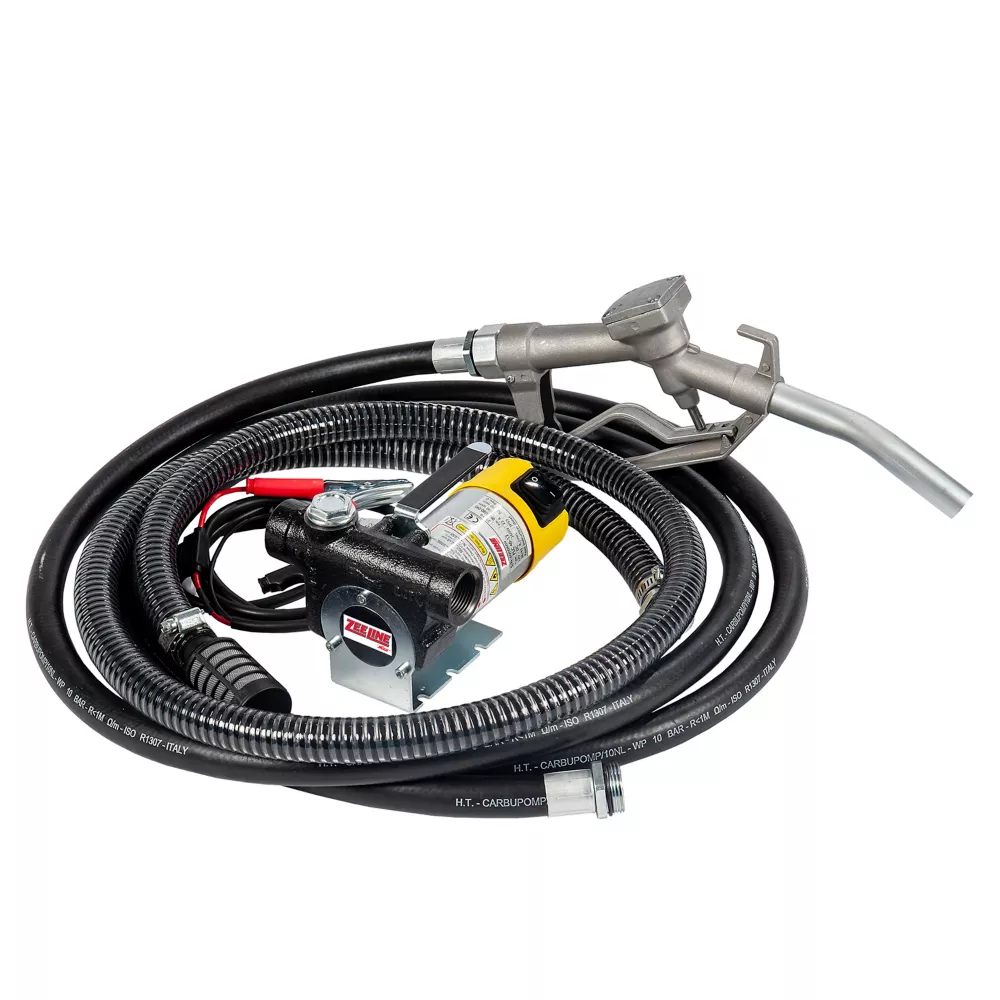

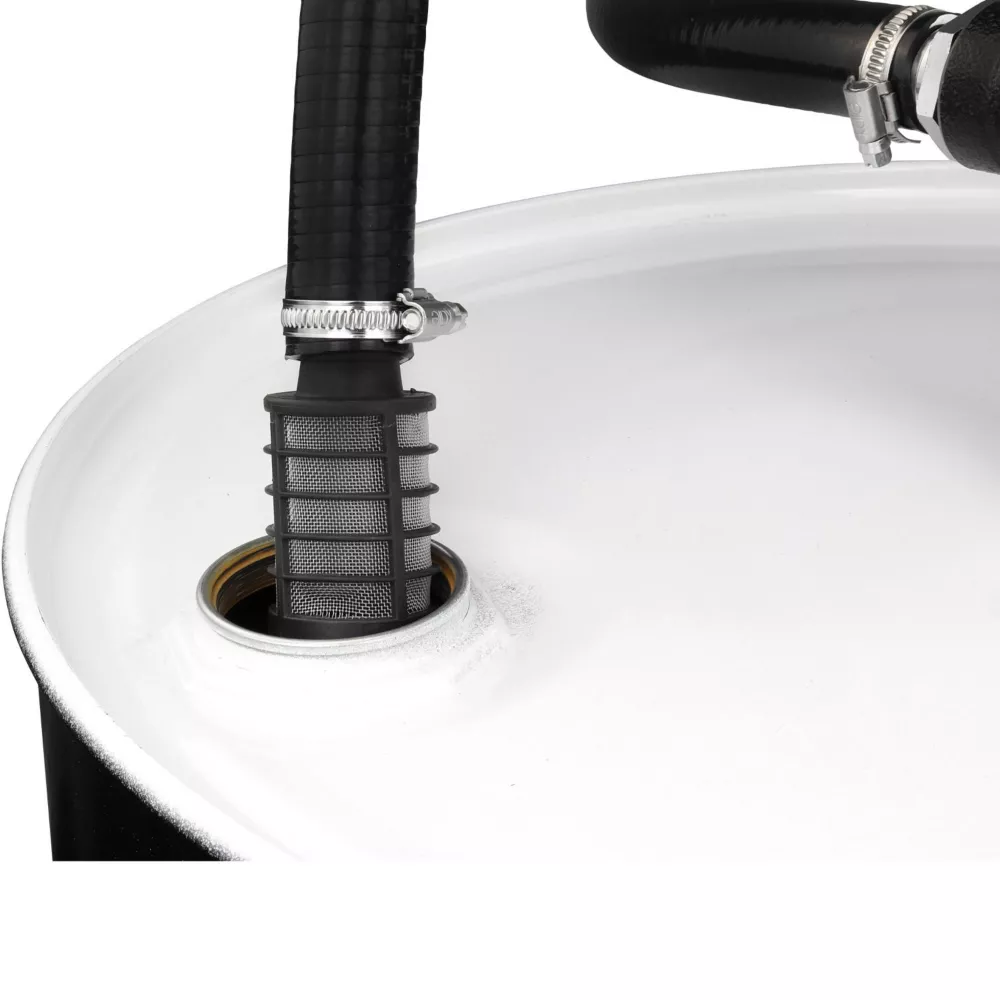

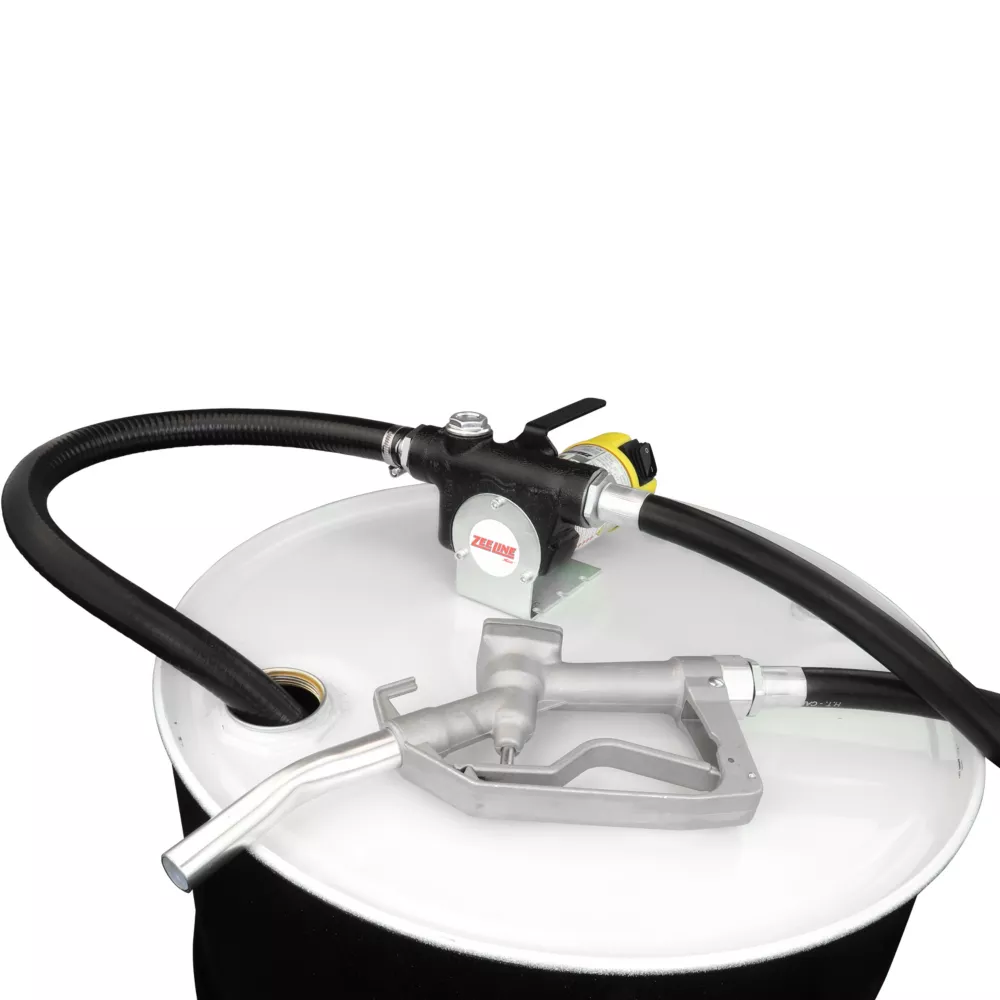

This portable 12V electric fuel pump is designed for transferring diesel fuels only. This Zeeline by Milton 12V 12 GPM Portable Fuel Transfer Pump Kit includes a 13 ft. delivery hose, a manual-style dispensing nozzle, a nozzle bracket, and a suction hose. This fuel transfer pump will transfer diesel fuel from a variety of containers and can transfer diesel fuel to equipment or containers with ease. With a delivery rate of 12 GPM, this diesel transfer pump can deliver efficiently and reduce down time for refueling

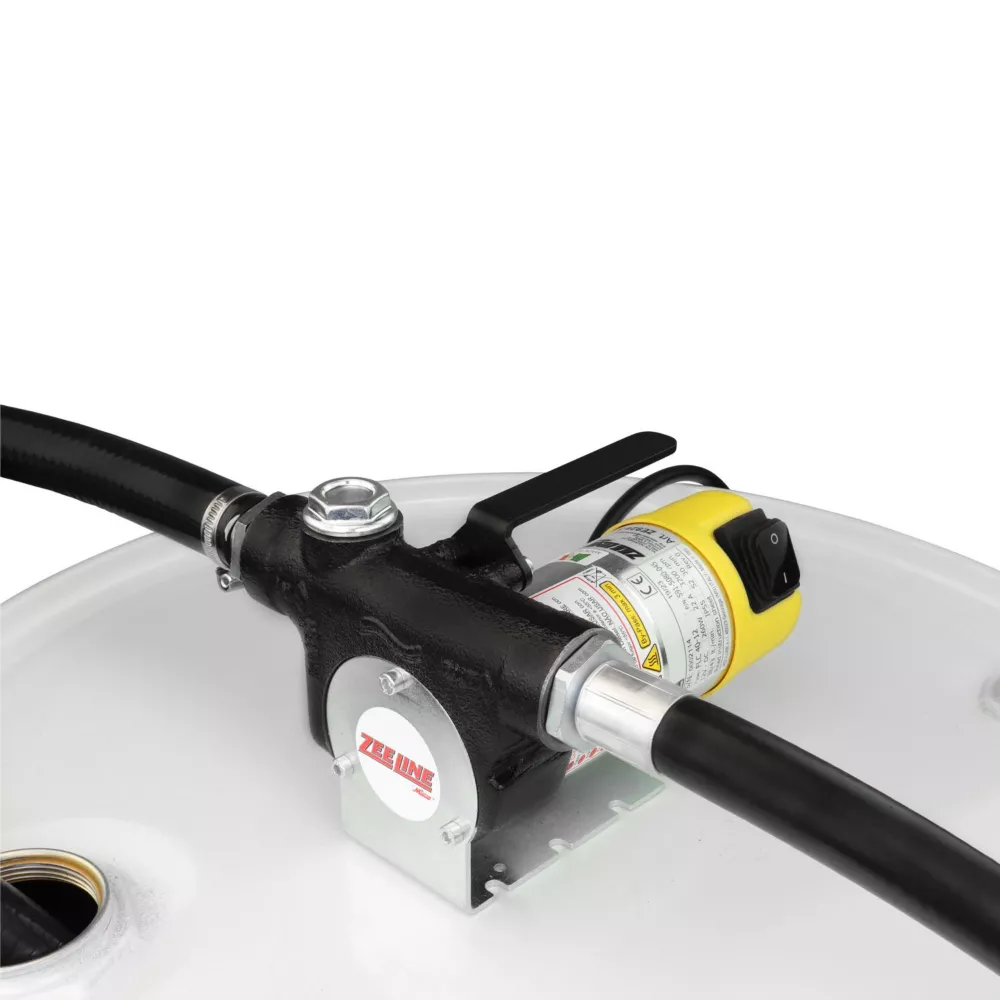

Main pump body is constructed of durable cast iron, making it durable and able to handle daily use
Included 13 ft. delivery hose for maximum fueling distance
Fuel transfer pump motor is ready to operate out of the box, requiring you to simply install the delivery hose, suction hose, and nozzle and then pump away
Connect the power and flip the on/off switch
Fuel hose includes an anti-static wire for safer operation
1 in. NPT threads
Self-priming pump
Power: 264W
Maximum suction height: 10 ft.
Resin vane and a sintered steel impeller

Zeeline by Milton 12V 12 GPM Portable Fuel Transfer Pump Kit Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Zeeline by Milton
Country of Origin	Imported
AC or DC Powered	DC
Body Materials	Steel
Compatible Fluids	Diesel
Discharge Connection	Male
Discharge Diameter	1 in.
Duty Cycle	30 min.
Features	For diesel fuel
Hose Diameter	1 in.
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Intended Use Grade	Standard
Maximum Flow Rate	12 GPM
Maximum Head Lift	1 ea
Maximum Operating Pressure	30 PSI
Maximum Operating Temperature	150 deg.
Minimum Operating Pressure	5 PSI
Minimum Operating Temperature	-10 deg.
Power Cord Length	13 ft.
Power Type	12V
Product Height	6.75 in.
Product Length	12.5 in.
Product Weight	23 lb.
Product Width	11.75 in.
Warranty	1 year
Manufacturer PartNumber	ZE924

Zeeline by Milton 12V Portable Fuel Transfer Pump Kit, 12 GPM Specifications expand/collapse Specification Description Brand Zeeline by Milton Country of Origin Imported AC or DC Power Supply DC Body Materials Steel Compatible Fluids Diesel Discharge Connection Male Discharge Diameter 1 in. Duty cycle 30 min. Specifications For diesel fuel Hose diameter 1 in. Inlet fitting Female threaded Inlet diameter 1 in. Intended Use Grade Standard Maximum Flow 12 GPM Maximum Head Lift 1 ea Maximum Operating Pressure 30 PSI Maximum Operating Temperature 150 deg. Minimum operating pressure 5 PSI Minimum operating temperature -10 deg. Power cord length 13 ft. Power Type 12V Product Height 6.75 in. Product length 12.5 in. Product weight 23 lbs. Product width 11.75 in. 1 year warranty Manufacturer part number ZE924
