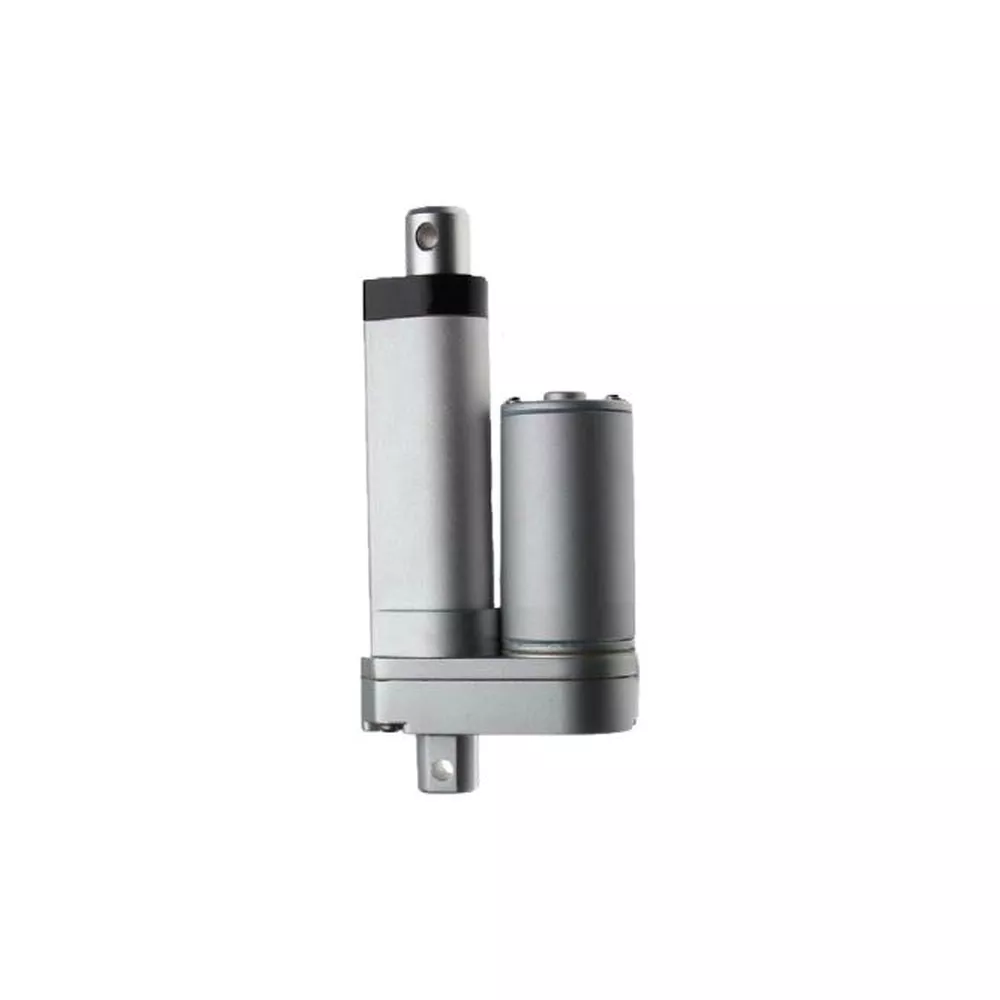

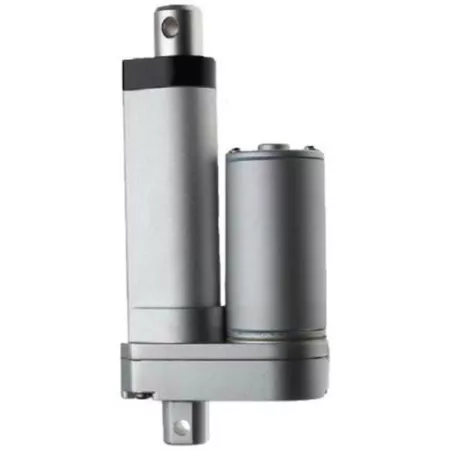

12V DC Concentric Linear Actuator 5.9" Stroke 11.69" Retracted 17.6" Extended Acme Drive Linear Actuators Tractor Repair & Parts

The Concentric 12VDC Linear Actuator is a gear-driven drive motor that extends a shaft used primarily to open and close devices in tight or hard-to-reach areas. With its compact design and numerous control and mounting options, this linear actuator is ideally suited for industrial, agricultural, automotive off-highway and other applications. The overload clutch stops the shaft when it reaches full extension.

Concentric linear actuator has a 110 lb. load capacity and a 550 lb. static capacity
IP63 rated for dust protection and water resistance to guard against damage
Linear actuator has a max load speed of .50 in./sec
Overload clutch stops the shaft when the DC linear actuator reaches full extension
Acme drive for optimal performance
Potentiometer-equipped DC linear actuators can be used with the optional controller, offering the flexibility of up to 3 programmable pre-sets
Features 5.9 in. stroke, 11.69 in. retract and 17.6 in. extend
20 mm rod diameter
Weight: 3 lb.
Backed by a 1-year warranty

Note: This product may require up to 2 additional days for order processing prior to shipping

12V DC Concentric Linear Actuator 5.9" Stroke 11.69" Retracted 17.6" Extended Acme Drive Linear Actuators Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Linear Actuators

Specification	Description
Brand	Concentric
Country of Origin	Made in USA
Brand Compatibility	Universal
Compatibility	Industrial, agricultural, automotive off highway and other applications
Model Compatibility	Most applications
Package Quantity	1
Primary Material	Metal
Product Height	N/A
Product Length	N/A
Product Weight	3 lb.
Product Width	N/A
Warranty	1 Year
Manufacturer PartNumber	139272

Concentric 12VDC Linear Actuator, 5.9 in. Stroke, 11.69 in. Retracted, 17.6 in. Extended, Acme Drive Specifications expand/collapse Specification Description Brand Concentric Country of Origin Made in USA Brand Compatibility Universal Compatibility Industrial, Agricultural, Off-Road Automotive and Other Applications Model Compatibility Most Applications Package Quantity 1 Main Material Metal Product Height N/A Product Length N/A Product Weight 3 lbs Product Width N/A Warranty 1 Year Manufacturer Part Number 139272
