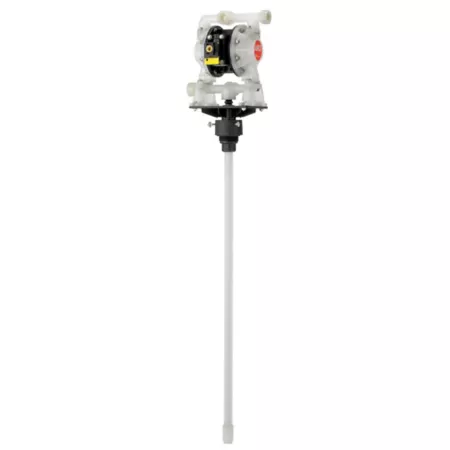

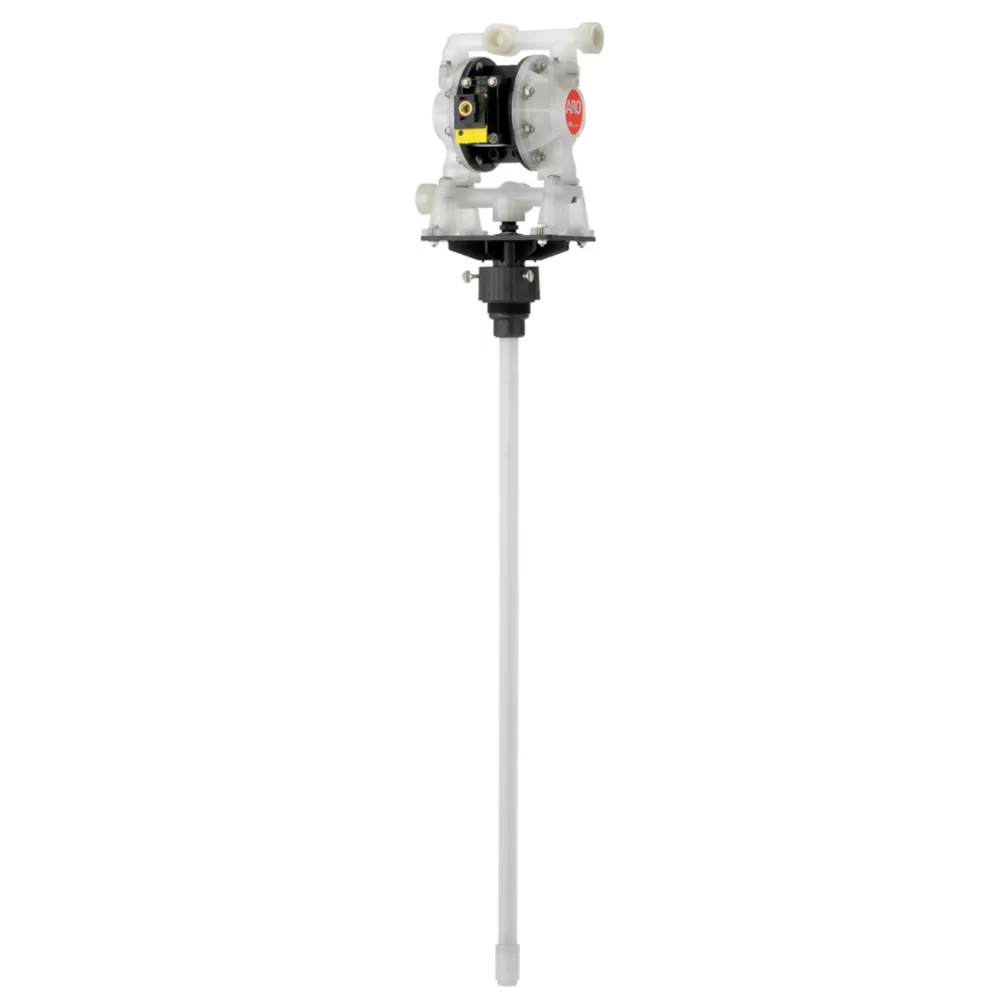

ARO Polyurethane Drum Pump Assembly Utility Pumps Farm & Ranch

Package Components Factory-Matched - ARO Drum Pump package components contain pre-specified, matching materials of construction for complete fluid compatibility.

11-g.p.m. Flow Capability - Drum Pumps offer plenty of capacity to satisfy a broad range of transfer application volume demands.
Stall-Free Operation - ARO Diaphragm Drum Pumps feature a patented unbalanced air valve design that avoids stall-out, even under low air-inlet pressures.
Bolted Construction - ARO Diaphragm Drum Pumps utilize bolted fasteners for leak-tight integrity.
5-Year Warranty

ARO Polyurethane Drum Pump Assembly Utility Pumps Farm & Ranch> Tanks & Pumps> Utility Pumps

Specification	Description
Brand	ARO
Country of Origin	Made in USA
Amperage	N/A
Discharge Connection	Threaded Female
Discharge Diameter	1/2 -1/4 NPTF - 1
Discharge Rate at 0 ft.	14.4 GPM
Discharge Rate at 10 ft.	14.4 GPM
Features	Self Priming
Horsepower	N/A
Impeller Material	N/A
Inlet Diameter	1 in.
Maximum Flow Rate	11 GPM
Product Height	8 in.
Product Length	52 in.
Product Weight	14 lb.
Product Width	12 in.
Utility Pump Type	Diaphragm
Voltage	N/A
Warranty	5 Year
Manufacturer PartNumber	DAB05-PPUU-2-F

ARO Polyurethane Drum Pump Assembly Package Specifications expand/collapse Specification Description Brand ARO Country of Origin Made in USA Amperage N/A Discharge Connection Female Threaded Discharge Diameter 1/2 -1/4 NPTF - 1 Discharge Flow at 0 ft. 14.4 GPM Flow Rate discharge at 10 ft. 14.4 GPM Specifications Self-priming power N/A Impeller material N/A Inlet diameter 1 in. Maximum flow 11 GPM Product height 8 in. Product length 52 in. Product weight 14 lbs. Product width 12 in. Utility Pump Type Diaphragm Voltage N/A 5 Year Warranty Manufacturer Part Number DAB05-PPUU-2-F
