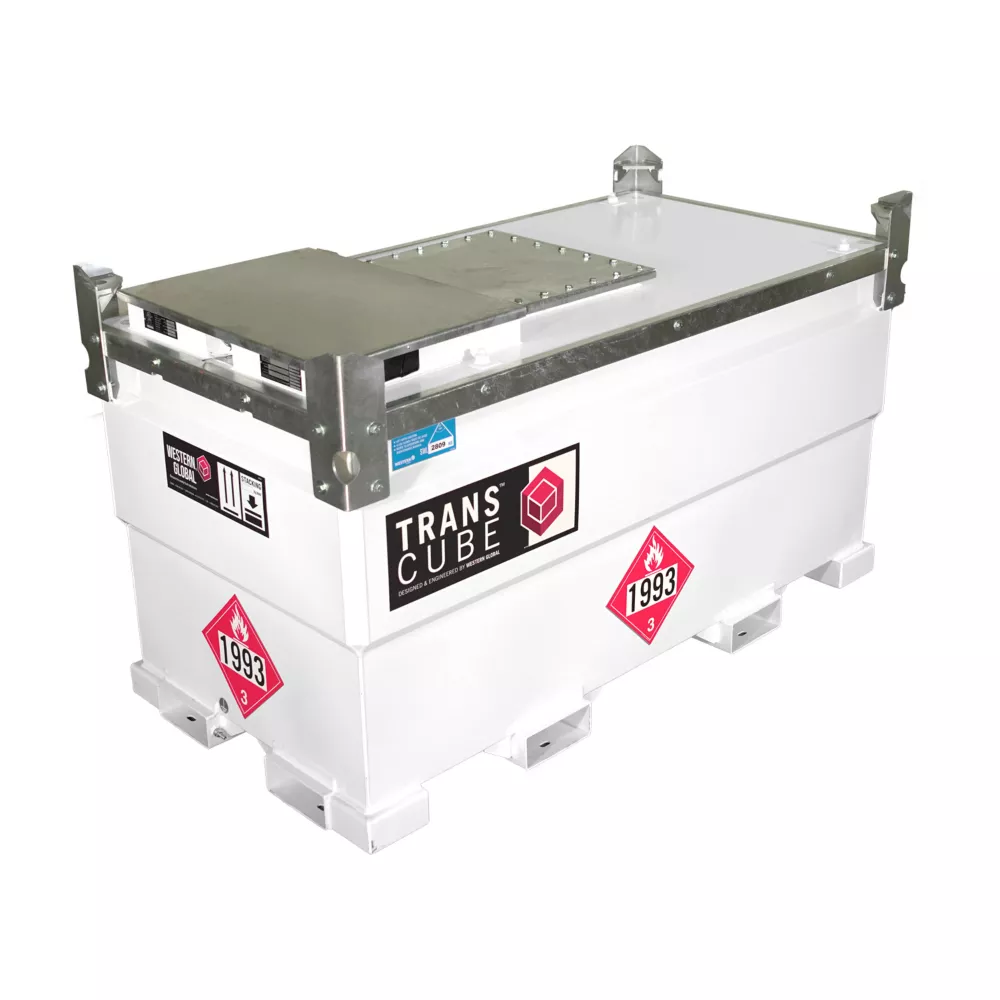

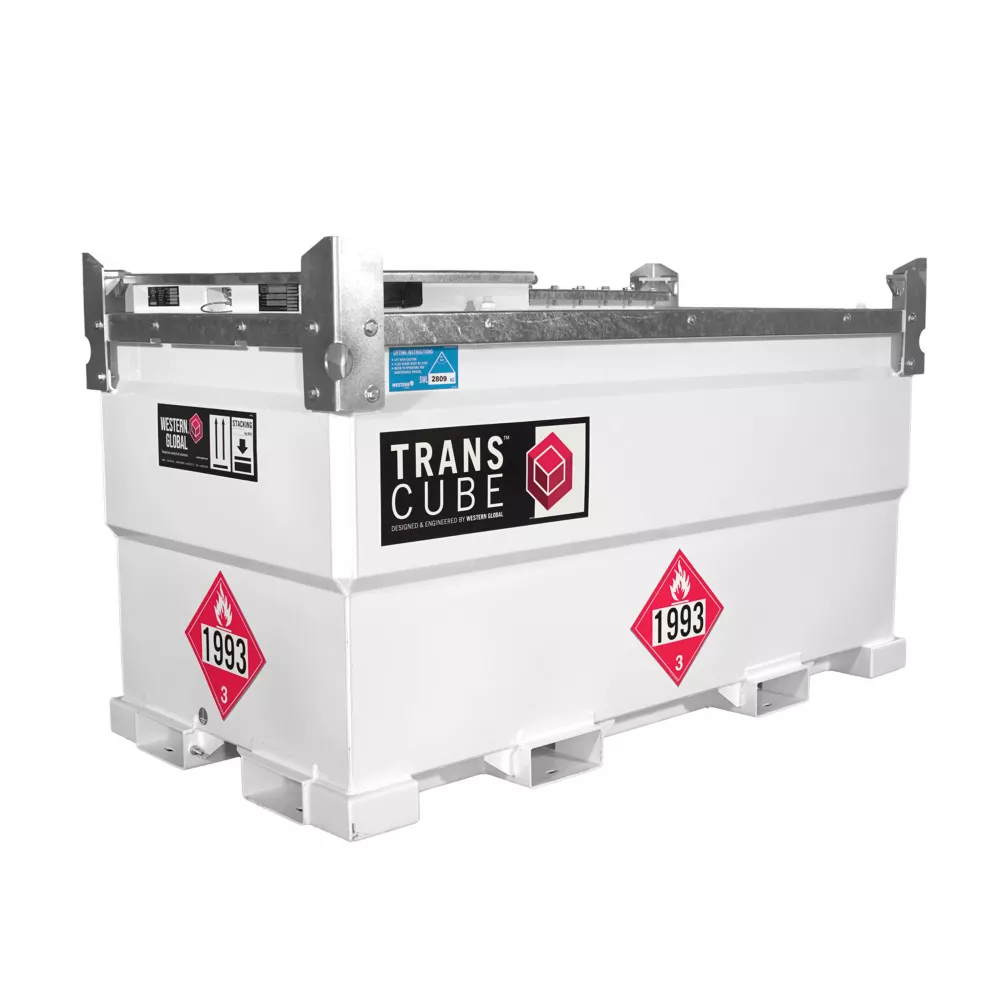

Western Global 20TCG: TransCube 552 US Gallon Double Wall Transportable Diesel Storage Tank with Level Gauge Fuel Transfer Tanks Truck & Automotive
The 20TCG TransCube Global is a DOT Certified transportable, environmentally friendly double-walled fuel storage tank, that offers an efficient solution for on-site fueling and auxiliary supply. With its fully transportable design and ability to fuel multiple pieces of equipment simultaneously. Approvals: UL142, CAN/ULC-S601, US DOT, UN-IBC, TRANSPORT CANADA, NFPA30. With fuel capacity of 552 Gallons (Safe Fill: 525 Gallons) the TCGWN0020 includes (1) 20TCG TranCube and (1) Fuel Level Gauge.- SECURABLE: Overfill protection, fitted with UL listed overfill protection device.
- STACKABLE: Easily stackable: two high full and three high empty
- ENVIRONMENTALLY SAFE: Double-walled, 110% containment eliminates the need for spill pans, UL 142 approved
- TRANSPORTABLE: Full load lifting eyes, four forklift pockets and internal baffles designed to allow handling of the tank full of fuel

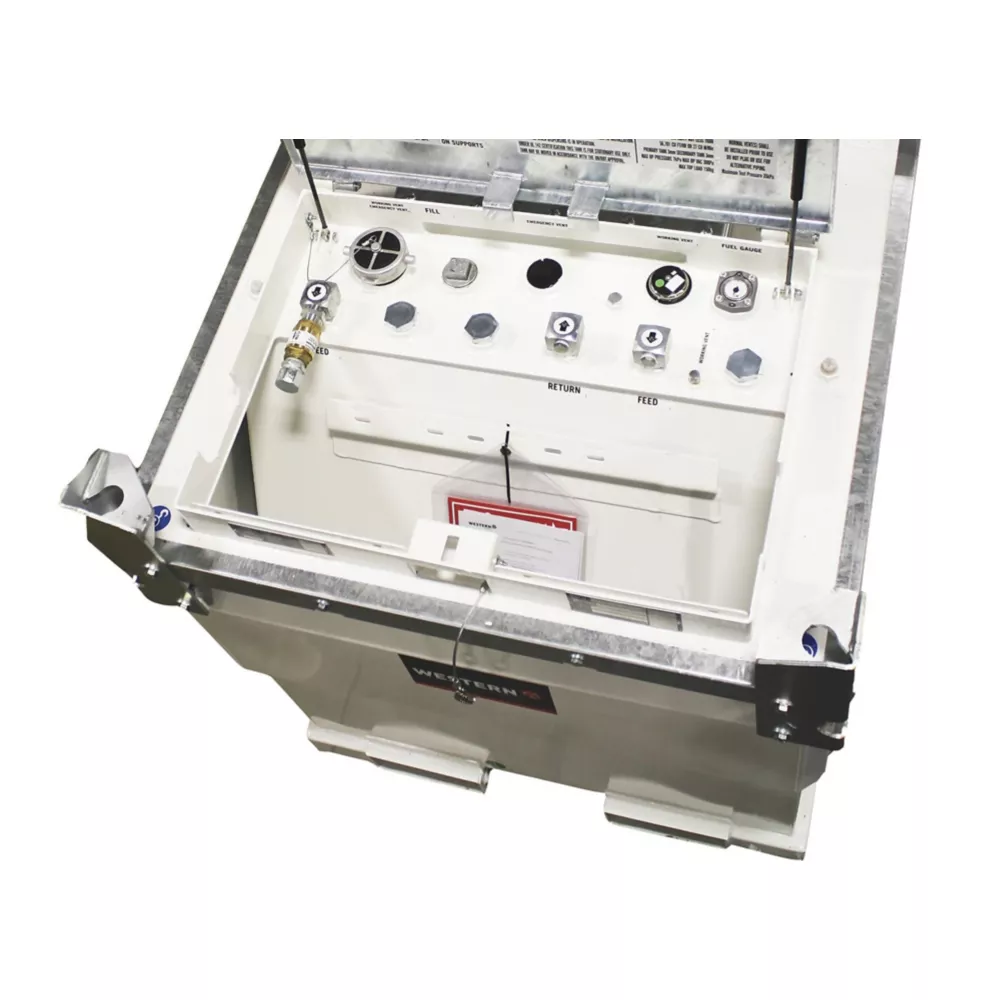

- MAINTAINABLE: Removable inner tank for routine cleaning, maintenance and inspection
- Includes fuel level gauge
Western Global 20TCG: TransCube 552 US Gallon Double Wall Transportable Diesel Storage Tank with Level Gauge Fuel Transfer Tanks Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Tanks
| Specification | Description |
|---|---|
| Brand | Western Global |
| Country of Origin | Imported |
| Features | Approvals: UL 142, US DOT |
| Fill Opening Diameter | 3 in. |
| Maximum Fill Capacity | 552 gal. |
| Maximum Tank Fill Capacity | 552 gal |
| Outlet Diameter | 1 in. |
| Primary Color | White |
| Primary Material | Steel |
| Product Height | 52 in. |
| Product Length | 90 in. |
| Product Weight | 1,814 lb. |
| Product Width | 45 in. |
| Tank Shape | Rectangular |
| Warranty | 3 Year Limited |
| Manufacturer PartNumber | 20TCG |
