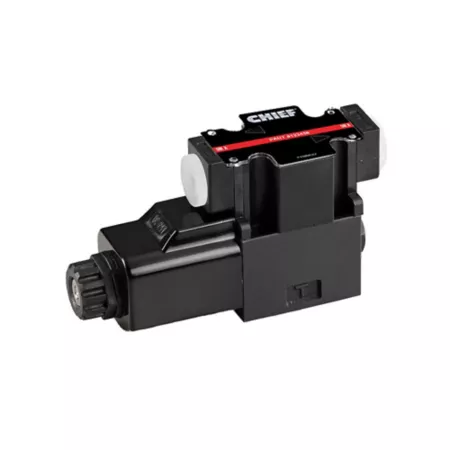

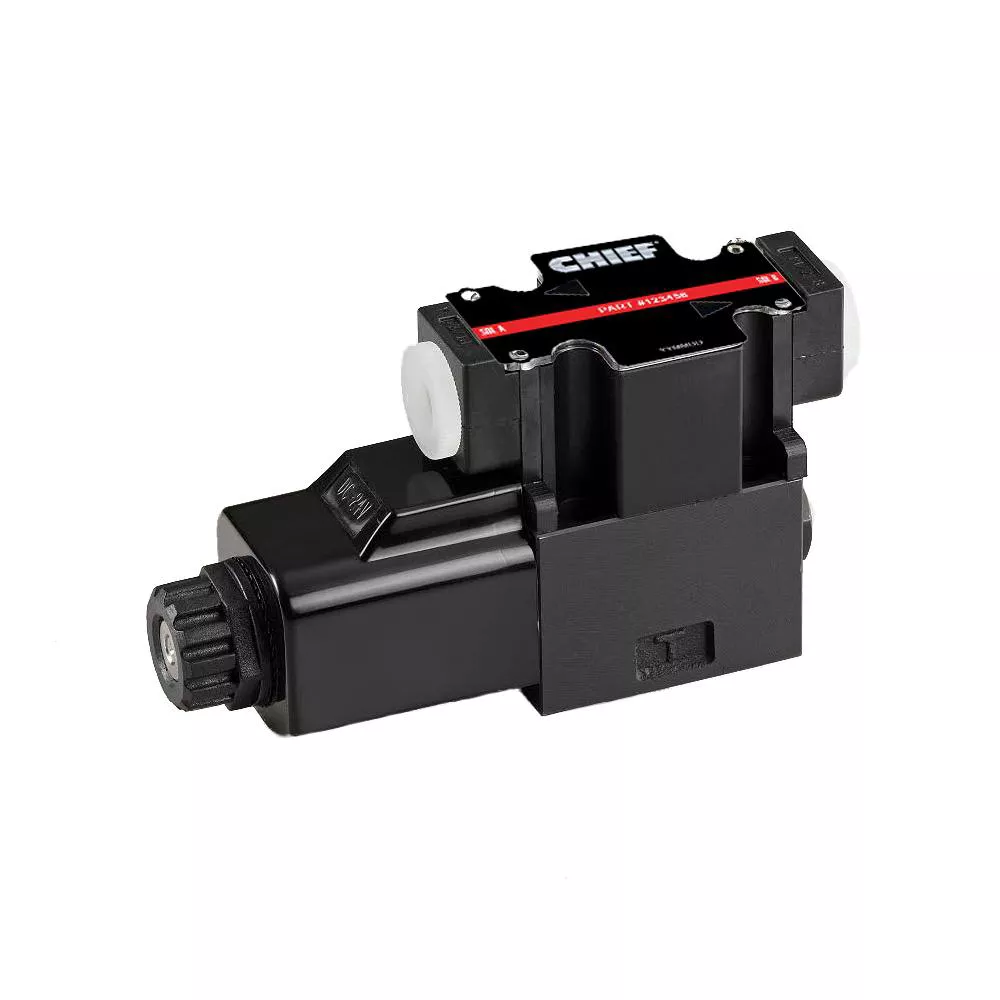

Bailey Hydraulics Chief D05 Control Solenoid Valve 4 480 PSI 12V DC 4-Way 2-Position Spring Offset Closed Parallel Hydraulic Valves & Manifolds Tractor Repair & Parts

With an improved spool, coil and dual tank line design, the Bailey Hydraulics 4,480 PSI Chief D05 Solenoid Control Valve offers better flow characteristics and current draw, even at higher flows and pressures, than many similar valves in the industry. This high efficiency directional control solenoid valve is IP65 rated and designed for use with ISO 46 or 68 rated hydraulic oil. A single valve should be mounted to a subplate or manifold. Multiple valves require a manifold block

High efficiency directional control solenoid valve
Indicator lights included
Junction box or DIN connector options available
IP65 rated, not waterproof
AC options are dual rated, 50/60 Hz
Use with ISO 46 or 68 rated hydraulic oil
A single valve should be mounted to a subplate or manifold. Multiple valves require a manifold block
Additional configurations available

Bailey Hydraulics Chief D05 Control Solenoid Valve 4 480 PSI 12V DC 4-Way 2-Position Spring Offset Closed Parallel Hydraulic Valves & Manifolds Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Valves & Manifolds

Specification	Description
Brand	Bailey Hydraulics
Country of Origin	Made in USA
Brand Compatibility	Universal
Compatibility	Most applications
Inlet Size	N/A
Inlet Type	Male
Maximum Flow Rate	26 GPM
Maximum PSI	4,480 PSI
Model Compatibility	Most application
Number Of Directional Control Positions	2
Outlet Size	N/A
Outlet Type	N/A
Primary Material	Metal
Product Height	N/A
Product Length	N/A
Product Weight	8.6 lb.
Product Width	N/A
Manufacturer PartNumber	229324

Bailey Hydraulics 4,480 PSI Chief D05 Solenoid Control Valve, 12VDC, 4 Way 2 Pos, Spring Offset Closed, Parallel Specifications Expand/Collapse Specification Description Brand Bailey Hydraulics Country of Origin Made in USA Brand Compatibility Universal Compatibility Most Applications Inlet Size N/A Inlet Type Male Maximum Flow 26 GPM Maximum PSI 4,480 PSI Compatibility of Models Most Applications Number of Directional Control Positions 2 Output Size N/A Output Type N/A Primary Material Metal Product Height N/A Product Length N/A Product Weight 8.6 lbs. Product Width N/A Manufacturer Part Number 229324
