Chief 3 625 PSI G Series Directional Control Valve 30 GPM 1 Spool SAE 12 Inlet/SAE 16 Outlet Hydraulic Valves & Manifolds Tractor Repair & Parts

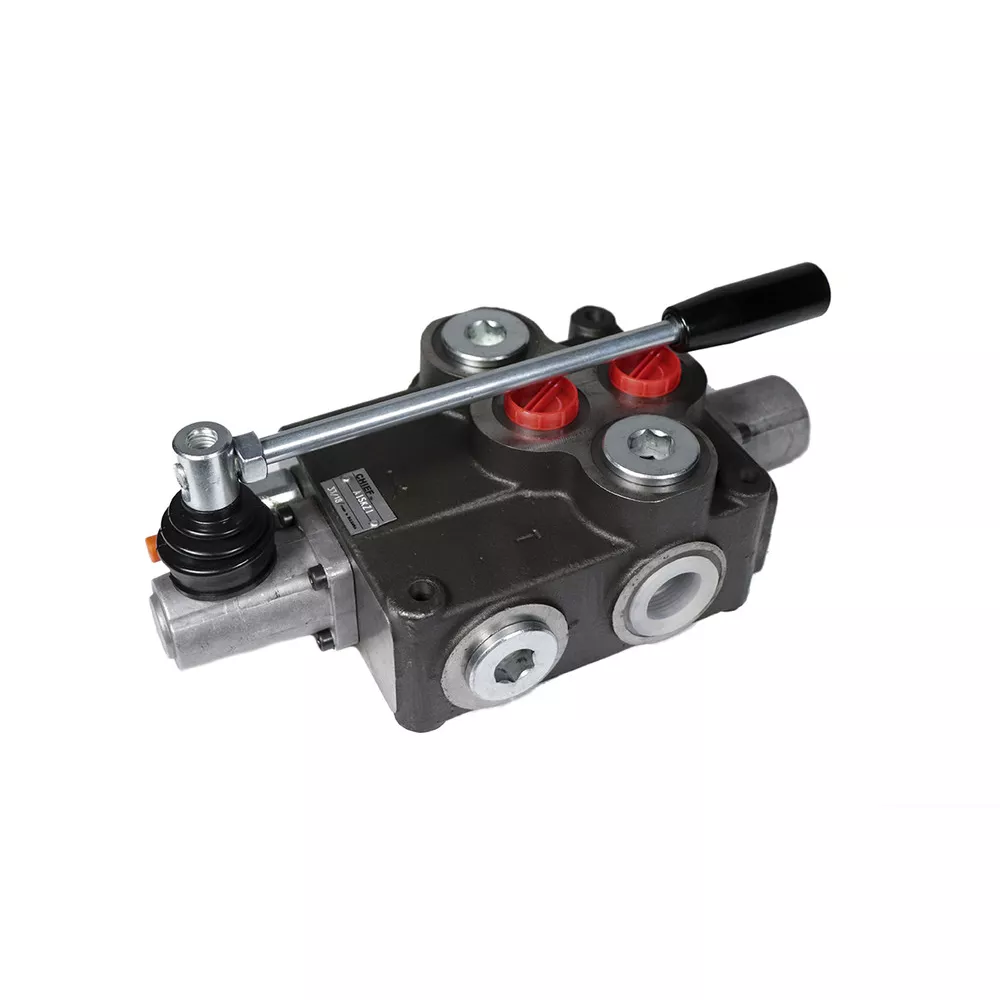

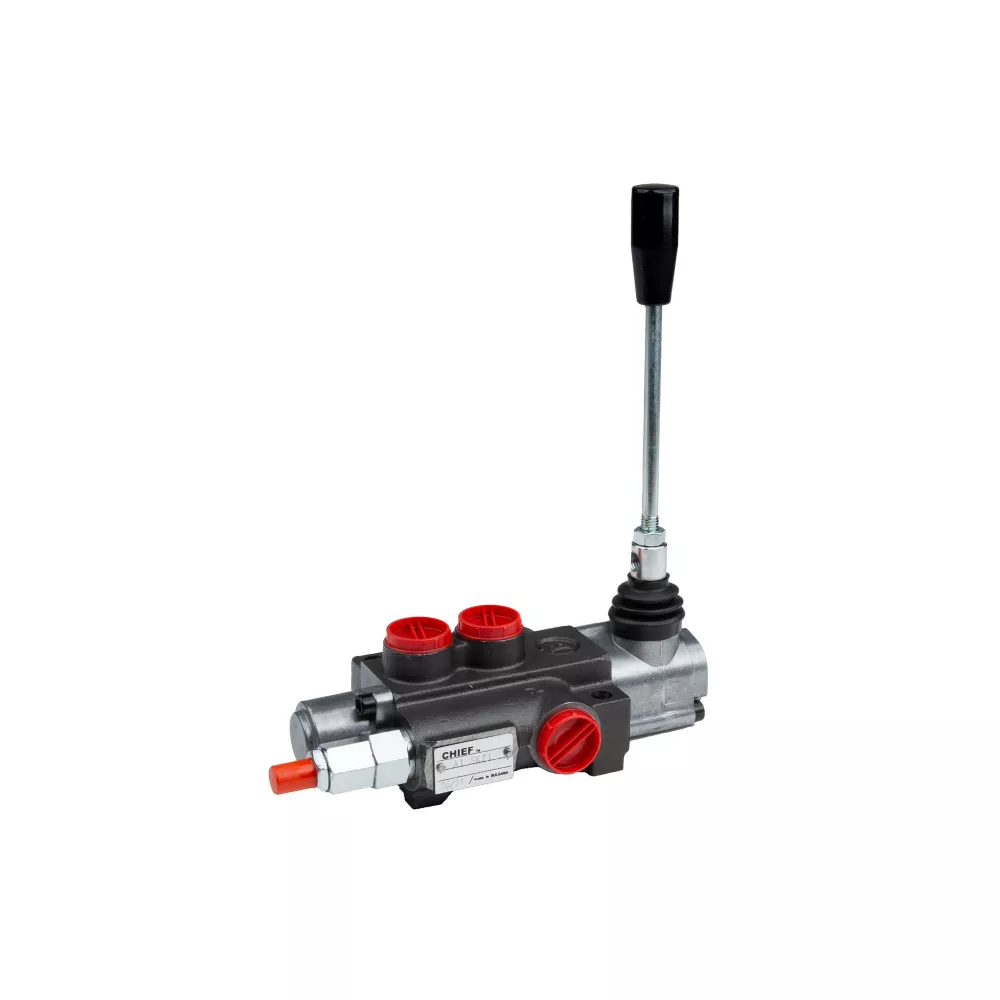

The Chief 3,625 PSI G Series Directional Control Valve is made of durable cast iron for lasting use. This hydraulic control valve features adjustable relief up to 3,625 PSI, and it has an anti-drop load check on each spool for safe operation. This Chief hydraulic directional control valve is equipped with a single spool. Create the perfect equipment setup with help from a Chief hydraulic valve today.

Directional control valve features cast iron construction for durability
Anti-drop load check on each spool for safe operation
This hydraulic control valve features adjustable relief up to 3,625 PSI
Complete handle assembly included with the hydraulic valve
Power beyond or closed center available
See accessories for power beyond plug or closed center conversion plug
This Chief hydraulic directional control valve is equipped with a single spool
European design with SAE 12 inlet, SAE 16 outlet, and SAE 12 work ports
Flow rate: 30 GPM
Valving: 4-way, 3-position tandem center
Action: 3-position spring center
Max. operating temperature of the directional control valve: 176 degrees F

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief 3 625 PSI G Series Directional Control Valve 30 GPM 1 Spool SAE 12 Inlet/SAE 16 Outlet Hydraulic Valves & Manifolds Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Valves & Manifolds

Specification	Description
Brand	Chief
Country of Origin	Imported
Brand Compatibility	Universal
Compatibility	Most applications
Inlet Size	SAE 16
Inlet Type	Female
Maximum Flow Rate	30 GPM
Maximum PSI	3,625 PSI
Model Compatibility	Most applications
Number Of Directional Control Positions	3
OEM Replacement	Control valve
Outlet Size	SAE 12
Outlet Type	N/A
Primary Material	Cast Iron
Product Height	N/A
Product Length	N/A
Product Weight	28.6 lb.
Product Width	N/A
Warranty	1 Year
Work Port Size	SAE 12
Work Port Type	Female
Manufacturer PartNumber	220929
