Chief Directional Control Valve G Series 3625 PSI with Joystick 21 GPM 2 Spools SAE Inlet 10/12 Outlets Hydraulic Valves & Manifolds

Chief Directional Control Valve G Series 3625 PSI with Joystick 21 GPM 2 Spools SAE Inlet 10/12 Outlets Hydraulic Valves & Manifolds Tractor Repair & Parts

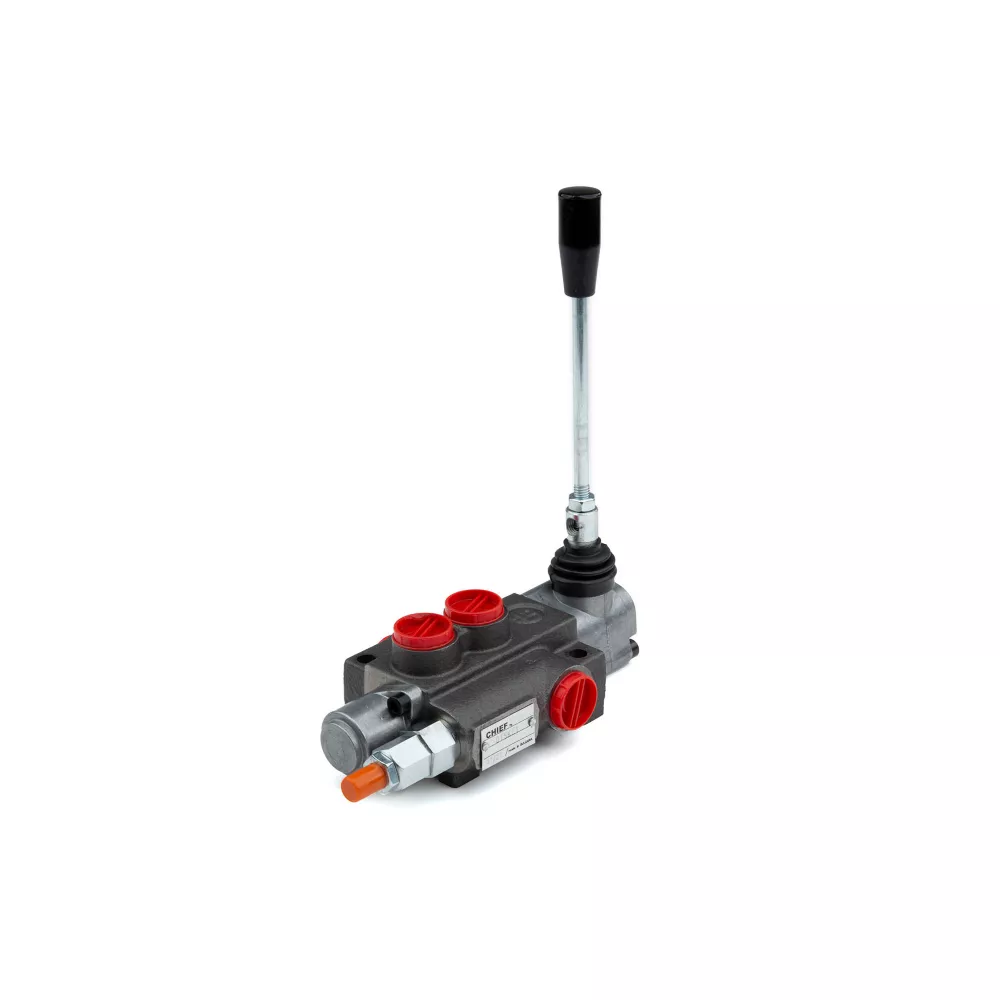

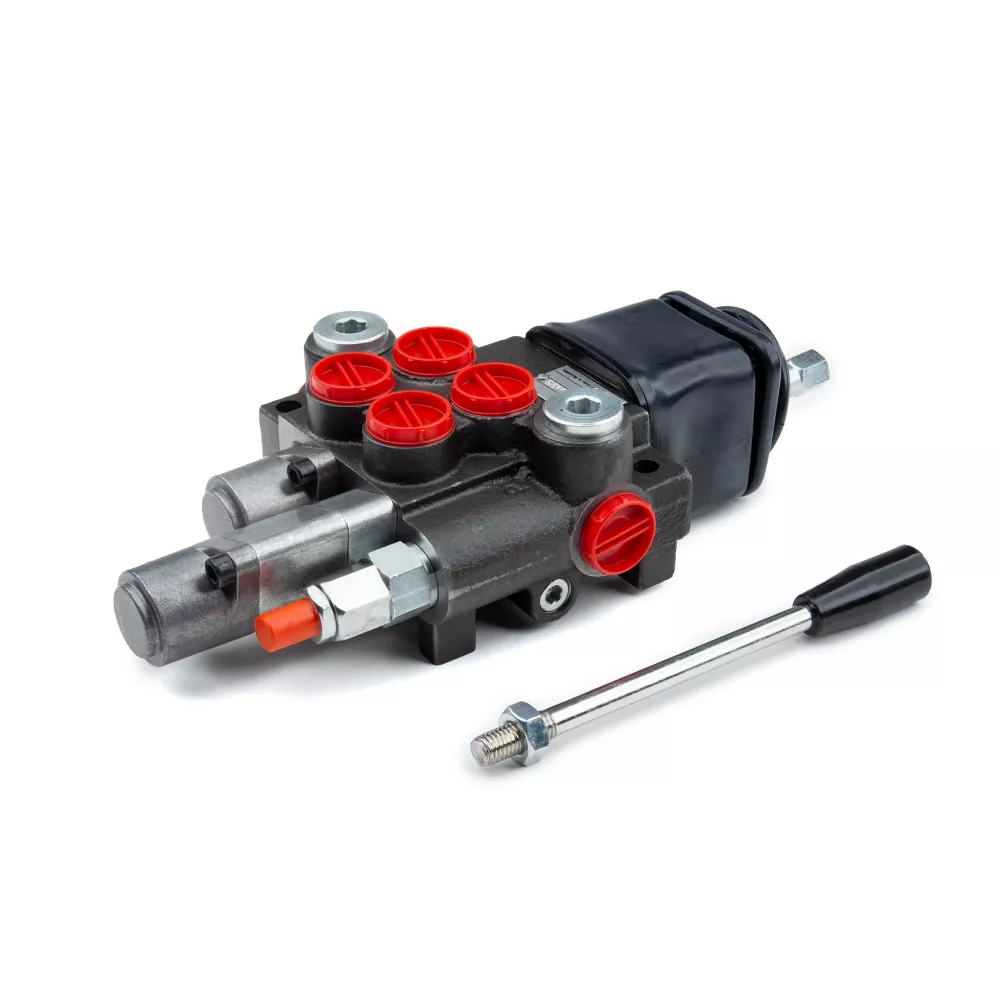

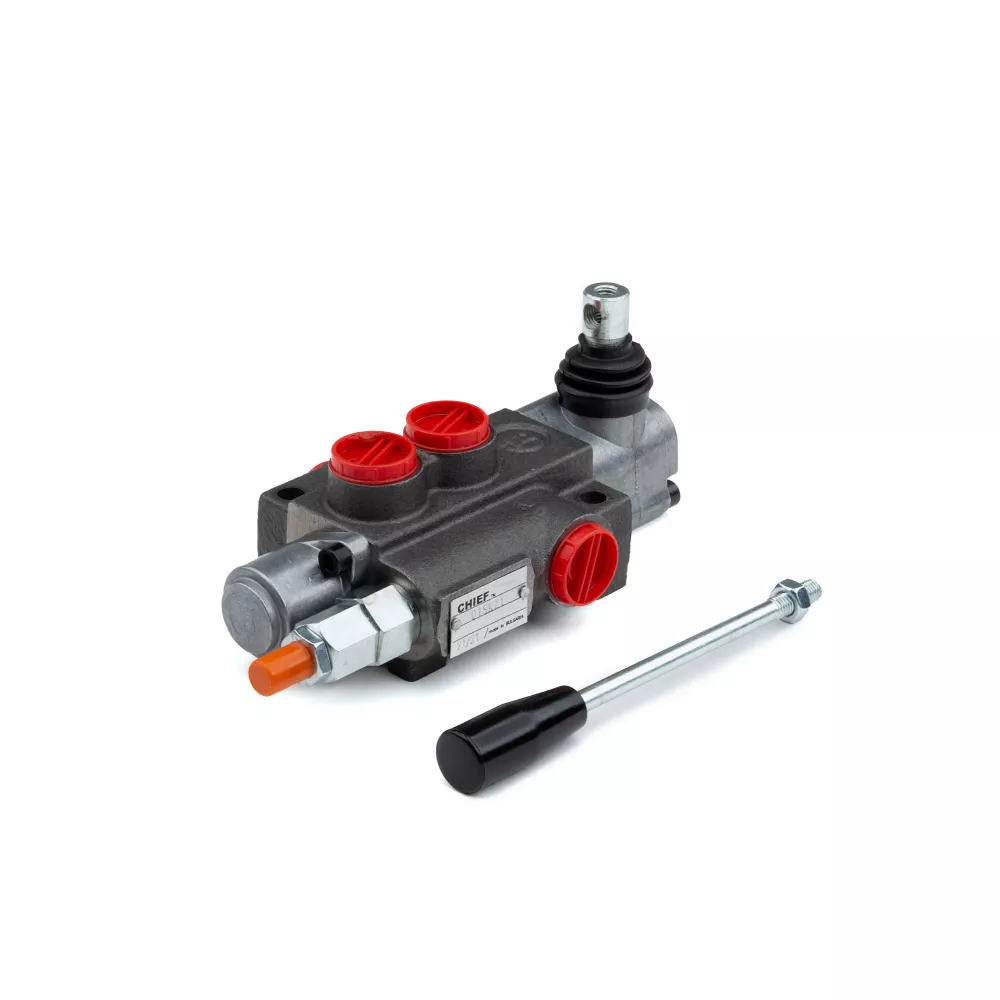

The Chief 3,625 PSI G Series Directional Control Valve with Joystick is made of durable cast iron for lasting use. This hydraulic control valve features adjustable relief up to 3,625 PSI, and it has an anti-drop load check on each spool for safe operation. This Chief hydraulic directional control valve is equipped with a joystick handle. Create the perfect equipment setup with help from a Chief hydraulic valve today.

• Directional control valve features cast iron construction for durability
• Anti-drop load check on each spool for safe operation
• This hydraulic control valve features adjustable relief up to 3,625 PSI
• Complete handle assembly included with the hydraulic valve
• Power beyond or closed center available
• See accessories for power beyond plug or closed center conversion plug
• This Chief hydraulic directional control valve is equipped with a joystick handle
• European design with SAE 10 inlet, SAE 12 outlet, and SAE 10 work ports
• Flow rate: 21 GPM
• Valving: 4-way, 3-position tandem center
• Action: 3-position spring center
• Max. operating temperature of the directional control valve: 176 degrees F

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief Directional Control Valve G Series 3625 PSI with Joystick 21 GPM 2 Spools SAE Inlet 10/12 Outlets Hydraulic Valves & Manifolds Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Valves & Manifolds

Specification	Description
Brand	Chief
Country of Origin	Imported
Brand Compatibility	Universal
Compatibility	Most applications
Inlet Size	SAE 10
Inlet Type	Male
Maximum Flow Rate	21 GPM
Maximum PSI	3,625 PSI
Model Compatibility	Most applications
Number Of Directional Control Positions	3
OEM Replacement	Control valve
Outlet Size	SAE 12
Outlet Type	N/A
Primary Material	Cast Iron
Product Height	N/A
Product Length	N/A
Product Weight	16.4 lb.
Product Width	N/A
Warranty	1 Year
Work Port Size	SAE 10
Manufacturer PartNumber	220905

Chief 3,625 PSI G Series Directional Control Valve with Joystick, 21 GPM, 2 Spool, SAE 10 Inlet/12 Outlet Specifications Expand/Collapse Specification Description Brand Main Country of Origin Imported Brand Compatibility Universal Compatibility Most Applications Inlet Size SAE 10 Inlet Type Male Maximum Flow 21 GPM Maximum PSI 3,625 PSI Model Compatibility Most Applications Number of Directional Control Positions 3 OEM Replacement Control Valve Outlet Size Outlet Type SAE 12 N/A Primary Material Cast Iron Product Height N/A Product Length N/A Product Weight 16.4 lbs Product Width Product N/A Warranty 1 Year Working Port Size SAE 10 Manufacturer Part Number 220905
