Chief WP Welded Cylinder 2 in Bore x 32 in Stroke with Eye Rod 1.25 in Rod Diameter 3000 PSI Hydraulic Cylinders Tractor Repair & Parts

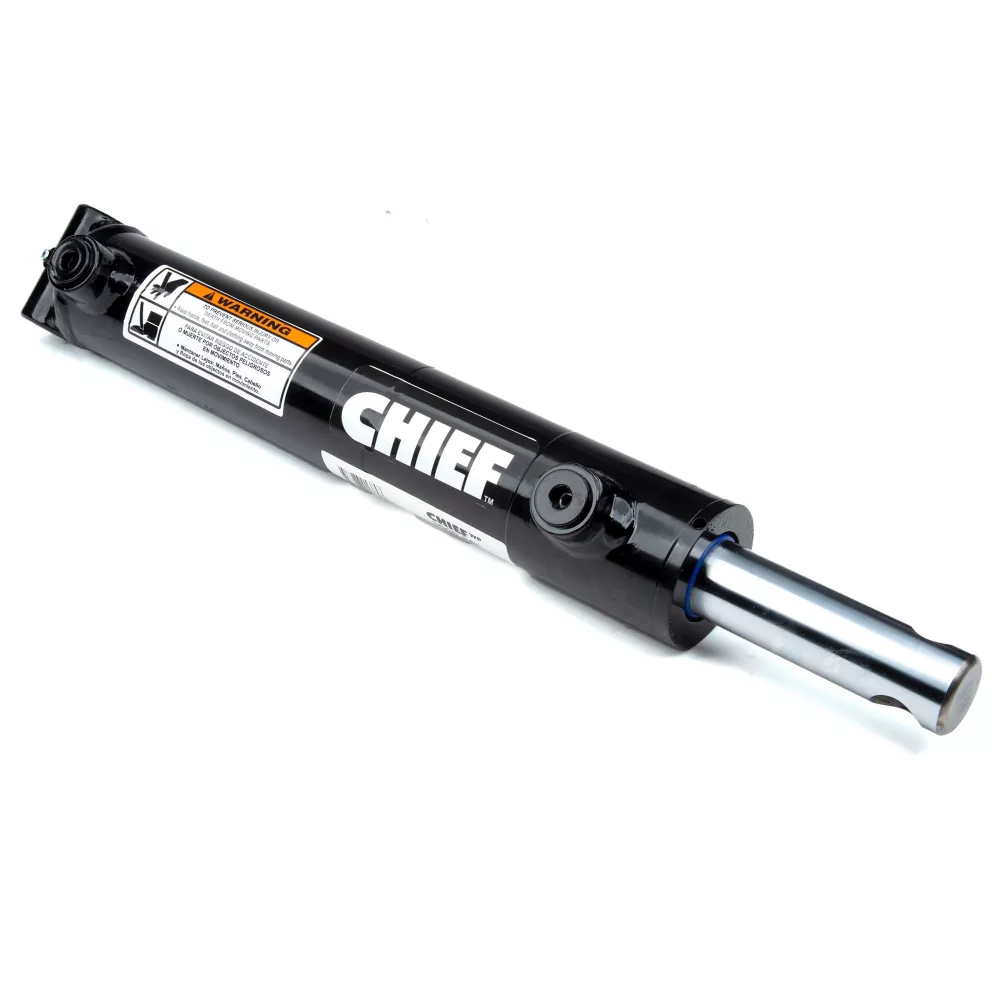

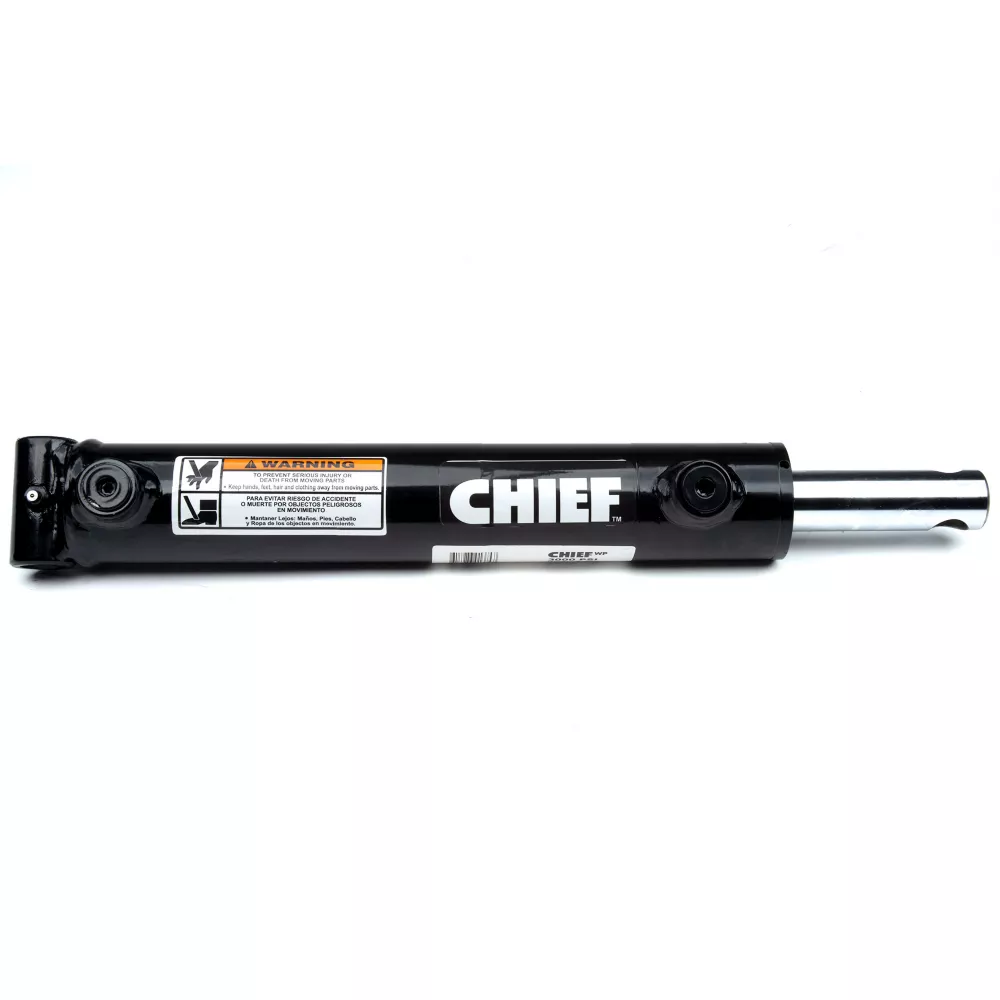

The Chief 2 in. Bore x 32 in. Stroke WP Welded Cylinder with Pin-Eye Rod is a very versatile welded hydraulic cylinder. The rod end comes with a drilled pin-hole and can easily be customized to fit your rod end of choice. Ideal for construction and agricultural applications as well as other industries like OEM manufacture of trailers, metal fabricating and waste/recycling equipment, you can trust this hydraulic cylinder. SAE 8 O-ring ports means easy hookup, and the cylinder comes functionally tested and pressurized to 1.5 times the normal working pressure to insure performance reliability.

Welded hydraulic cylinder ideal for construction and agricultural applications as well as other industries like OEM manufacture of trailers, metal fabricating and waste/recycling equipment
SAE 8 O-ring ports for easy hookup
For use in double acting hydraulic cylinder or single acting hydraulic cylinder applications
All seals are manufactured to US specifications
3-year limited warranty
Piston: ductile iron with wear ring
Gland: ductile iron, screw-in design with wear ring
Tube: precision honed steel
Rod: hard chrome plated

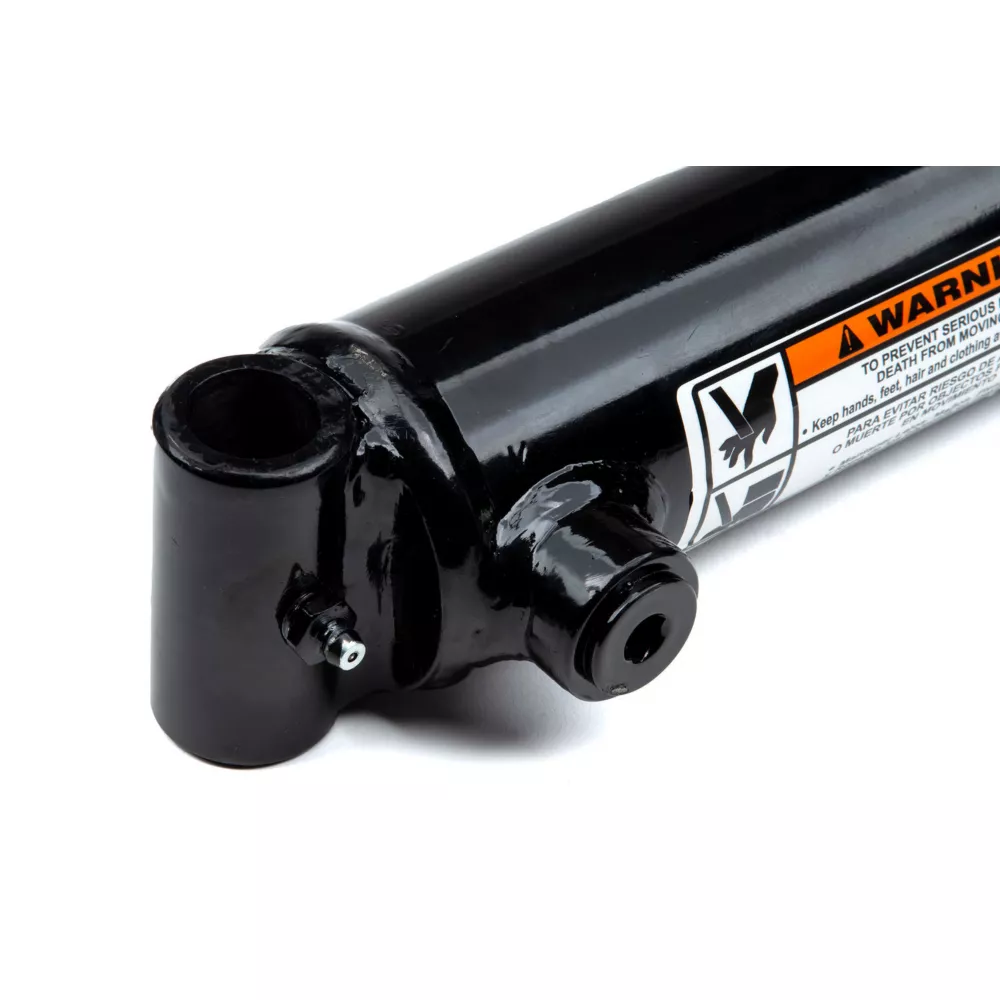

Base end mount: steel cross-tube with grease zerk
Tube seal: Buna O-ring with Polytemp hytrel backup
Rod wiper: Urethane, snap-in
Piston seal: Hallite 755 provides prolonged wear resistance with wear ring
Individually poly bagged for ease of transport
3,000 PSI operating range
Measures 40 in. retracted and 72 in. extended
Column load: 4,990 lb.
Rod seal: deep polypak with B lip design
Pin diameter of 0.75 in. and rod diameter of 1.25 in.
Rod end mount: rod eye drilled

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief WP Welded Cylinder 2 in Bore x 32 in Stroke with Eye Rod 1.25 in Rod Diameter 3000 PSI Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Imported
Bore Diameter	2 in.
Brand Compatibility	Universal
Compatibility	Varies
Extended Length	72 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	4,990 lb.
Model Compatibility	Most applications
Package Quantity	1
Pin Diameter	0-3/4 in.
Port Size	SAE 8
Primary Material	Steel
Product Height	2.5 in.
Product Length	8 in.
Product Weight	29.76 lb.
Product Width	1.25 in.
Retracted Length	40 in.
Rod Diameter	1-1/4 in.
Stroke Distance	32 in.
Warranty	3 Year
Manufacturer PartNumber	287218
