Chief WT Welded Cylinder 4 in Bore x 24 in Stroke 2 in Rod Diameter Hydraulic Cylinders Tractor Repair & Parts

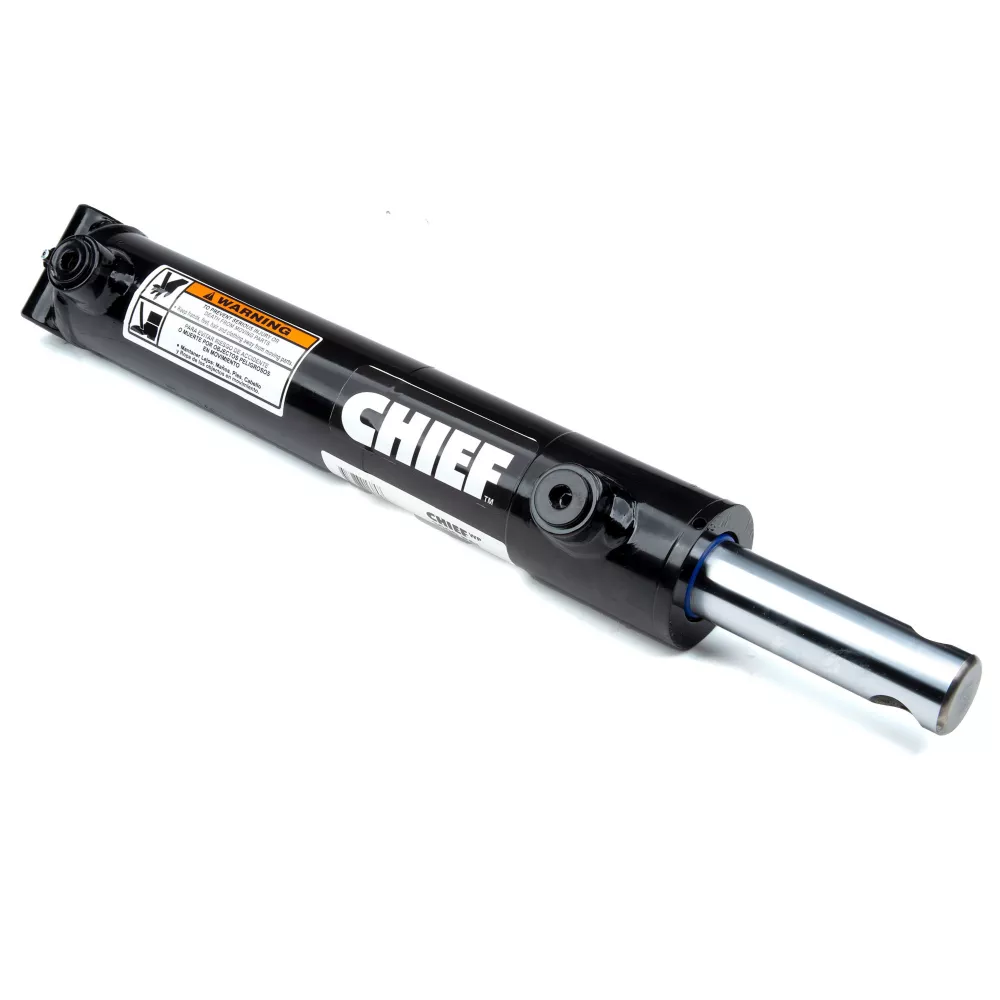

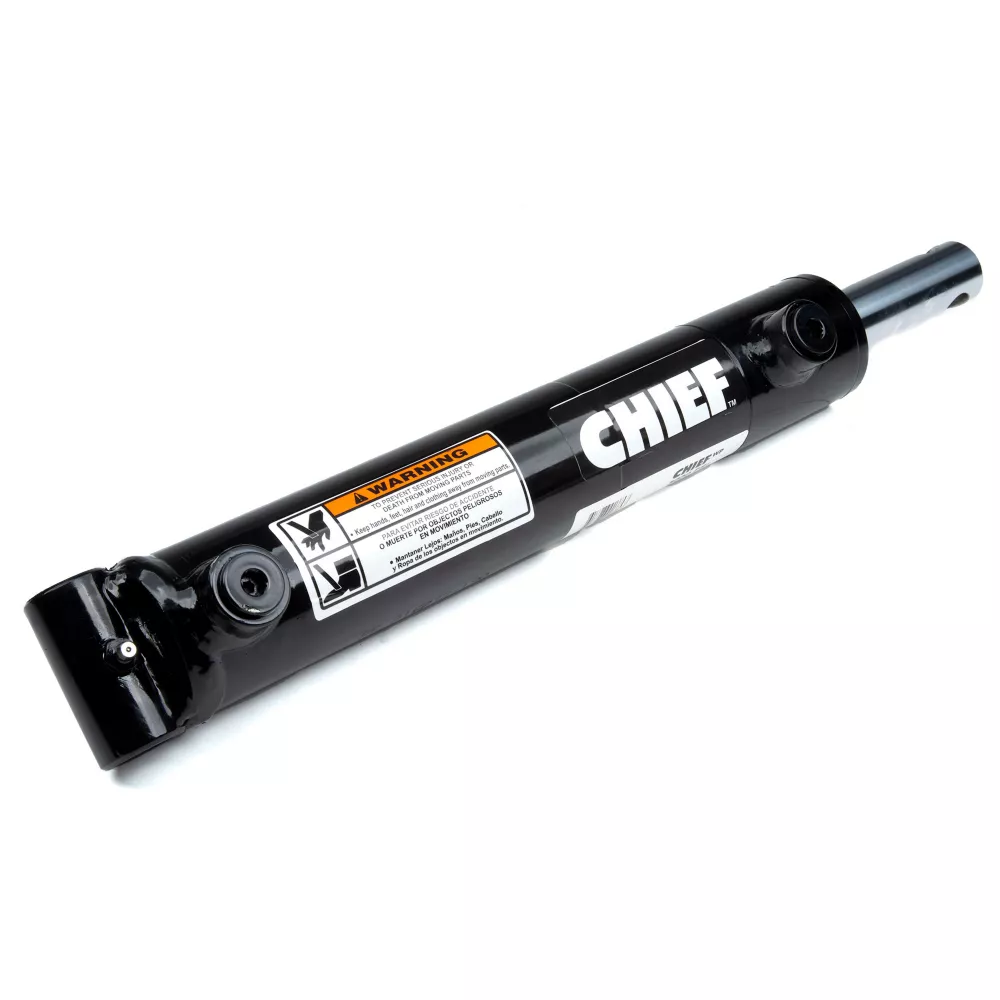

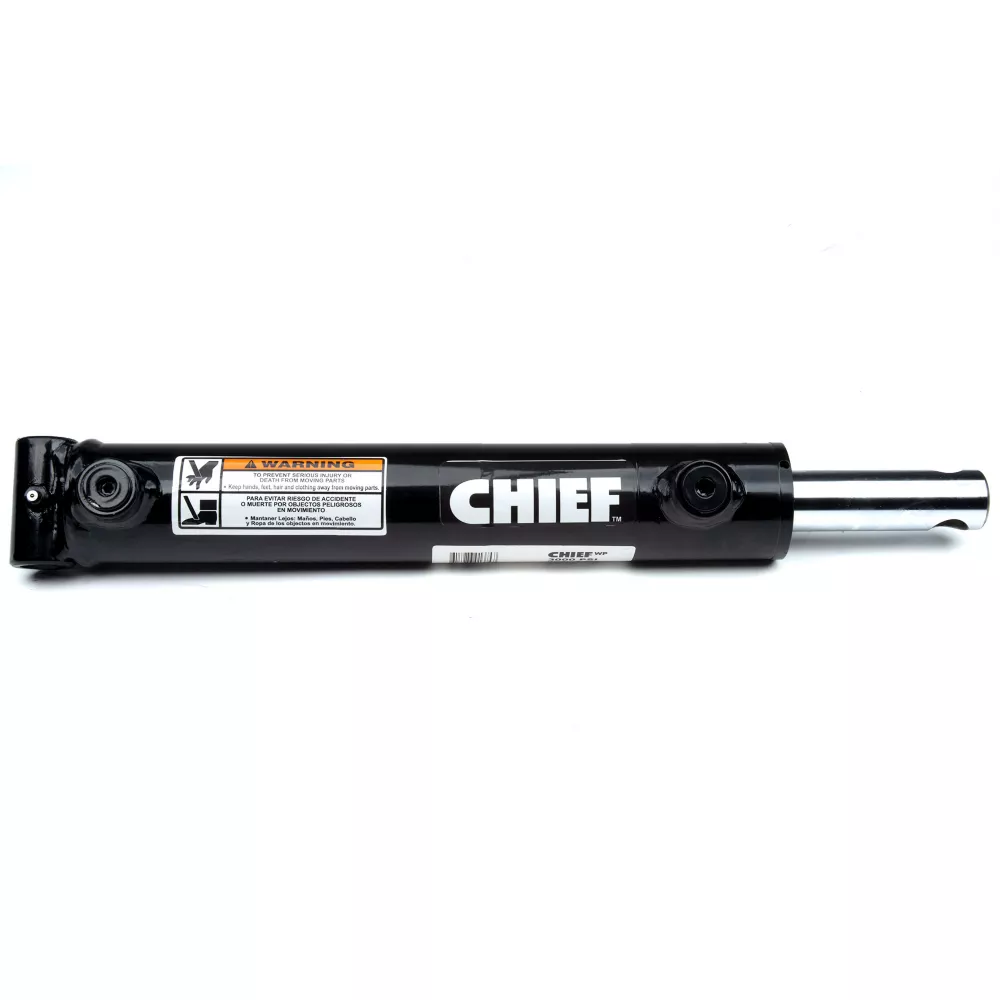

The Chief 4 in. Bore x 24 in. Stroke WT Welded Cylinder is a high-quality welded hydraulic cylinder designed for heavier loads. The rod and base ends are welded cross-tubes with grease zerks. Designed for performance, the hydraulic cylinder has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction.

Welded hydraulic cylinder is intended to be used in double-acting applications
Piston: ductile iron with wear ring(s)
Gland: ductile iron, screw-in design with wear ring
Tube: precision-honed steel
Rod: ground and polished chromed steel, minimum 75,000 PSI yield
Butt plate: steel
End mounts: steel cross-tubes with grease zerk
Spacer tube: steel on 48 in. stroke and above
Gland seal: polyurethane U-cup
Wiper: polyurethane
Piston seal: 755 Hallite with wear ring(s)
All other seals are selected and designed for maximum life
Measures 33 in. retracted and 57 in. extended
Column load: 37,690 lb.
Pin diameter of 1.25 in. and rod diameter of 2 in.
3 year limited warranty included with hydraulic cylinder

Chief WT Welded Cylinder 4 in Bore x 24 in Stroke 2 in Rod Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Imported
Bore Diameter	4 in.
Brand Compatibility	Universal
Compatibility	Varies
Extended Length	24 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	37,690 lb.
Model Compatibility	Most applications
Package Quantity	1
Pin Diameter	1-1/4 in.
Port Size	SAE 8
Primary Material	Steel
Product Height	4.625 in.
Product Length	9 in.
Product Weight	70 lb.
Product Width	2 in.
Retracted Length	33 in.
Rod Diameter	2-1/4 in.
Single/Double Acting	Double acting
Stroke Distance	24 in.
Warranty	3 Year
Manufacturer PartNumber	287300

Chief 4 in. Bore x 24 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter Specifications expand/collapse Specification Description Brand Primary Country of Origin Imported Bore Diameter 4 in. Brand Compatibility Universal Compatibility Varies Extended Length 24 in. Hydraulic Cylinder Type Welded Maximum Operating Pressure 3,000 PSI Maximum Weight Capacity 37,690 lbs. Model Compatibility Most Applications Package Quantity 1 Pin Diameter 1-1/4 in. Port Size SAE 8 Primary Material Steel Product Height 4.625 in. Product length 9 in. Product weight 70 lbs. Product width 2 in. Retracted length 33 in. Shank diameter 2-1/4 in. Single/Double acting Double acting Stroke distance 24 in. 3 year warranty Manufacturer part number 287300
