Chief WTG Welded Rod Cylinder 3 in Bore x 16 in Stroke 1.5 in Rod Diameter Hydraulic Cylinders Tractor Repair & Parts

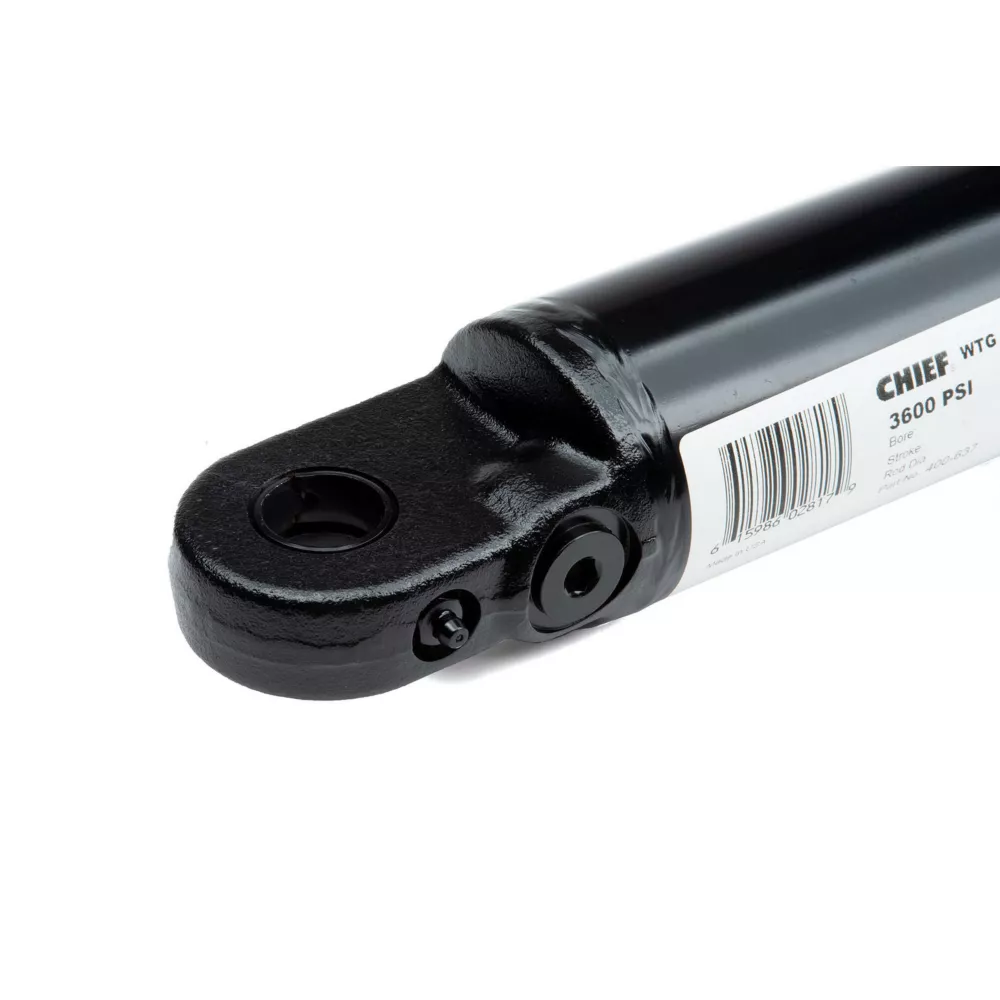

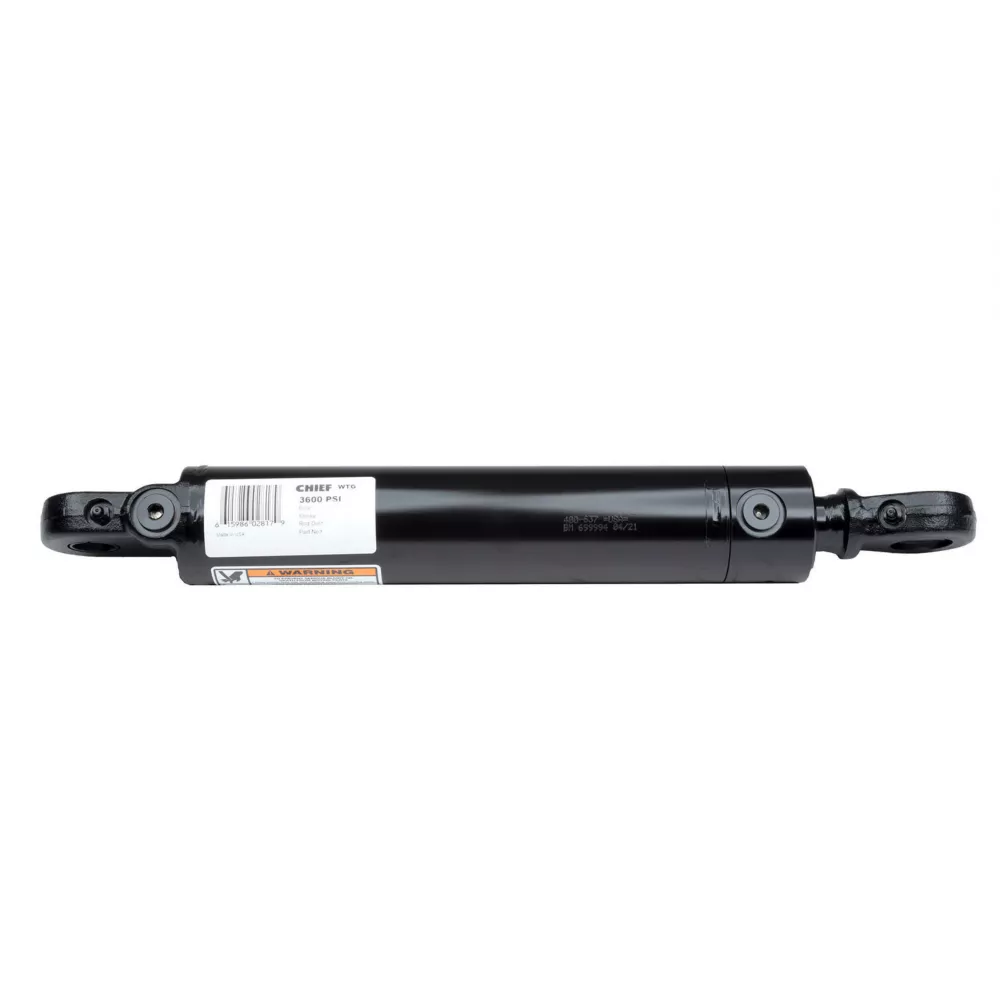

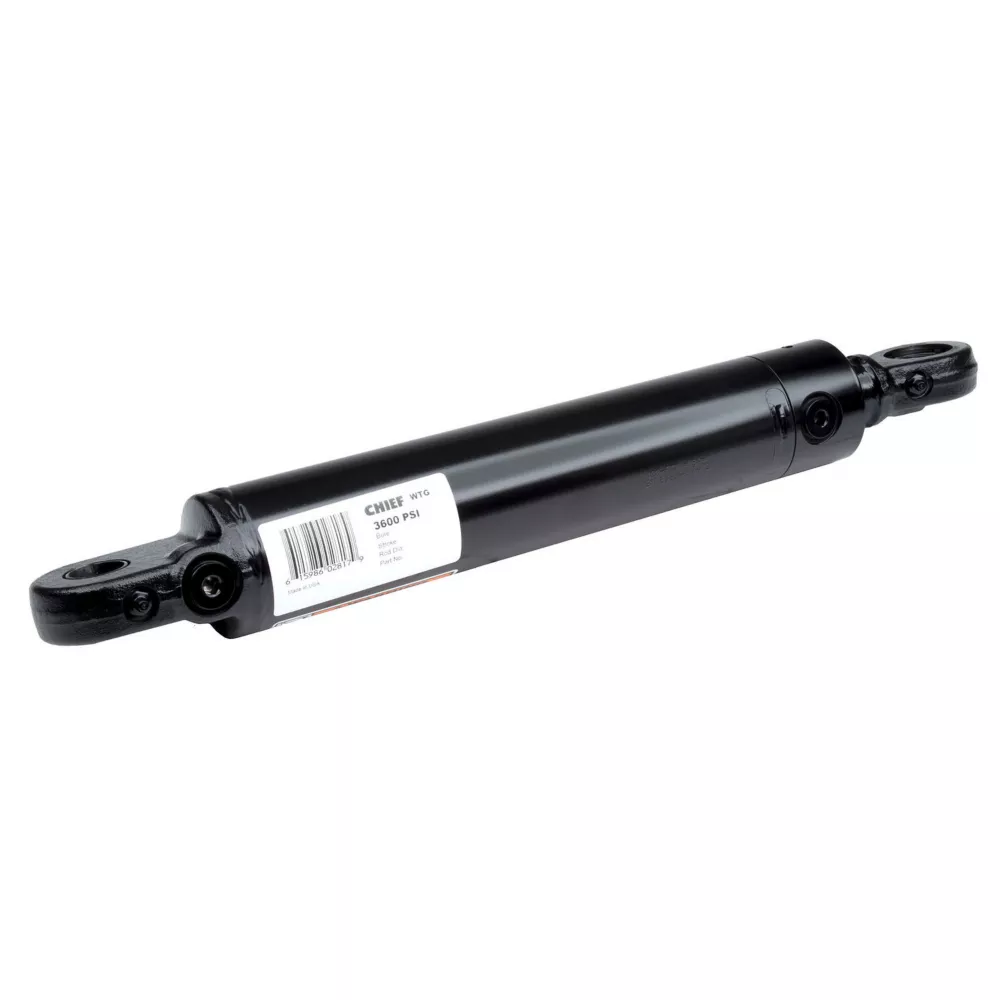

The Chief 3 in. Bore x 16 in. Stroke WTG Welded Tang Cylinder is sometimes referred to as a lug end cylinder, due to its 1 pc. lug mount welded to both the rod and base ends. This welded cylinder can utilize a spherical ball or steel bushing insert to improve wear life. A hydraulic cylinder like this one will be most commonly used in heavy-duty construction equipment.

Intended for use as a double acting hydraulic cylinder
Piston: ductile iron, thread-on with wear ring
Gland: keyed joint, ductile iron
Tube made from durable precision-honed steel
Rod is induction-hardened and hard chrome-plated to resist corrosion

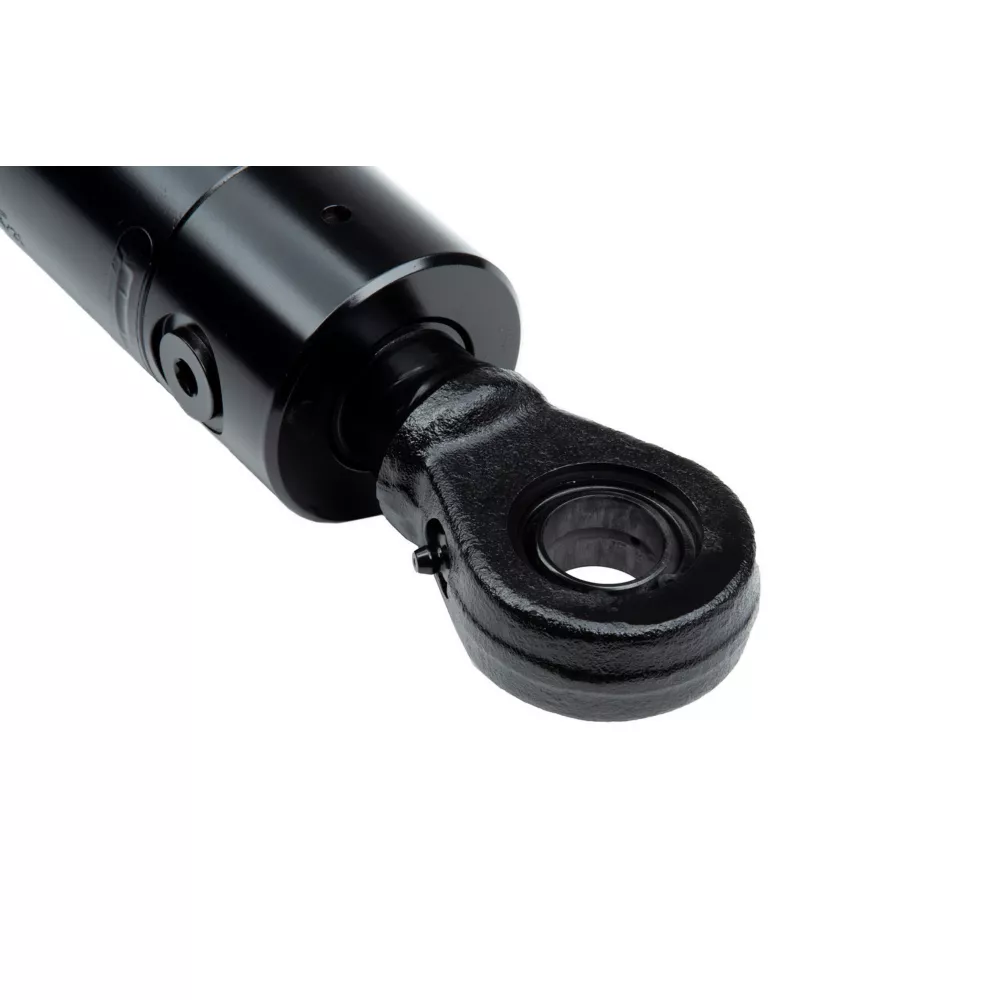

Rod end mount: cast 1045 steel, welded-on
Spherical bearing with retaining ring for efficiency
1/8 NPT grease zerk
Base end mount: cast 1045 steel, hardened spring steel bushing, 1/8 NPT grease zerk
Tube seal: Buna O-ring with polytemp hytrel backup
Rod seal: deep polypak with B-lip design
Rod wiper: urethane, snap-in
Piston seals: Hallite 755 for prolonged wear resistance, with wear ring
All seals are manufactured to U.S. specifications
Ports: SAE O-ring
Paint: black; custom colors are available
3,600 PSI pressure rating
Forged steel tang mountings with integral heavy-duty bushings for durability
360 degree rotating gland for versatility
Welded hydraulic cylinder is functionally tested and pressurized to 5,000 PSI to ensure performance reliability
3-year limited warranty
Measures 26 in. retracted and 42 in. extended
Column load: 25,440 lb.
Pin diameter of 1 in. and rod diameter of 1.5 in.

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief WTG Welded Rod Cylinder 3 in Bore x 16 in Stroke 1.5 in Rod Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Made in USA
Bore Diameter	3 in.
Brand Compatibility	Universal
Compatibility	Varies
Extended Length	42 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,600 PSI
Maximum Weight Capacity	25,440 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	1 in.
Port Size	SAE 8
Primary Material	Steel
Product Height	1.2 in.
Product Length	10 in.
Product Weight	33 lb.
Product Width	1.3 in.
Retracted Length	26 in.
Rod Diameter	1-1/2 in.
Single/Double Acting	Single acting, Double acting
Stroke Distance	16 in.
Warranty	3 Year
Manufacturer PartNumber	400662

Chief 3 in. Bore x 16 in. Stroke WTG Welded Tang Cylinder, 1.5 in. Rod Diameter Specifications expand/collapse Specification Description Brand Primary Country of Origin Made in USA Bore Diameter 3 in. Brand Compatibility Universal Compatibility Varies Extended Length 42 in. Hydraulic Cylinder Type Welded Maximum Operating Pressure 3,600 PSI Maximum Weight Capacity 25,440 lbs. Model Compatibility Universal Package Quantity 1 Pin Diameter 1 in. Port Size SAE 8 Primary Material Steel Product Height 1.2 in. Product length 10 in. Product weight 33 lbs. Product width 1.3 in. Retracted length 26 in. Shank diameter 1-1/2 in. Single/double acting Single acting, double acting Stroke distance 16 in. 3 year warranty Manufacturer part number 400662
