Chief WTG Welded Rod Hydraulic Cylinder 4 in Bore x 36 in Stroke 2 in Rod Diameter Hydraulic Cylinders Tractor Repair & Parts

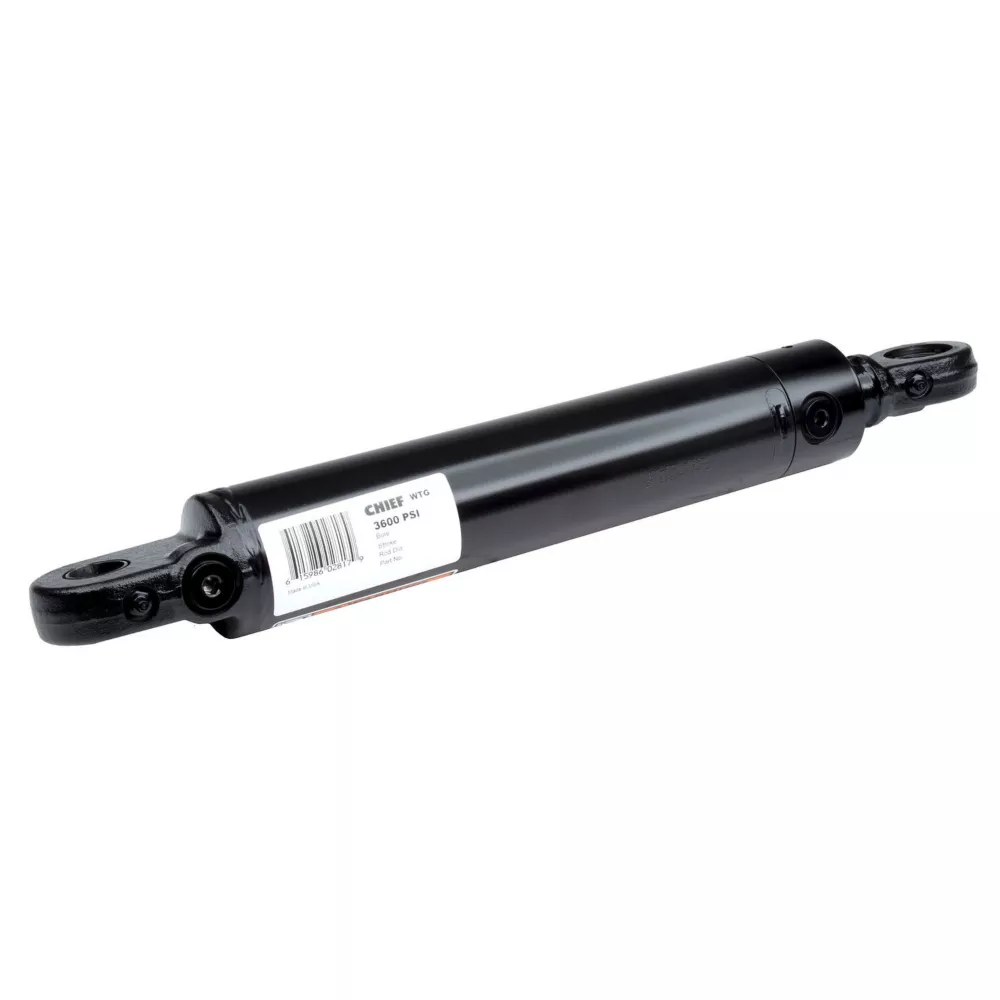

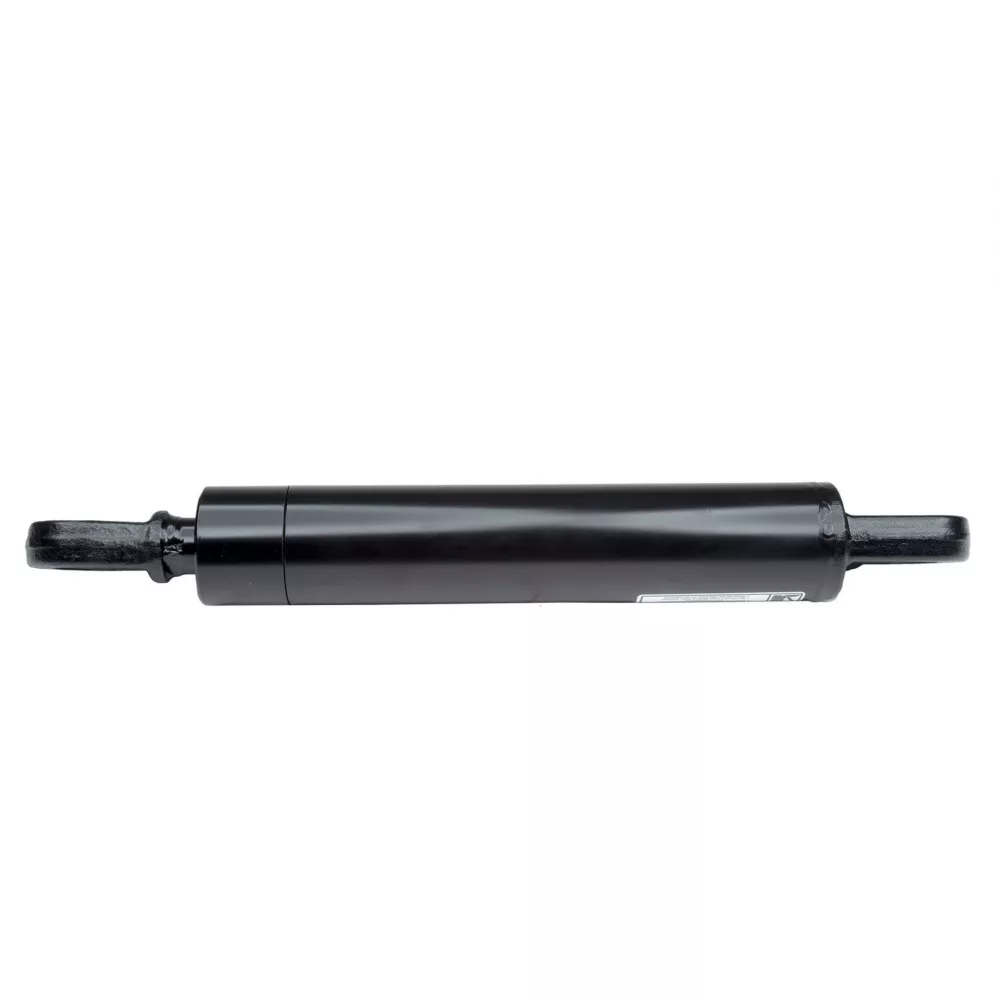

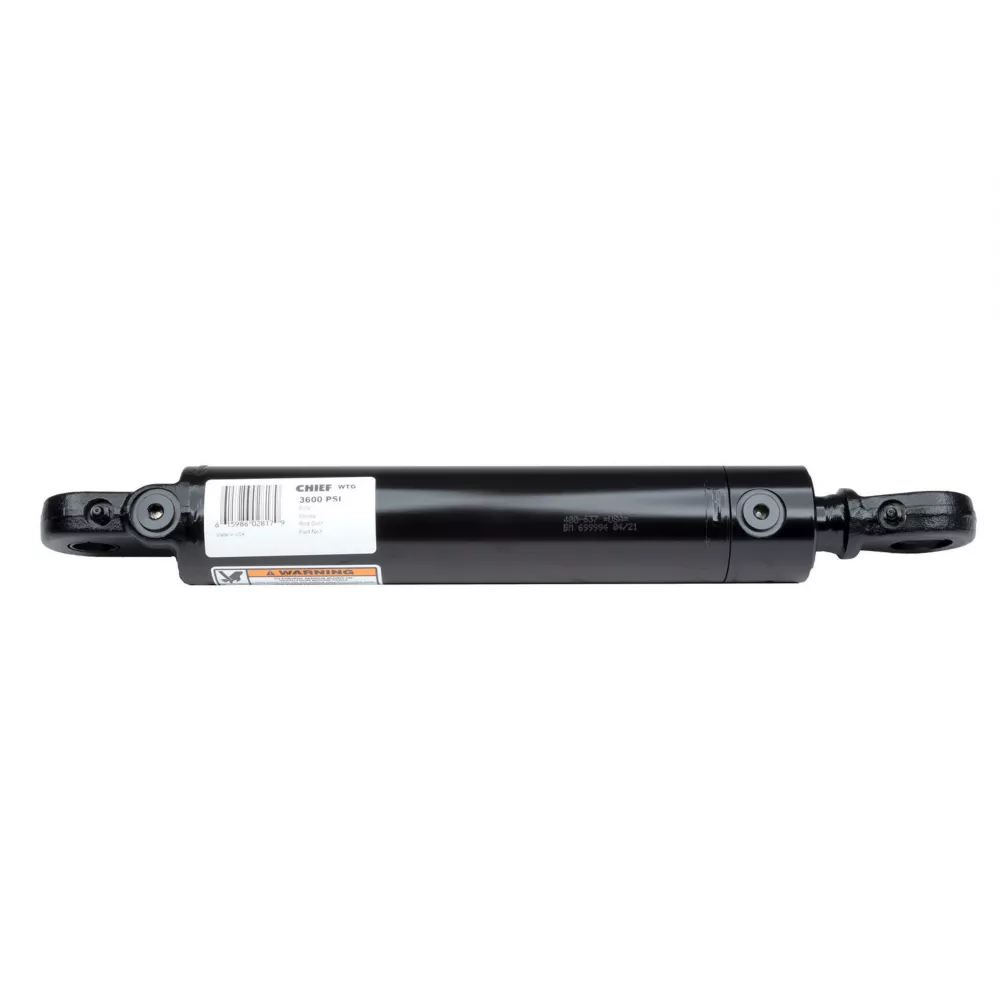

The Chief 4 in. Bore x 36 in. Stroke WTG Welded Tang Hydraulic Cylinder is sometimes referred to as a lug end cylinder, due to its 1-piece lug mount welded to both the rod and base ends. This welded cylinder can utilize a spherical ball or steel bushing insert to improve wear life. A hydraulic cylinder like this one will be most commonly used in heavy-duty construction equipment.

Intended for use as a double acting hydraulic cylinder
Piston: ductile iron, thread-on with wear ring
Gland: keyed joint, ductile iron
Tube made from durable precision-honed steel
Rod is induction-hardened and hard chrome-plated for corrosion resistance

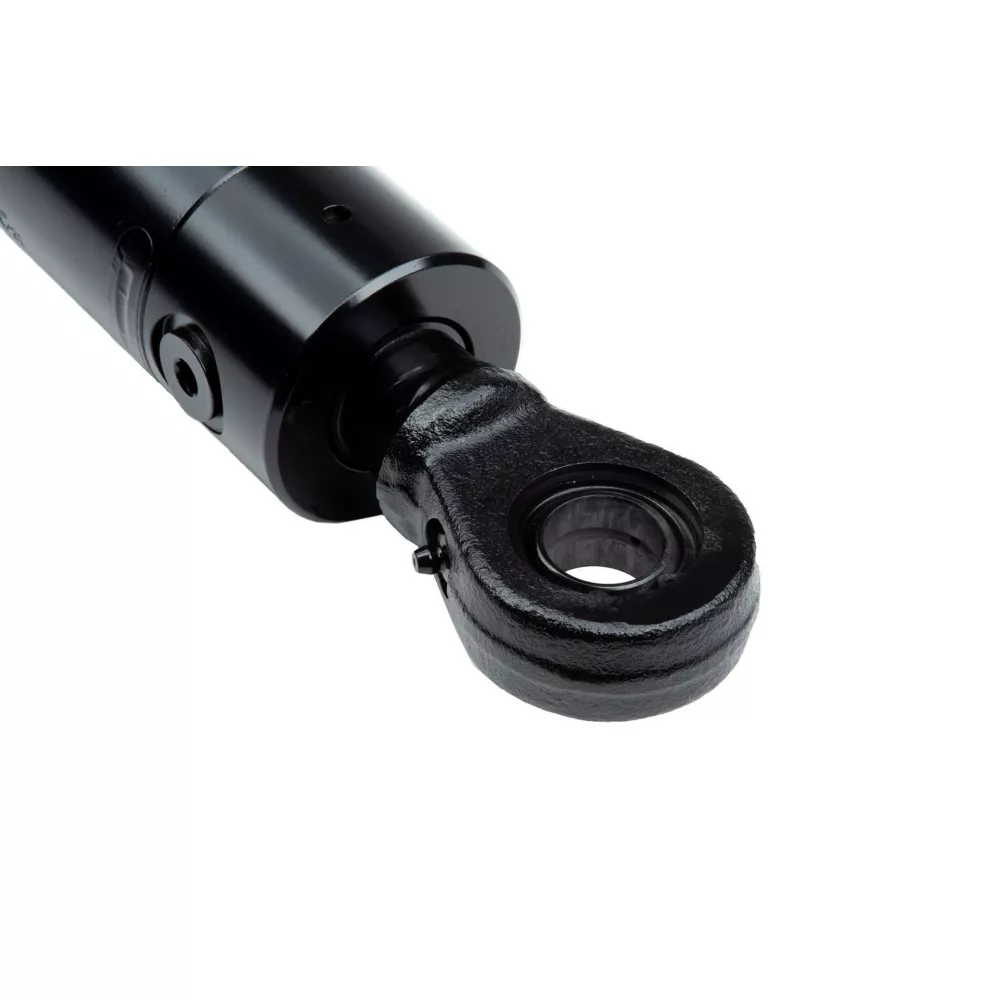

Rod end mount: cast 1045 steel, welded-on
Spherical bearing with retaining ring
1/8 NPT grease zerk

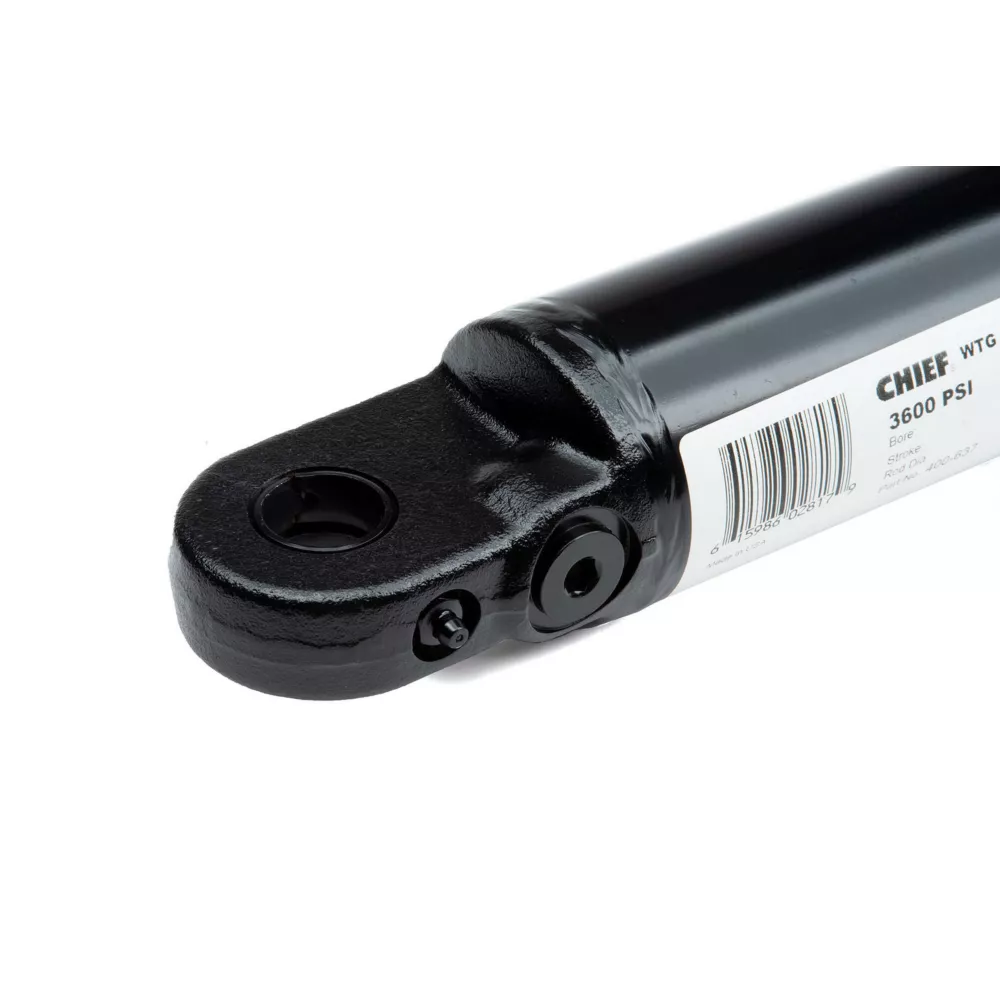

Base end mount: cast 1045 steel, hardened spring steel bushing, 1/8 NPT grease zerk
Tube seal: Buna O-ring with polytemp hytrel backup
Rod seal: deep polypak with B-lip design
Rod wiper: urethane, snap-in
Piston seals: Hallite 755 for prolonged wear resistance, with wear ring
All seals are manufactured to U.S. specifications
Ports: SAE O-ring
Paint: black; custom colors are available
3,600 PSI pressure rating
Forged steel tang mountings with integral heavy-duty bushings
360 degree rotating gland for versatility
Welded hydraulic cylinder is functionally tested and pressurized to 5,000 PSI to ensure performance reliability
3-year limited warranty
Measures 47 in. retracted and 83 in. extended
Column load: 26,100 lb.
Pin diameter of 1 in. and rod diameter of 1.25 in.

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief WTG Welded Rod Hydraulic Cylinder 4 in Bore x 36 in Stroke 2 in Rod Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Made in USA
Bore Diameter	4 in.
Brand Compatibility	Universal
Compatibility	Varies
Extended Length	83 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,600 PSI
Maximum Weight Capacity	26,100 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	1-1/4 in.
Port Size	SAE 8
Primary Material	Steel
Product Height	1.2 in.
Product Length	10 in.
Product Weight	99 lb.
Product Width	1.3 in.
Retracted Length	47 in.
Rod Diameter	2 in.
Single/Double Acting	Double acting
Stroke Distance	36 in.
Warranty	3 Year
Manufacturer PartNumber	400711
