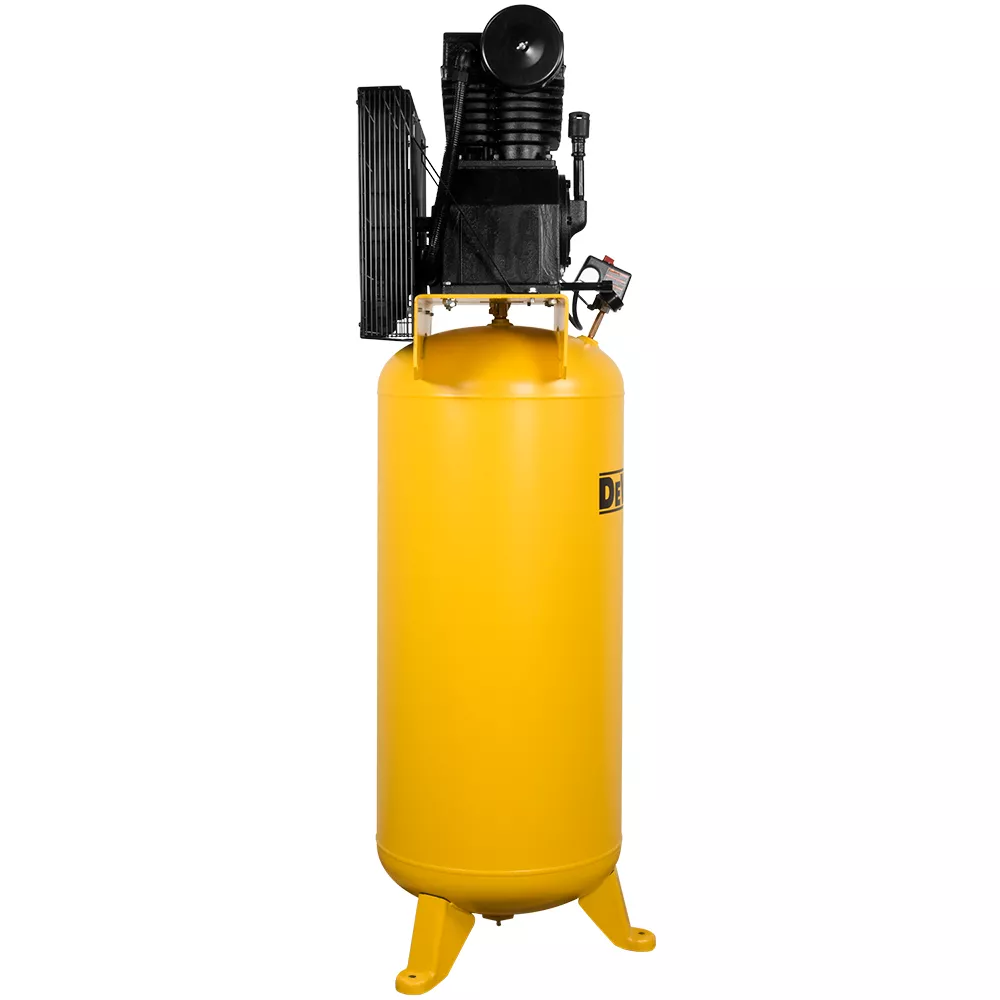

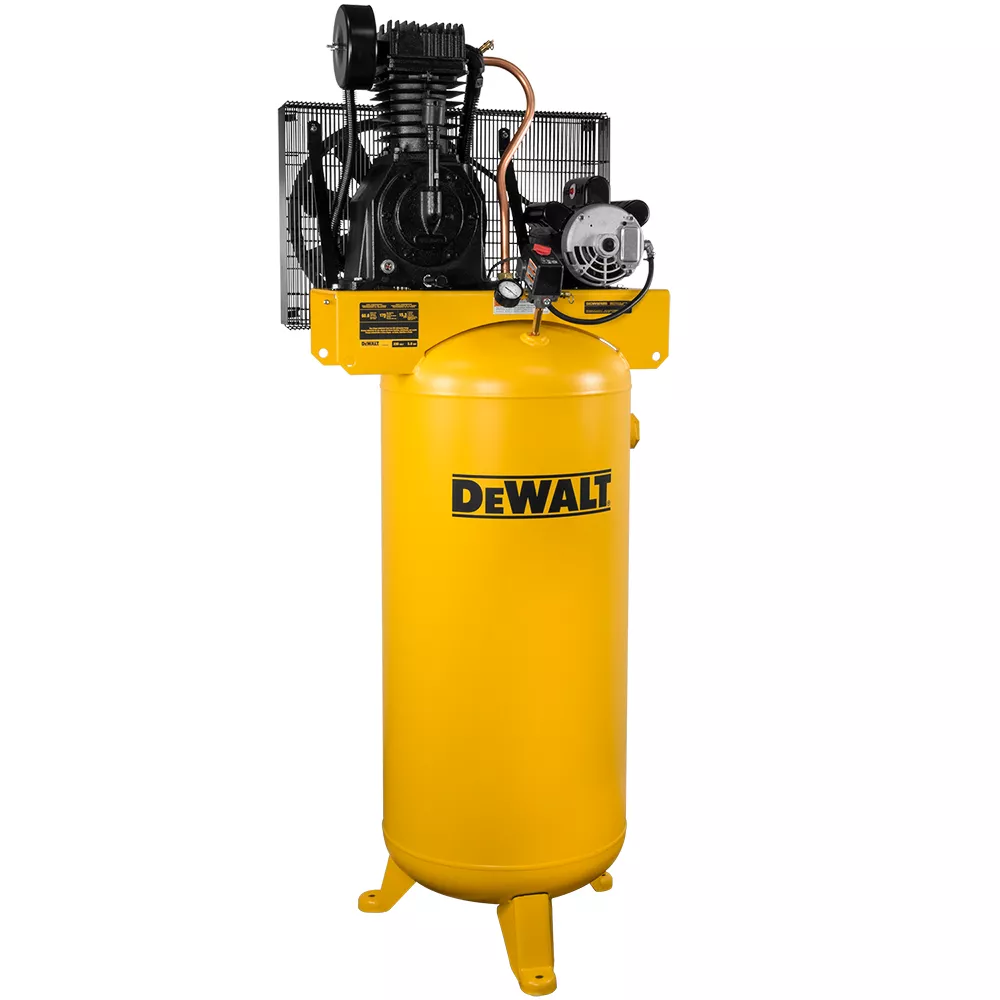

DeWALT 5 HP 60 gal 2-Stage Stationary Air Compressor 175 PSI Stationary Air Compressors Air Compressors

The DeWALT 5 Hp 2 Stage 60 gal. Stationary Air Compressor was designed for the heavy-duty professional user. This two stage oil-lube industrial air compressor features a heavyweight 5 HP motor featuring the Thermal Overload Protection system to protect it from voltage fluctuations. Along with the patented pump and piston design providing a cooler running machine while maintaining consistent compression efficiency, the compressor has 175 maximum PSI to operate a variety of tools and maintain longer run times. The air compressor also features patented deep-grove directional, asymmetrical cooling fins and a patented cast-iron flywheel design with large extended fins for improved cooling. Low 767 pump RPM provides for a longer pump life.

Industrial performance of the air compressor delivers maximum CFM at 175 PSI, which provides enough power to operate more than one air tool or device at one time

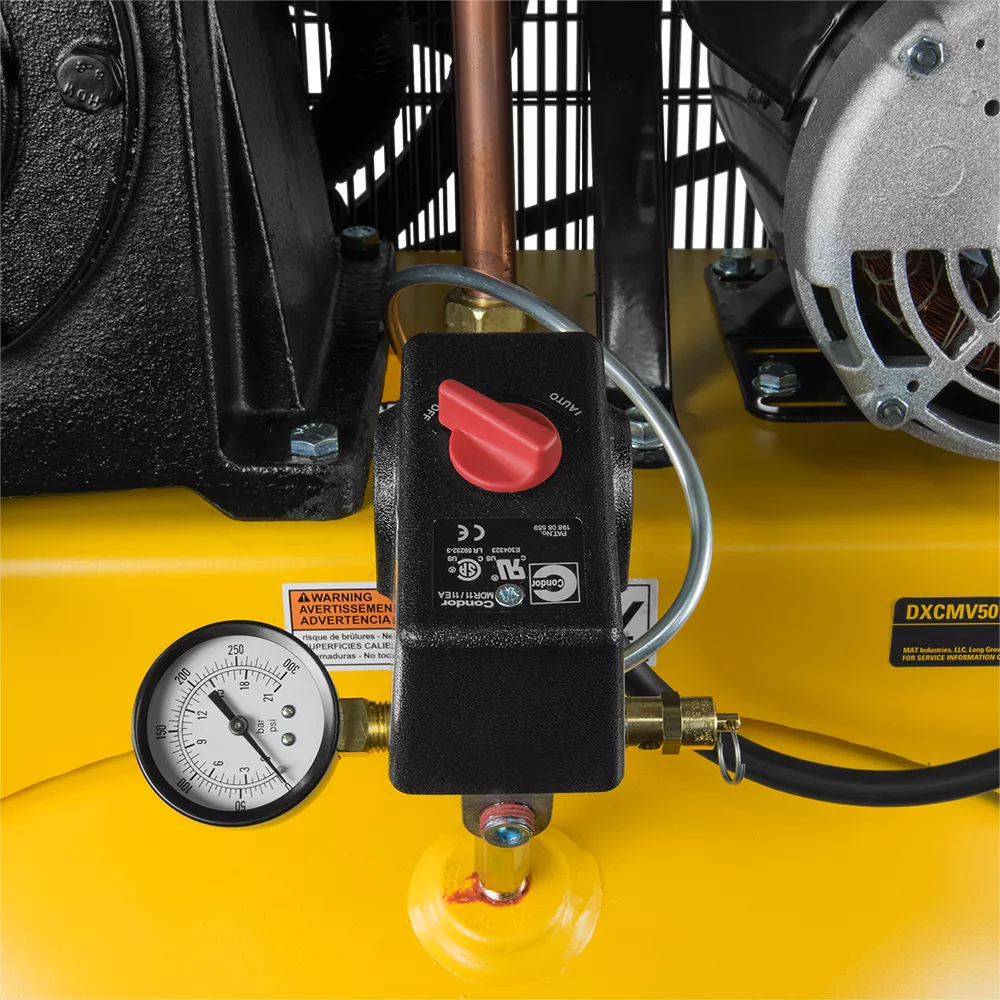

Equipped with tank pressure gauge and on/off switch

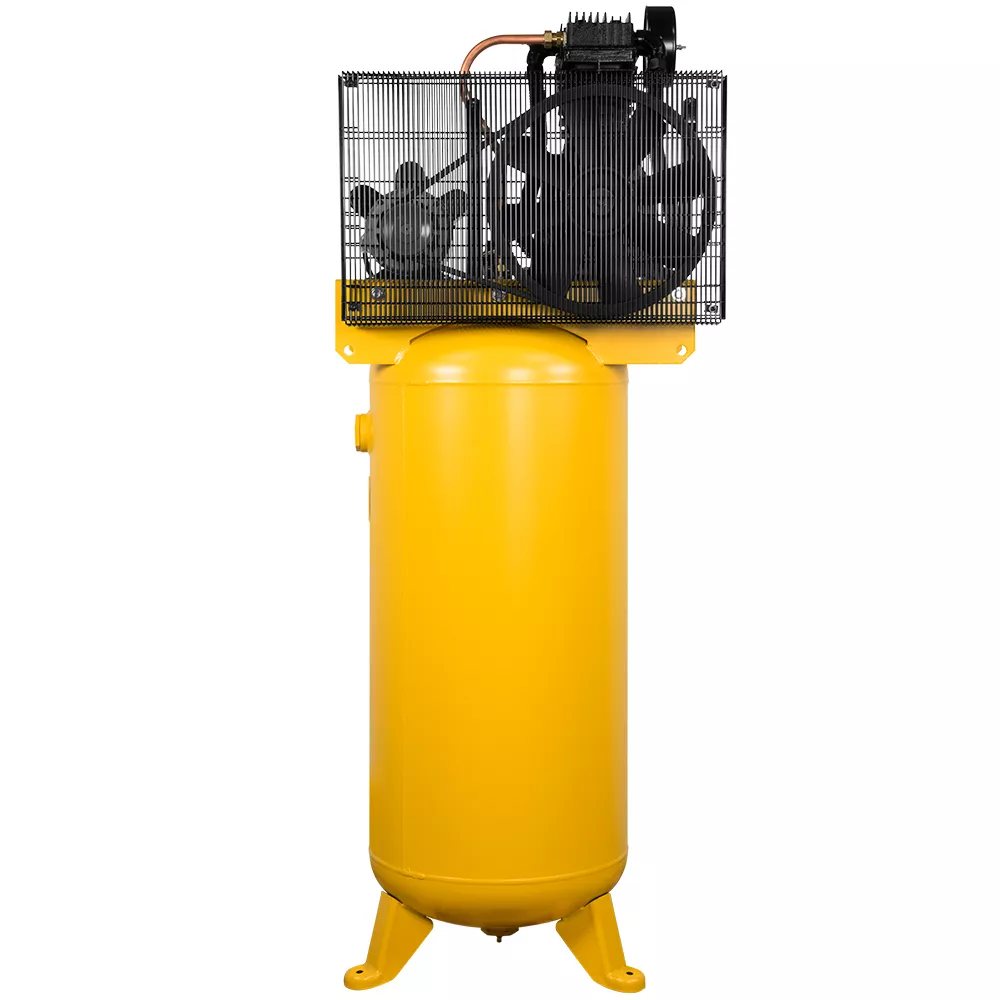

Wire form belt guard improves compressor cooling
4 tie down holes in air compressor platform for ease in transporting
Shipped with 100% full synthetic air compressor oil for optimum performance and long life
2 year pump, 1 year warranty on all other parts

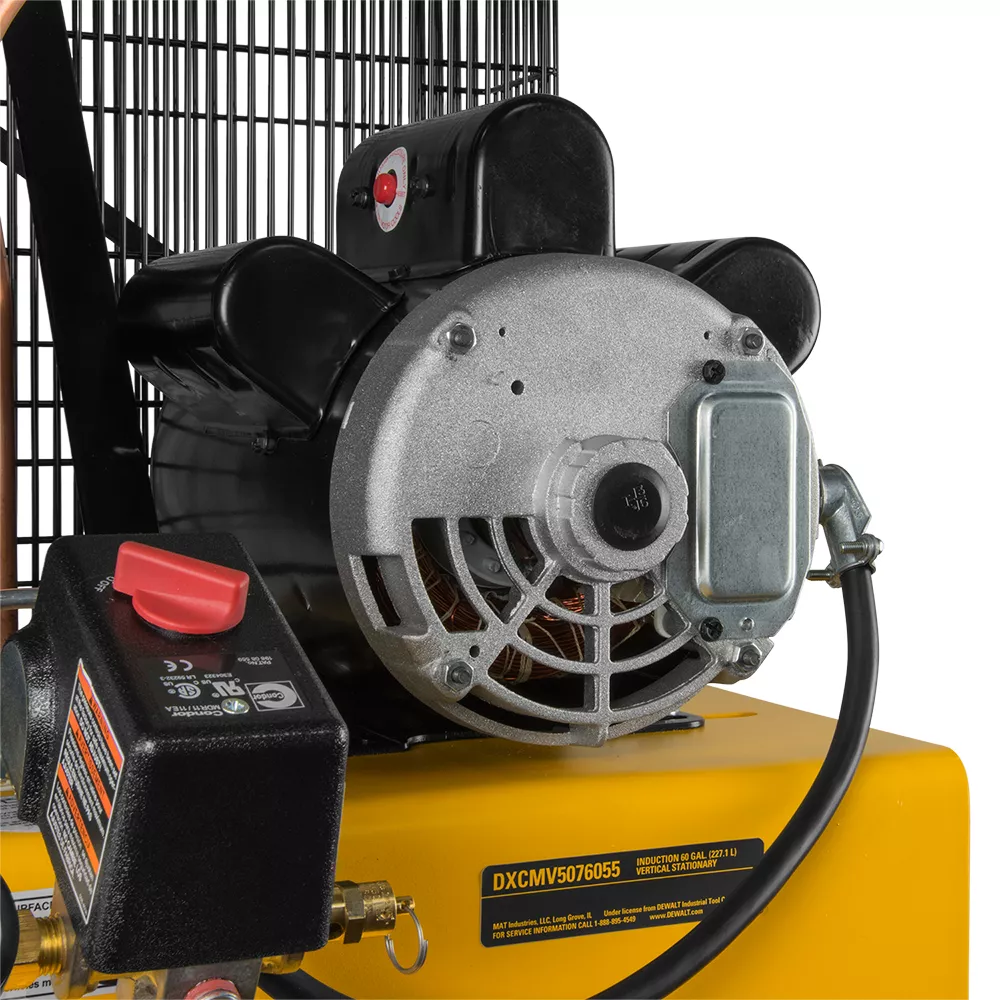

Thermal Overload Protection system protects against voltage fluctuations

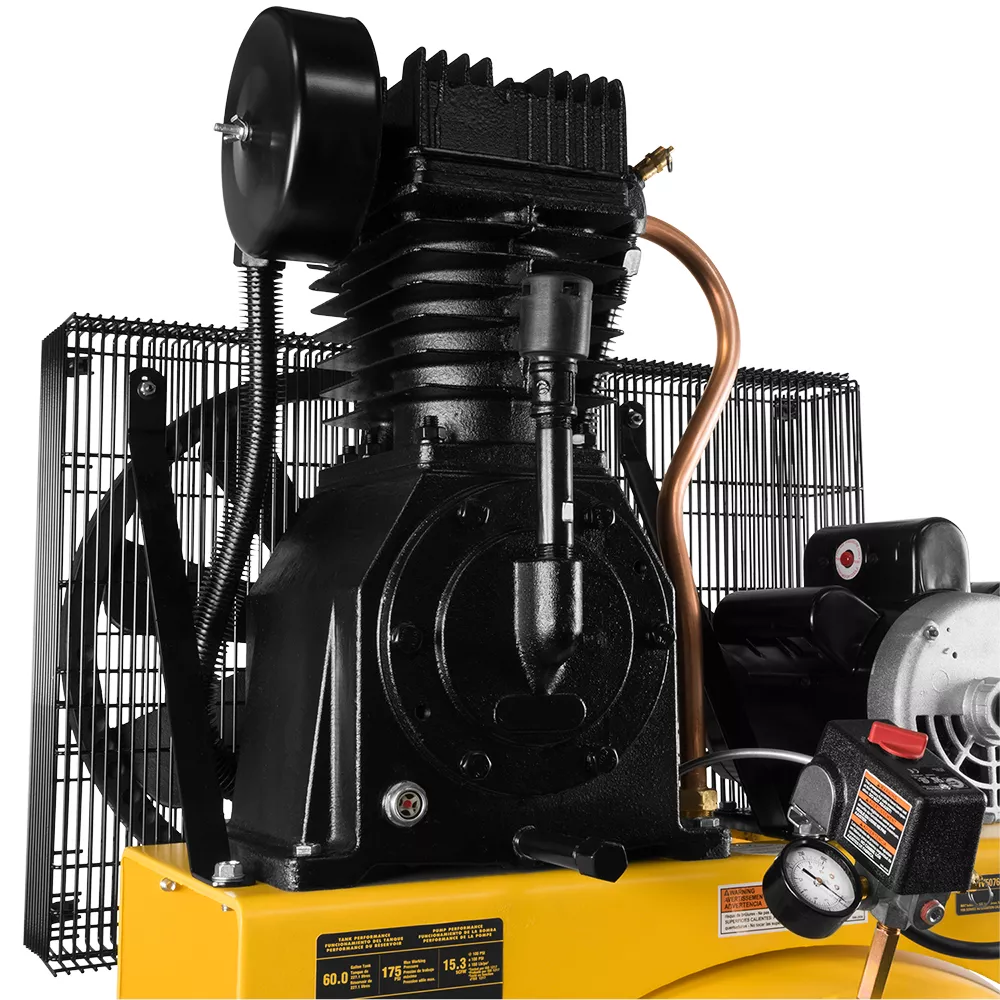

Patented pump and piston design maintains consistent efficiency
Deep-groove directional, asymmetrical cooling fins and cast-iron flywheel design with large extended fins for improved cooling
Low 767 pump RPM extends the life of the pump

DeWALT 5 HP 60 gal 2-Stage Stationary Air Compressor 175 PSI Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	DeWALT
Country of Origin	Made in USA
Air Delivery SCFM At 90 PSI	15.3 SCFM
Airflow Volume	15.3 CFM @ 100 PSI, 13.5 CFM @ 175 PSI

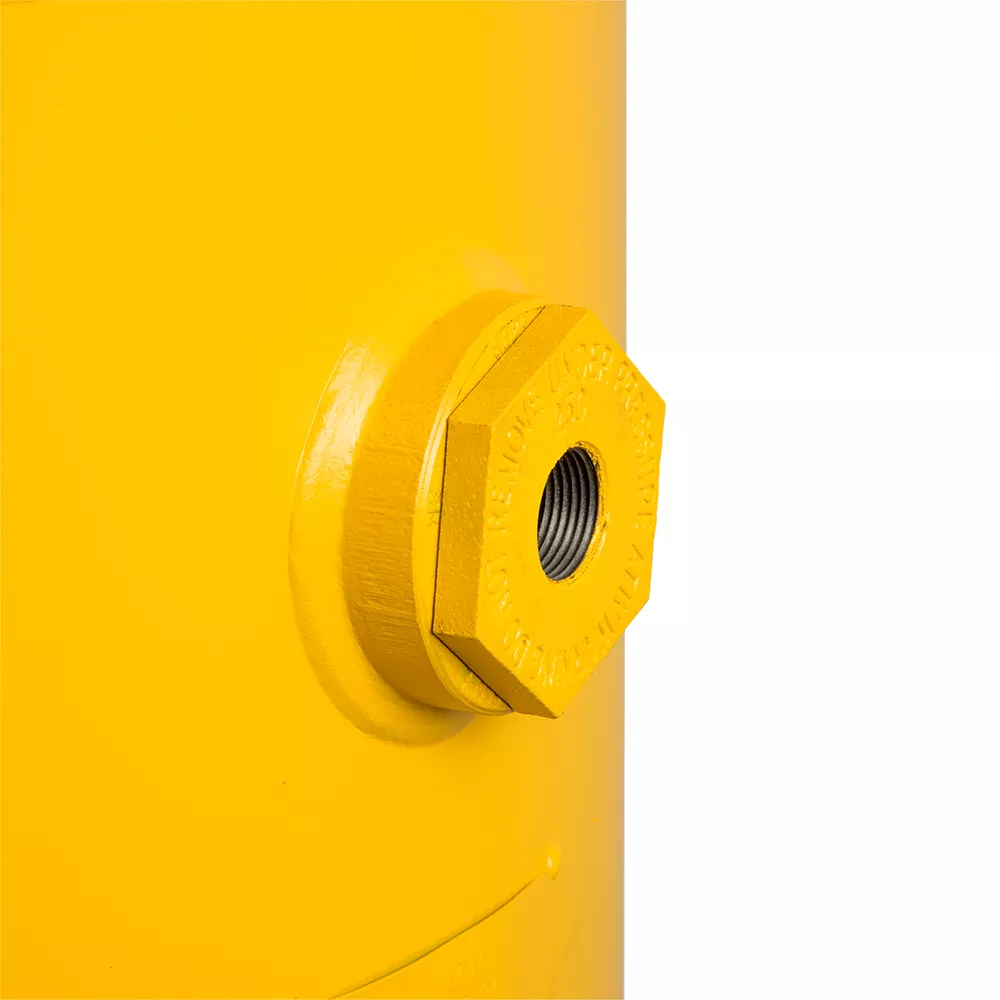

Air Outlet Size	3/4 in. NPT
Compressor Horsepower	5 HP
Compressor Maximum PSI	175 PSI
Compressor Tank Capacity	60 gal
Compressor Type	Vertical
Decibel Rating	83.8 dBA
Drain System	1/4 in. NPT Quarter Turn
Drive Type	Belt Drive
Engine Brand	N/A
Features	Max CFM @ 175 PSI, Low Pump RPM, Thermal Overload Protection, 60 gal. AMSE Air Receiver
Fuel Tank Capacity	0 N/A
Maximum RPM	3,450 RPM
Phase	Single
Number Of Power Speeds	Single
Number Of Wheels	0
Power Type	Electric
Primary Color	Yellow
Primary Material	Cast Iron
Product Height	80 in.
Product Length	40 in.
Product Weight	424 lb.
Product Width	31 in.
Pump Life	4,000 hours
Pump Material	Cast iron
Pump Oil Capacity	49 oz.
Stage Type	Two-Stage
Tank Fill Time	5.41 min.
Tank Orientation	Vertical
Warranty	2 Year Pump and 1 Year All Other Parts
Manufacturer PartNumber	DXCMV5076055
