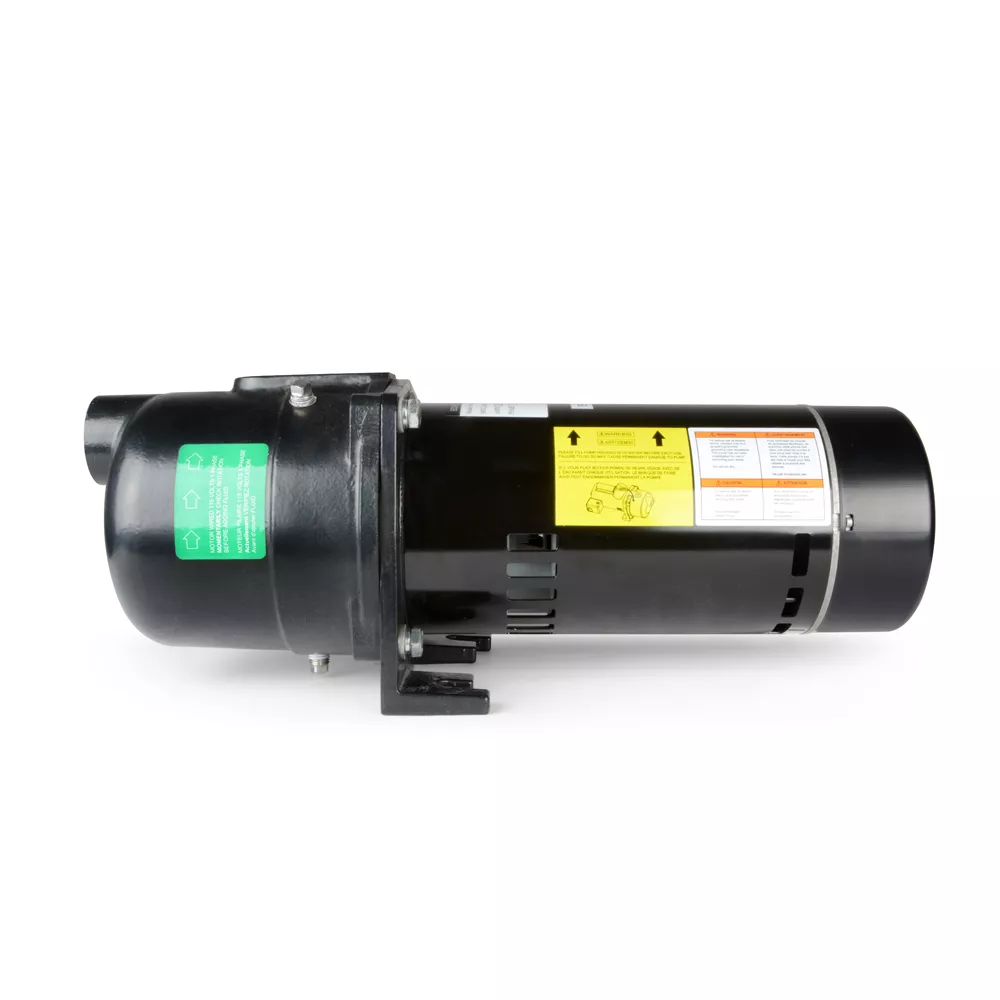

ECO-FLO Products Inc Electric Shallow Well Jet Pump 1 HP 115/230 V 14.7 GPM Well Pumps Home Improvement

The ECO-FLO Shallow Well Jet Pump provides superior performance and a higher capacity with more pressure for shallow wells of 25 ft. or less. The shallow well pump offers a strong, cast-iron pump head.

14.7GPM
Sturdy cast iron design
motor features stainless steel shaft, heavy duty bearings, balanced rotor, mechanical shaft seal, and insulated windings
Pressure Gauge and Switch included
1-1/4 in. Suction, and 1 in. Discharge
Dual Voltage 115/230V

ECO-FLO Products Inc Electric Shallow Well Jet Pump 1 HP 115/230 V 14.7 GPM Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps

Specification	Description
Brand	ECO-FLO Products Inc.
Country of Origin	Imported
Amperage	11.4 Amp -5.7 Amp
Body Material	Stainless steel
Compatible Pipe Material	PVC
Compatible Well Diameter	3 in.
Discharge Connection	Threaded Female
Discharge Diameter	1 in.
Discharge Rate at 0 ft.	14.7gpm
Discharge Rate at 25 ft.	8.7gpm
Discharge Rate at 50 ft.	0 N/A
Features	1 HP - pumps up to 13.6 GPM Dual Voltage- 115/230V (Factory set at 230V) Built-in Overload Motor has Corrosion-resistant Nozzle and Venturi 1-14 in. Suction, 1 in. Discharge
Horsepower	1hp
Inlet Connection	Threaded Female
Inlet Diameter	1.25 in.
Maximum Flow Rate	14.7gpm
Maximum Head Lift	25 ft.
Maximum Operating Depth	25 ft.
Maximum Operating Temperature	104 deg. F
Minimum Operating Temperature	33 deg. F
Power Type	Electric
Product Height	13.15 in.
Product Length	21.65 in.
Product Weight	41 lb.
Product Width	11.57 in.
Motor Type	PSC
Voltage	115v -230v
Warranty	1 Year
Manufacturer PartNumber	EFSWJ10

ECO-FLO Products Inc. 1 HP 115/230V Electric Shallow Well Jet Pump, 14.7 GPM Specifications expand/collapse Specification Description Brand ECO-FLO Products Inc. Country of Origin Imported Amperage 11.4A -5.7A Body Material Stainless Steel Compatible Pipe Material PVC Compatible Well Diameter 3 in. Discharge fitting Female threaded Discharge diameter 1 in. Discharge rate at 0 0 N/A Features 1 HP - pumps up to 13.6 GPM Dual voltage - 115/230 V (factory set to 230 V) Built-in overload motor is corrosive-resistant Nozzle and Venturi 1- 14 in. Suction, 1 in. Discharge Power 1hp Inlet Connection Female Threaded Inlet Diameter 1.25 in. Maximum flow 14.7 gpm Maximum head lift 25 feet. Maximum operating depth 25 feet. F Minimum operating temperature 33 degrees. F Power Type Electrical Product Height 13.15 in. Product Length 21.65 in. Product Weight 41 lb. Product Width 11.57 in. Motor Type PSC Voltage 115V -230V Warranty 1 Year Manufacturer Part Number EFSWJ10
