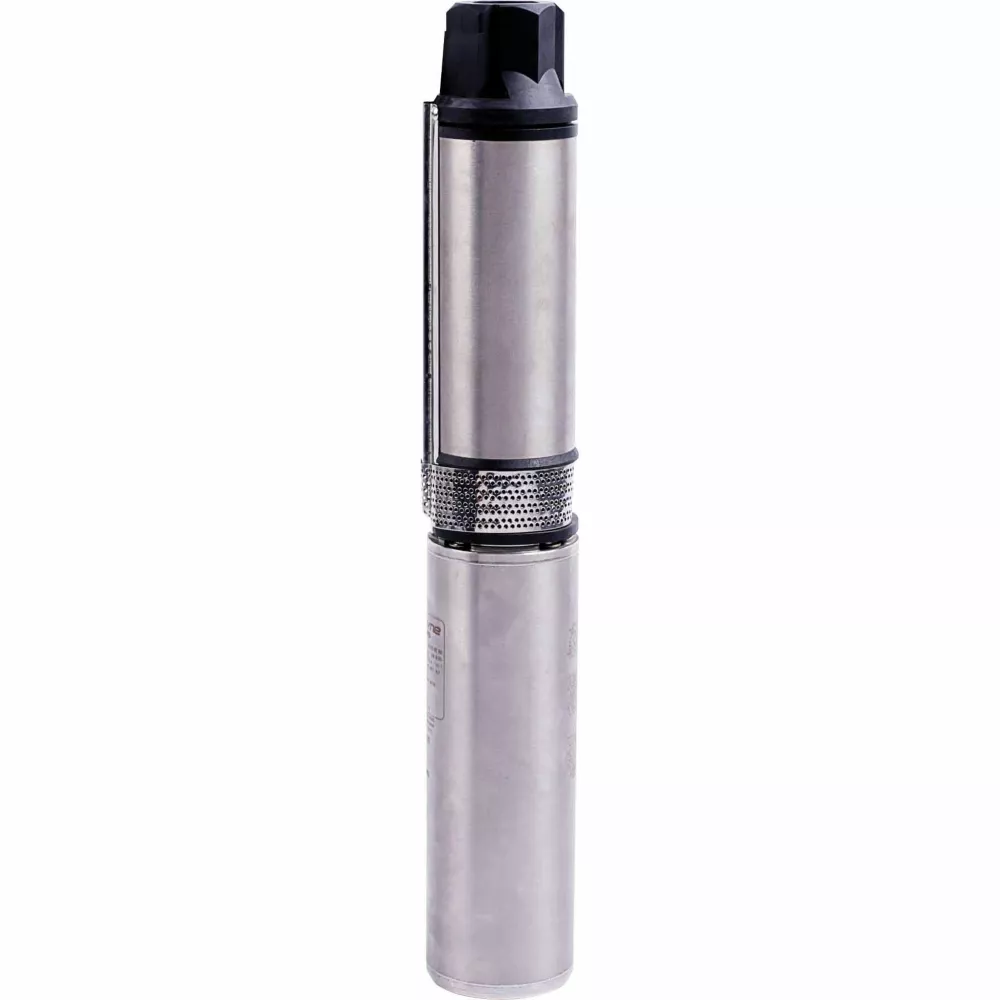

ECO-FLO Products Inc Electric Submersible Deep Well Pump 1/2 HP 230 V 4 in 10 GPM 2 Wire Well Pumps Home Improvement

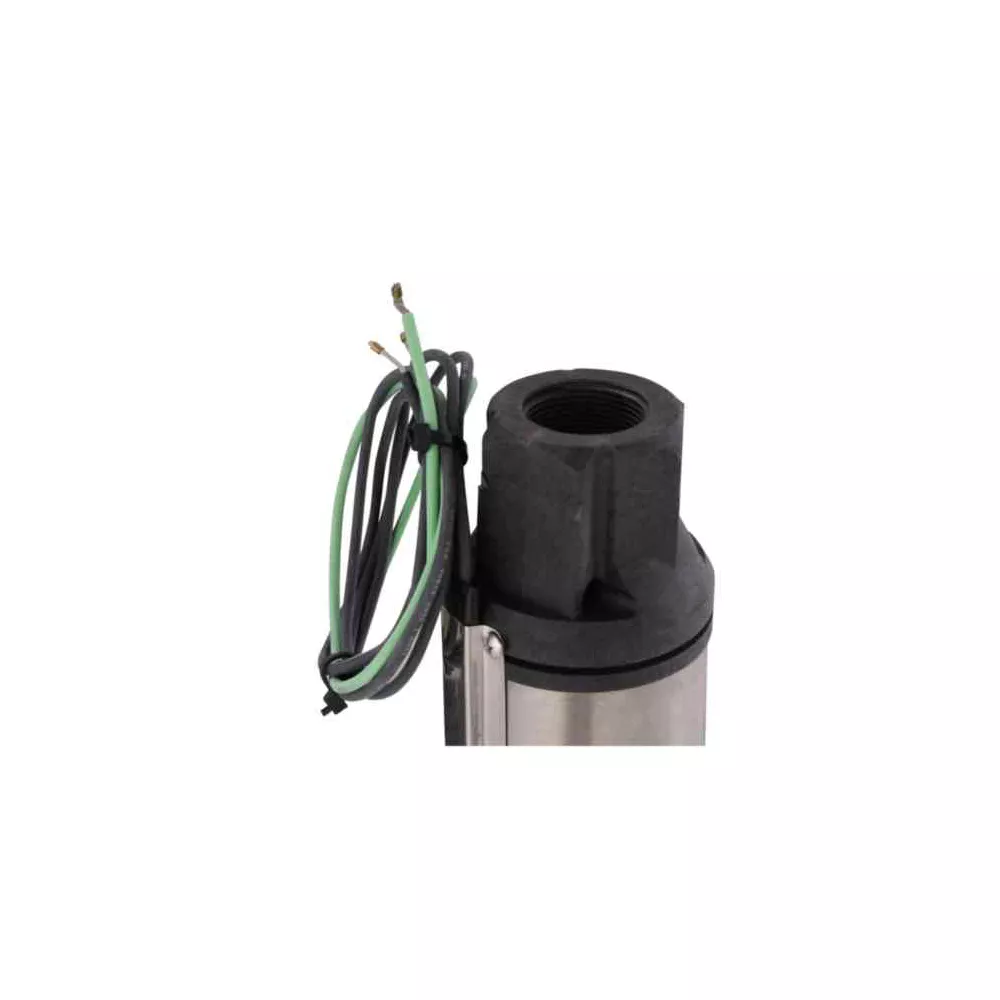

The ECO-FLO Products Inc. 4 in. Submersible Deep Well Pump features a 1-1/4 in. FNPT discharge connection and includes a built-in check valve that provides smooth water passage for maximum efficiency. The well pump replacement offers a self-healing resin system and hermetically sealed windings. The stainless-steel pump housing offers maximum protection against corrosion.- Stainless-steel deep well pump shaft is precision-ground for exact bearing fit and straightness
- Precision-molded impellers and diffusers
- Stainless-steel pump housing for maximum protection against corrosion
- Stainless-steel splined shaft
- Well pump replacement with hermetically sealed windings
- Self-healing resin system
- Integrated check valve
- Kingsbury-type thrust bearing
- Pressure equalizing diaphragm
- Removable water-bloc lead connector
ECO-FLO Products Inc Electric Submersible Deep Well Pump 1/2 HP 230 V 4 in 10 GPM 2 Wire Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps
| Specification | Description |
|---|---|
| Brand | ECO-FLO Products Inc. |
| Country of Origin | Imported |
| Amperage | 4.3 Amp |
| Body Material | Stainless steel |
| Compatible Pipe Material | Poly, Galvanized steel, PVC |
| Compatible Well Diameter | 4 in. |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1-1/4 in. |
| Discharge Rate at 0 ft. | 10 gpm |
| Discharge Rate at 25 ft. | 11 gpm |
| Discharge Rate at 50 ft. | 11 gpm |

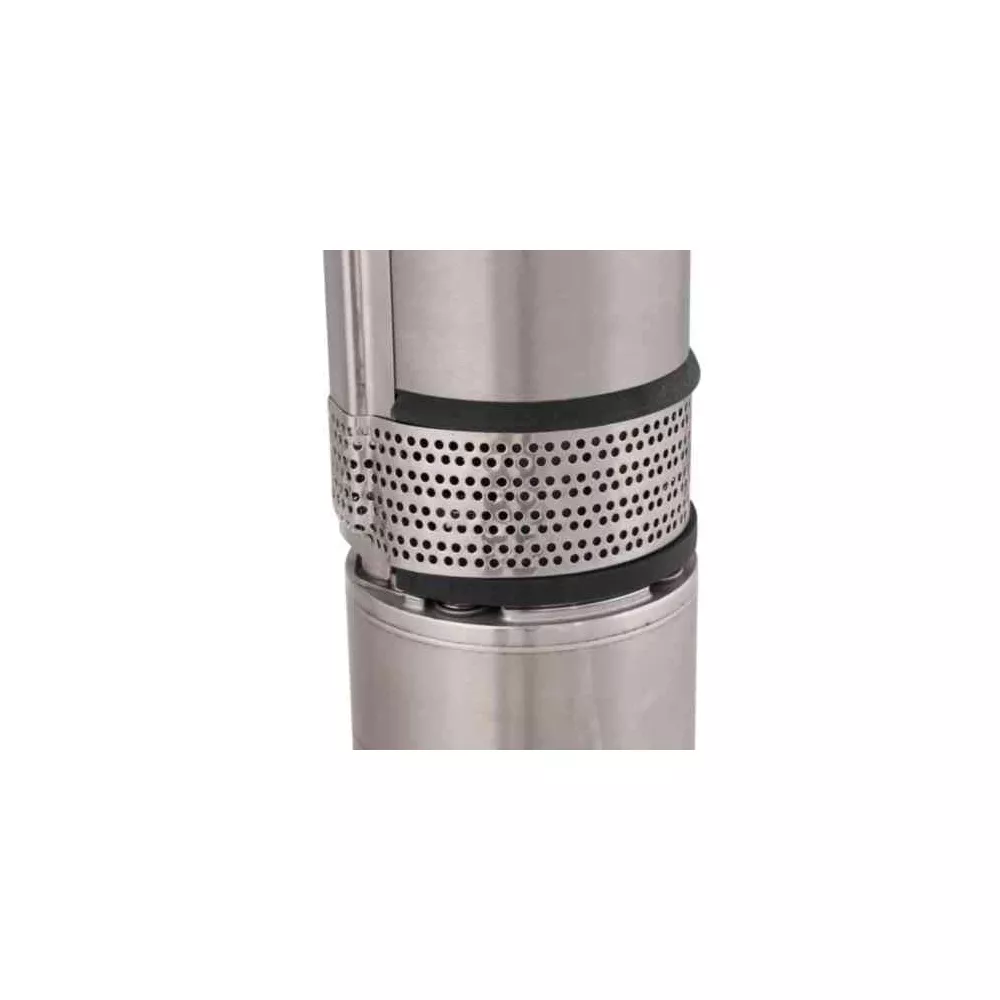

| Features | 1 1/4 in. FNPT discharge connection includes built-in check valve. Stainless steel pump shaft is precision ground for exact bearing fit and straightness. Stainless steel inlet screen. |
| Head Pressure | 40 PSI |
| Horsepower | 0.5 hp |
| Impeller Material | Plastic |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1.25 in. |
| Maximum Flow Rate | 10 gpm |
| Maximum Head Lift | 100 ft. |
| Maximum Operating Depth | 100 ft. |
| Maximum Operating Temperature | 104 deg. F |
| Minimum Operating Temperature | 32 deg. F |
| Power Cord Length | 0 ft. |
| Power Type | Electric |
| Product Height | 24 in. |
| Product Length | 4 in. |
| Product Weight | 30.23 lb. |
| Product Width | 4 in. |
| Motor Type | CSIR |
| Voltage | 230v |
| Warranty | 3 Year |
| Manufacturer PartNumber | EFSUB5-122 |
