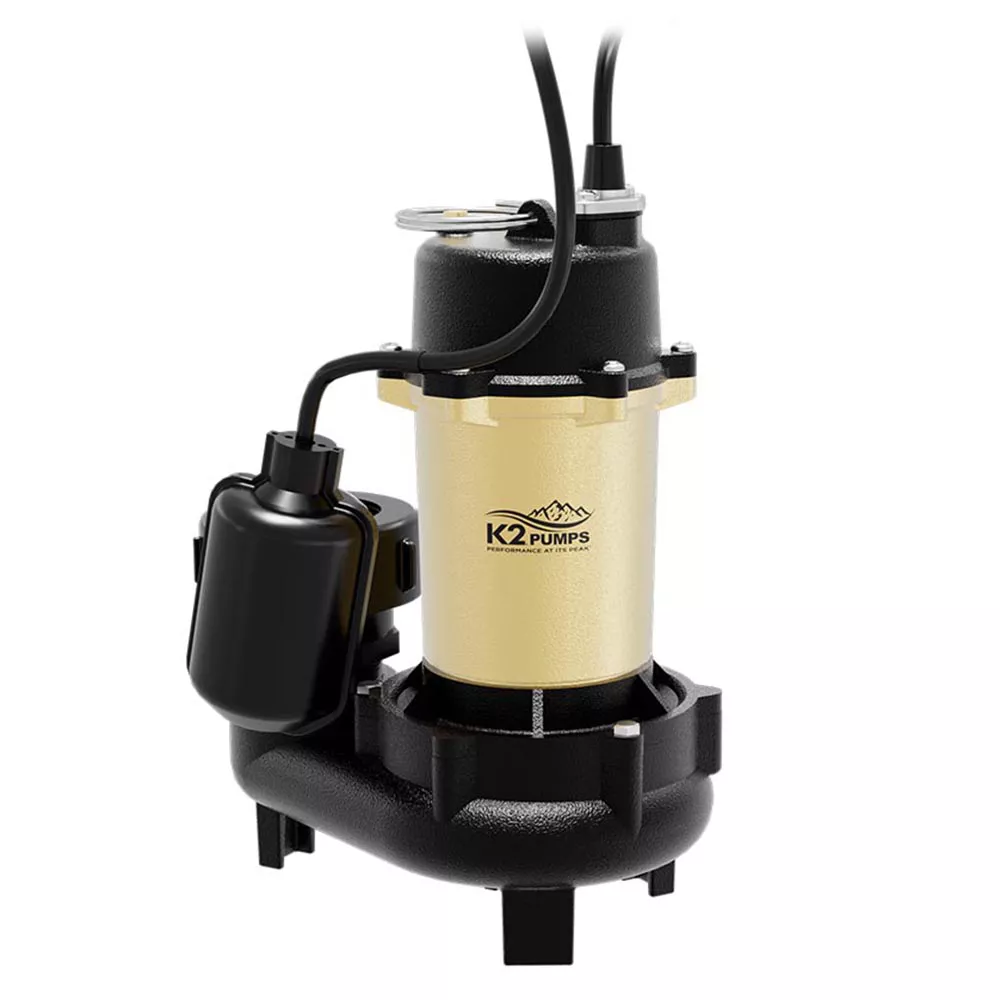

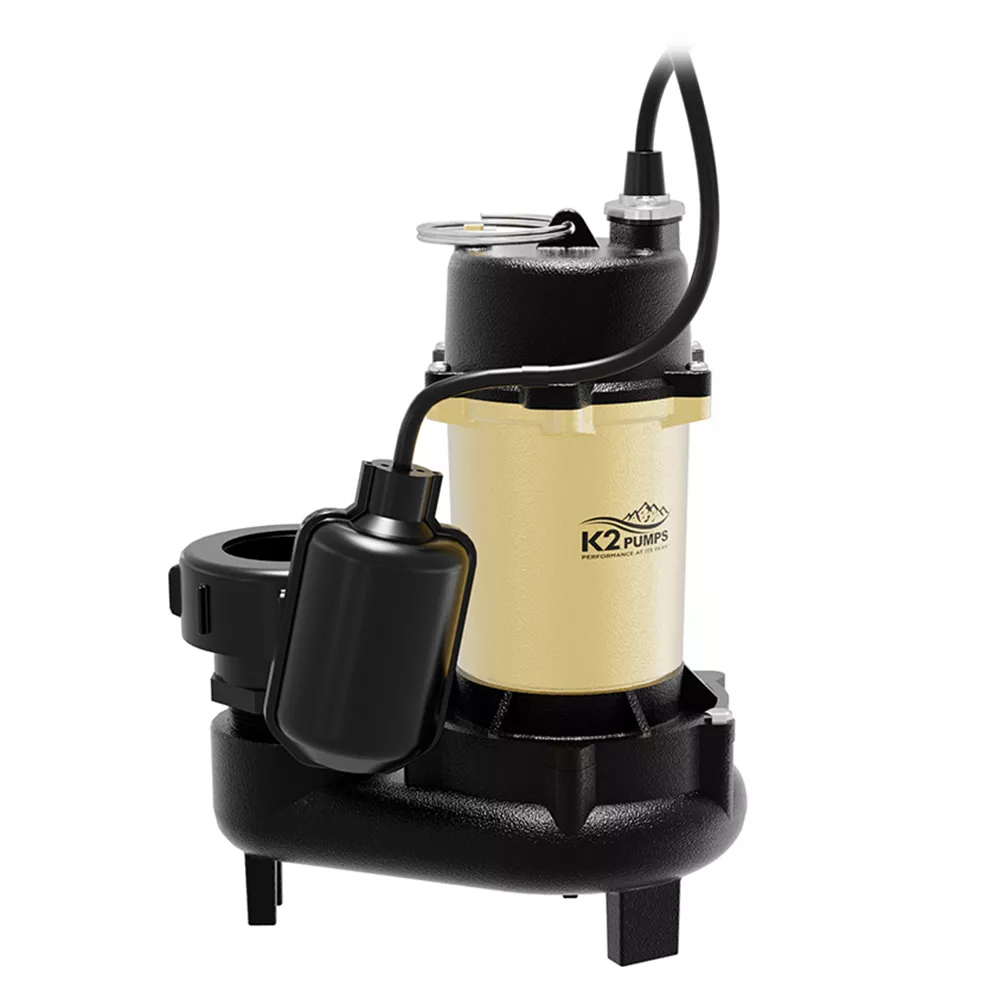

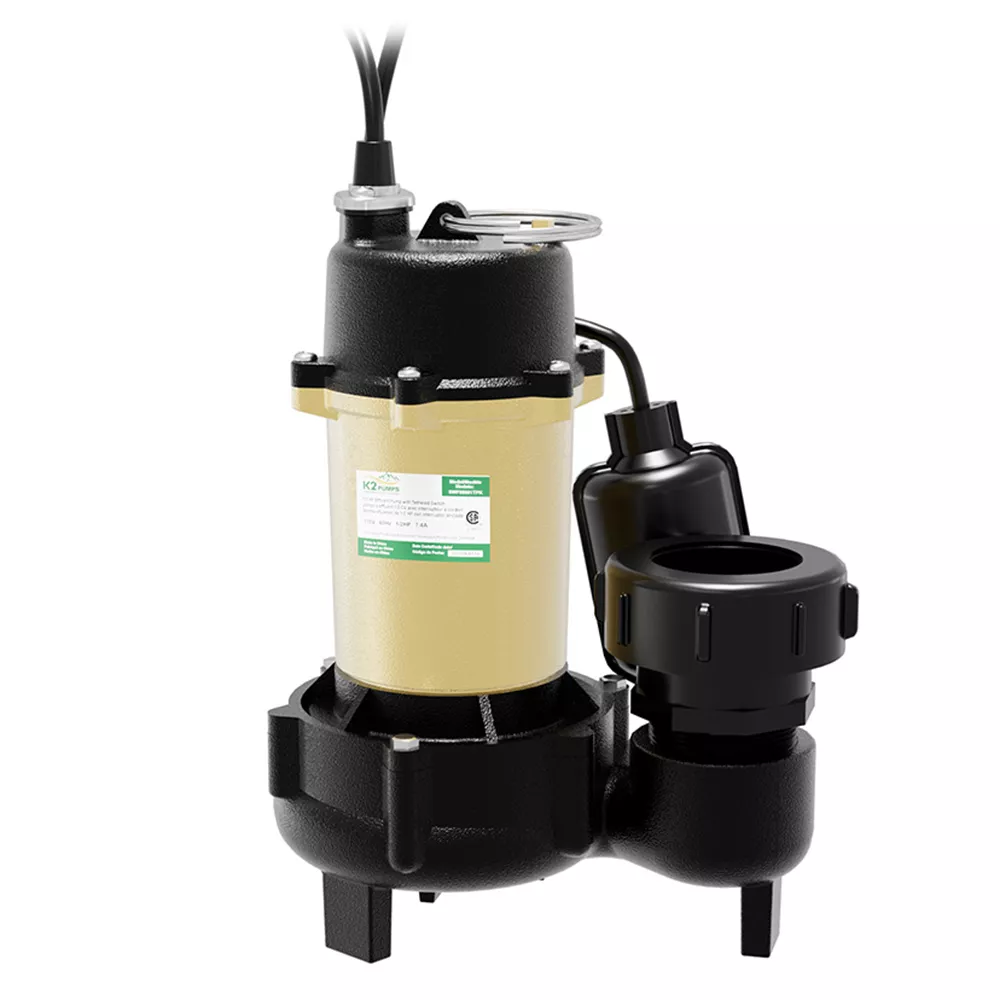

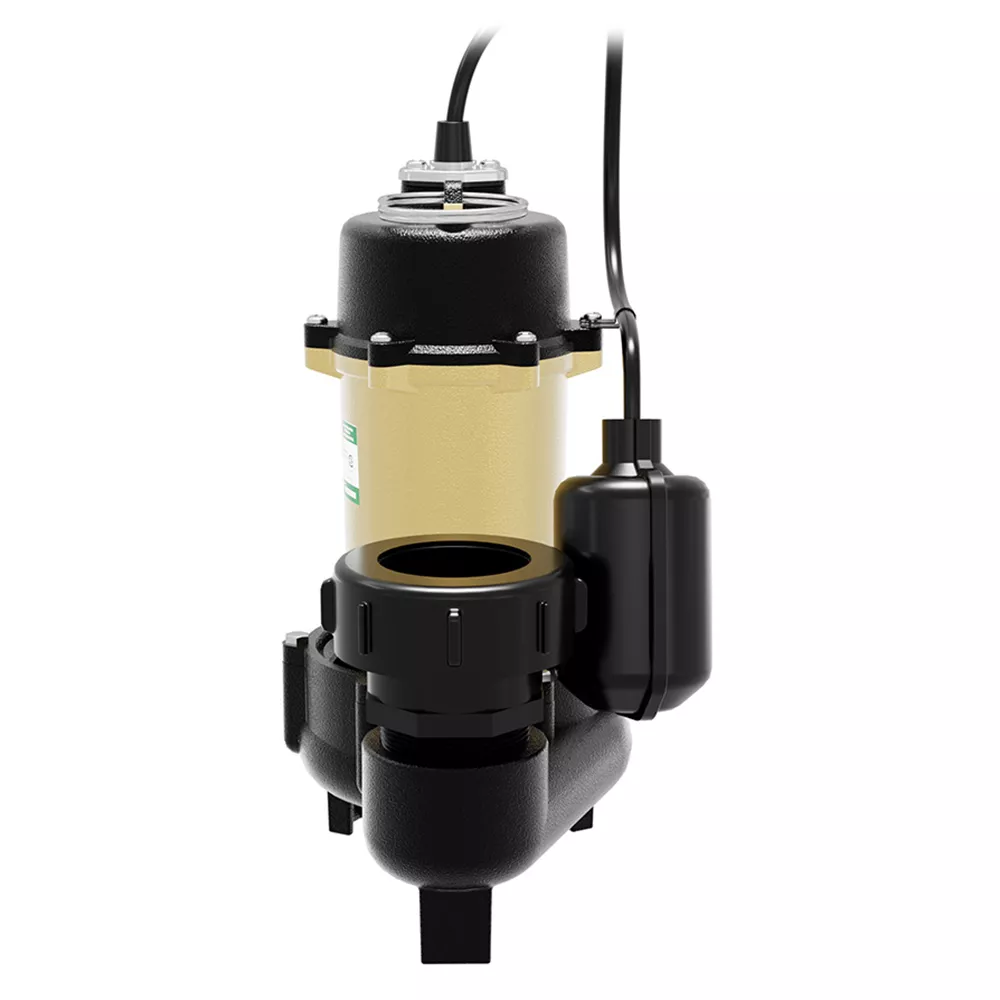

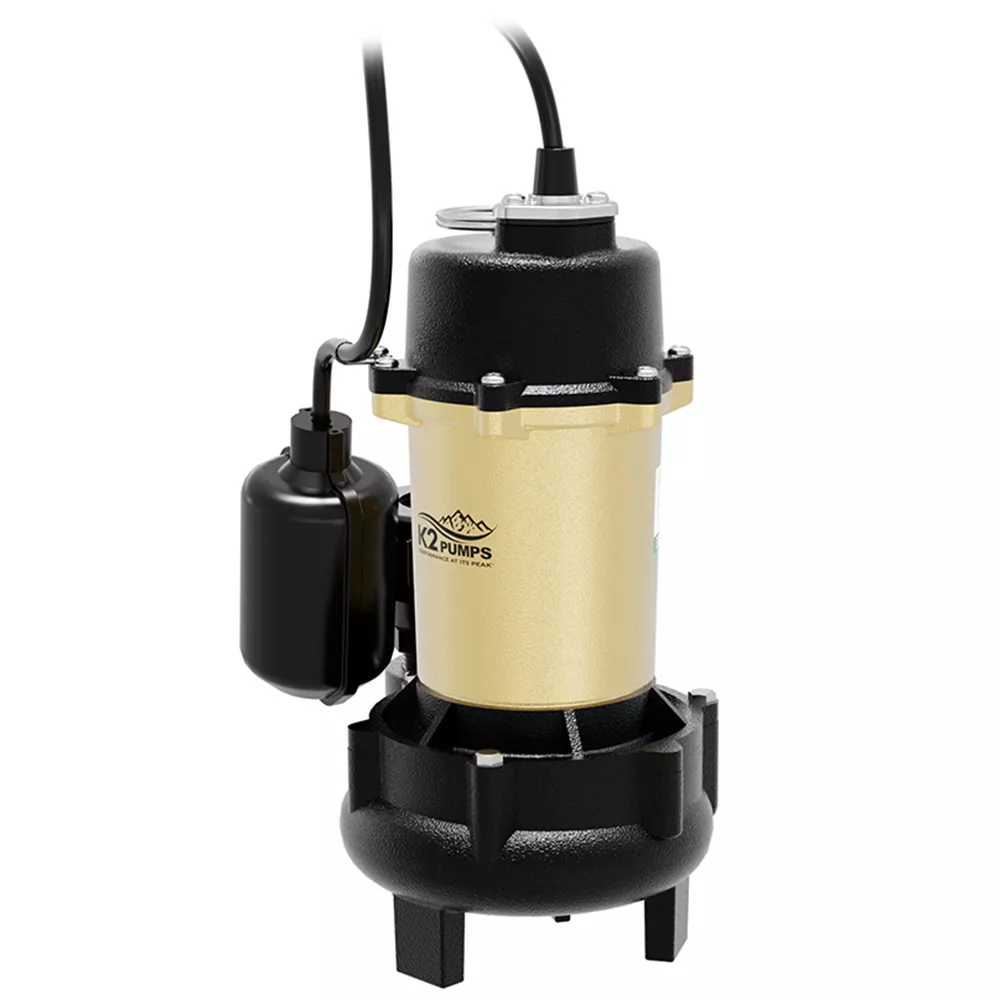

K2 Pumps 1/2 HP 115V Cast Iron Electric Effluent Pump with Piggyback Attached Float Switch 70 GPM Sump Pumps Farm & Ranch

The K2 Pumps 1/2 HP effluent Pump is constructed of heavy-duty cast iron which is ideal for applications requiring a rugged submersible pump. The innovative quick-connect fitting features a metal ring with teeth that firmly grip PVC pipes The pump discharges up to 4,500 GPH at 0 ft. of lift, with a maximum lift of 30 ft. The energy-efficient, oil-filled PSC motor extends the life of the pump.

Constructed of heavy-duty cast iron
Discharges up to 4,200 GPH at 0 ft. of lift, with a maximum lift of 30 ft.
Piggyback tethered float switch for automatic or manual operation.
Includes a Quick Connect fitting which eliminates the need for PVC primer, glue or plumber's tape
Non clog vortex impeller handles up to 3/4 in. solids
2 in. FNPT Discharge and 25 ft. power cord
2 Year Warranty

K2 Pumps 1/2 HP 115V Cast Iron Electric Effluent Pump with Piggyback Attached Float Switch 70 GPM Sump Pumps Farm & Ranch> Tanks & Pumps> Water Pumps> Sump Pumps

Specification	Description
Brand	K2 Pumps
Country of Origin	Imported
Amperage	7.4 Amp
Basin Diameter	18 in.
Body Material	Cast iron
Compatible Pipe Material	PVC
Discharge Connection	Threaded Female
Discharge Port Diameter	2 in.
Discharge Rate at 0 ft.	70 GPM
Discharge Rate at 10 ft.	56 GPM
Engine Displacement	0 N/A
Features	2 in. Quick Connect Fitting eliminates the need for PVC primer, glue or plumber's tape
Horsepower	1/2 HP
Hose Diameter	2 in.
Impeller Material	Thermoplastic
Inlet Connection	None
Inlet Diameter	6.31 in.
Maximum Flow Rate	70 GPM
Maximum Head Lift	30 ft.
Maximum Operating Pressure	0 N/A
Maximum Operating Temperature	131 deg.
Maximum Solids Diameter	3/4 in.
Maximum Suction Lift	30 ft.
Minimum Operating Pressure	0 N/A
Minimum Operating Temperature	32 deg.
Power Cord Length	25 ft.
Power Type	Corded/Plug-in
Product Height	12.72 in.
Product Length	6.57 in.
Product Weight	23.15 lb.
Product Width	9.54 in.
Pump Mechanism	Centrifugal
Motor Type	Permanent Split Capacitor (PSC)
Switch-Off Height	5 in.
Switch-On Height	13.3 in.
Voltage	115 V
Warranty	2 Years
Manufacturer PartNumber	SWF05001TPK
