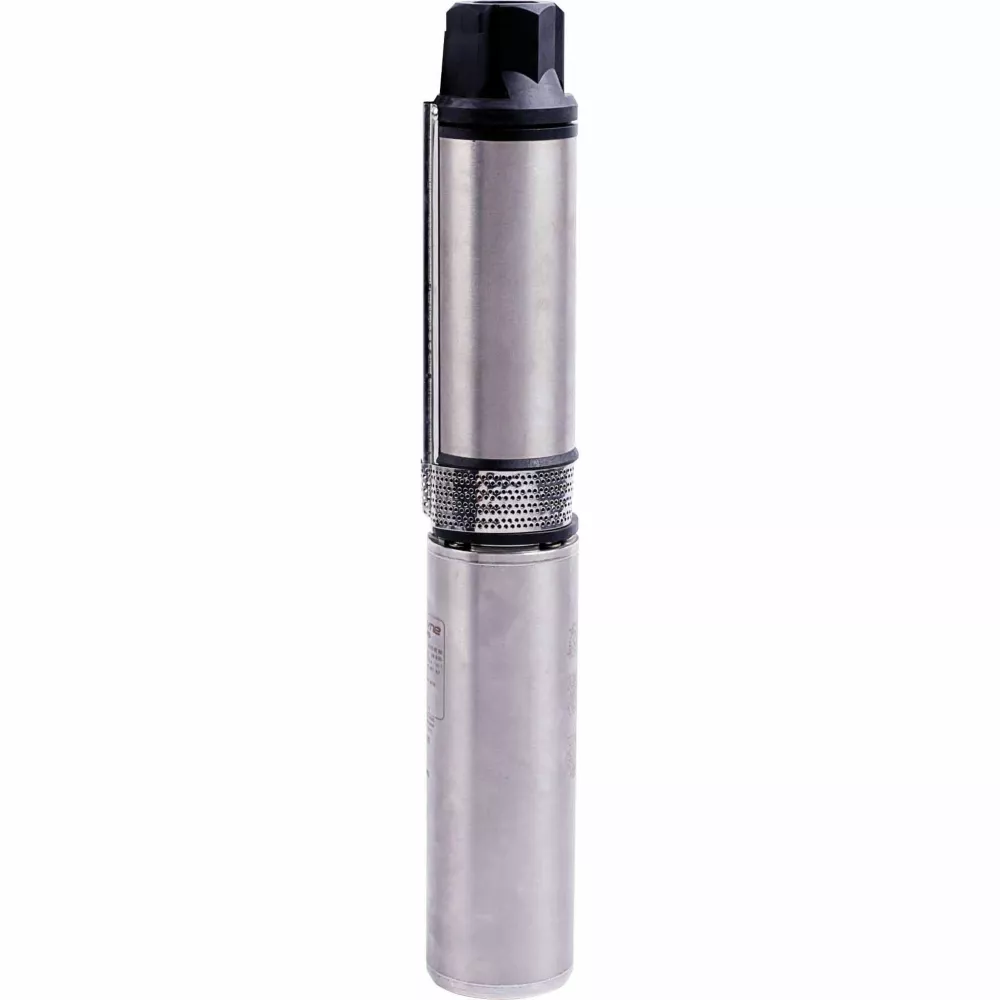

ECO-FLO Products Inc Electric Submersible Deep Well Pump 1/2 HP 230V 4 in 12 GPM 3 Wire Well Pumps Home Improvement
The ECO-FLO Products Inc. 4 in. Submersible Deep Well Pump features a 1-1/4 in. FNPT discharge connection and includes a built-in check valve that provides smooth water passage for maximum efficiency. The submersible well pump offers a self-healing resin system and hermetically sealed windings. The stainless-steel pump housing offers maximum protection against corrosion.- Stainless-steel deep well pump shaft is precision-ground for exact bearing fit and straightness
- Precision-molded impellers and diffusers
- Stainless-steel pump housing for maximum protection against corrosion
- Stainless-steel splined shaft
- Submersible well pump with hermetically sealed windings
- Self-healing resin system
- Integrated check valve
- Kingsbury-type thrust bearing
- Pressure equalizing diaphragm
- Removable water-bloc lead connector
ECO-FLO Products Inc Electric Submersible Deep Well Pump 1/2 HP 230V 4 in 12 GPM 3 Wire Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps
| Specification | Description |
|---|---|
| Brand | ECO-FLO Products Inc. |
| Country of Origin | Imported |
| Amperage | 5.9 Amps |
| Body Material | Stainless steel |
| Compatible Pipe Material | Poly, PVC |
| Compatible Well Diameter | 4 in. |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1-1/4 in. |
| Discharge Rate at 0 ft. | 0 gpm |
| Discharge Rate at 25 ft. | 11 GPM |
| Discharge Rate at 50 ft. | 11 GPM |
| Features | Includes built-in check valve, provides smooth water passages for maximum efficiency. Stainless steel pump shaft is precision ground for exact bearng fit and straightness. Stainless steel pump housing for maximum protection against corrosion. |
| Horsepower | 0.5 HP |
| Impeller Material | Plastic |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1.25 in. |
| Maximum Flow Rate | 12 GPM |
| Maximum Head Lift | 100 ft. |
| Maximum Operating Depth | 100 ft. |
| Maximum Operating Temperature | 104 deg. F |
| Minimum Operating Temperature | 34 deg. F |
| Power Cord Length | 0 ft. |
| Power Type | Electric |
| Product Height | 23 in. |
| Product Length | 23 in. |
| Product Weight | 24 lb. |
| Product Width | 4 in. |
| Motor Type | CSIR |
| Voltage | 230V |
| Warranty | 3 Year |
| Manufacturer PartNumber | EFSUB5-123 |
