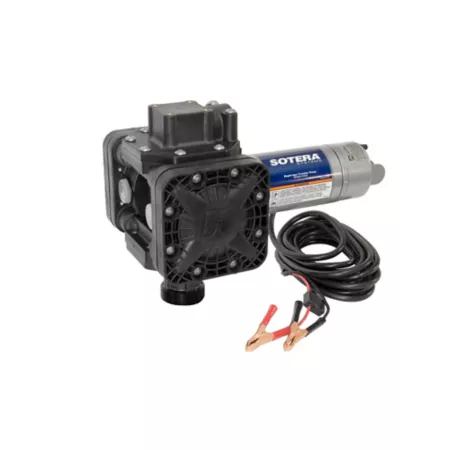

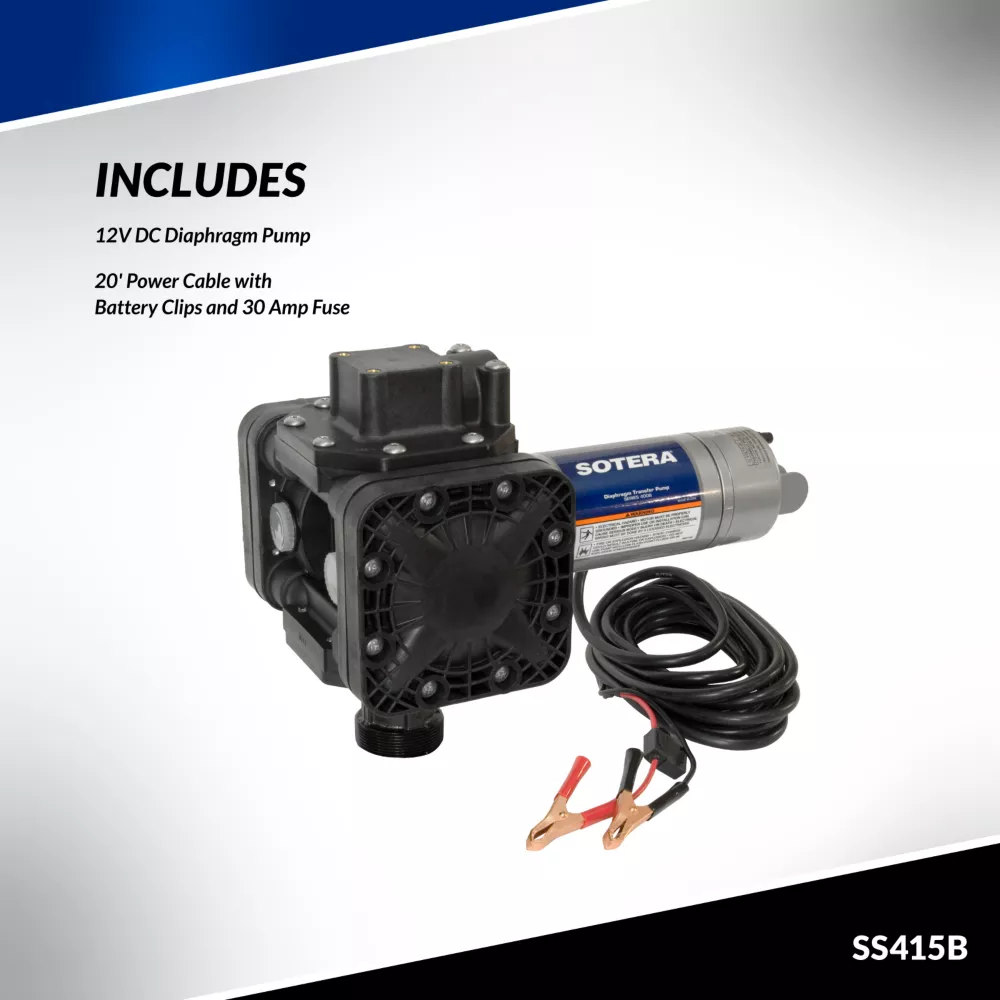

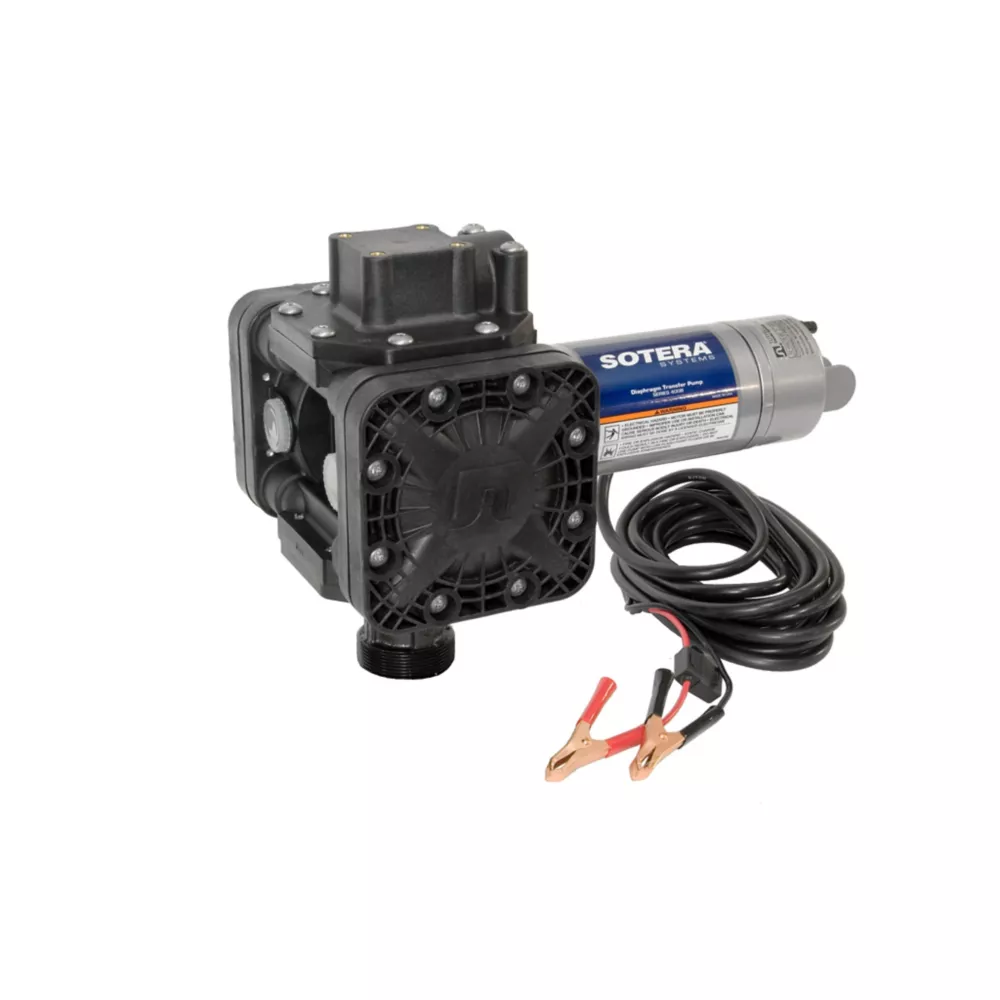

Fill-Rite 1/4 HP 12V Chemical Transfer Pump 13 GPM Pump Only Fuel Transfer Pumps Truck & Automotive

The Fill-Rite 13 GPM 12V Chemical Transfer Pump (Pump Only) is a 12V DC chemical transfer system. This chemical transfer pump bundle includes a metal bung mount and additional chemical fittings. The transfer pump provides a complete transfer solution to multi-viscosity applications and the versatility needed for your fields.

Engineered with double diaphragms, the Sotera 400 series delivers reliable performance by maintaining constant output pressure regardless of load
Santoprene diaphragms are compatible with a wide range of fluids, including but not limited to agricultural pesticides, herbicides, fertilizers, mild acids, soaps and water
Pump can run dry without causing any internal damage, giving you peace of mind with your investment
Thermally-protected motor prevents overheating, ensuring your pump withstands the test of time
Conveniently available in six core configurations for your application, including the portable Chemtraveller, re-circulating Mix-N-Go, mobile Pump-N-Go, sturdy IBC tote bracket, steel drum mount and plastic straight flange
We stand behind our product with full 5-year warranty to protect your purchase and your business
Transfer pump includes a metal bung mount and additional chemical fittings
Provides a complete transfer solution to multi-viscosity applications and the versatility needed for your fields
Transfer pump is proudly manufactured in the USA
Constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure and both on and off-road applications

Fill-Rite 1/4 HP 12V Chemical Transfer Pump 13 GPM Pump Only Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Fill-Rite
Country of Origin	Made in USA
AC or DC Powered	DC
Amperage	20A
Body Materials	Polypropylene
Compatible Fluids	Chemicals
Discharge Connection	Threaded Female
Discharge Diameter	1 in.
Duty Cycle	30 min
Features	Self Priming
Horsepower	0.25 HP
Hose Diameter	1 in.
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Intended Use Grade	Commercial
Maximum Flow Rate	13 GPM
Maximum Head Lift	0 in.
Maximum Operating Pressure	15 PSI
Maximum Operating Temperature	130 deg.
Minimum Operating Pressure	0 PSI
Minimum Operating Temperature	-10 deg.
Power Cord Length	20 ft.
Power Type	12 Volt
Product Height	10.25 in.
Product Length	8.5 in.
Product Weight	20.6 lb.
Product Width	14.25 in.
Voltage	12V
Warranty	5 Year
Manufacturer PartNumber	SS415B

Fill-Rite 1/4 HP 12V Chemical Transfer Pump, 13 GPM, Pump Only Specifications expand/collapse Specification Description Brand Fill-Rite Country of Origin Made in USA AC or DC Power DC Amperage 20 A Body Materials Polypropylene Compatible Fluids Chemicals Discharge Connection Female Threaded Discharge Diameter 1 in. Duty Cycle 30 min Features Self-Priming Power 0.25 HP Hose Diameter Inlet Connection 1 in. Female Threaded Inlet Diameter 1 in. Intended Use Commercial Grade Maximum Flow 13 GPM Maximum Head Lift 0 in. Maximum operating pressure 15 PSI Maximum operating temperature 130 deg. Minimum operating pressure 0 PSI Minimum operating temperature -10 deg. Power cord length 20 ft. Power Type 12 Volt Product Height 10.25 in. Product length 8.5 in. Product weight 20.6 lbs. Product width 14.25 in. Voltage 12 V Warranty 5 years Manufacturer part number SS415B
