GPI Electric 115VAC 12 GPM PA-200H-2UR Chemical Transfer Pump Fuel Transfer Pumps Truck & Automotive

The GPI 12 GPM PA-200H-2UR Chemical Transfer Pump is a durable polypropylene gear pump for thicker chemicals (10 to 450 centipoise viscosity) such as common farm herbicides, thin chemicals, agriculture chemicals and other common chemicals used in lawn and garden services. With flow rates up to 12 GPM (45 LPM), this pump features a built-in handle with a convenient spin collar for easy installation. The chemical transfer pump has a 3 ft. (0.9 m) grounded plug, and a 2 in. union ring.

CSA certified
Chemical transfer pump includes grounded 3-prong 3 ft. (0.9 m), 18/3 AWG power connector pigtail and 2 in. bung adapter that mounts to the 2 in. NPT union ring
2 year limited warranty

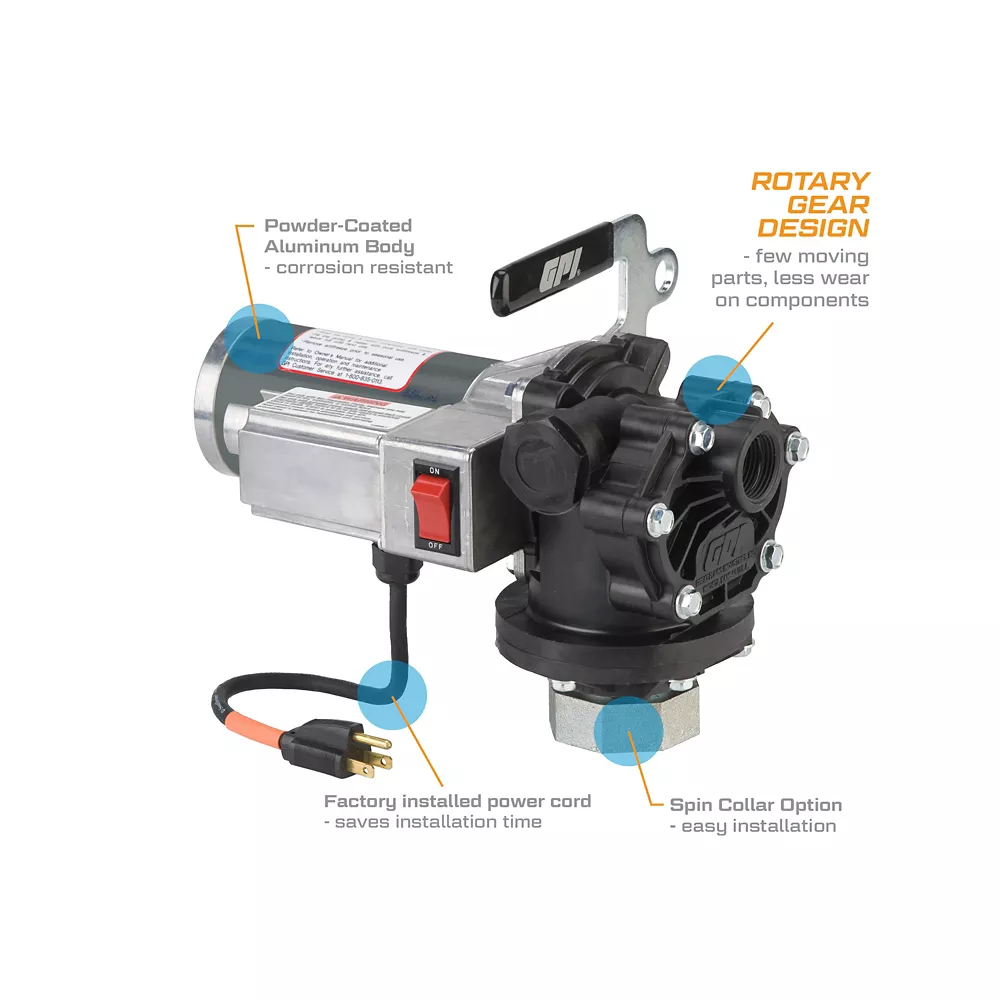

Built-in handle for ease of use
Convenient aluminum spin collar adapter for simple setup
115VAC, 3A rotary gear motor for powerful performance
Built-in handle for ease of use
Great chemical pump for dispensing, transferring and applying large amounts of agricultural chemicals in farming, gardening, and landscaping applications
12 GPM (45 LPM) flow rate ensures efficient operation
-20 degrees F to 120 degrees F (-29 degrees C to 50 degrees C) operating temperature range

Note: This product may require up to 2 additional days for order processing prior to shipping

GPI Electric 115VAC 12 GPM PA-200H-2UR Chemical Transfer Pump Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	GPI
Country of Origin	Made in USA
AC or DC Powered	AC
Amperage	3A
Body Materials	Plastic
Compatible Fluids	Chemicals
Discharge Connection	Threaded Female
Discharge Diameter	1 in.
Duty Cycle	30 min. on/off
Features	Self-Priming
Horsepower	1/4 HP
Hose Diameter	1 in. FNPT Outlet Hose Sold Seperately
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Intended Use Grade	Commercial
Maximum Flow Rate	12 GPM
Maximum Head Lift	0 in.
Maximum Operating Pressure	16 PSI 1.1 BAR
Maximum Operating Temperature	120 deg. F
Minimum Operating Pressure	16 PSI 1.1 BAR
Minimum Operating Temperature	-20 deg. F
Power Cord Length	3 ft.
Power Type	Electric, Battery
Product Height	11 in.
Product Length	13.5 in.
Product Weight	16.205 in.
Product Width	11.5 in.
Voltage	115V
Warranty	2 Year Limited
Manufacturer PartNumber	118003-2

GPI Electric 115VAC 12 GPM PA-200H-2UR Chemical Transfer Pump Specifications expand/collapse Specification Description Brand GPI Country of Origin Made in USA AC or DC Power Supply AC Amps 3A Body Materials Plastic Compatible Fluids Chemicals Discharge Connection Female Threaded Discharge Diameter 1 in. Duty cycle 30 min. On/Off Features Self-Priming Power 1/4 HP Hose Diameter 1 in. FNPT outlet hose sold separately Inlet fitting Female thread Inlet diameter 1 in. Intended Use Commercial Grade Maximum Flow 12 GPM Maximum Head Lift 0 in. Maximum Operating Pressure 16 PSI 1.1 BAR Maximum Operating Temperature 120 degrees. F Minimum operating pressure 16 PSI 1.1 BAR Minimum operating temperature -20 deg. F Power cord length 3 feet Power supply type, battery Product height 11 inches Product length 13.5 inches Product weight 16.205 inches Product width 11.5 inches Voltage 115 V Gar2 year limited warranty Manufacturer part number 118003-2
