Piusi USA SuzzaraBlue 12V 9 GPM Tote PRO Kit (Auto/Meter) Fuel Transfer Pumps Truck & Automotive

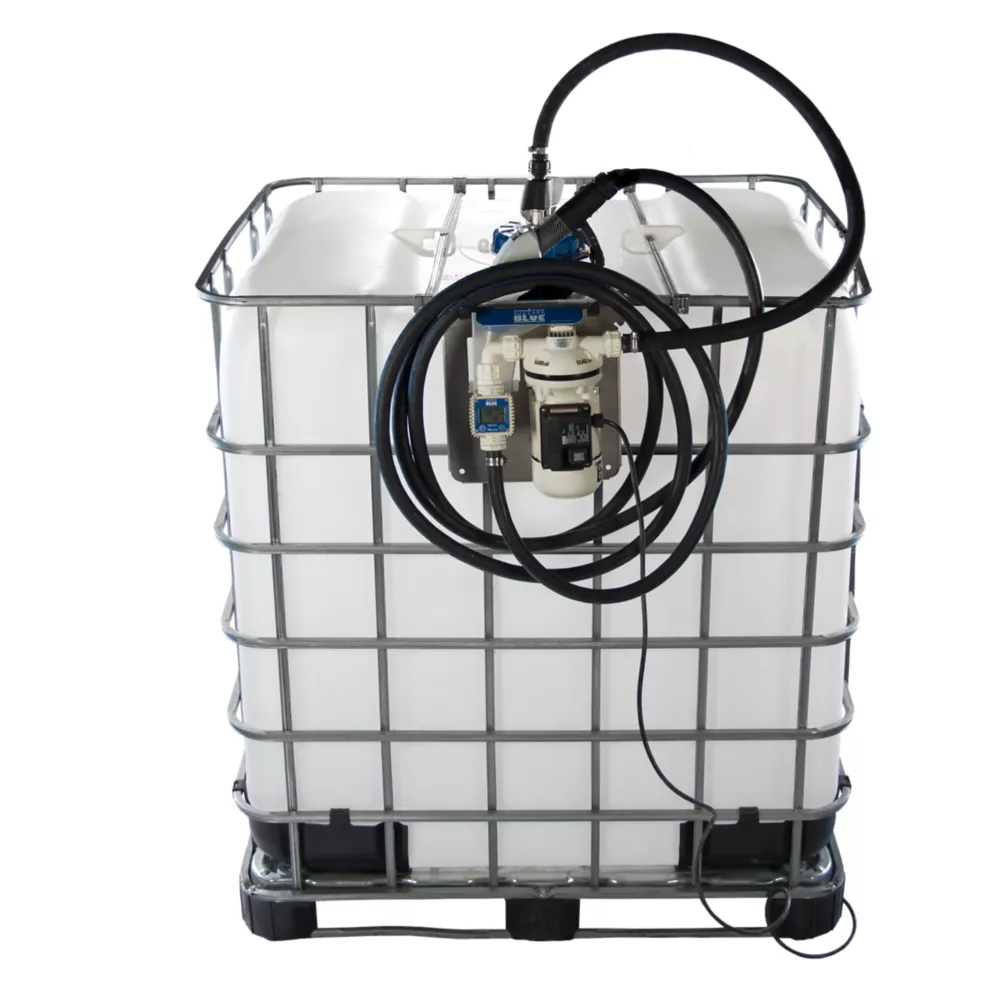

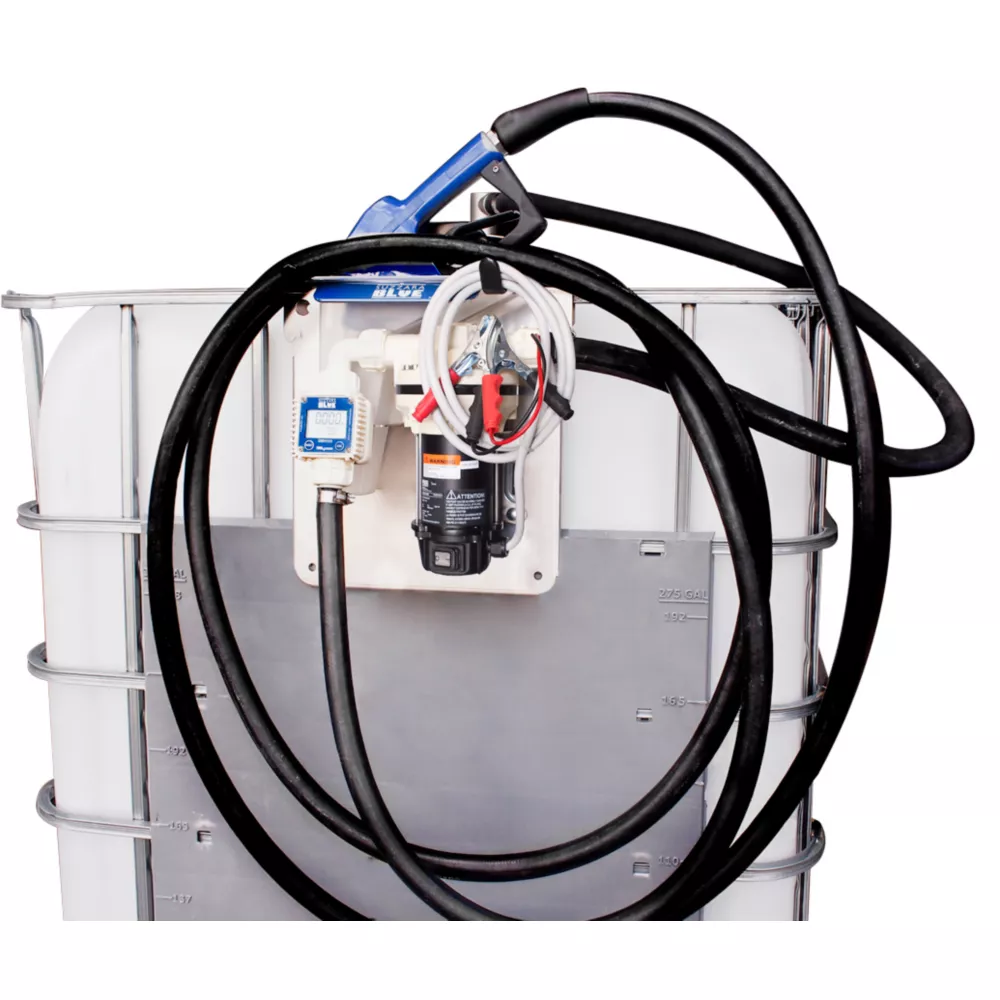

The Piusi SuzzaraBlue DEF 12V PRO Kit is the perfect solution for a DEF IBC tote or mini bulk application without an AC power source. The system is equipped with the SuzzaraBlue heavy-duty industry standard 9GPM DEF transfer pump, an easily transferable side-mount bracket, an automatic nozzle, K24 meter, 20 ft. of dispense hose and 4ft of suction hose.

7-9 GPM flow rate
12VDC membrane pump
20 min. on/ 20 off duty cycle
25 PSI operating pressure
6.7 ft. suction height
3/4 in. inner diameter hose
Stainless steel automatic nozzle
K24 meter

Piusi USA SuzzaraBlue 12V 9 GPM Tote PRO Kit (Auto/Meter) Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Piusi USA
Country of Origin	Imported
AC or DC Powered	DC
Amperage	22 Amp
Body Materials	Polypropylene
Compatible Fluids	Diesel Exhaust Fluid
Discharge Connection	Threaded Male
Discharge Diameter	1 in.
Duty Cycle	20 min. on/off
Features	Self-Priming
Horsepower	0.5 hp
Hose Diameter	0.75 in.
Inlet Connection	Threaded Male
Inlet Diameter	1 in.
Intended Use Grade	Commercial
Maximum Flow Rate	9 GPM
Maximum Head Lift	6 ft.
Maximum Operating Pressure	26 PSI
Maximum Operating Temperature	110 deg. F
Minimum Operating Pressure	1 PSI
Minimum Operating Temperature	12 deg. F
Power Cord Length	6.5 ft.
Power Type	Electric, 12 Volt
Product Height	11 in.
Product Length	19 in.
Product Weight	28 lb.
Product Width	15 in.
Voltage	12 V
Warranty	2 Years
Manufacturer PartNumber	F00201A8C
