Grizzly 3 HP 12A Dust Collector with Aluminum Impeller 11.4 Cu Ft Capacity 2 300 CFM Dust Collectors Woodworking & Other Power Tools

Rid your shop of the wood dust from your projects fast and efficiently. The G1030Z2P 3 HP Dust Collector is designed to capture fine dust particles and wood chips from up to three woodworking machines at the same time. It can be operated as either a stationary or a mobile unit. The advantage of the mobile system is eliminating the cost of main and branch ducts found on permanent systems. On the other hand, the stationary system is more versatile and convenient for those running multiple machines that aren't moved around. The G1030Z2P has an air suction capacity of 2300 CFM and has a max static pressure of 16.7 in. Static pressure is produced by the 12-3/4" cast-aluminum impeller to move the wood chips into the dual collectors. The filtration of the G1030Z2P collects particles as small as 2.5 microns. For comparison, the human hair averages 50 microns wide. It collects 11.4 cubic feet of dust and chips into the two upper and two lower collection bags. Machines manufactured after 2021 feature a heavy-gauge clear plastic adapter that allows three 4" lines to be connected simultaneously. This allows for easy visibility and will help track down potential clogs. Like all Grizzly dust collection systems, the G1030Z2P comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.) The G1030Z2P manual was written by our U.S. based Technical Documentation Department and is packed with useful information; making it easier to assemble and maintain your machine. The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the dust collector are available on-line and shipped from the Grizzly parts warehouse in Springfield, MO. Made in an ISO 9001 factory CSA certified

Motor: 3HP, 240V, single-phase, 12A
Airflow performance: 2300 CFM
Maximum static pressure: 16.7"
Main inlet size: 7"
Inlet adapter: 3 x 4"
Filtration rating: 2.5 micron
Bag capacity: 11.4 cubic feet
Bag size (dia. x depth): 19-1/2" x 33"
Upper bags: Fabric
Lower bags: Plastic

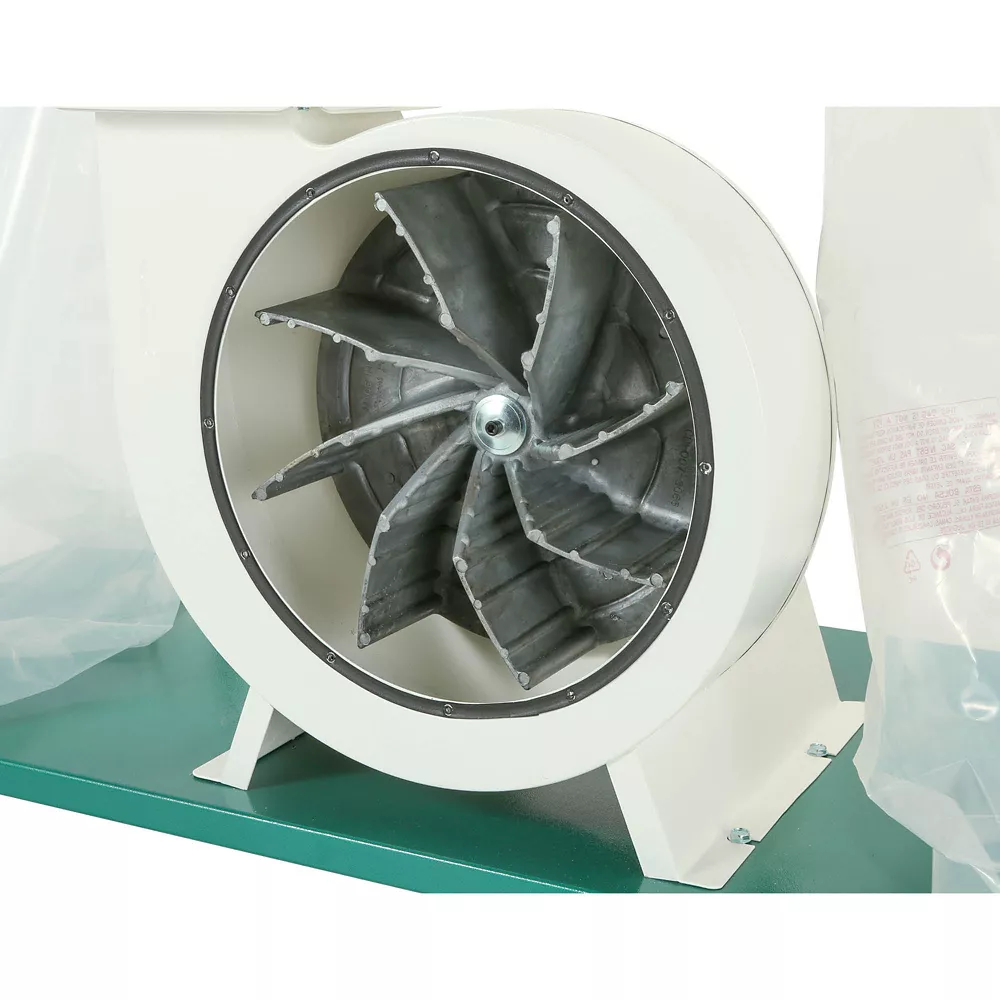

Impeller: 12-3/4" cast-aluminum, radial fin
Overall dimensions: 58" W x 33" D x 78" H
Approximate shipping weight: 170 lbs.
2.5 Micron upper bag filtration
Steel base with casters for mobility
Powder coated white Polar Bear color scheme paint

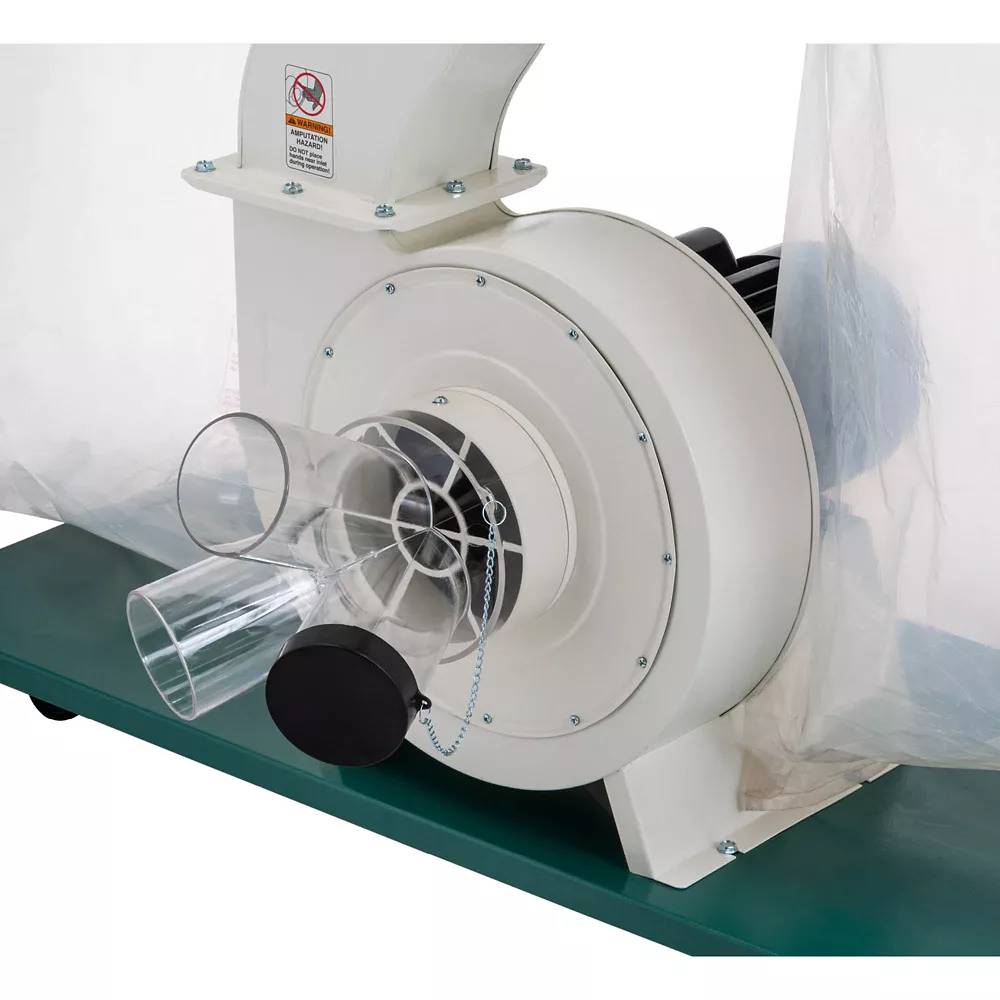

Heavy-gauge clear plastic adapter for easy visibility

Grizzly 3 HP 12A Dust Collector with Aluminum Impeller 11.4 Cu Ft Capacity 2 300 CFM Dust Collectors Tools> Woodworking> Woodworking & Other Power Tools> Dust Collectors

Specification	Description
Brand	Grizzly
Country of Origin	Imported
Amperage	0 N/A
Compatibility	See manual
Decibel Rating	0 N/A
Phase	Single Phase
Features	No Additional Features
Filter Efficiency	0 - Not Measured
Filtration Material	Aluminum
Horsepower	3 hp
Hose Diameter	7 in.
Hose Length	0 in.
Maximum Airflow Rate	2300 CFM
Operating Velocity	2300 CFM
Product Height	78 in.
Product Length	58 in.
Product Weight	156 lb.
Product Width	33 in.
Warranty	1
Manufacturer PartNumber	G1030Z2P

Grizzly 3 HP 12A Dust Collector with Aluminum Impeller, 11.4 cu. ft. Capacity, 2,300 CFM Specifications expand/collapse Specification Description Brand Grizzly Country of Origin Imported Amperage 0 N/A Compatibility View Manual Decibel Rating 0 N/A Phase Single Phase Features No additional features Filter Efficiency 0 - Not measured Filtration Material Aluminum Power 3 hp Diameter of pipe 7 in. Hose length 0 in. Maximum Air Flow 2,300 CFM Operating Speed 2,300 CFM Product Height 78 in. Product length 58 in. Product weight 156 lbs. Product width 33 in. Warranty 1 Manufacturer Part Number G1030Z2P
