Industrial Air Contractor 13 HP 30 gal 2-Stage Truck Mounted Air Compressor 175 PSI Electric Start Honda Engine Stationary Air Compressors Air Compressors

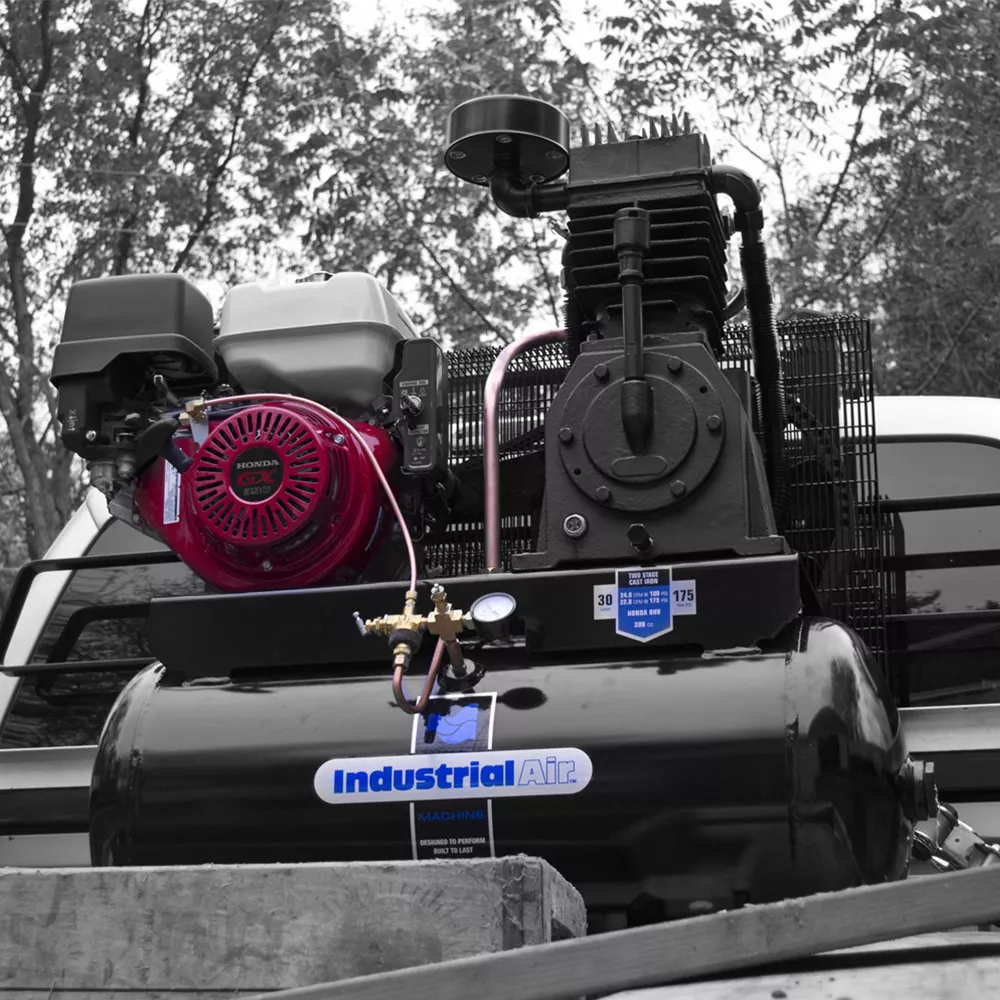

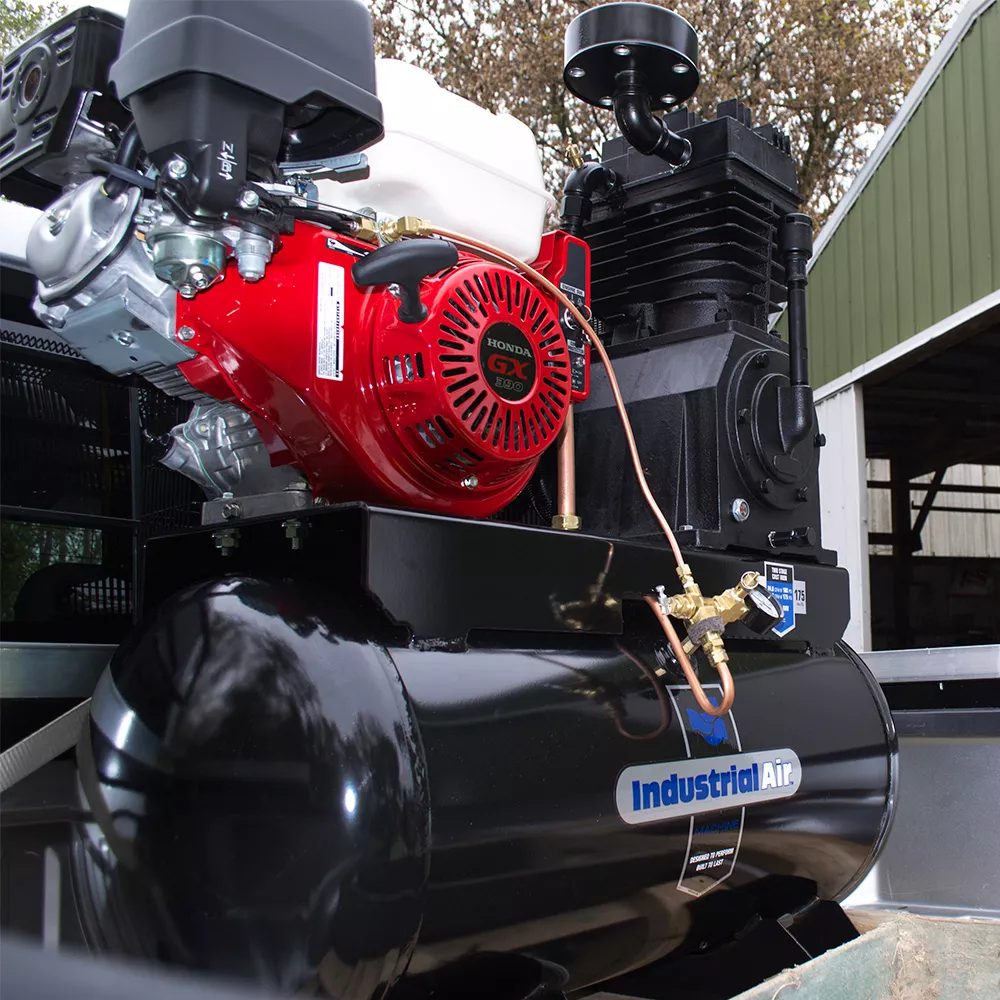

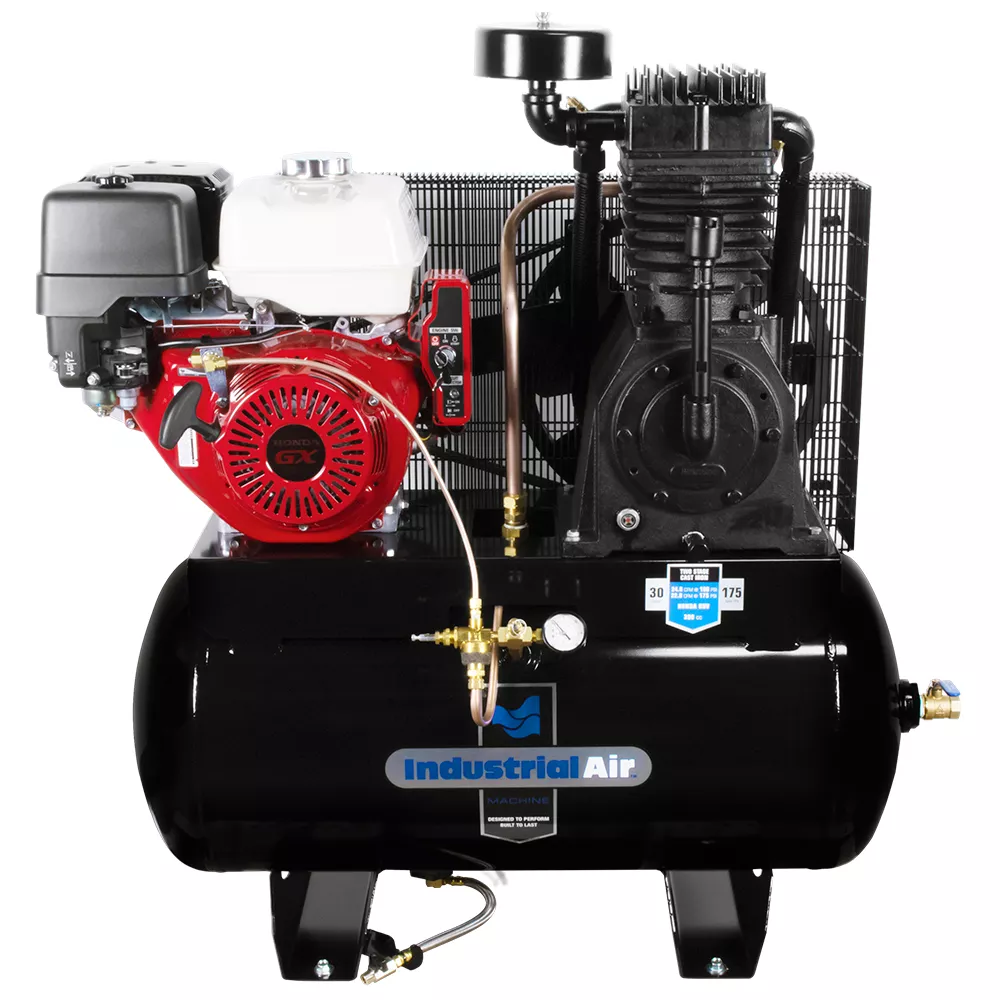

The Industrial Air Contractor 13 HP 2-Stage Truck-Mount Air Compressor with Electric Start Honda Engine is engineered with an overall rugged functionality. This design utilizes a reliable, electric start Honda GX390 OHV gas engine for increased efficiency, optimal power transfer. It is EPA and CARB approved and features an automatic low-oil shutdown function. Manufactured for industrial performance, this 30 gal. 2-stage cast-iron industrial air compressor delivers a maximum of 22.0 CFM at 175 PSI, providing enough power to operate more than one air tool or device at a time. The pump is crafted with a patented piston design, a cast iron precision bored cylinder head with a set of patented asymmetrical deep-groove directional cooling fins and a patented cast iron flywheel design. Merged together, those features provide a cooler running pump. This compressor is engineered as a truck mount style unit with ASME Certification and includes a uniquely-designed metal belt guard that improves compressor pump cooling by as much as 60 degrees over other belt guard designs.

Reliable electric start Honda GX390 OHV gas engine
Offers a 390cc engine with a rate of 24 CFM at 100 PSI or 22 CFM at 175 PSI
Includes a patented piston design a cast-iron precision bored cylinder head and patented asymmetrical deep-grove directional cooling fins
Patented cast-iron flywheel design
Includes a uniquely-designed metal belt guard that improves cooling by as much as 60 degrees F

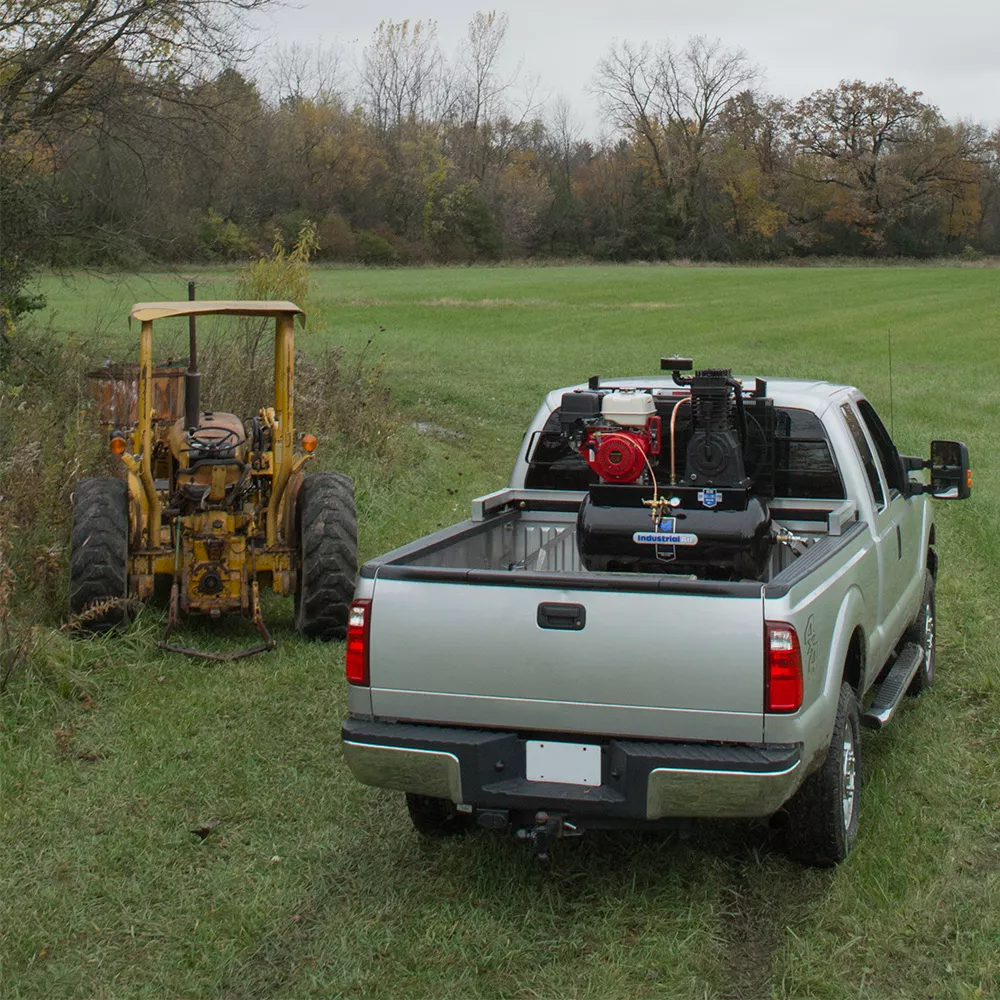

Truck-mounted style unit for on-the-go use

Industrial Air Contractor 13 HP 30 gal 2-Stage Truck Mounted Air Compressor 175 PSI Electric Start Honda Engine Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	Industrial Air Contractor
Country of Origin	Made in USA
Air Delivery SCFM At 90 PSI	22 SCFM
Airflow Volume	22 CFM
Air Outlet Size	0.75 in.
Compressor Horsepower	13 HP
Compressor Maximum PSI	175 PSI
Compressor Tank Capacity	30 gal
Compressor Type	Horizontal
Compressor Voltage	N/A
Drain System	Extended Drain
Drive Type	Belt Drive
Features	Features a reliable electric start Honda GX390 OHV gas engine Offers a 390-CC engine with a rate of 24.0-CFM at 100 psi or 22.0-CFM at 175 psi
Number Of Power Speeds	Variable
Power Type	Gas
Primary Color	Black
Primary Material	Steel
Product Height	48 in.
Product Length	46 in.
Product Weight	497 lb.
Product Width	23.5 in.
Pump Material	Cast iron
Tank Orientation	Horizontal
Warranty	2 Years Limited
Manufacturer PartNumber	IH1393075
