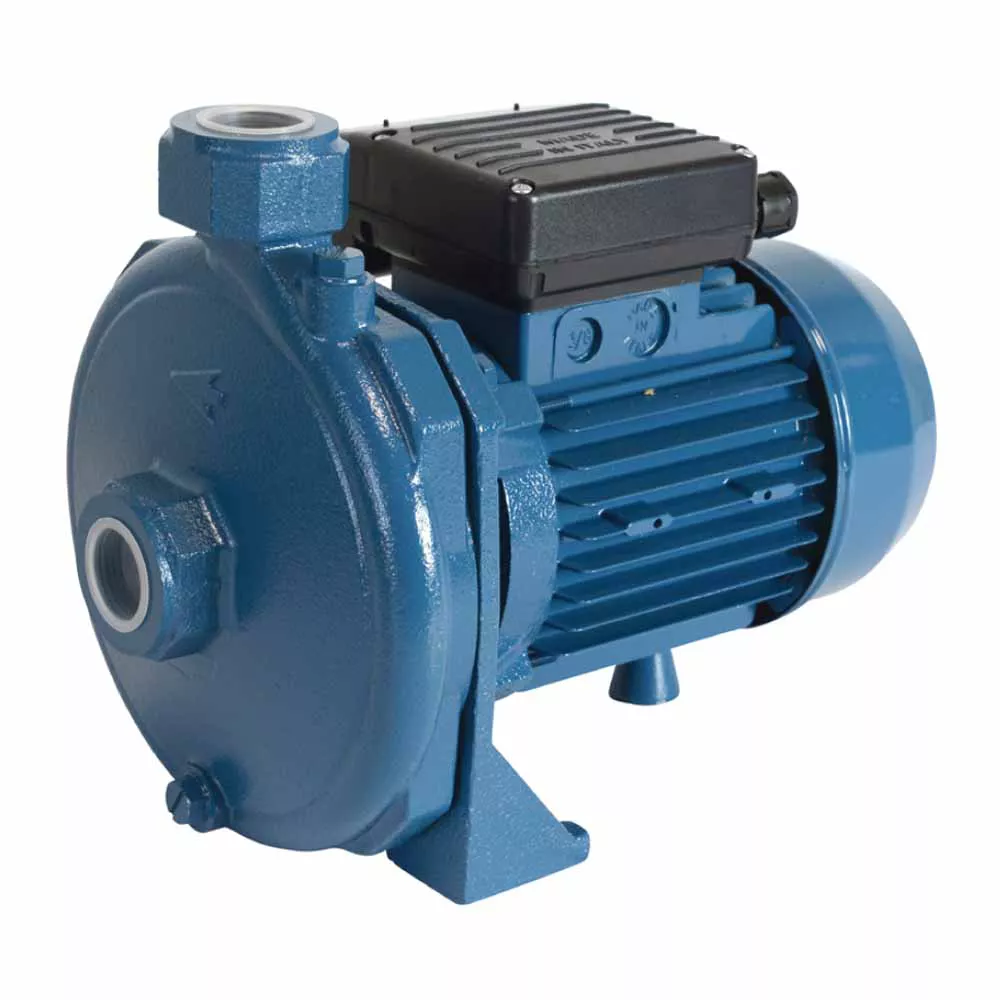

JMS Cast Iron Electric Centrifugal Pump 1 HP 220 V 1 in 107 ft 28 GPM Well Pumps Home Improvement

Single impeller centrifugal pumps suitable to cover any small, medium or large capacity request; for domestic, agricultural and industrial purposes; with automatic water distribution through small and medium sized tanks; for sprinkler and flood irrigation systems in gardening and agriculture; to increase in derivation system pressure in aqueducts

Pump body Cast Iron
Impeller Noryl
Single-phase 230V-60Hz

JMS Cast Iron Electric Centrifugal Pump 1 HP 220 V 1 in 107 ft 28 GPM Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps

Specification	Description
Brand	JMS
Country of Origin	Imported
Amperage	6.2A
Body Material	Cast iron
Compatible Pipe Material	Universal
Compatible Well Diameter	1 in.
Discharge Connection	Threaded Female
Discharge Diameter	1 in. NPT
Discharge Rate at 0 ft.	28 gpm
Discharge Rate at 25 ft.	26.5 gpm
Discharge Rate at 50 ft.	25 gpm
Features	Thermal protection for single-phase models,
Head Pressure	107 ft.
Horsepower	1 HP
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Maximum Flow Rate	28 GPM
Maximum Head Lift	107 ft.
Maximum Operating Depth	17 ft.
Maximum Operating Temperature	104 deg. F
Minimum Operating Temperature	32 deg. F
Power Type	Electric
Product Height	11 in.
Product Length	11 in.
Product Weight	33 lb.
Product Width	8.3 in.
Motor Type	Ac
Voltage	1 PH 220V
Warranty	1 year limited warranty
Manufacturer PartNumber	1111101
