Maxim Welded Toilet Cylinder 4 in Bore x 30 in Stroke 2 in Shank Diameter Hydraulic Cylinders Tractor Repair & Parts

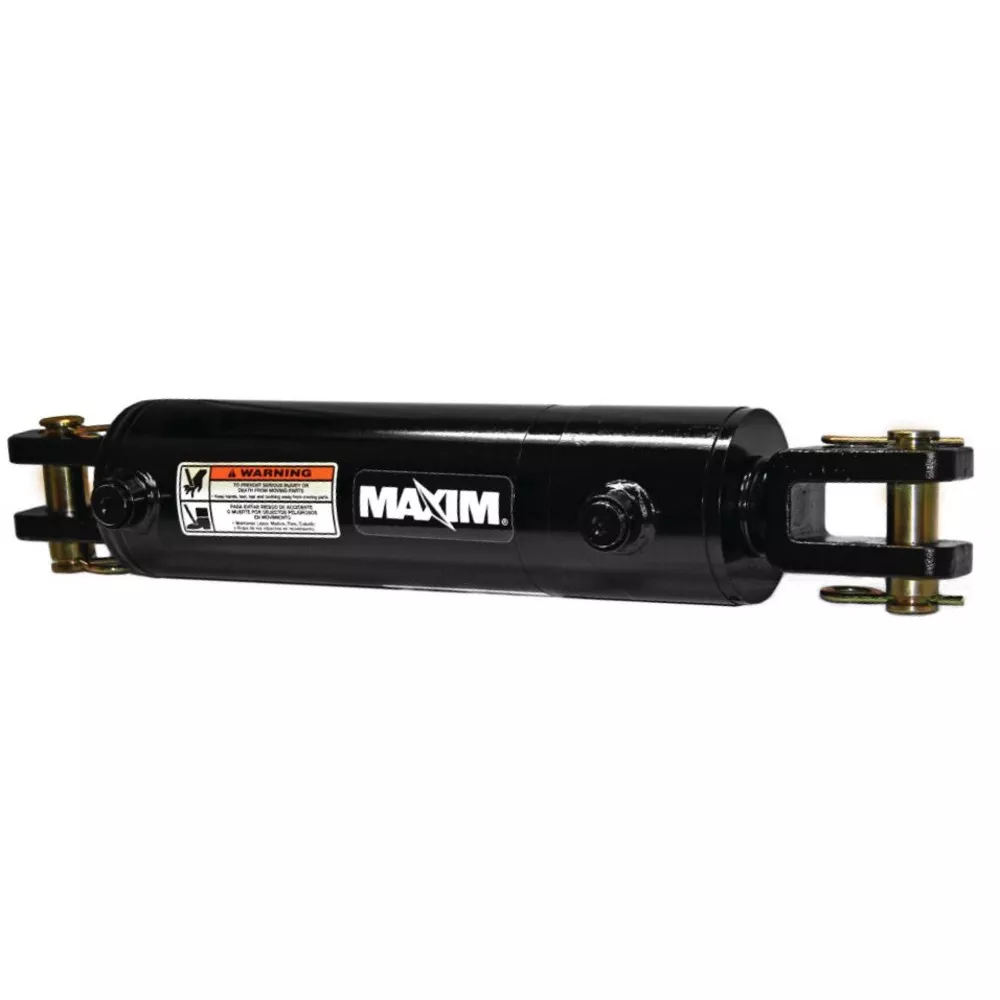

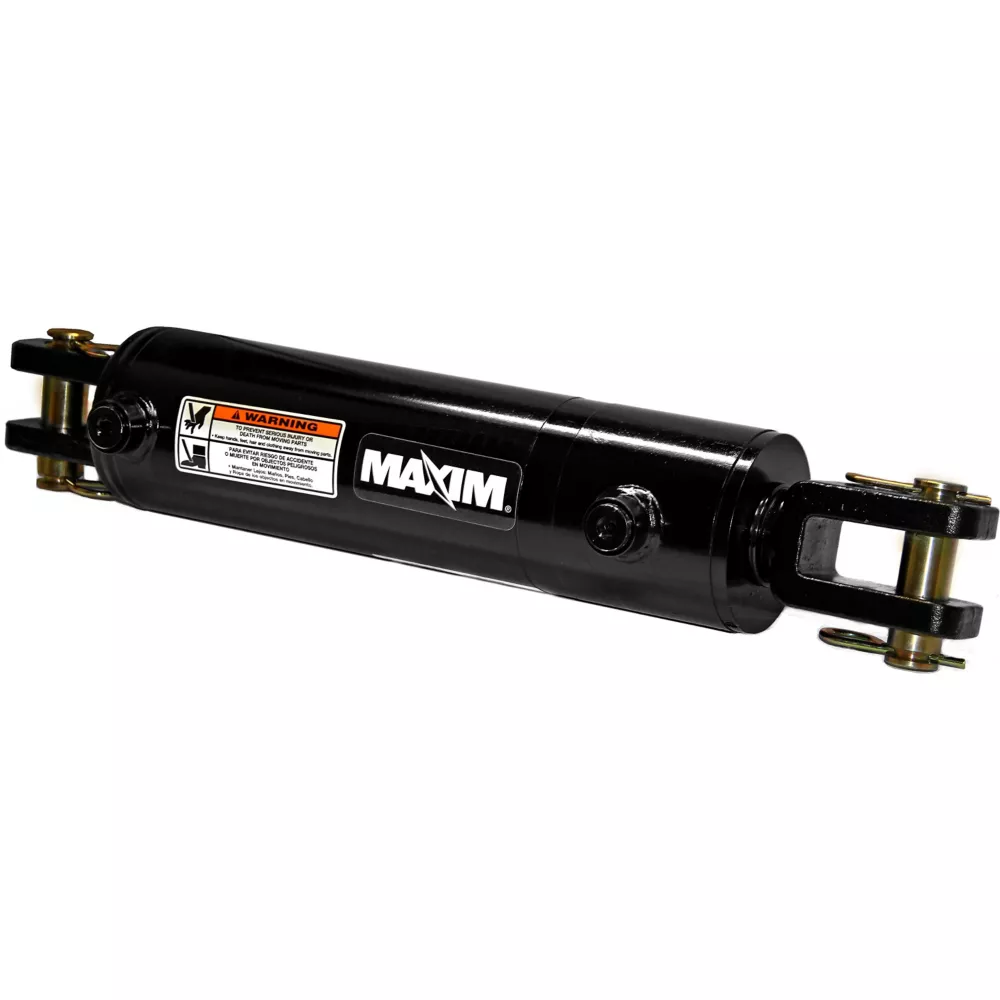

The Maxim 4 in. Bore x 30 in. Stroke WC Welded Cylinder is clevis-mounted and exceeds the highest standards. You can rely on this hydraulic cylinder; it's been designed for demanding applications and built to ensure maximum reliability and performance. This welded cylinder is intended to be used in double-acting applications, and it has cast female clevises with pins and clips included as end mounts.

Welded hydraulic cylinder intended to be used in double-acting applications
Painted black for a simple and effective hydraulic cylinder design
Piston: ductile iron ASTM A536 65-45-12 for excellent life
Piston lock nut: grade 8, high-tensile zinc-plated
Gland: ductile iron ASTM A536 65-45-12
Tube: high-tensile cold drawn tube, precision-honed for extended seal life
Tube seal: nitrile O-ring with polytemp hytrel back-up
Rod: high-tensile ground and polished hard chrome-plated rod
Rod seal: standard PolyPak with B-lip design (polyurethane U-cup with nitrile O-ring expander)
Wiper: polyurethane
End mounts: cast female clevises with pins and clips included
Pin and pin clip: high-tensile zinc-plated steel
Piston ID seal: O-ring
Piston OD seal: Hallite 755 piston seal
Ports: SAE O-rings
Measures 40.25 in. retracted and 70.25 in. extended
Column load: 36,430 lb.
Pin diameter of 1 in. and rod diameter of 2 in.
1 year warranty
Maximum PSI: 3,000 PSI

Note: This product may require up to 2 additional days for order processing prior to shipping

Maxim Welded Toilet Cylinder 4 in Bore x 30 in Stroke 2 in Shank Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Maxim
Country of Origin	Imported
Bore Diameter	4 in.
Brand Compatibility	Universal
Extended Length	70.25 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	36,430 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	1 in.
Primary Material	Steel
Product Weight	83 lb.
Retracted Length	40.25 in.
Rod Diameter	2 in.
Single/Double Acting	Double acting
Stroke Distance	30 in.
Warranty	1 Year
Manufacturer PartNumber	288463

Maxim 4 in. Bore x 30 in. Stroke WC Welded Cylinder, 2 in. Rod Diameter Specifications expand/collapse Specification Description Brand Maxim Country of Origin Imported Bore Diameter 4 in. Brand Compatibility Universal Extended Length 70.25 in. Welded Hydraulic Cylinder Type Maximum Operating Pressure 3,000 PSI Maximum Weight Capacity 36,430 lbs. Model Compatibility Universal Packing Quantity 1 Pin Diameter 1 in Main Material Steel Product Weight 83 lbs. Retracted length 40.25 in. Shank diameter 2 in. Single/double acting Double acting Stroke distance 30 in. 1 year warranty Manufacturer part number 288463.
