Maxim Welded WSB Swivel Ball Hydraulic Cylinder 3 in Bore x 24 in Stroke 1.5 in Rod Diameter Hydraulic Cylinders Tractor Repair & Parts

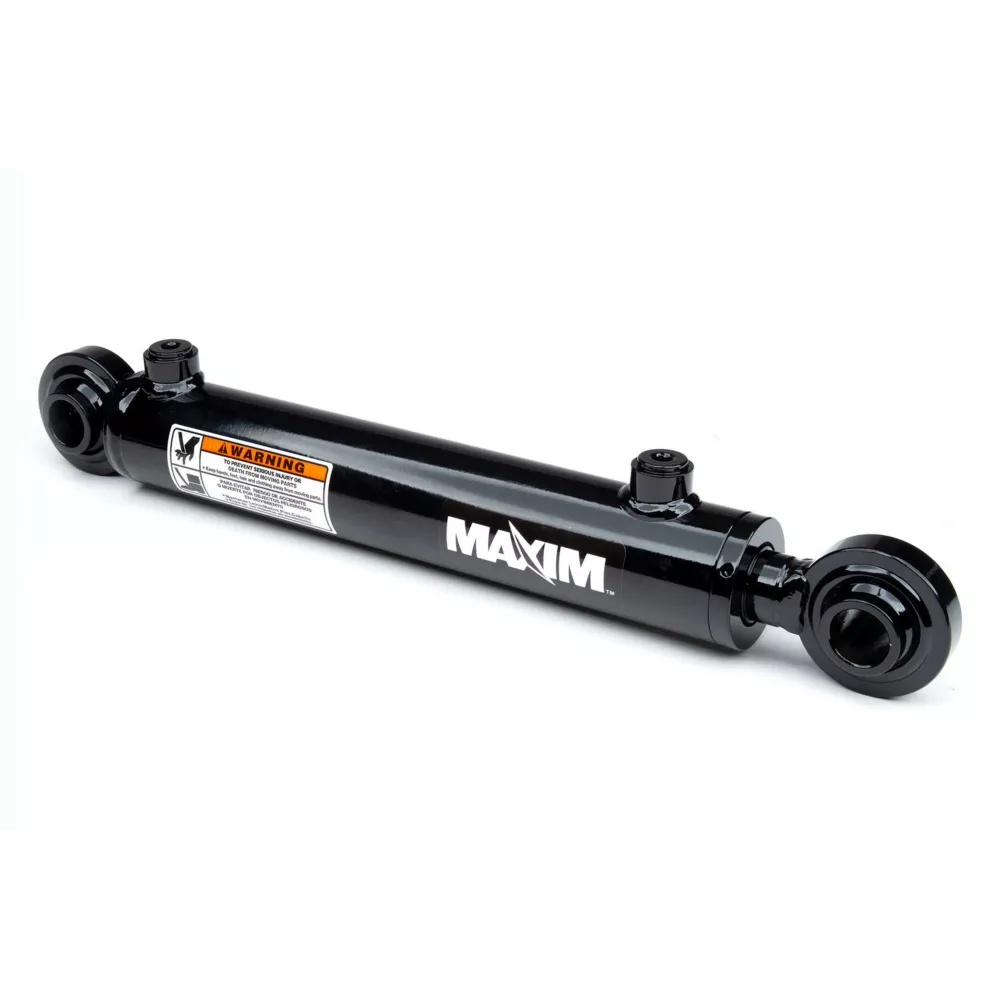

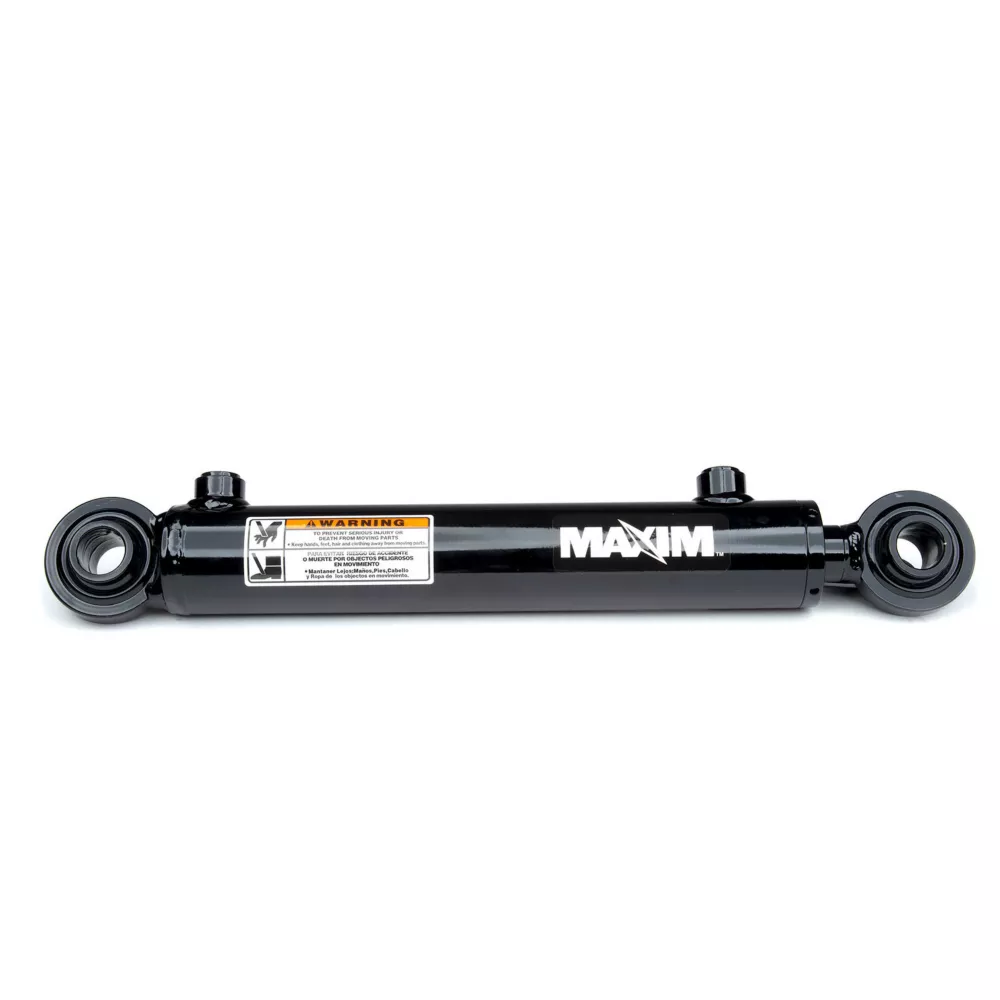

The Maxim 3 in. Bore x 24 in. Stroke WSB Swivel Ball Welded Hydraulic Cylinder features swivel ball mounts, which make it great for use on compact equipment. The swivel ball hydraulic cylinder is designed for demanding applications and comes built to ensure maximum reliability and performance. A truly versatile design, this hydraulic cylinder is intended for double-acting applications, and it performs in those applications masterfully.

Intended use of swivel ball hydraulic cylinder: double-acting applications
Piston: ductile iron
Piston lock nut: nylock nut
Gland: ductile iron with rod wear band
Steel tube is honed or skived for extended seal life
Tube seal: O-ring and backup
Ground and polished hard chrome-plated rod for durability
Rod seal: U-cup
Wiper: polyurethane

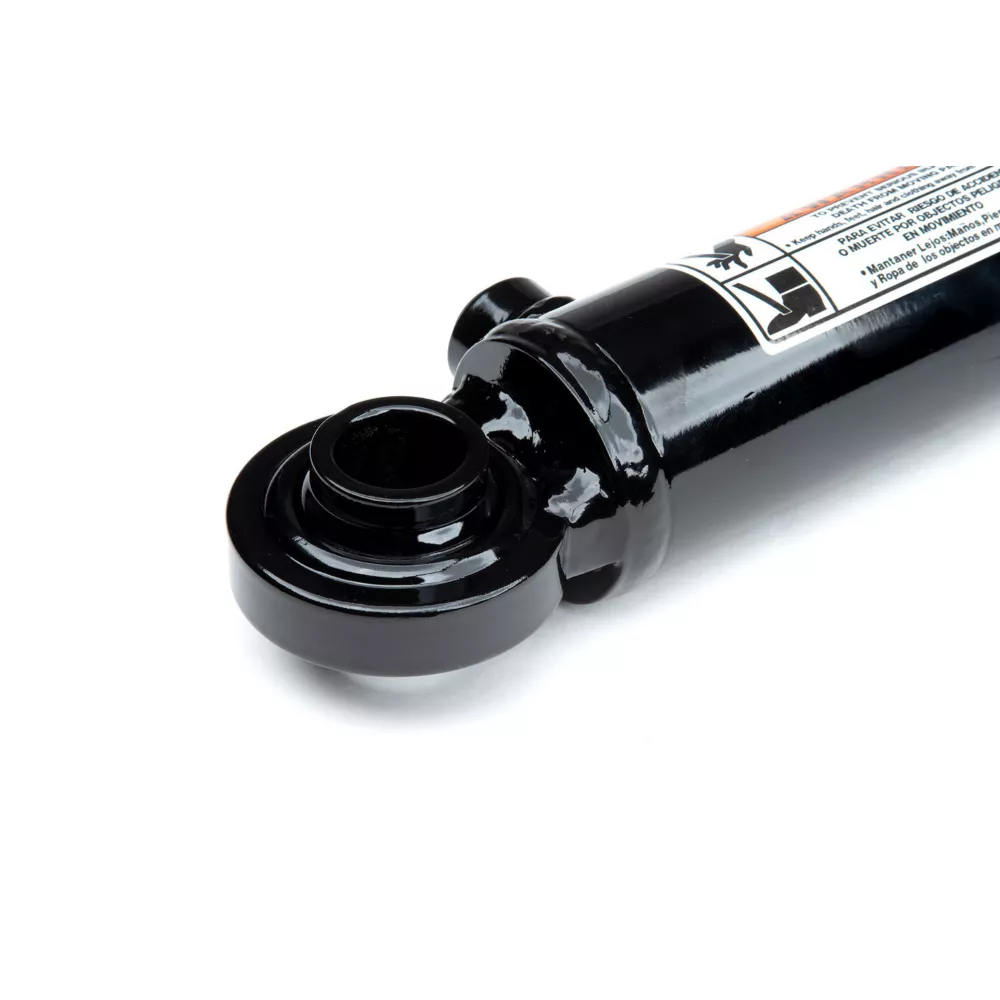

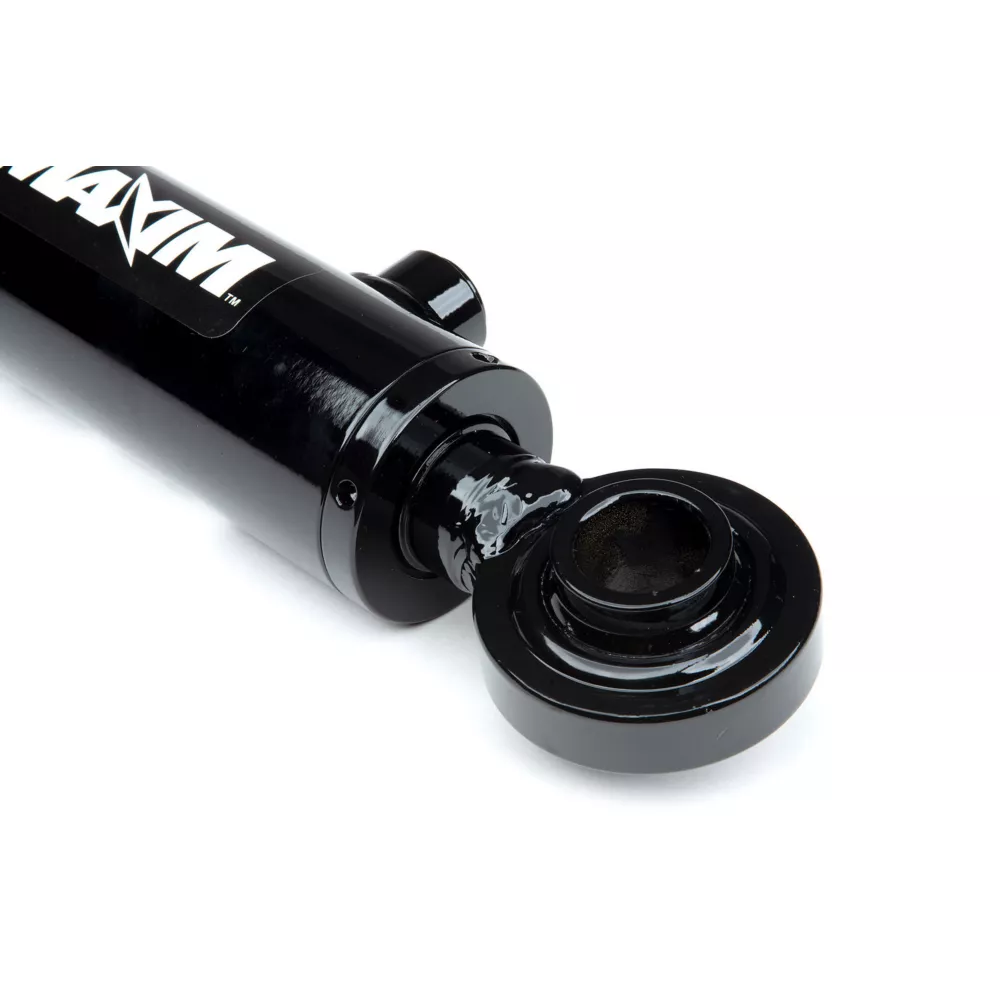

End mounts: spherical
All seals are manufactured to US specifications
Ports: O-ring boss
Paint: black
3 in. bore hydraulic cylinder with 24 in. strokes
Measures 32.25 in. retracted and 56.25 in. extended
Column load: 21,200 lb.
Pin diameter of 1 in. and rod diameter of 1. 5 in.
1 year warranty
Maximum PSI: 3,000 PSI

Note: This product may require up to 2 additional days for order processing prior to shipping

Maxim Welded WSB Swivel Ball Hydraulic Cylinder 3 in Bore x 24 in Stroke 1.5 in Rod Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Maxim
Country of Origin	Imported
Bore Diameter	3 in.
Brand Compatibility	Maxim
Compatibility	Welded Hydraulic Cylinder
Extended Length	56.25 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	21,200 lb.
Model Compatibility	Not designed for a specific cylinder to replace
Package Quantity	1
Pin Diameter	1 in.
Port Size	SAE 8
Primary Material	Steel
Product Height	41 lb.
Product Length	24 in.
Product Weight	41 lb.
Product Width	3.5 in.
Retracted Length	32.35 in.
Rod Diameter	3-1/8 in.
Single/Double Acting	Double acting
Stroke Distance	24 in.
Warranty	1 Year
Manufacturer PartNumber	400531
