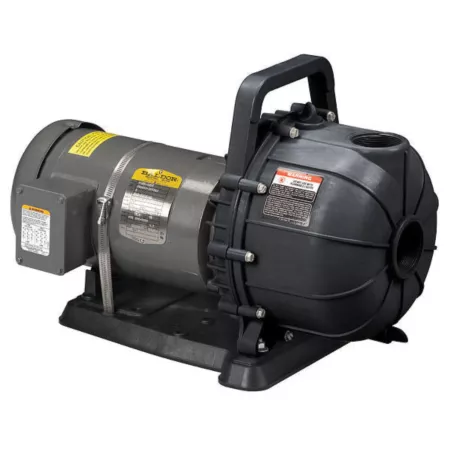

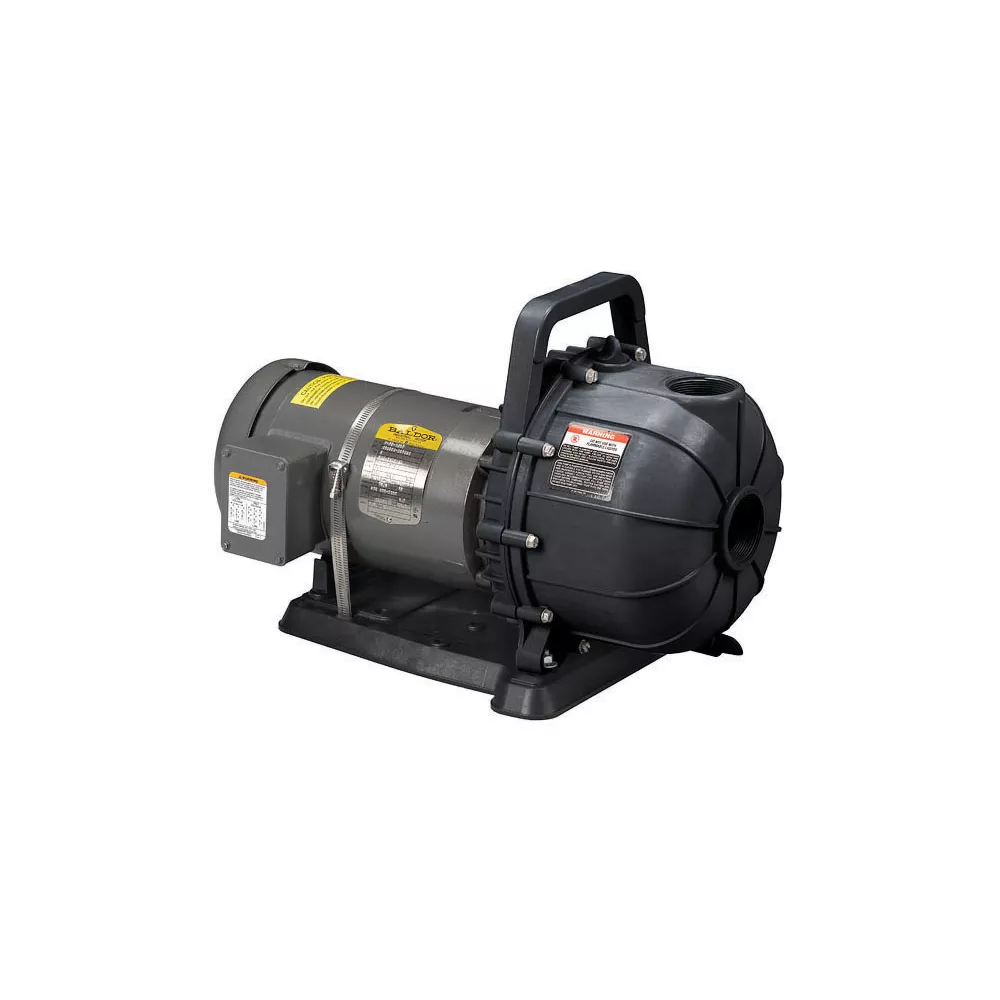

Pacer Electric Chemical and Clear Water Transfer Pump 2 HP 115/230 Volt Single Phase Electric Motor 110 GPM Transfer Pumps Farm & Ranch

Pacer's S' Series Self-Priming Centrifugal pumps are lightweight and chemically resistant for general service on water, salt water, waste water, agricultural chemicals, and mild acids and bases. They feature stainless steel internal and external fasteners and EPDM elastomers The pumps are molded of tough, engineered thermoplastics. All pumps include a built-in check valve, feature easy servicing and during pumping, a self-cleaning double volute keeps pump free of settled solids. It features a 2" port on the inlet and discharge connections with NPT threads for easy connections. It is powered by a 2 hp, single-phase electric motor with flow rates of up to 110 GPM or 70 ft. TDH at 60 Hz for powerful pumping. This pump should be installed by a certified electrician. Please Call Pacer with any chemical compatibility or application questions.

2" Suction & Discharge ports
110 Max GPM
70 ft. Max TDH
Suction Lift to 25 ft.
Built in check valve
Tough glass reinforced polyester
Stainless steel hardware
EPDM Elastomers
2 HP Single Phase Electric Motor
115/230 V
For use in Aquaculture, Agriculture, Marine and Industrial
Molded & Assembled in the USA (Lancaster, PA)

1-year Limited manufacturer warranty

Pacer Electric Chemical and Clear Water Transfer Pump 2 HP 115/230 Volt Single Phase Electric Motor 110 GPM Transfer Pumps Farm & Ranch> Tanks & Pumps> Transfer Pumps

Specification	Description
Brand	Pacer
Country of Origin	Made in USA
Body Material	Polyester
Compatible Pipe Material	Plastic
Discharge Connection	Threaded Female
Discharge Diameter	2 in.
Discharge Rate at 0 ft.	110 GPM
Discharge Rate at 10 ft.	100 GPM
Engine Displacement	0 N/A
Features	2 in. suction and discharge port, 110 GPM max, 70 ft. TDH Max, 25 ft. suction lift, Built in check valve, Stainless steel hardware, EPDM elastomers, Molded and Assembled in the USA
Hose Diameter	2 in.
Inlet Connection	Threaded Female
Inlet Diameter	2 in.
Maximum Flow Rate	110 GPM
Maximum Head Lift	70 ft.
Maximum Operating Pressure	26 PSI
Maximum Operating Temperature	130 deg.F
Maximum Suction Lift	25 ft.
Minimum Operating Pressure	0 N/A
Minimum Operating Temperature	-10 deg.F
Power Type	Electric
Product Height	13 in.
Product Length	30 in.
Product Weight	73 lb.
Product Width	20 in.
Pump Mechanism	Centrifugal
Motor Type	Electric 2 HP Single Phase
Voltage	115V/230V
Warranty	1 Year Limited
Manufacturer PartNumber	P-58-12E4-C2.0C

Pacer 2 HP 115/230V Electric Chemical and Clear Water Transfer PumpSingle Phase Electric Motor Driven, 110 GPM Specifications expand/collapse Specification Description Brand Pacer Country of Origin Made in USA Body Material Polyester Compatible Hose Material Plastic Discharge Connection Female Threaded Discharge Diameter 2 in. Discharge flow at 0 ft. 110 GPM Discharge rate at 10 ft. 100 GPM Motor Displacement 0 N./A Includes 2 in. suction and discharge port, 110 GPM max, 70 ft. TDH Max, 25 ft. suction lift, built-in check valve, hardware made of stainless steel, EPDM elastomers, molded and assembled in the United States, pipe diameter 2 in. Inlet Connection Female Threaded Inlet Diameter 2 in. Maximum Flow Rate 110 GPM Maximum Head Lift 70 ft. Maximum Operating Pressure 26 PSI Maximum Operating Temperature 130 deg.F Maximum Suction Height 25 ft. Minimum Operating Pressure 0 N/ A Minimum operating temperature -10 deg.F Power type Electric Product height 13 in. Product lengthuit 30 in. Product weight 73 lbs. Product width 20 in. Pump Mechanism Centrifugal Motor Type Electric 2 HP Single Phase Voltage 115V/230V Warranty 1 Year Limited Manufacturer Part Number P-58-12E4-C2.0C
