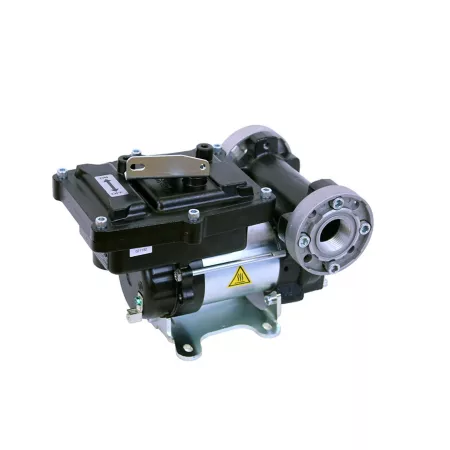

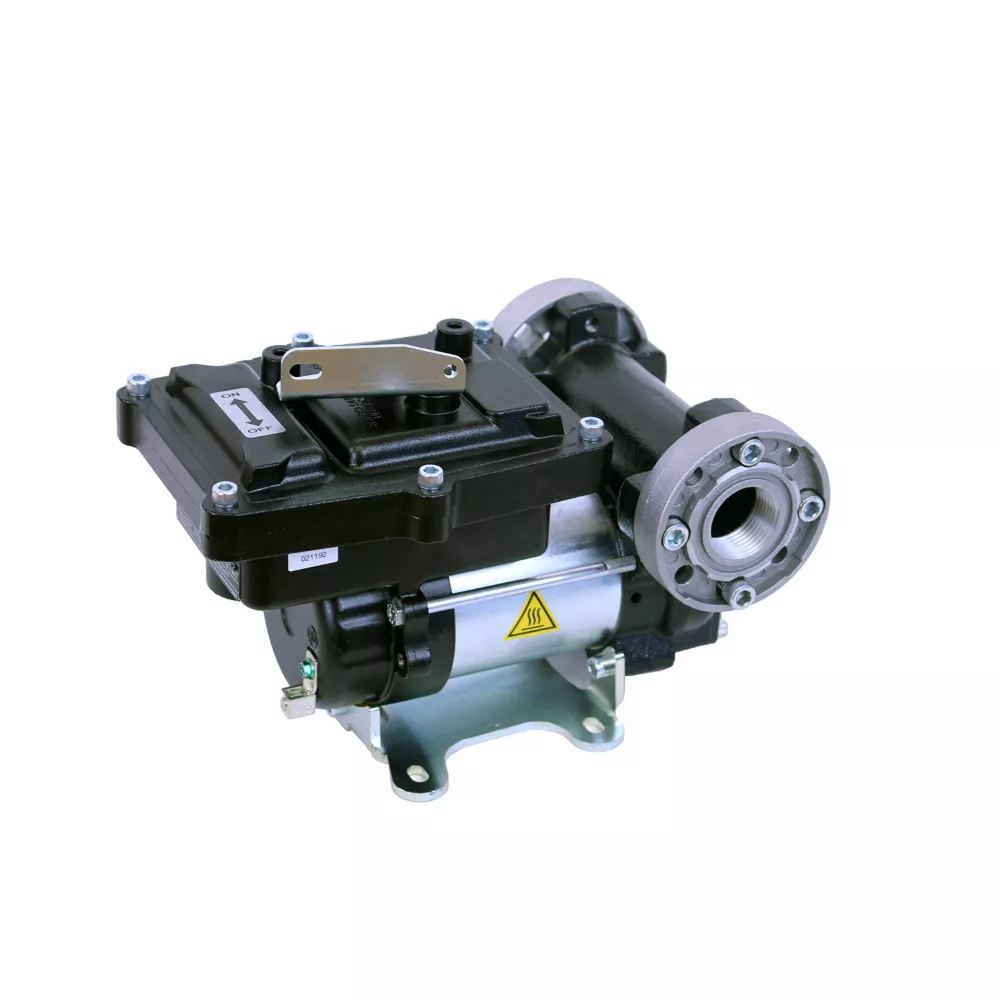

Piusi USA EX50 UL 1/8 HP 120V Electric Fuel Pump 15 GPM Pump Only Pedestal Bracket Fuel Transfer Pumps Truck & Automotive

The 15GPM EX50 120V UL Fuel Transfer Pump is an electric fuel transfer pump designed for dispensing gasoline, diesel and kerosene. Utilizing a grooved rotor and spring-loaded vanes, it is able to deliver higher flow rates at the nozzle; even with all of the common accessories (longer hose, filter, meter, auto nozzle). A true 15GPM at the nozzle!

UL/cUL-listed fuel transfer pump motor suitable for Class 1, Group D area
30% more compact with 30% more flow rate
High efficiency electric fuel transfer pump delivers up to 15GPM at the nozzle
Flanged components can be mounted or replaced without the use of sealant, making connections quick and secure
Bypass valve and spring-loaded, reinforced vanes are built-in to ensure efficiency and longevity
Thermal overload protection to prevent overheating
Bung mount with integrated filter strainer keeps the pump free from debris
120V/60Hz
Amperage: 1.7A

Piusi USA EX50 UL 1/8 HP 120V Electric Fuel Pump 15 GPM Pump Only Pedestal Bracket Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Piusi USA
Country of Origin	Imported
AC or DC Powered	AC
Amperage	1.7A
Body Materials	Cast iron
Compatible Fluids	Gasoline
Discharge Connection	Threaded Male
Discharge Diameter	0.75 in.
Duty Cycle	30 min on 30 min off
Features	UL-listed motor suitable for Class 1, Group D area Sturdy and compact structure Cast iron body
Horsepower	0.125 HP
Hose Diameter	0.75 in.
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Intended Use Grade	Commercial
Maximum Flow Rate	15GPM
Maximum Head Lift	6 ft.
Maximum Operating Pressure	16 PSI
Maximum Operating Temperature	110 deg. F
Minimum Operating Pressure	1 PSI
Minimum Operating Temperature	10 deg. F
Power Cord Length	0 ft.
Power Type	Electric
Product Height	11 in.
Product Length	14 in.
Product Weight	20 lb.
Product Width	16 in.
Voltage	120V 60hz
Warranty	2 year
Manufacturer PartNumber	F00373500

Piusi USA 1/8 HP 120V Electric EX50 UL Fuel Pump, 15 GPM, Pump Only, Foot Mount Specifications Expand/Collapse Specification Description Brand Piusi USA Country of Origin Imported AC or DC Power AC Amps 1.7 A Body Materials Cast Iron Compatible Fluids Gasoline Discharge Fitting Male Threaded Discharge Diameter 0.75 in. Duty cycle 30 min on, 30 min off Features UL listed motor suitable for Class 1, Group D areas Robust and compact structure Cast iron body Power 0.125 HP Pipe diameter 0.75 in. Inlet fitting Female threaded Inlet diameter 1 in. Intended Use Commercial Grade Maximum Flow 15GPM Maximum Head Lift 6 ft. Maximum operating pressure 16 Maximum operating temperature PSI 110 degrees. F Minimum operating pressure 1 PSI Minimum operating temperature 10 deg. F Power cord length 0 ft. Power Supply Type Product Height 11 in. Product length 14 in. Product weight 20 lbs. Product width 16 in. Voltage 120 V 60 Hz Guarantorie 2 years Manufacturer part number F00373500
