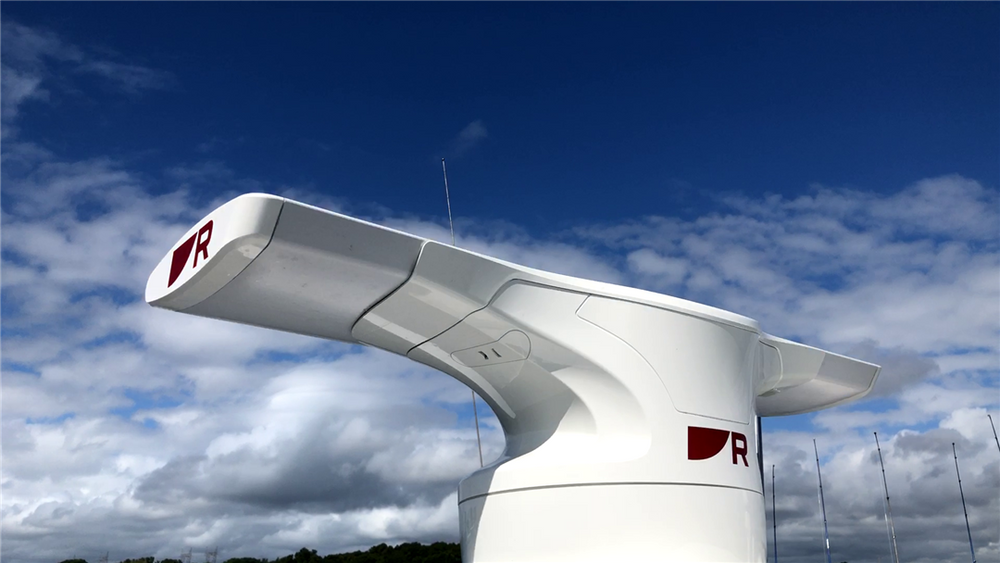

Raymarine Cyclone radar with 6' open array and 15M cables Marine Navigation & Instruments
With a 55-watt solid-state transmitter, Cyclone provides excellent target separation and long-range resolution using CHIRP pulse compression and beam sharpening technology. The Cyclone's power output is equivalent to that of a 6-kilowatt magnetron radar and gives the Cyclone a range of up to 72 nautical miles. Cyclone radars feature innovative detection capabilities including Cyclone Bird mode, RangeFusion™ technology and 60 rpm high-speed imaging. The ultimate expression of design, rugged performance and unmatched situational awareness, Cyclone solid-state open array radars give sailors the confidence to tackle the harshest conditions, gaining the upper hand in the hunt for fish and navigate busy waterways with confidence. Cyclone radars provide superior target separation and resolutionLong range ution using CHIRP pulse compression and Raymarine beam sharpening technology.
Raymarine T70493 Attributes- Radar Type: Open Array
- Size : 6 feet Network
- Range: 72 Nautical miles
- Rotation speed: 12 to 60 rpm
- Power output: 55 watts
- Dimension: 15.27 inches length x 14.17 inches width x 13.18 inches height
- Input voltage: 12 volts to 24 volts
- Width Beam Width: 1.32 degrees horizontal/25 degrees vertical
- Color: White
- Waterproof Rating: IPX6 Waterproof Rating
- Includes: Radar Pedestal /Voltage Converter/Power Cable/Data Cable/Mounting Kit
- Inspired by Airplane Wings: Designed for Extremes with the Best Rating wind speed of 100 knots in its category
- The lower profile of the Cyclone allows greater flexibility ofe boat architecture and more adaptable installation options
- The Cyclone automatically tracks up to 50 targets using the same advanced Arpa technology approved by the United States Coast Guard
- RangeFusion™ technology combines short and long pulses into a single high-clarity radar image, simultaneously providing exceptional short and long range targets.eously
- The rapid rotation speed of 60 rpm min provides 360-degree awareness and precise, real-time target tracking
- Doppler target tracking simplifies interpretation of dangerous and safe targets for added safety
- The design Innovative base design conceals cable connections for a cleaner installation
- Cyclone's 6-foot option provides superior target separation and range detection
- 2-year limited warranty
- ICyclone Pro 87402 (Rev 5) installation instructions (EN).pdf
- Raymarine-Global-Limited-Warranty -01-Jul-17-rev1 -0.pdf
- Cyclone Cyclone Pro 87402 Installation Instructions (Rev. 5) (EN).pdf
- Open Matrix E70628 E70620 E70621 E70622 2D PDF.pdf 55W cyclones with 6' open array and 15M cables SOLID STATE OPEN ARRAY RADAR
The ultimate expression of design, rugged performance and unmatched situational awareness, Cyclone solid-state open array radars give sailors the confidence to take on the toughest conditions, gain the upper hand in the hunt for fish and navigate busy waterways with confidence.
Cyclone radars provide superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative sensing capabilities including Cyclone Bird Mode, RangeFusion™ technology and 60 RPM high-speed imaging.
ADVANCED DESIGN

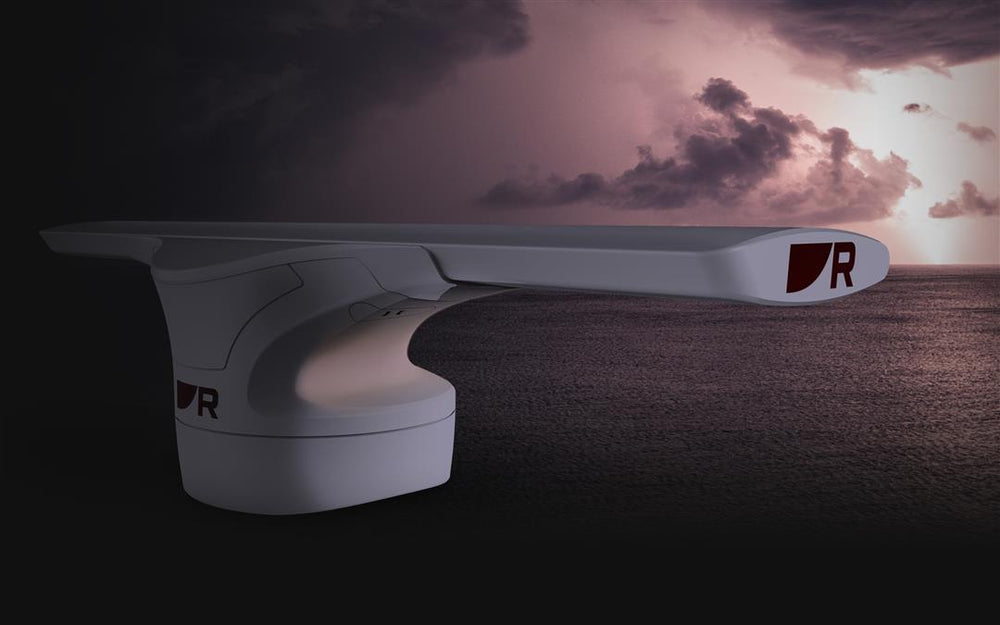

- Aircraft wing-inspired design is built for extremes with best-in-class 100 knot wind resistance and built to meet commercial grade IEC 62388 for onboard radars
- At 13.1 inches (335 mm) high, the Cyclone's lower profile allows for greater boat architecture flexibility and more adaptable installation options.
- Innovative base design conceals cable connections for a cleaner installation
ULTIMATE SITUATIONAL AWARENESS
- Fast 60 RPM rotation speed provides 360-degree awareness and precise, real-time target tracking
- Doppler target tracking simplifies interpretation of dangerous and safe targets for increased safety
- Professional-grade ARPA target tracking. Cyclone automatically tracks up to 50 targets using the same advanced ARPA technology trusted by the U.S. Coast Guard.
- RangeFusion™ technology combines short and long pulses into one image Unique high clarity radar, providing exceptional range and range. long-range targets simultaneously.
FISHING INTELLIGENCE
- Optimized performance for locating seabirds
- Improved Cyclone Bird Mode using CHIRP pulse compression technology
6' OPEN HOUSE SIZE
- 6' options offer atarget separation and higher range detection
In the E70620 stand box:
- Pedestal
- Stud M10 x4
- Nut M10 x8
- Spring washer M10 x4
- Flat washer M10 x4
- Joint assembly
- Mounting template
- Radar data cable 15m
- Power cable 15m
- VCM100
- Cable clamp
- li>
- VCM100 mounting screws x2
- Cable clamp mounting screws x3
6' antenna box E70630:
- Antenna
- Threaded alignment guide
- Washer
- Spring washer
- Nut
All Axiom displays require the upcoming LightHouse Hvar 3.16 software update for full compatibility with Cyclone. LightHouse Hvar 3.16 will be available in early November 2021.
PRODUCT ID: 92091
SKU: NVN-92091
CSKU: CWR-92091
REWRITE: 103202 -raymarine -cyclone-radar-w-6-39-open-array
MPN: T70493
UPC: 723193836637
ASIN:
WSKU: RAYT70493
SSKU:
KSKU: RAYT70493
GSKU:
MSKU:
LSKU:
NAME: Raymarine Cyclone Radar with 6FT Open Array and 15M Cables
NAME_EX: RAYMARINE CYCLONE RADAR 6FT OPEN ARRAY WITH 15M CABLES
PTITLE: Raymarine Cyclone Radar with 6FT Open Array and 15M cables
TYPE: Navigation and maritime instruments | Radars
SELLER: Raymarine
ELECTRONICS> MARINE ELECTRONICS> MARINE RADAR
Gtags:
GSpecs:
Raymarine Cyclone Radar with 6' Open Array and 15M Cables Product DescriptionWith a 55-watt solid-state transmitter, the Cyclone provides excellent target separation and long-range resolution using Raymarine Cyclone technology. CHIRP pulse compression and beam sharpening. The Cyclone's power output is equivalent to that of a 6-kilowatt magnetron radar and gives the Cyclone a range of up to 72 nautical miles. Cyclone radars feature innovative detection capabilities including Cyclone Bird mode, RangeFusion™ technology and 60 rpm high-speed imaging. The ultimate expression of design, rugged performance and unmatched situational awareness, Cyclone solid-state open array radars give sailors the confidence to tackle the harshest conditions, gaining the upper hand in the hunt for fish and navigate with confidence on the waterways tvery busy. Cyclone radars provide superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology.
Raymarine T70493 Attributes- Radar Type: Open Array
- Size: 6 Foot Array
- Range: 72 nautical miles
- Rotation speed: 12 to 60 RPM
- Output power: 55 watts
- Dimension: 15.27 inches length x 14.17 inches width x 13.18 inches height
- Input voltage: 12 volts at 24 volts
- Beam width: 1.32 degrees horizontal/25 degrees vertical
- Color: White
- Waterproof index: Waterproof indexTee IPX6
- Includes: Radar Pedestal/Voltage Converter / Power Cable/ Data Cable/ Mounting Kit
- Inspired by airplane wings: designed for extreme conditions with best-in-class 100 knot wind rating
- Lower profile Cyclone Allows greater boat architecture flexibility and more adaptable installation options
- The Cyclone automatically tracks up to 50 targets using the same advanced Arpa technology approved by the States Coast Guard -United
- RangeFusion™ technology combines short and long pulses into the single high clarity radar image, simultaneously providing exceptional short and long range targets.
- The Fast 60 RPM rotation speed provides 360-degree awareness and accurate real-time target tracking
- LDoppler target tracking simplifies interpretation of dangerous and safe targets for added safety
- Innovative base design conceals cable connections for cleaner installation
- Option 6-foot Cyclone Delivers Superior Target Separation And Range Detection
- 2-Year Limited Warranty
- Instructions Cyclone installation Cyclone Pro 87402 (Rev 5) (EN).pdf
- Raymarine-Global-Limited-Warranty-01-Jul-17-rev1-0 .pdf
- Cyclone Cyclone Pro Installation Instructions 87402 (Rev 5) (EN).pdf
- 36 inch Open Array E70628 E70620 E70621 E70622 2D PDF.pdf
- 36 inch open array E70628 E70620 E70621 E70622 2D PDF.pdf
55 W cyclonic radar with open array 6' and 15 M
RADAR TO ARRAY cables ORSOLID-STATE GREEN
The ultimate expression of design, rugged performance and unmatched situational awareness, Cyclone open-array solid-state radars give sailors confidence necessary to tackle the toughest conditions, gain the upper hand in the hunt for fish, and navigate busy waterways. with complete confidence.
Cyclone radars provide superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion™ technology and 60 RPM high-speed imaging.
ADVANCED DESIGN
- Airplane wing-inspired design is built for extremes with a best-in-class wind resistance of 100 knots and engineered to meet the com standardIEC 62388 standard for onboard radar
- With a height of 13.1 inches (335 mm), the Cyclone's lower profile allows for greater boat architecture flexibility and more adaptable installation options.
- Innovative pedestal design conceals cable connections for cleaner installation
ULTIMATE SITUATIONAL AWARENESS
- Fast 60 RPM rotation speed provides 360-degree awareness and accurate real-time target tracking
- Doppler target tracking simplifies interpretation of dangerous targets and secure for increased security
- Professional-grade ARPA target tracking. Cyclone automatically tracks up to 50 targets using the same advanced ARPA technology trusted by the United States Coast Guard.
- RangeFusion™ technology combines short and long pulses into a single radar image of high clarity, suppliedsimultaneously hitting exceptional short and long range targets.
FISHING INTELLIGENCE
FISHING INTELLIGENCE
- Optimized performance for seabird tracking
- Enhanced Cyclone Bird mode with CHIRP pulse compression technology
6' OPEN ARRAY SIZE
- 6' options provide greater target separation and range detections
In the E70620 stand box:
- Base
- M10 stud x4
- M10 nut x8
- Spring washer M10 x4
- Flat washer M10 x4
- Mounting gasket
- Mounting template
- Radar data cable 15 m
- 15 m power cable
- VCM100
- Cable clamp
- VCM100 mounting screws x2
- Mounting screw for cable clamp x3
6' Antenna Box E70630:
- Antenna
- Guthreaded alignment aid
- Washer
- Spring Washer
- Nut
All Axiom displays require next update Updated LightHouse Hvar 3.16 software for full compatibility with Cyclone. LightHouse Hvar 3.16 will be available in early November 2021.
Raymarine Cyclone Radar with 6' Open Array and 15M Cables Related ProductsRaymarine 15M Power Cable for Cyclone radar
Frequently asked questions (FAQ) about the Raymarine cyclone radar with 6' open array and 15 m cables Who is the Raymarine?
How to describe the cyclone radar Raymarine with 6' Open Array and 15M Cables?
What is the size?
What is the color of the Raymarine Cyclone Radar with 6' Open Array and 15M Cables?
What is the color? is the waterproof rating of the product? Who is Raymarine? Raymarine, world leader in marine electronics, develops and manufactures the most complete range ofelectronic equipment. Raymarine is dedicated to designing, manufacturing and distributing the highest quality marine electronics products and services to the recreational and light commercial markets worldwide. From stand-alone units to fully integrated systems, Raymarine understands boating and what it takes to make it safer. How to describe the Raymarine cyclone radar with 6' open array and 15M cables? "
Raymarine cyclone radar 55 watts with 6 ft antenna
Model: T70493ExpressWith their design, rugged performance and unmatched situational awareness, Cyclone solid-state open array radars give sailors the confidence to tackle the toughest conditions, gain the upper hand in the hunt fish and confidently navigate busy waterways.
Cyclone radars provide superior target separation and long-range resolution using CHIRP pulse compression and sharpening of the Raymarine beam.advanced technology. Each model features innovative sensing capabilities including Cyclone Bird Mode, RangeFusion™ technology and 60 RPM high-speed imaging.
Specifications| Supply voltage (with VCM100) | Nominal: 12 V DC or 24 V DC / Minimum: 10.2 V DC / Maximum: 31.2 V DC |
| Power consumption (typical) | 70 watts |
| Power consumption (max) | 170 watts |
| Power consumption (standby) | 28 Watts |
| Maximum range scale | 72 nm |
| Startup time | 40 seconds |
| Sleep to transmit | less than 5 seconds |
| Waterproof Rating | IPX6 |
| Operating Temperature Range | - 25°C to +55°C (-13°F to 131°F) |
| Humidity | Up to 93% at 40°C (104°F) |
| Maximum wind speed | 100 Kts |
| Electrical connection | 1x Power connector |
| Data connection | 1x RayNet connector |
| L frequency'transmitter | 9370, 9400, 9430 MHz (user selectable) |
| Peak output power | 55 watts |
| Receiver characteristic | Linear |
| Receiver noise | Less than 5 dB |
| Pedestal | |
| Dimensions | 388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (up to top of the antenna) |
| Weight | 16 Kg |
| Antenna | |
| Beam width (vertical) | 25 degrees |
| Beam width (horizontal) | 1.32 degrees |
| Polarization | Horizontal |
| Rotation speed | 12, 24, 36, 48, 60 rpm |
| Length | 1945 mm / 76.57 inches |
| Weight | 12 Kg / 26.45 lb |
What's in the box:
- A8058 15m Data Cable "
- Solid-State Open Array Radar: The ultimate expression of design, rugged performance and unrivaled situational awareness.
- Cyclone Radar 55W with 6' open array and 15M cables - The Cyclone 55W Radar has a 6' open array and 15 meters of cables.
- Software Superior - Software is intuitive and easy to use.
- 55W Cyclone Radar with 6' Open Array and 15M Cables
- Radar to Array solid-state open array for ultimate performance and situational awareness
- Unmatched rugged design that can take a beating
- Solid-state open array radar
- 6' open matrix
- 15M cables
- Solid-state open array radar: the ultimate expression of design, rugged performance and unmatched situational awareness.
- 55W Cyclonic Radar with 6' Open Array and 15M Cables - The Cyclone Radar 55W features a 6' open array and 15 meters of cables.
- Superior Software - The software is intuitive and easy to use .
- 55W Cyclone Radar with 6' open array and 15M cables
- Solid-state open array radar for optimal performance and situational awareness
- Unrivaled rugged design that can take a beating
- Solid-state open array radar
- 6' open array
- 15M cables
Buy the best price Raymarine Cyclone Radar with 6' Open Array and 15M Cablesfor only $8,249at NVN Marine ! Free same day delivery before 3 p.m. Raymarine Cyclone Radar with 6' Open Array and 15M Cables Technical Specifications
| Type: | Marine Navigation & Instruments | Radars |
|---|---|
| Supplier: | Raymarine |
For detailed shipping policy, please see our shipping policy 'shipping and you can find our Returns and Refunds Policy here.
- Raymarine Cyclone radar with 6' open array and 15M cables
- Raymarine Cyclone radar with 4' open array and 15m cables
- Raymarine Cyclone Radar with 3' open array and 15m cable
- Raymarine Cyclone Pro radar with 6' open array and 15m cables
- Raymarine Cyclone Pro radar with 4' open array and 15m cables
- Raymarine Cyclone Pro radar with 3' open array and 15m cables
- Raymarine Cyclone Pro Pedestal - 110W
