Single Acting Snow Plow Hydraulic Cylinder 1.5" Bore x 12" Stroke 1.5" Rod Diameter Maxim Hydraulic Cylinders Tractor Repair & Parts

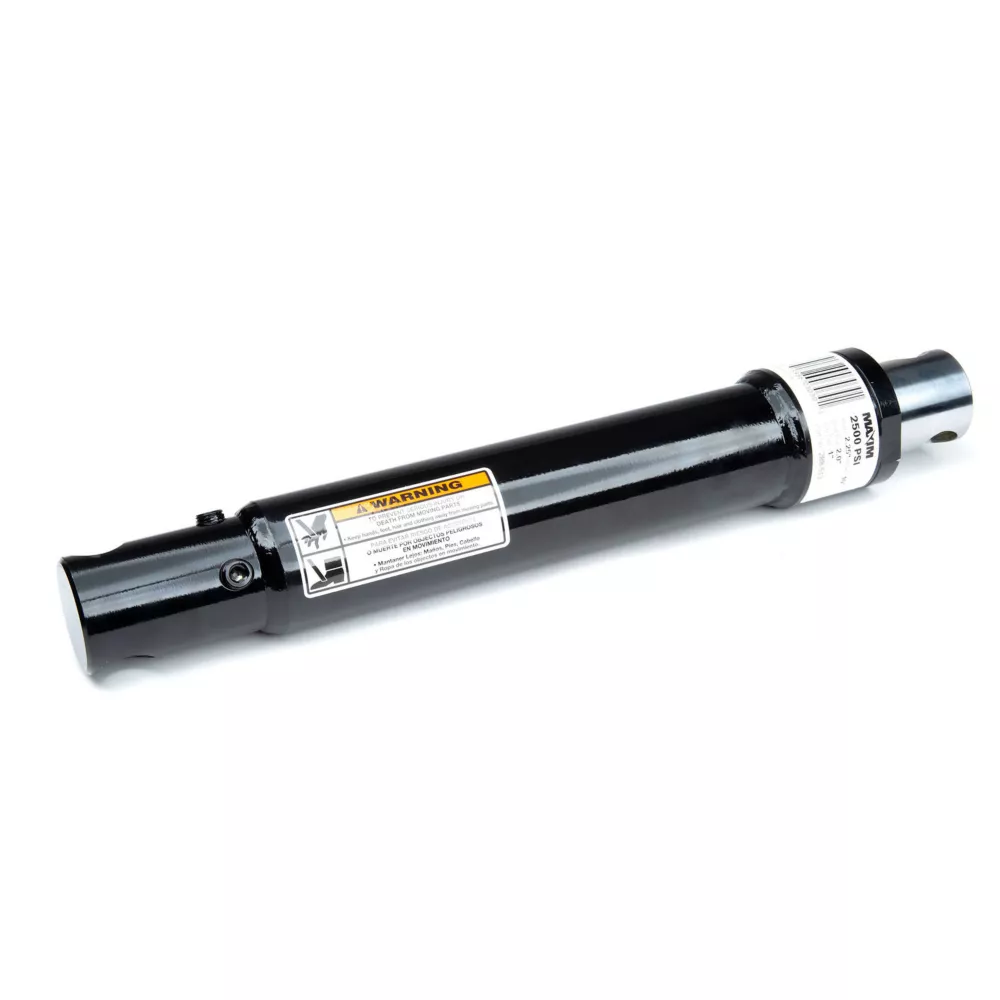

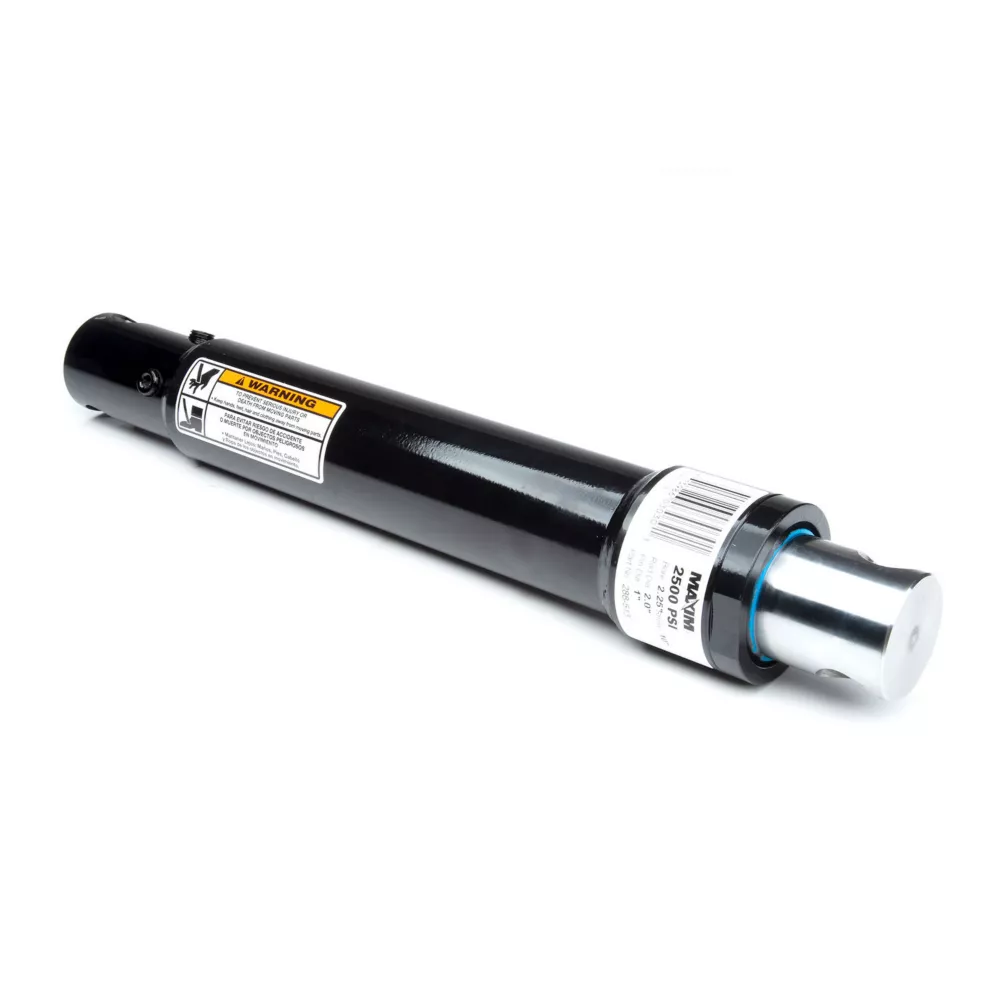

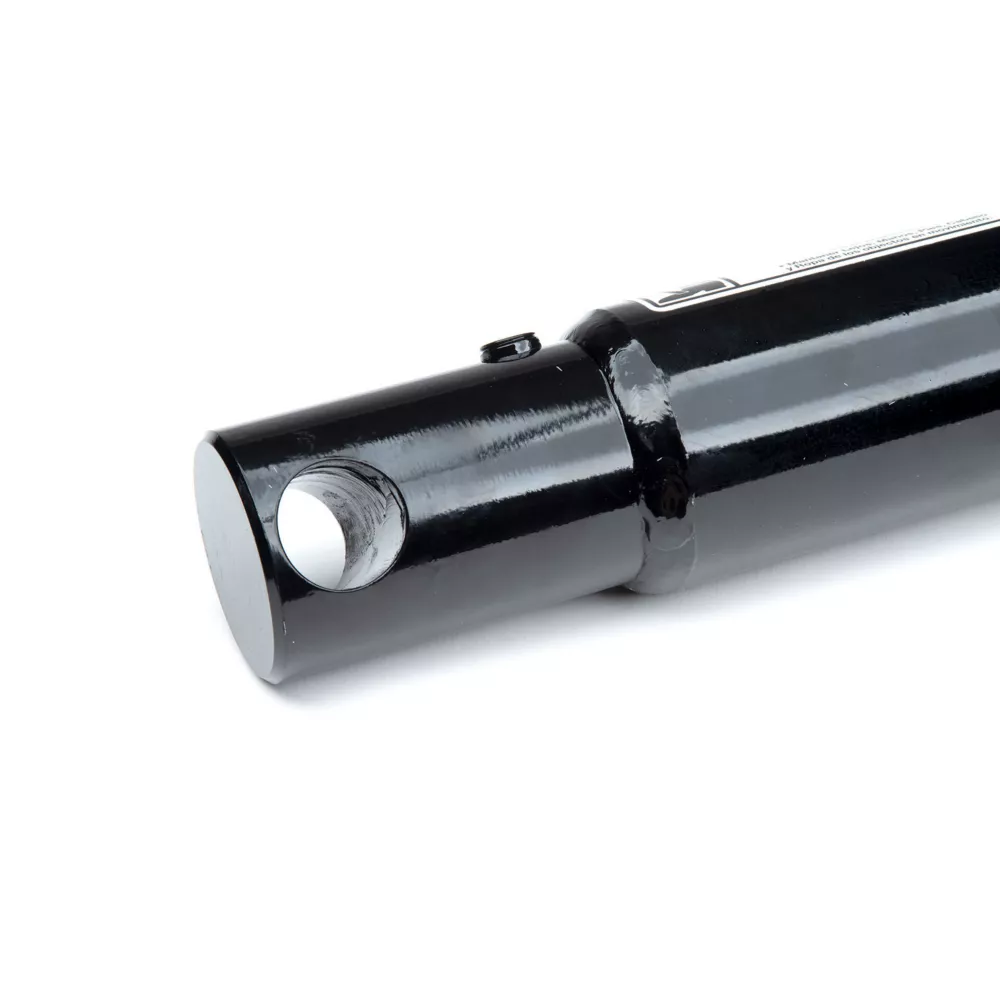

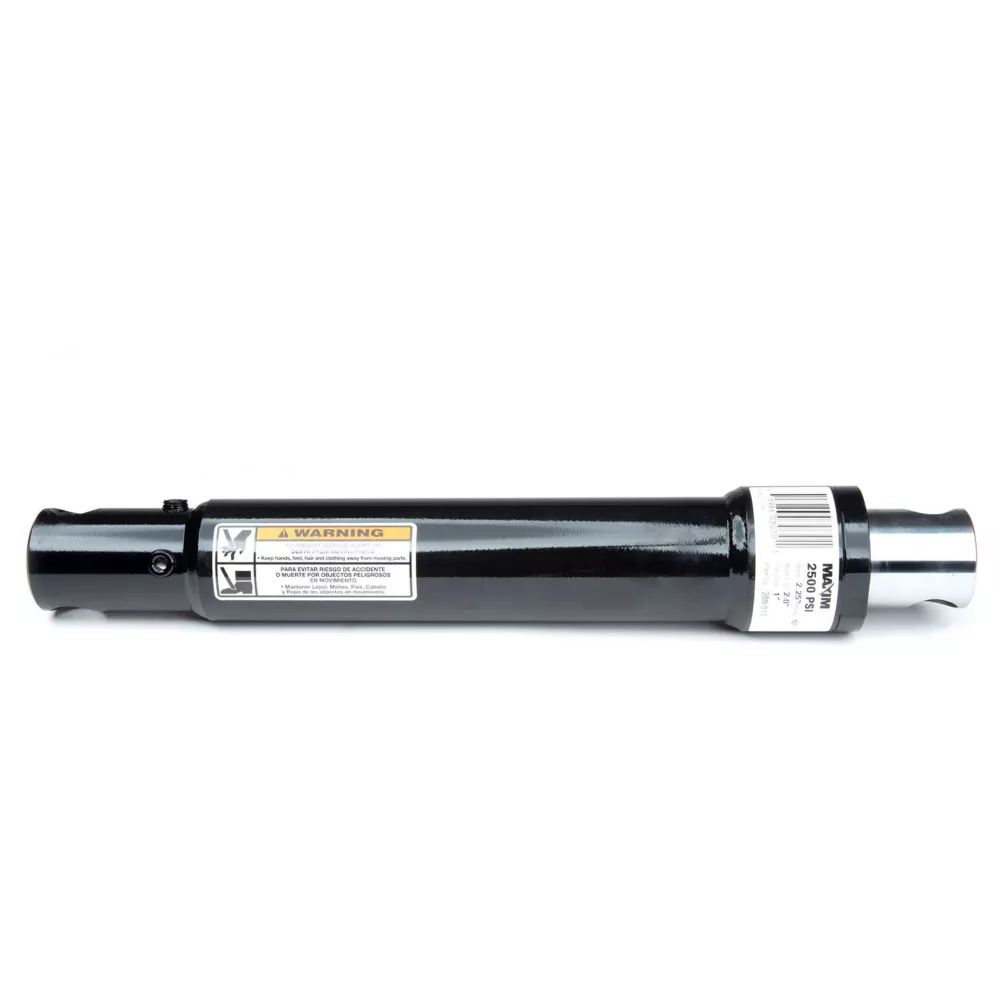

The Maxim 1.5 in. Bore x 12 in. Stroke Single-Acting Snowplow Hydraulic Cylinder features pin holes at base and rod end. This single acting hydraulic cylinder has two 1/4 in. ports 90 degrees apart to accommodate variable installation requirements. Made for hard winter work, this hydraulic cylinder has a 1.5 in. bore and 12 in. stroke length.- Two 1/4 in. ports 90 degrees apart; 1 parallel to and 1 perpendicular to the pins in order to accommodate variable installation requirements
- Maximum PSI: 2,500 PSI

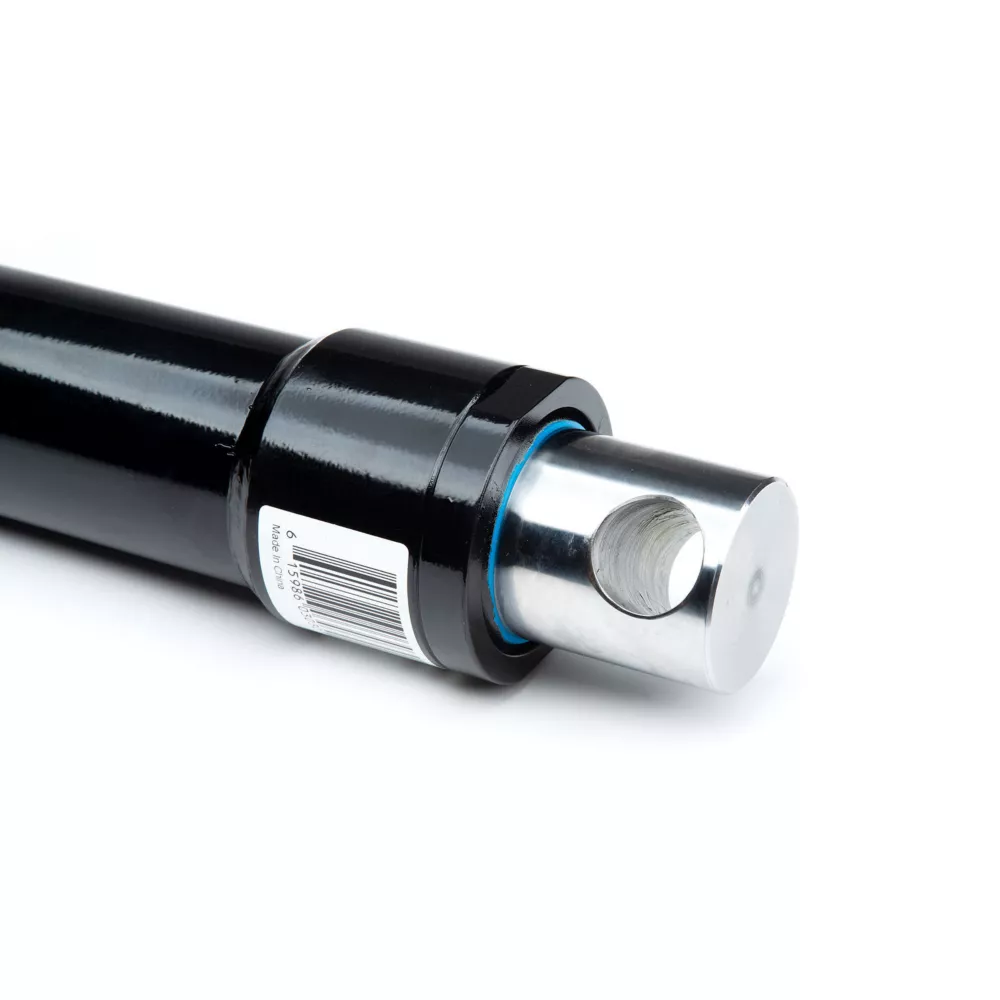

- Pin hole center in the single acting hydraulic cylinder is 11/16 from rod end
- Painted black for simple and stylish looks
- Hydraulic cylinder has a 1.5 in. bore and 12 in. stroke length
- Pin diameter: .625 in.
- Rod diameter: 1.5 in.
- Measures 18 in. retracted and 30 in. extended
- 1 year warranty
- Weight: 12.79 lb.
Single Acting Snow Plow Hydraulic Cylinder 1.5" Bore x 12" Stroke 1.5" Rod Diameter Maxim Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders
| Specification | Description |
|---|---|
| Brand | Maxim |
| Country of Origin | Imported |
| Bore Diameter | 1.5 in. |
| Brand Compatibility | Universal |
| Compatibility | 2 in. |
| Extended Length | 30 in. |
| Hydraulic Cylinder Type | Snowplow |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 14 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 0.625 in. |
| Port Size | N/A |
| Primary Material | Steel |
| Product Height | N/A |
| Product Length | N/A |
| Product Weight | 12.79 lb. |
| Product Width | N/A |
| Retracted Length | 18 in. |
| Rod Diameter | 1-1/2 in. |
| Single/Double Acting | Single acting |
| Stroke Distance | 12 in. |
| Warranty | 1 Year |
| Manufacturer PartNumber | 288502 |
