Single Acting Snow Plow Hydraulic Cylinder 2 in Bore x 10 in Stroke 2 in Rod Diameter Maxim Hydraulic Cylinders Tractor Repair & Parts

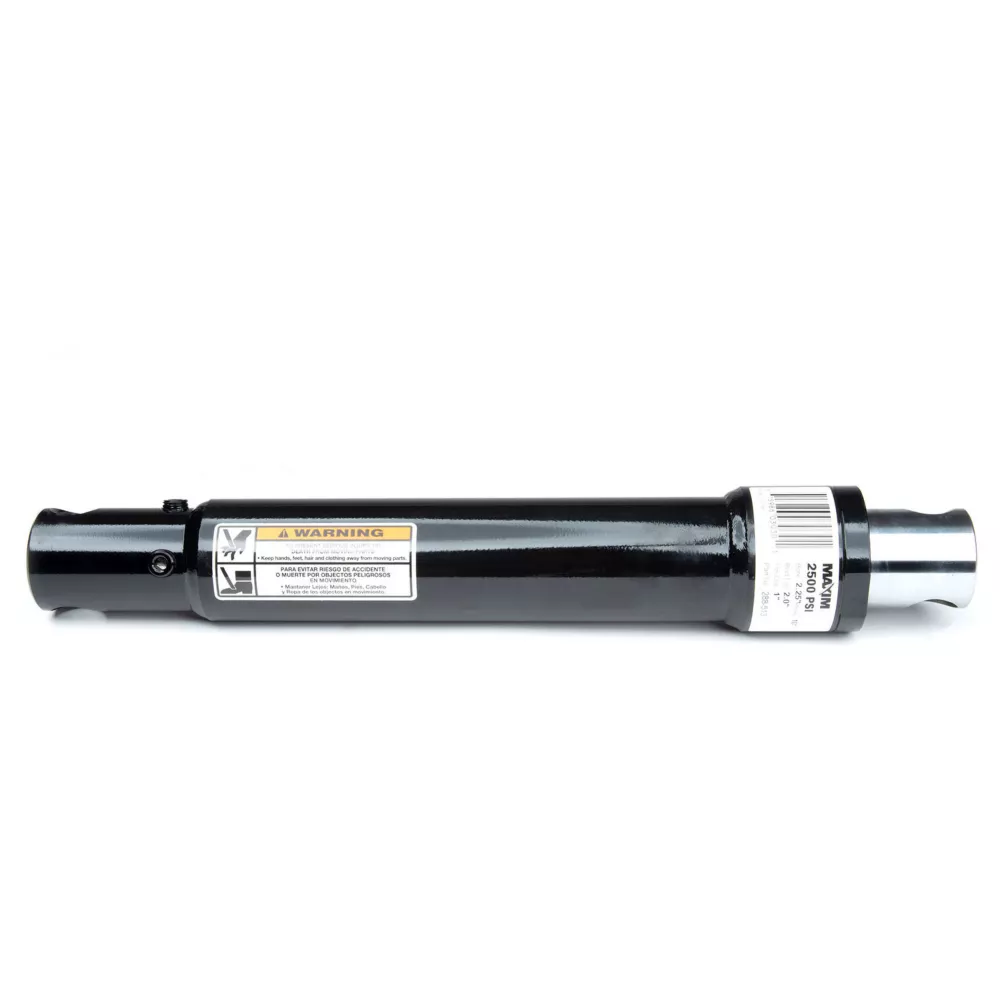

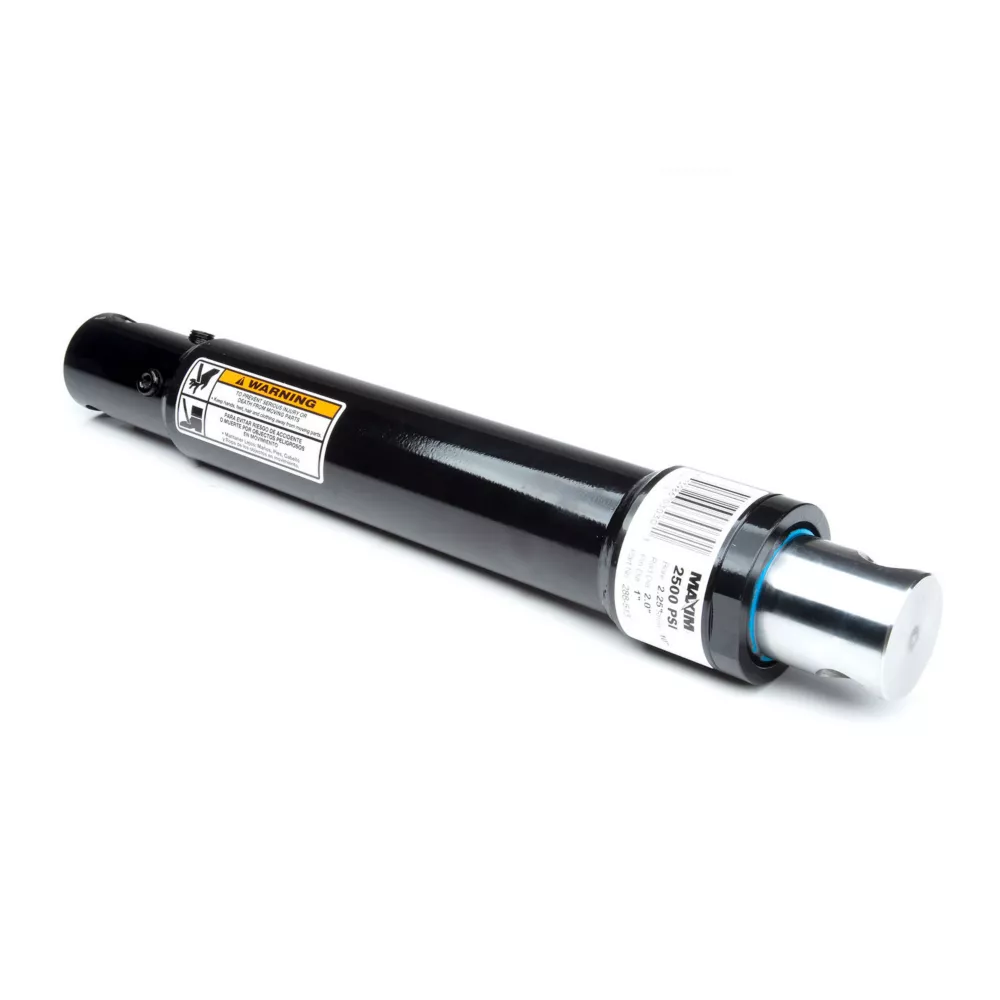

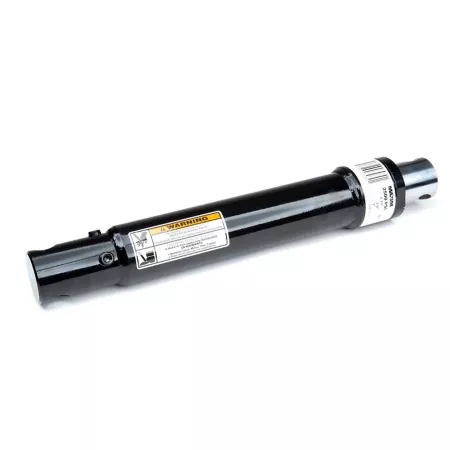

The Maxim 2 in. Bore x 10 in. Stroke Single-Acting Snowplow Hydraulic Cylinder features pin holes at both its base and rod end. This single acting hydraulic cylinder has two 1/4 ports 90 degrees apart to accommodate variable installation requirements. Hard work is never fun, that's why this hydraulic cylinder has been made with exacting precision to help make your work easier and faster!- Two 1/4 ports 90 degrees apart; 1 parallel to and 1 perpendicular to the pins in order to accommodate variable installation requirements
- 2,500 PSI
- Pin hole center is 11/16 in. from rod end
- Painted black

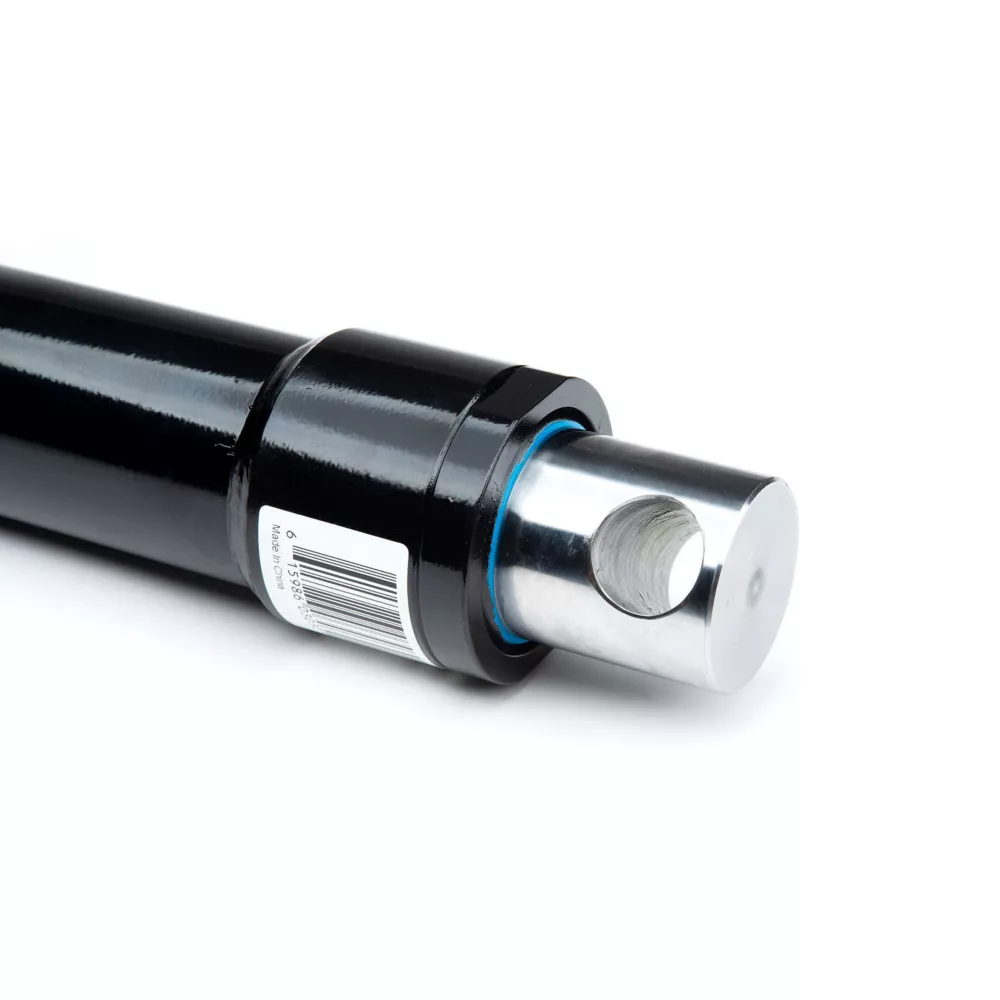

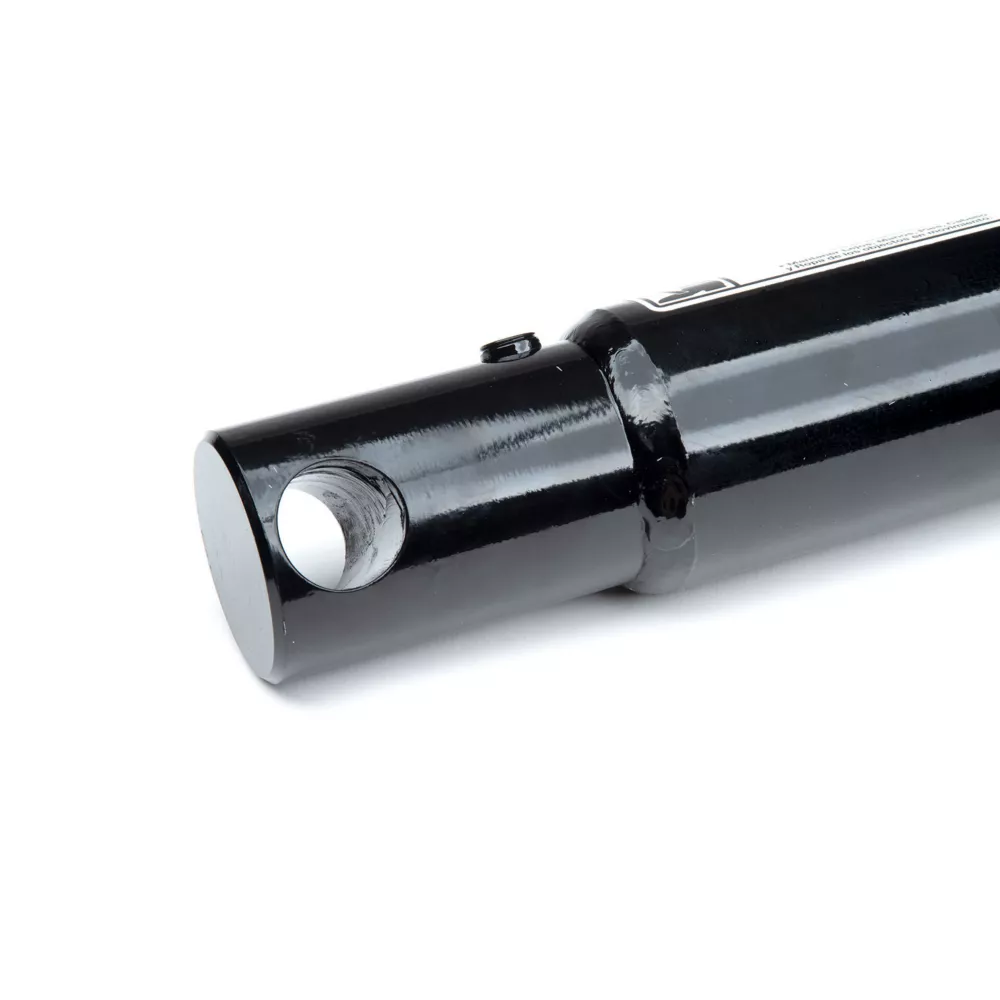

- Pin holes at the single acting hydraulic cylinder's base and rod end
- 1 year warranty
- Pin diameter of 1 in. and rod diameter of 2 in.
- Hydraulic cylinder measures 17.25 in. retracted and 27.25 in. extended
Single Acting Snow Plow Hydraulic Cylinder 2 in Bore x 10 in Stroke 2 in Rod Diameter Maxim Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders
| Specification | Description |
|---|---|
| Brand | Maxim |
| Country of Origin | Imported |
| Bore Diameter | 2 in. |
| Brand Compatibility | Universal |
| Compatibility | 3-1/2 in. |
| Extended Length | 10 in. |
| Hydraulic Cylinder Type | Snowplow |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 15 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | 1.4 NPT |
| Primary Material | Steel |
| Product Height | N/A |
| Product Length | N/A |
| Product Weight | 15 lb. |
| Product Width | N/A |
| Retracted Length | 17.25 in. |
| Rod Diameter | 2 in. |
| Single/Double Acting | Single acting |
| Stroke Distance | 10 in. |
| Warranty | 1 Year |
| Manufacturer PartNumber | 288513 |
