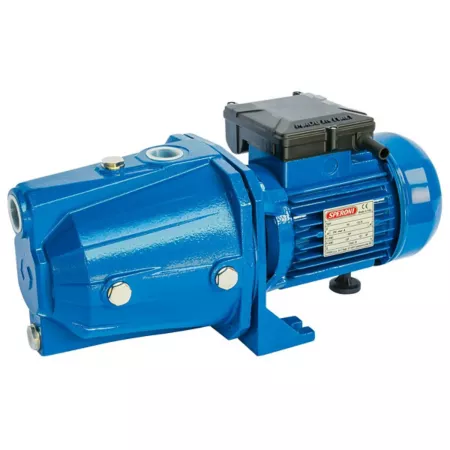

Speroni CAM100 1 HP 110V/220V 1 in 150 ft 16 GPM Cast Iron Shallow Well Electric Jet Pump Well Pumps Home Improvement

Self-priming shallow well jet water pumps with a very high hydraulic performance and a considerable pressure capacity. Able to pump up to 26 ft. depth and work perfectly even in soda water. Suitable for water lifting and distribution in domestic fittings by small and medium sized tanks.

Impeller Stainless Steel 304
Pump body Cast Iron
Mechanical seal Ceramic/Graphite/NBR
Single-phase 110/230V-60Hz
Total suction lift up to 26.2 ft.

Speroni CAM100 1 HP 110V/220V 1 in 150 ft 16 GPM Cast Iron Shallow Well Electric Jet Pump Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps

Specification	Description
Brand	Speroni
Country of Origin	Imported
Amperage	12.5 - 5
Body Material	Cast iron
Compatible Pipe Material	Universal
Compatible Well Diameter	4 in.
Discharge Connection	Threaded Female
Discharge Diameter	1 in.
Discharge Rate at 0 ft.	15.8 GPM
Discharge Rate at 25 ft.	16 GPM
Discharge Rate at 50 ft.	15.8 GPM
Features	Rust/Corrosion Resistant, Self Priming
Horsepower	1 HP
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Maximum Flow Rate	16 GPM
Maximum Head Lift	26 ft.
Maximum Operating Depth	26 ft.
Maximum Operating Temperature	95 deg. F
Minimum Operating Temperature	32 deg. F
Power Cord Length	0 in.
Power Type	Electric
Product Height	7.7 in.
Product Length	7 in.
Product Weight	32 lb.
Product Width	16.6 in.
Motor Type	ELECTRICAL
Voltage	110V/220V
Warranty	1 YEAR LIMITED WARRANTY
Manufacturer PartNumber	1811102

Speroni 1 HP 110V/220V Electric 1 in. 150 ft. CAM100 Shallow Well Cast Iron Jet Pump, 16 GPM Specifications expand/collapse Specification Description Brand Speroni Country of Origin Imported Amperage 12.5 - 5 Body Material Cast Iron Compatible Pipe Material Universal Compatible Well Diameter 4 in. Discharge fitting Female threaded Discharge diameter 1 in. Discharge flow at 0 ft. 15.8 GPM Discharge Rate at 25 ft. 16 GPM Discharge Rate at 50 ft. 15.8 GPM Features Rust and Corrosion Resistant, Self-Priming Power 1 HP Inlet Connection Female Threaded Inlet Diameter 1 in. . Maximum flow 16 GPM Maximum head lift 26 ft. Maximum operating depth 26 ft. Maximum operating temperature 95 degrees. F Minimum operating temperature 32 degrees. F Power Cord Length 0" Power Type Electric Product Height 7.7" Product Length 7" Product Weight 32 lbs Product Width 16.6" Motor Type ELECTRIC Voltage 110V/220V Warranty WARRANTY 1 YEAR LIMITED Manufacturer Part Numbercant 1811102
