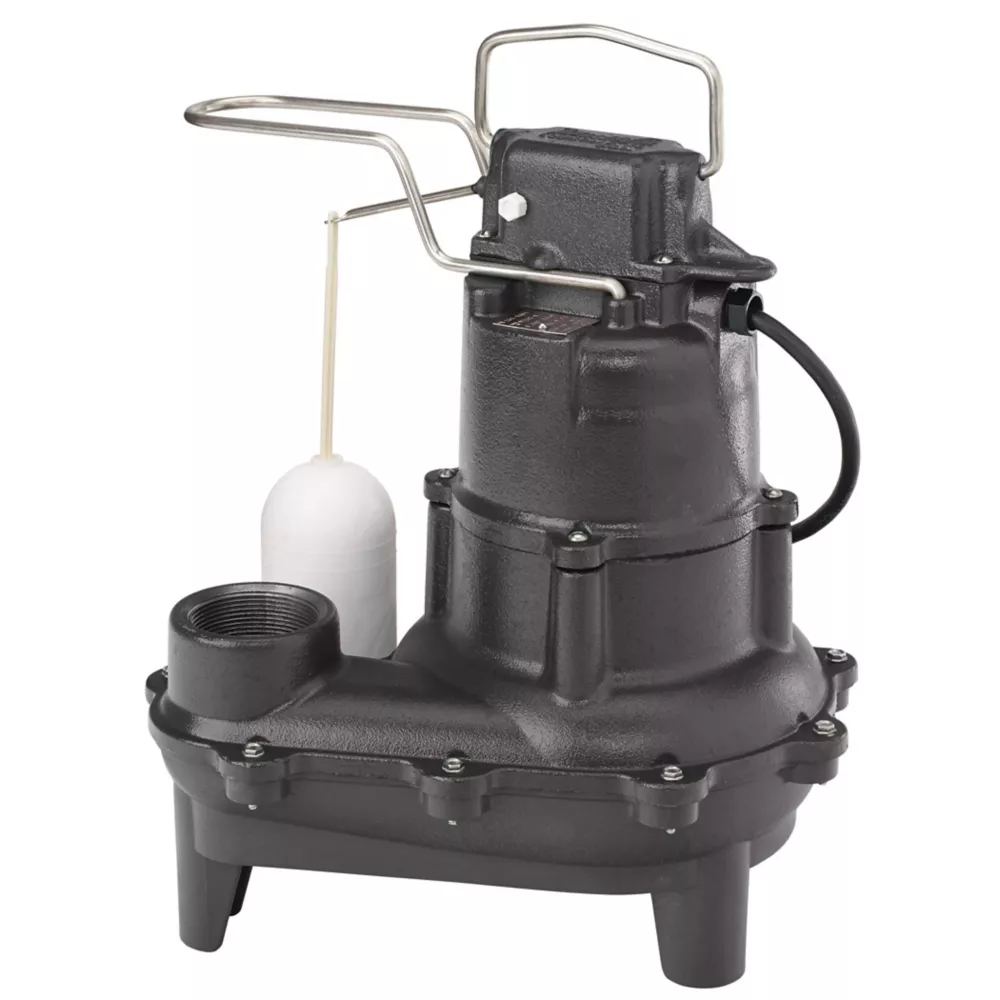

Star Water Systems 4/10 HP 115V Cast Iron Electric Sewage Pump with Vertical Switch 6 180 GPH Sump Pumps Farm & Ranch

The Star Water Systems 4/10 HP Cast-Iron Sewage Pump with Vertical Switch is a powerhouse of durability and performance. Constructed with epoxy-coated, heavy-duty cast iron, this sewage pump guarantees optimal heat dissipation, ensuring a long-lasting and reliable operation. Made in the USA with a majority of US content, each pump undergoes rigorous wet testing to deliver unparalleled quality and performance. With its non-clogging vortex impeller capable of handling 2 in. solids, this contractor-grade pump is perfect for various applications, from basement sewage systems to grain storage and high-capacity dewatering purposes.

Sewage pump features a rugged oil filled, 115V 60Hz motor for optimal efficiency
Epoxy coated, cast iron motor housing dissipates heat to ensure long life
Sewage pump with vertical switch features thermal overload that protects against overheating
2 in. discharge with 2 in. solids pumping capacity
Bottom suction inlet with non-clogging vortex impeller for maximum security
4/10 sewage pump includes a waterproof power cord with grounded plug
Ceramic and carbon seal for reliable service and extended life
Temperature Rating: 130 degrees Fahrenheit
Made in USA

Star Water Systems 4/10 HP 115V Cast Iron Electric Sewage Pump with Vertical Switch 6 180 GPH Sump Pumps Farm & Ranch> Tanks & Pumps> Water Pumps> Sump Pumps

Specification	Description
Brand	Star Water Systems
Country of Origin	Made in USA
Amperage	9.4 Amp
Basin Diameter	14 in.
Body Material	Cast iron
Compatible Pipe Material	PVC
Discharge Connection	Threaded Female
Discharge Port Diameter	2 in.
Discharge Rate at 0 ft.	6,180 GPH
Discharge Rate at 10 ft.	3,600 GPH
Engine Displacement	0 N/A
Features	Non-clogging Vortex Impeller, Vertical Float Switch, Cast-Iron
Horsepower	0.4 HP
Hose Diameter	2 in.
Inlet Connection	None
Inlet Diameter	2 in.
Maximum Flow Rate	6,180 GPH
Maximum Head Lift	18 ft.
Maximum Operating Pressure	8 PSI
Maximum Operating Temperature	130 deg. F
Maximum Solids Diameter	2 in.
Maximum Suction Lift	18 ft.
Minimum Operating Pressure	0 PSI
Minimum Operating Temperature	34 deg. F
Power Type	Electric
Product Height	16 in.
Product Length	13.5 in.
Product Weight	36.2 lb.
Product Width	11 in.
Pump Mechanism	Centrifugal
Motor Type	Oil Filled
Switch-Off Height	4.5 in.
Switch-On Height	12.5 in.
Voltage	115V
Warranty	2 Year Limited Warranty
Manufacturer PartNumber	40EC
