Superior Pump 1/2 HP 120V 4 800 GPH Cast Iron Submersible Electric Sewage Pump Sump Pumps Farm & Ranch

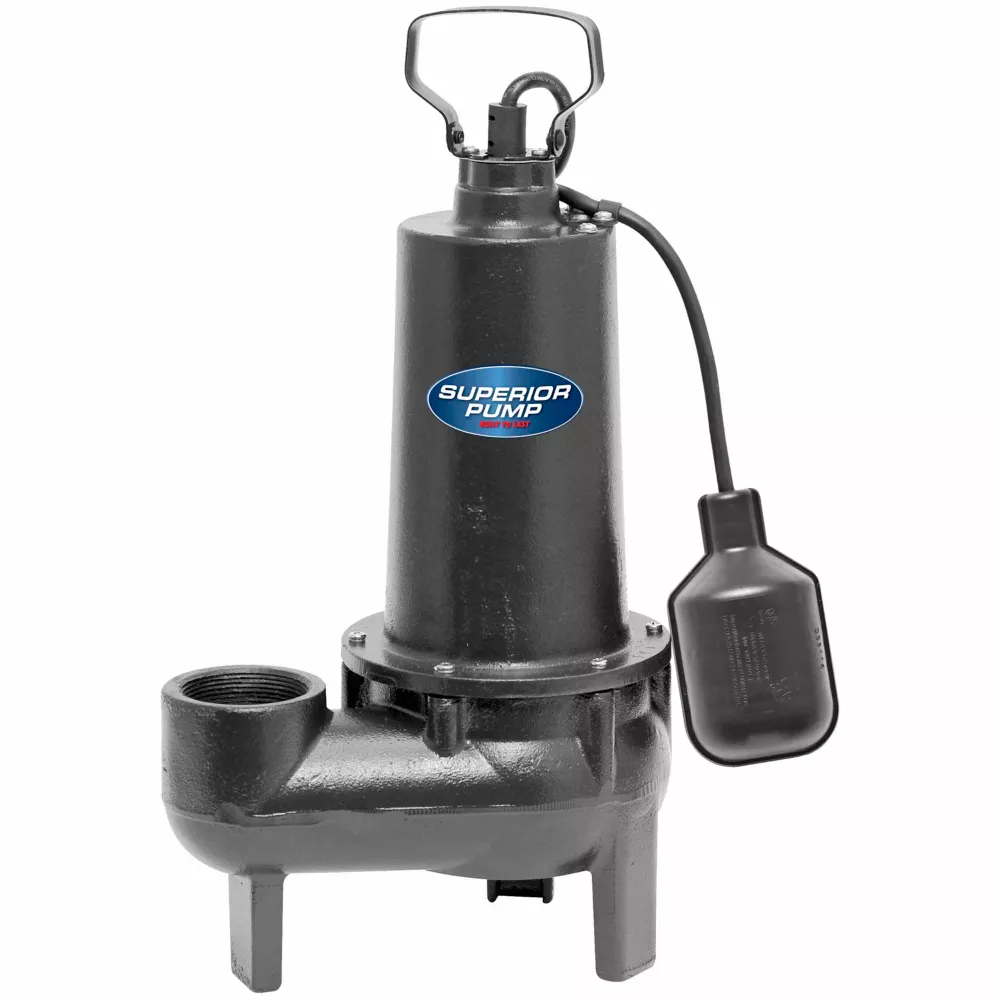

Superior Pump builds pumps that are truly built to last and are 100% factory tested. Superior Pump uses quality components including solid copper motor windings, heavy duty stainless steel jacketed shaft seals, double o-ring seals on motor plate, and electronically controlled split capacitors. Superior Pump model 93501, 1/2 HP cast iron submersible sewage pump with tethered float switch, will move water up to 4800 gal. per hour. This pump is UL/cu listed and CSA certified and backed by a 1 year warranty.

Rugged cast iron construction
Pumps up to 4800 gal. per hour, pumps water up to 25 vertical feet

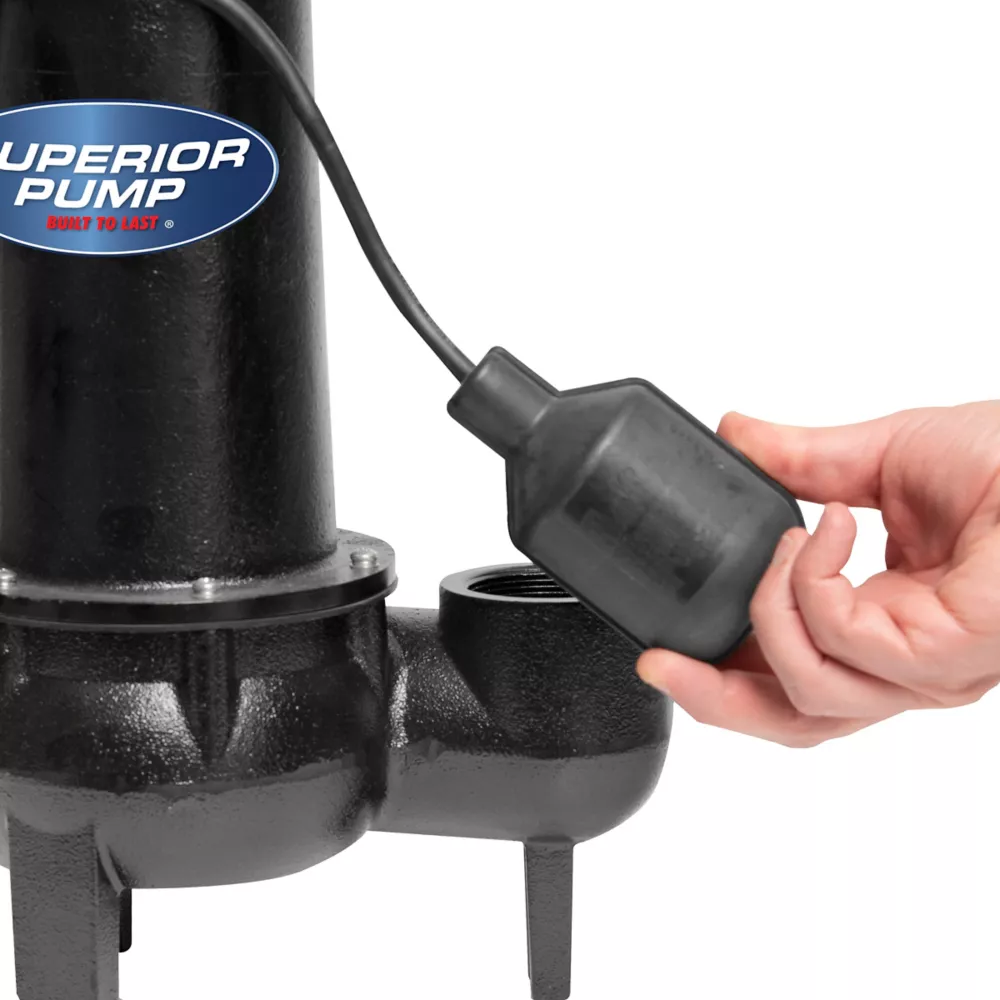

Tethered float switch
2 inch NPT discharge for high capacity pumping
Easily handles 2 inch solids

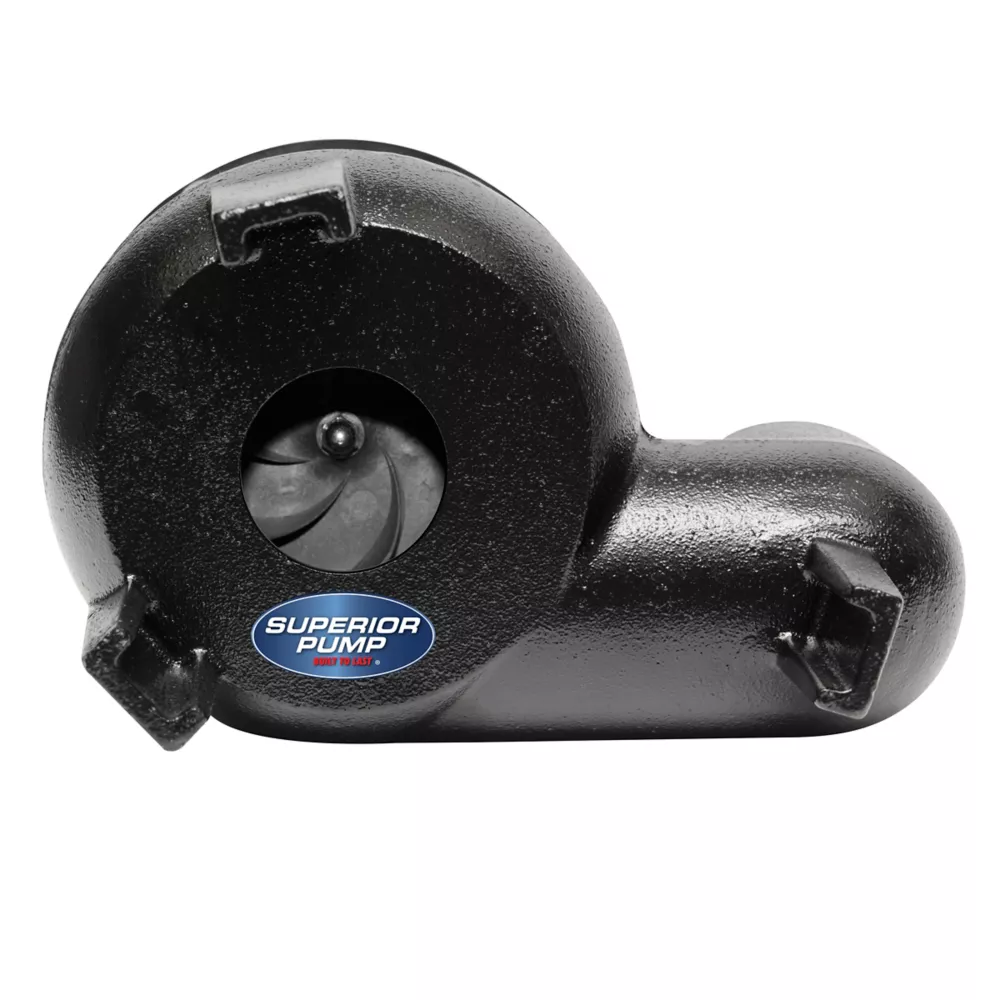

Non-clogging vortex impeller

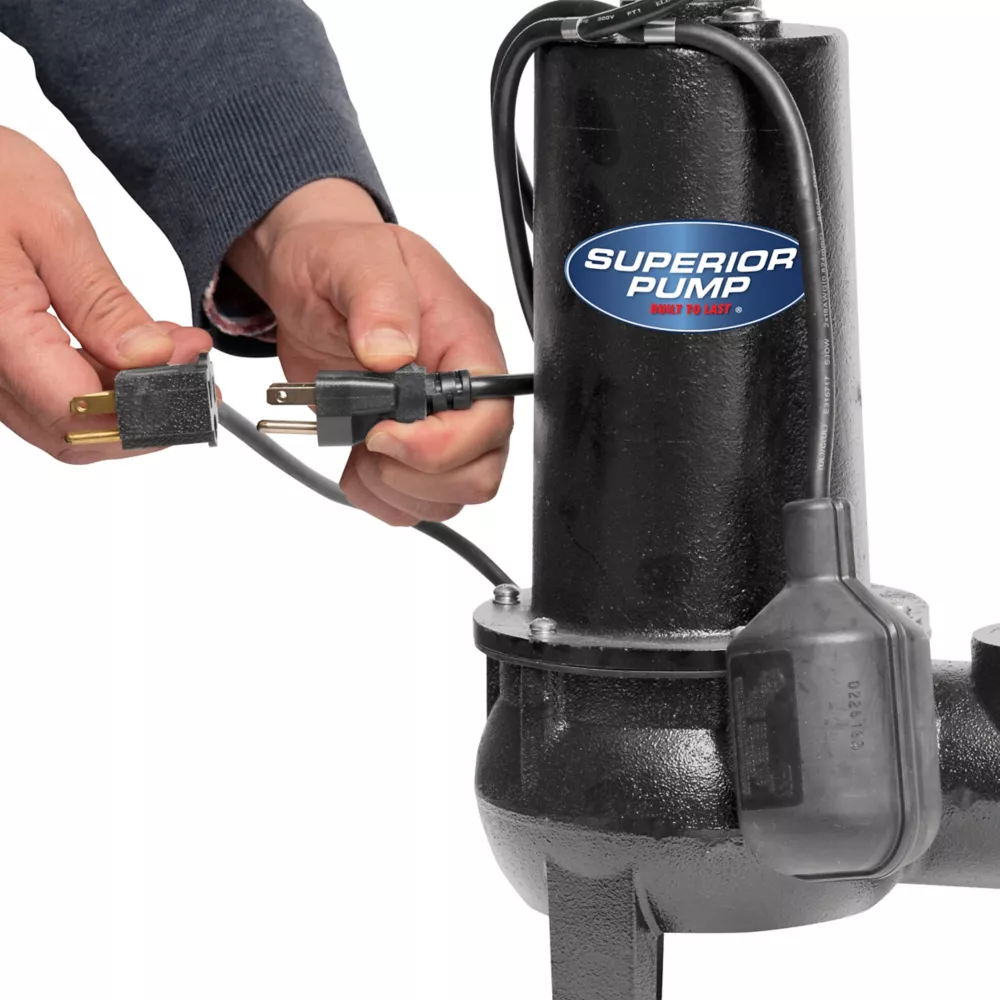

10 foot power cord with piggy back plug
Continuous duty, thermally protected split capacitor motor
1 Year warranty
Built in thermal overload protection for safety

1 Year Warranty

Superior Pump 1/2 HP 120V 4 800 GPH Cast Iron Submersible Electric Sewage Pump Sump Pumps Farm & Ranch> Tanks & Pumps> Water Pumps> Sump Pumps

Specification	Description
Brand	Superior Pump
Country of Origin	Imported
Amperage	7.6A
Basin Diameter	14 in.
Body Material	Cast iron
Compatible Pipe Material	ABS
Discharge Connection	Threaded Female
Discharge Port Diameter	2 in.
Discharge Rate at 0 ft.	4,800 GPH
Discharge Rate at 10 ft.	3,600 GPH
Engine Brand	N/A
Engine Displacement	0 cc
Features	Self Priming
Fuel Capacity	0 oz.
Horsepower	12 HP
Hose Diameter	0 in.
Impeller Material	Thermoplastic
Inlet Connection	Threaded Female
Inlet Diameter	2 in.
Maximum Flow Rate	4,800 GPH
Maximum Head Lift	25 ft.
Maximum Operating Pressure	10 PSI
Maximum Operating Temperature	120degF
Maximum Solids Diameter	2 in.
Maximum Suction Lift	25 ft.
Minimum Operating Pressure	10.8 PSI
Minimum Operating Temperature	32degF
Oil Capacity	20 oz.
Power Cord Length	10 ft.
Power Type	Electric
Product Height	16.5 in.
Product Length	10.5 in.
Product Weight	25 lb.
Product Width	7.75 in.
Pump Mechanism	Centrifugal
Motor Type	PSC
Switch-Off Height	8 in.
Switch-On Height	16 in.
Voltage	120V
Warranty	1 Year Limited
Manufacturer PartNumber	93501

Superior Pump 1/2 HP 120V Electric Submersible Cast Iron Sewage Pump, 4,800 GPH Specifications expand/collapse Specification Description Brand Superior Pump Country of Origin Imported Amperage 7.6 A Basin Diameter 14 in. Body Material Cast Iron Compatible Hose Material ABS Discharge Connection Female Threaded Discharge Port Diameter 2 in. 10 ft. 3,600 GPH Engine Brand N/A Engine Displacement 0 cc Features Self-Priming Fuel Capacity 0 oz. Horsepower 12 HP Pipe Diameter 0 in. Impeller Material Thermoplastic Inlet Connection Female Threaded Inlet Diameter 2 in. Maximum flow 4,800 GPH Maximum lift height 25 ft. Maximum operating pressure 10 PSI Maximum operating temperature 120 degF Maximum solids diameter 2 in. Maximum suction height 25 ft Minimum operating pressure 10.8 PSI Minimum operating temperature 32degF Oil capacity 20 oz. Power cord length 10 ft. Power Supply Type Product Height 16.5 in. Product lengthit 10.5 in. Product weight 25 lbs. Product width 7.75 in. Pump Mechanism Motor Type Centrifugal PSC Switch-Off Height 8" Ignition Height 16" Voltage 120V 1 Year Limited Warranty Manufacturer Part Number 93501
