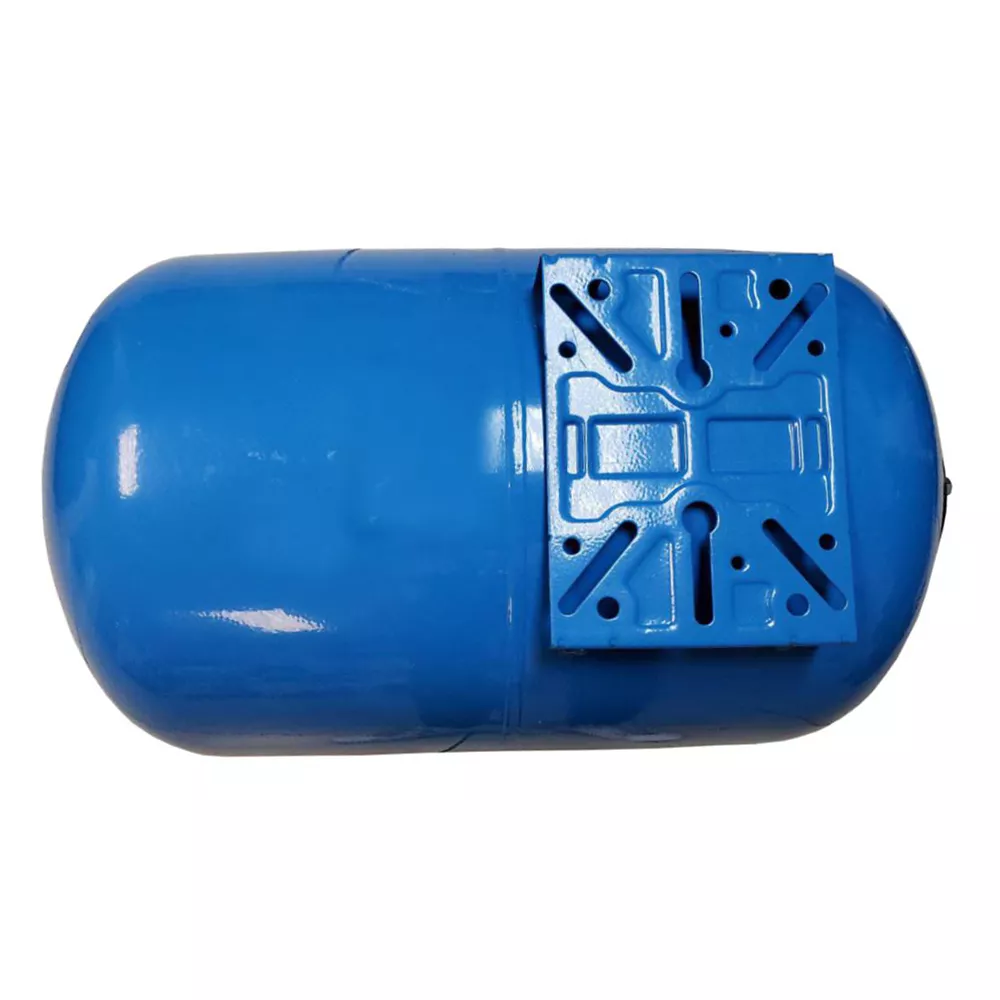

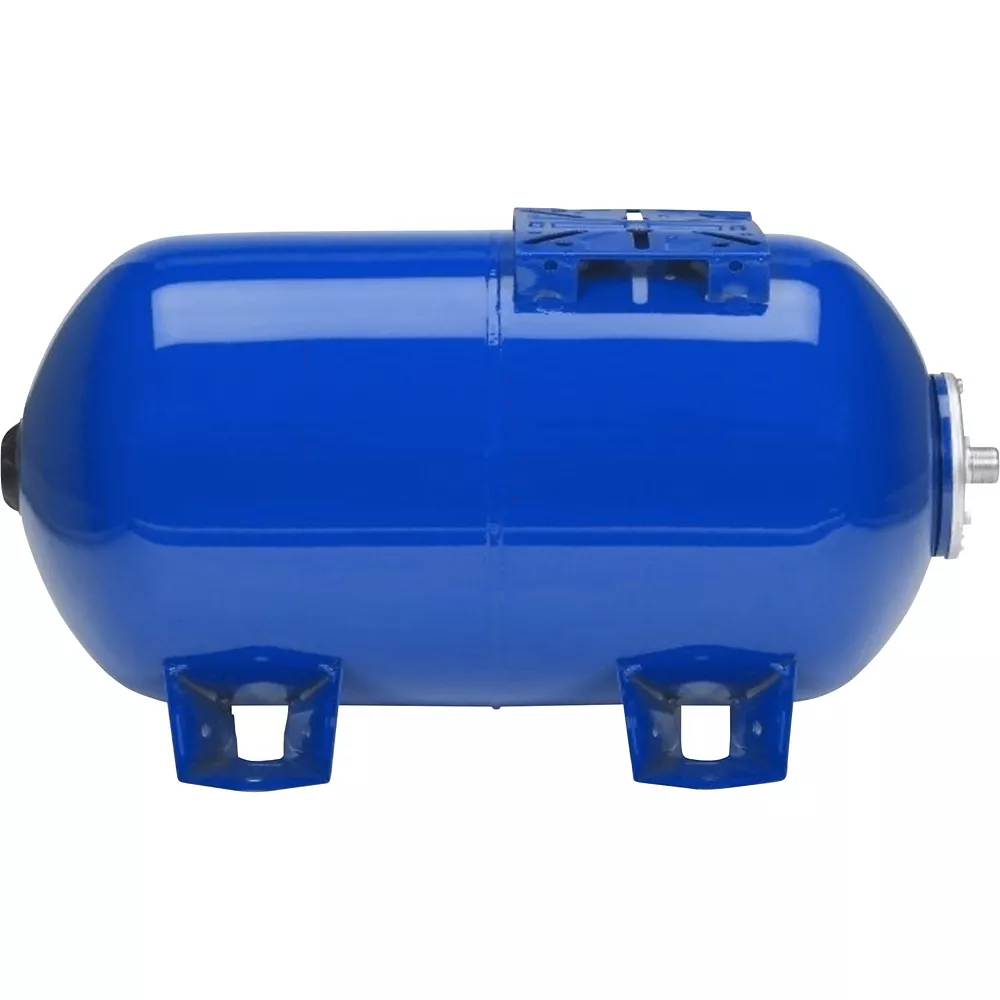

Varem 5.3 gal Horizontal Pressure Tank 145 PSI 30 PSI Pre-Charged 1" Pressure Tanks Farm & Ranch

The 5.3 gal., 30 psi Precharge Horizontal Pressure Tank best to save energy. Max working temperature 210°F and Max working pressure 145 psi. The Replaceable Bladder. The pressure tanks of Varem line are a basic element of a potable water distribution system. The pressure tank stores the pressurized water of the booster systems working as hydrodynamic flywheel during drawing. This application reduces the frequency of switching on of the booster system. A pressure switch adjust the internal pressure and activates the pump only if the water pressure in the tank is lower than minimum required. Switching on, the pump loads the storage tank again.

NSF61 certified for safe drinking water with replaceable bladder
Max working temperature 210F and Max working pressure 145 psi
Stainless steel Flange
Butyl rubber
replaceable bladder
5 year limited warranty

Varem 5.3 gal Horizontal Pressure Tank 145 PSI 30 PSI Pre-Charged 1" Pressure Tanks Farm & Ranch> Tanks & Pumps> Pressure Tanks

Specification	Description
Brand	Varem
Country of Origin	Imported
Capacity	5.3 gal.
Drawdown at 30 PSI	3 gal.
Inlet Diameter	1 in.
Maximum Water Temperature	210 deg. F
Outlet Diameter	1 in.
Precharge Pressure	30 PSI
Primary Color	Blue
Primary Material	Iron
Product Height	19.7 in.
Product Length	11 in.
Product Weight	13 lb.
Product Width	11 in.
Tank Orientation	Horizontal
Warranty	5 year limited warranty
Manufacturer PartNumber	1580187

Varem 5.3 gal. Horizontal 145 PSI 30 PSI Precharged 1 in. Pressure Tank Specifications expand/collapse Specification Description Brand Varem Country of Origin Imported Capacity 5.3 gal. Draft at 30 PSI 3 gal. Inlet diameter 1 in. Maximum water temperature 210 degrees. F Outlet diameter 1 in. Precharge Pressure 30 PSI Primary Color Blue Primary Material Iron Product Height 19.7 in. Product length 11 in. Product weight 13 lbs. Product width 11 in. Tank Orientation Horizontal Warranty 5 Year Limited Warranty Manufacturer Part Number 1580187
