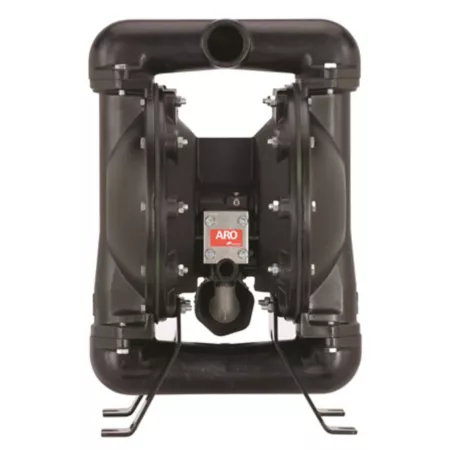

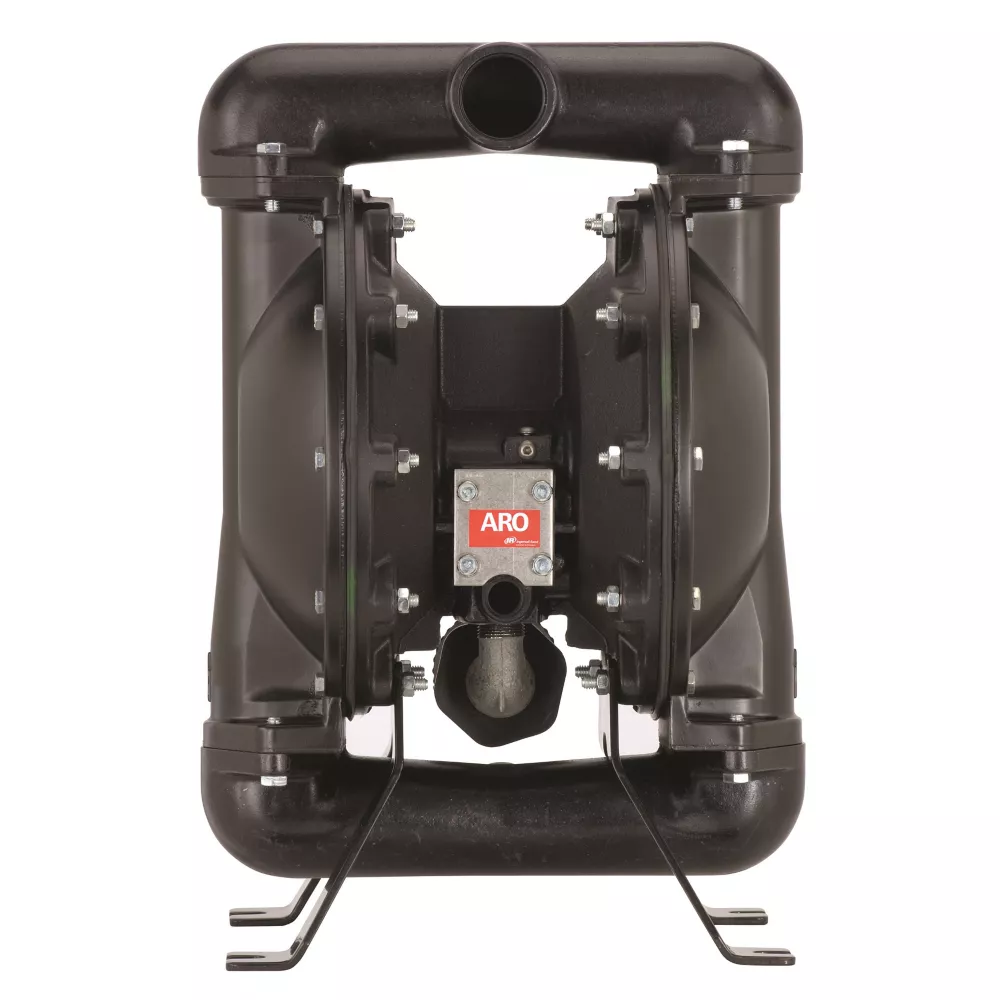

ARO Aluminum Diaphragm Pneumatic Pump 90 GPM Utility Pumps Farm & Ranch

The ARO range of diaphragm pumps offers many materials of construction compatible for the chemical industry.

ARO PRO 1-1/2 metallic diaphragm pumps achieve flow rates of up to 90 GPM (340.7 LPM) and offer a wide array of material and porting configurations.
These pumps are often used for transfer, filling, recirculation and batching in Paint, Oil & Gas, Mining, Construction, Chemical and Petrochemical markets.

ARO Aluminum Diaphragm Pneumatic Pump 90 GPM Utility Pumps Farm & Ranch> Tanks & Pumps> Utility Pumps

Specification	Description
Brand	ARO
Country of Origin	Made in USA
Amperage	N/A
Discharge Connection	Threaded Female
Discharge Diameter	1-1/2 in.
Discharge Rate at 0 ft.	90 GPM
Discharge Rate at 10 ft.	90 GPM
Features	Self Priming
Horsepower	N/A
Impeller Material	N/A
Inlet Diameter	1-1/2 in.
Maximum Flow Rate	90 GPM
Product Height	14.5 in.
Product Length	23.8 in.
Product Weight	55.35 lb.
Product Width	15.40 in.
Utility Pump Type	Diaphragm
Voltage	N/A
Warranty	5 Year
Manufacturer PartNumber	666150-322-C

ARO Air-Operated Aluminum Diaphragm Pump, 90 GPM Specifications expand/collapse Specification Description Brand ARO Country of Origin Made in USA Amperage N/A Discharge Connection Female Threaded Discharge Diameter 1-1/2 in. Discharge Rate at 0 ft. 90 GPM Discharge Rate at 10 ft. 90 GPM Features Self-Priming Horsepower N/A Impeller Material N/A Inlet Diameter 1-1/2 in. Maximum flow 90 GPM Product height 14.5 in. Product length 23.8 in. Product weight 55.35 lbs. Product width 15.40 in. Utility Pump Type Diaphragm Voltage N/ 5 Year Warranty, Manufacturer Part Number 666150-322-C
