Chief Directional Control Valve RLD Series 3 000 PSI 25 GPM 2 Spools Hydraulic Valves & Manifolds Tractor Repair & Parts

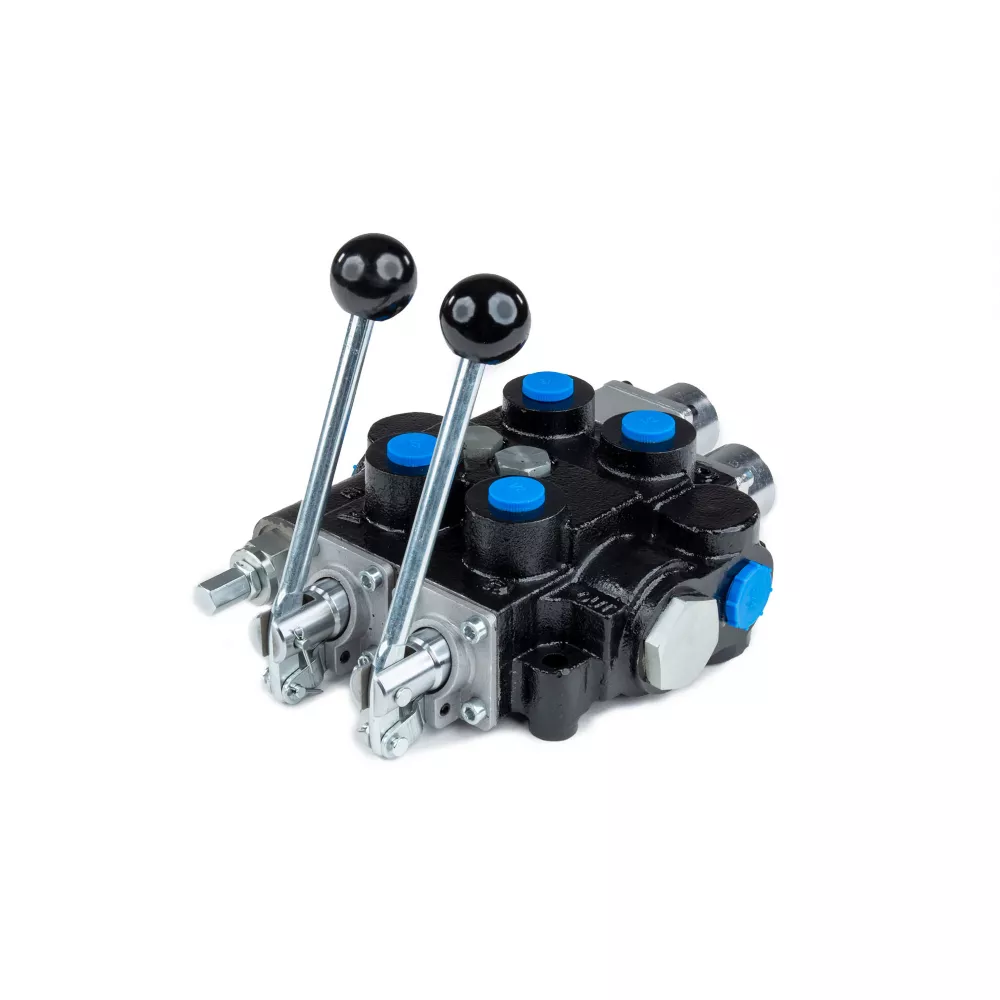

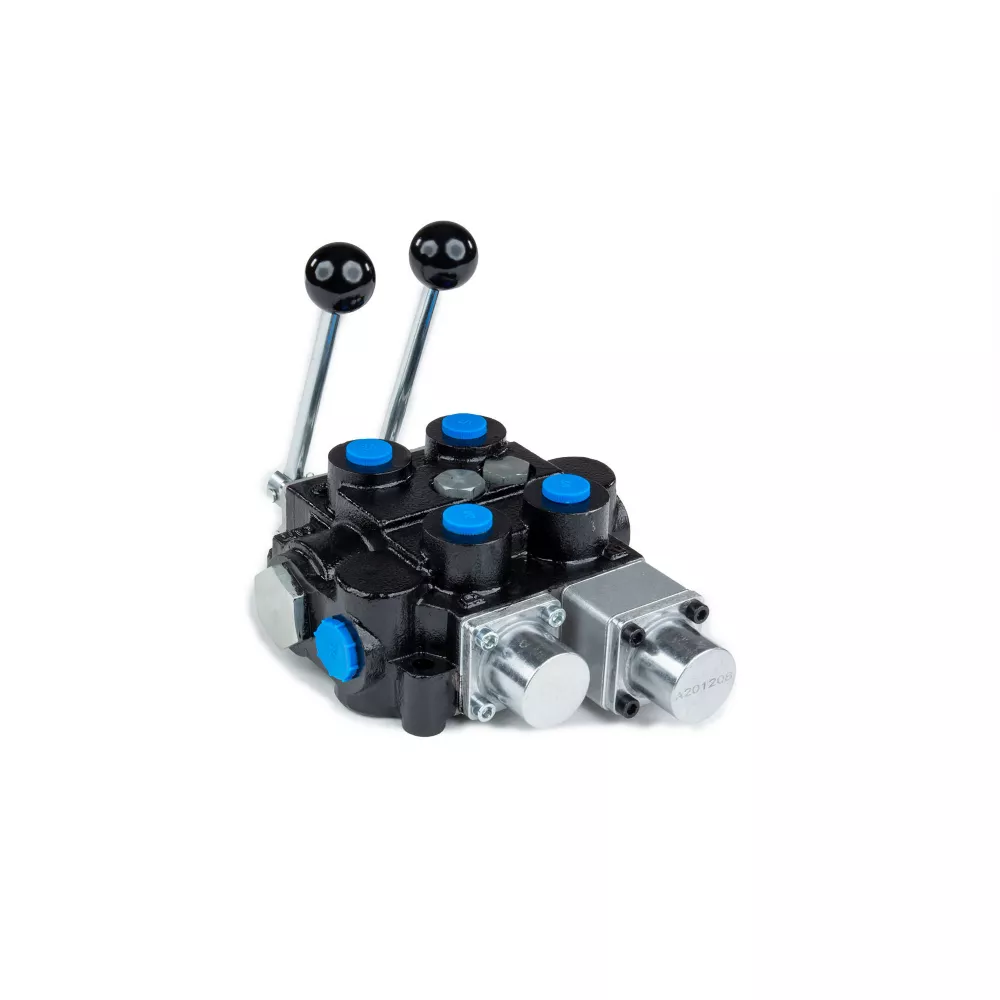

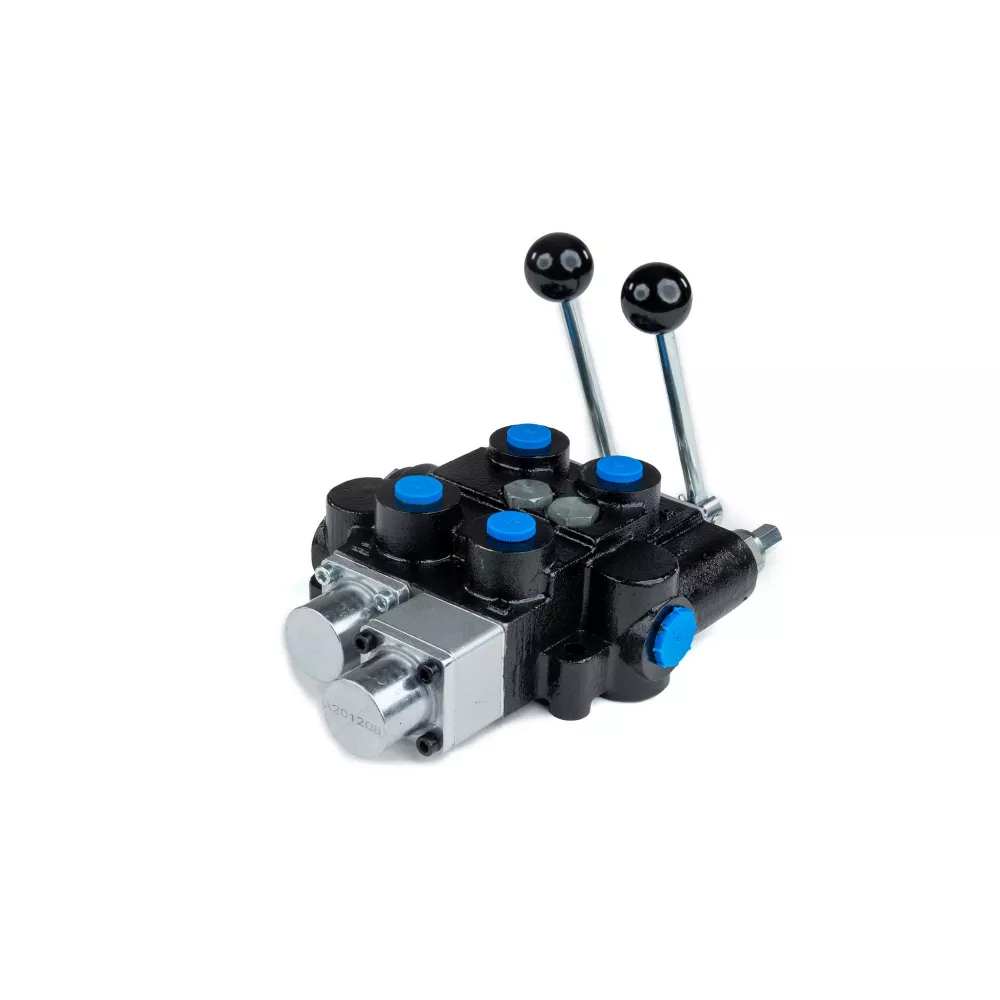

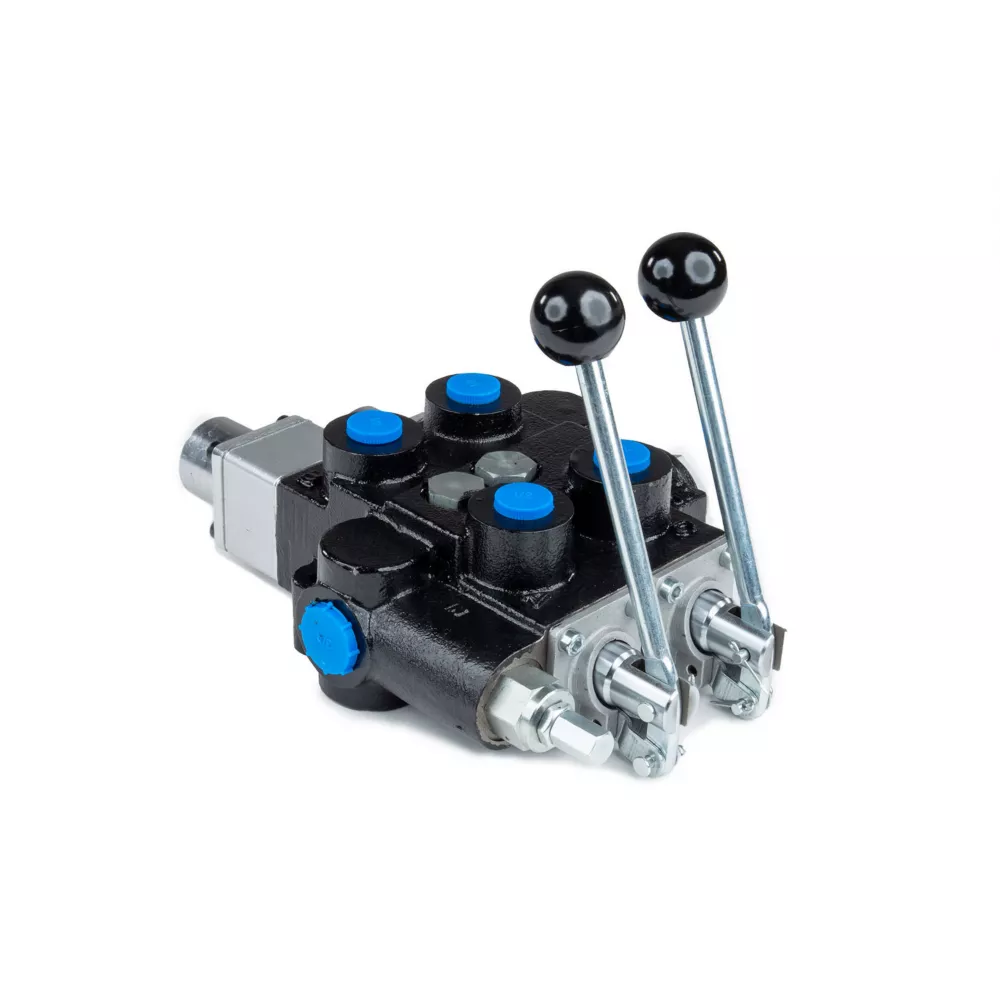

The Chief 3,000 PSI RLD Series Directional Control Valve is made of durable cast iron. The 2-spool valve offers 1/2 in. NPT work ports and a 4-way, 3-position spool and a 4-way, 4-position spool. This hydraulic valve offers a 25 GPM flow rate and a 1,500 - 3,000 PSI relief setting.

Directional control valve offers 25 GPM
1,500 - 3,000 PSI relief setting
2 spools and handles
3/4 in. NPT inlet and outlet ports
Spool valve with 1/2 in. NPT work ports
4-way, 4-position spool and 4-way, 3-position spool
Float detent on first spool
Spring center to neutral from either work position on second spool
Durable cast-iron hydraulic valve is made to last

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief Directional Control Valve RLD Series 3 000 PSI 25 GPM 2 Spools Hydraulic Valves & Manifolds Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Valves & Manifolds

Specification	Description
Brand	Chief
Country of Origin	Imported
Brand Compatibility	Universal
Compatibility	Most applications
Inlet Size	N/A
Inlet Type	Female
Maximum Flow Rate	25 GPM
Maximum PSI	3,000 PSI
Model Compatibility	Most applications
Number Of Directional Control Positions	4
Outlet Size	3/4 in.
Outlet Type	NPT
Primary Material	Cast Iron
Product Height	N/A
Product Length	N/A
Product Weight	26 lb.
Product Width	N/A
Warranty	1 Year
Work Port Size	1/2 in.
Manufacturer PartNumber	220574

Chief 3,000 PSI RLD Series Directional Control Valve, 25 GPM, 2 Spool Specifications Expand/Collapse Specification Description Primary Brand Country of Origin Imported Brand Compatibility Universal Compatibility Most Applications Inlet Size N/A Inlet Type Female Maximum Flow 25 GPM Maximum PSI 3,000 PSI Model Compatibility Most Applications Number of Directional Control Positions 4 Outlet Size 3/4 in Outlet Type NPT Primary Material Cast Iron Product Height N/A Product Length N/A Product Weight 26 lbs Product Width N/A 1 Year Warranty Product Size 1/2 in. working port. Manufacturer part number 220574
