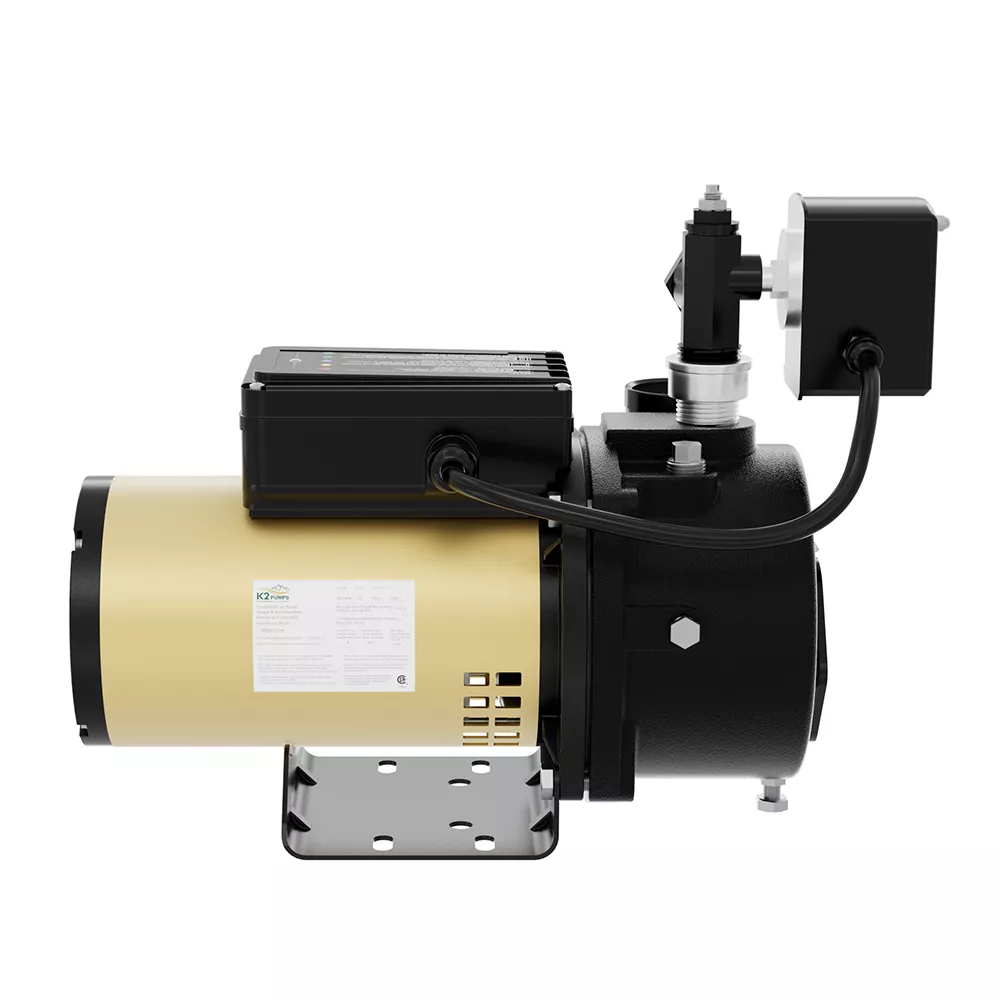

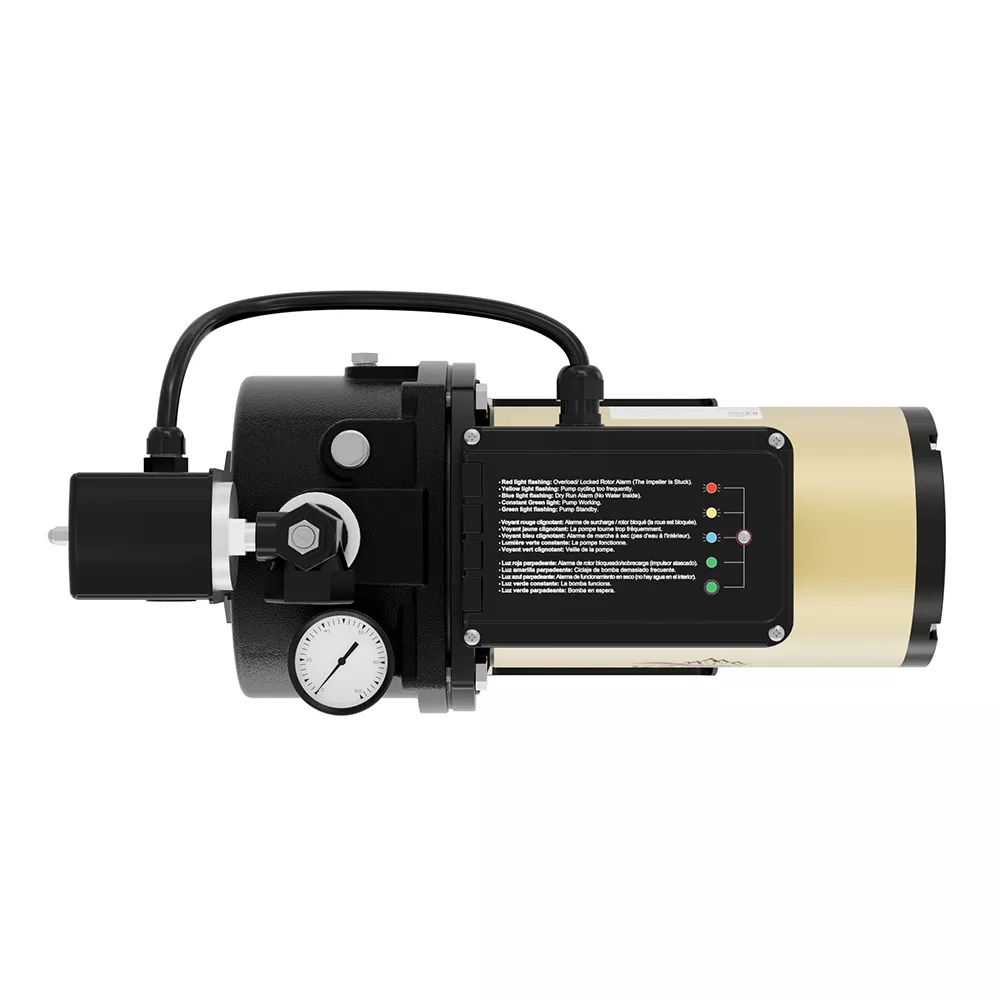

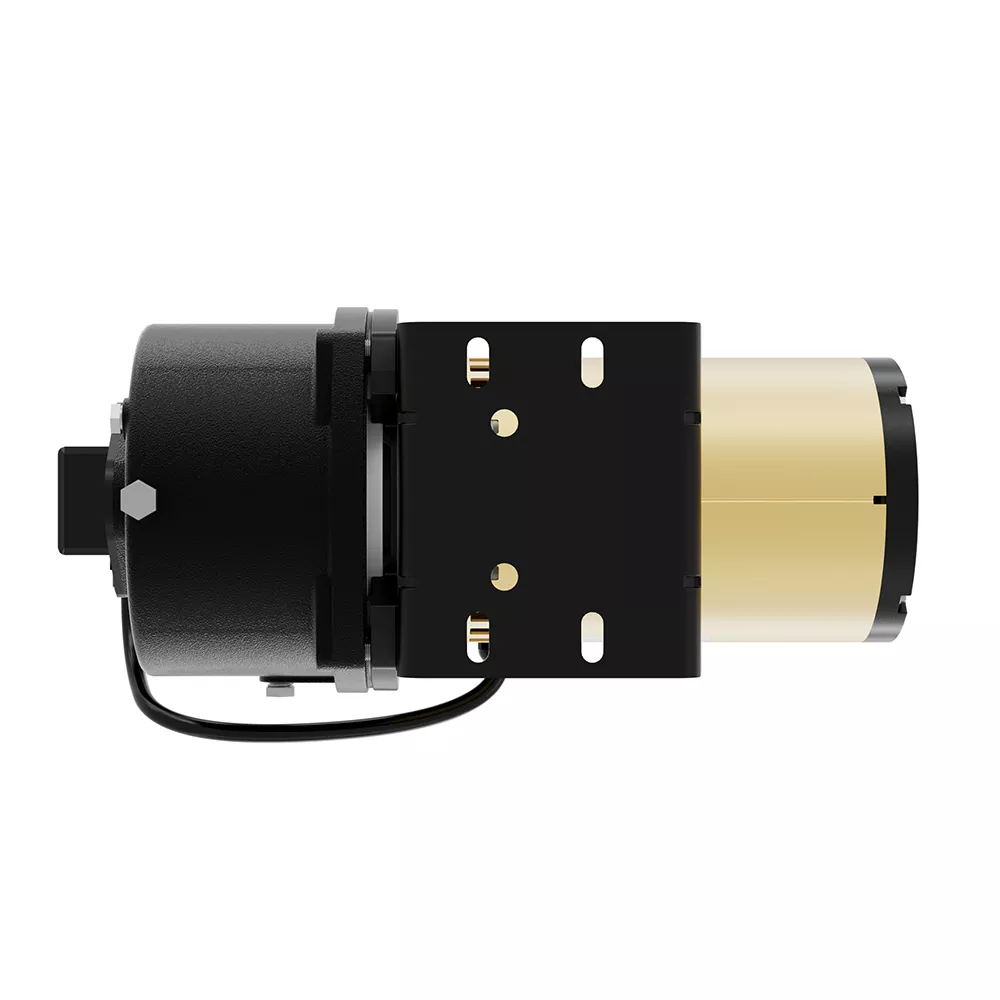

K2 Pumps 3/4 HP 115/230V Convertible Electric Jet Pump with Multi-Function Diagnostic Capabilities 20 GPM Well Pumps Home Improvement

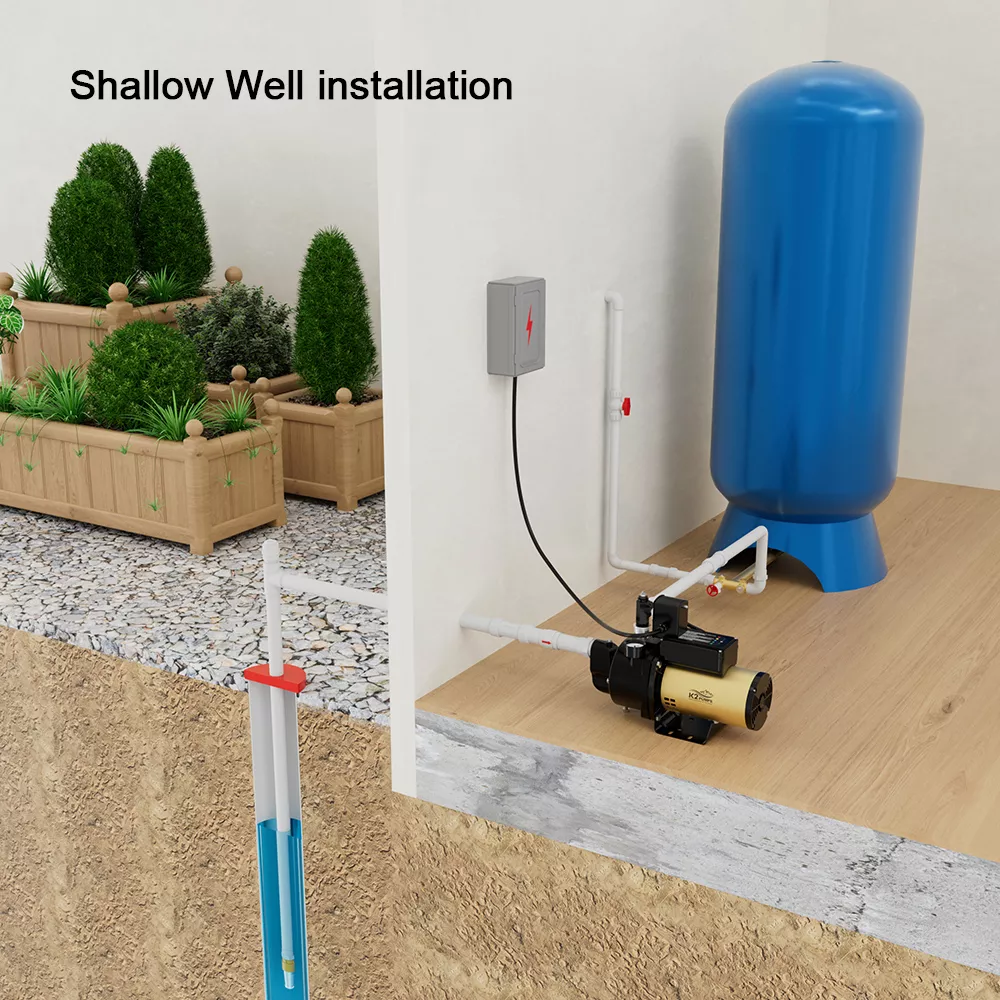

The K2 Pumps 3/4 HP Convertible Jet Pump is constructed of heavy-duty cast iron. Convertible jet pumps can be used in both shallow well or deep well applications. The pump is installed above ground for shallow wells with depth to water from 0' to 25', or deep wells up to 90'. The pump delivers up to 20 GPM at 0' of lift, with a maximum pressure shut off at 70 PSI. Includes the ejector kit and pressure regulator.

Deep well application for water at depths up to 90'

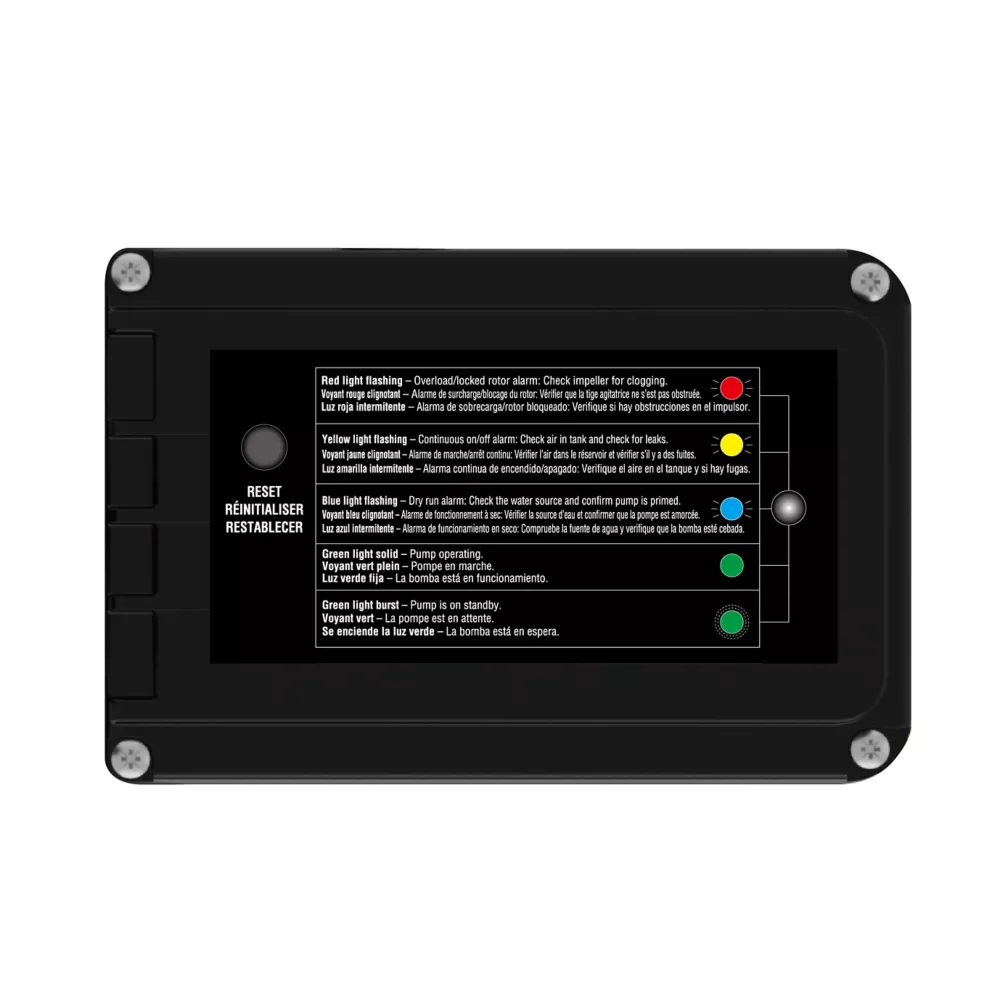

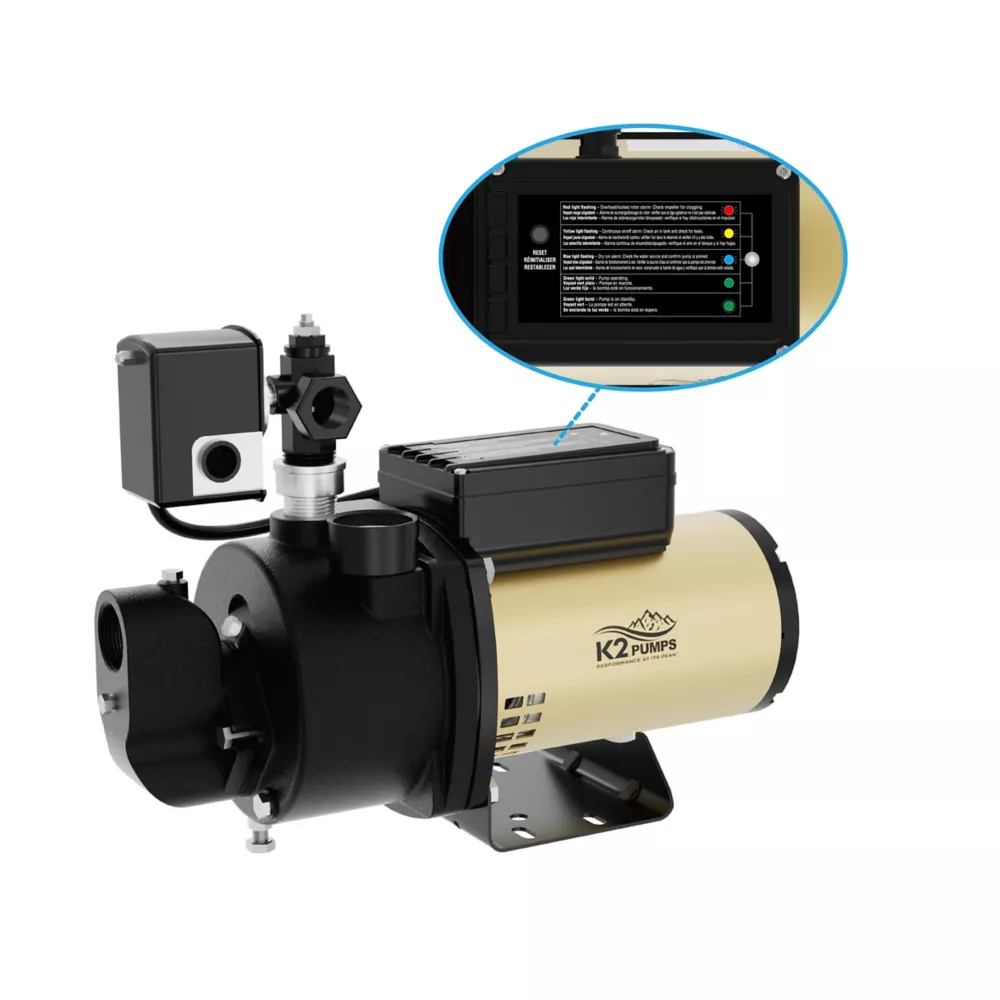

LED Diagnostics Panel indicates operation status
Flow rate of 20 GPM at 0' of lift.
Heavy-duty, dual voltage 115/230V motor, preset at 230V
Certified Lead-Free to NSF/ANSI/CAN 61, and NSF/ANSI 372
Pre-installed pressure gauge, and 30/50 pressure switch

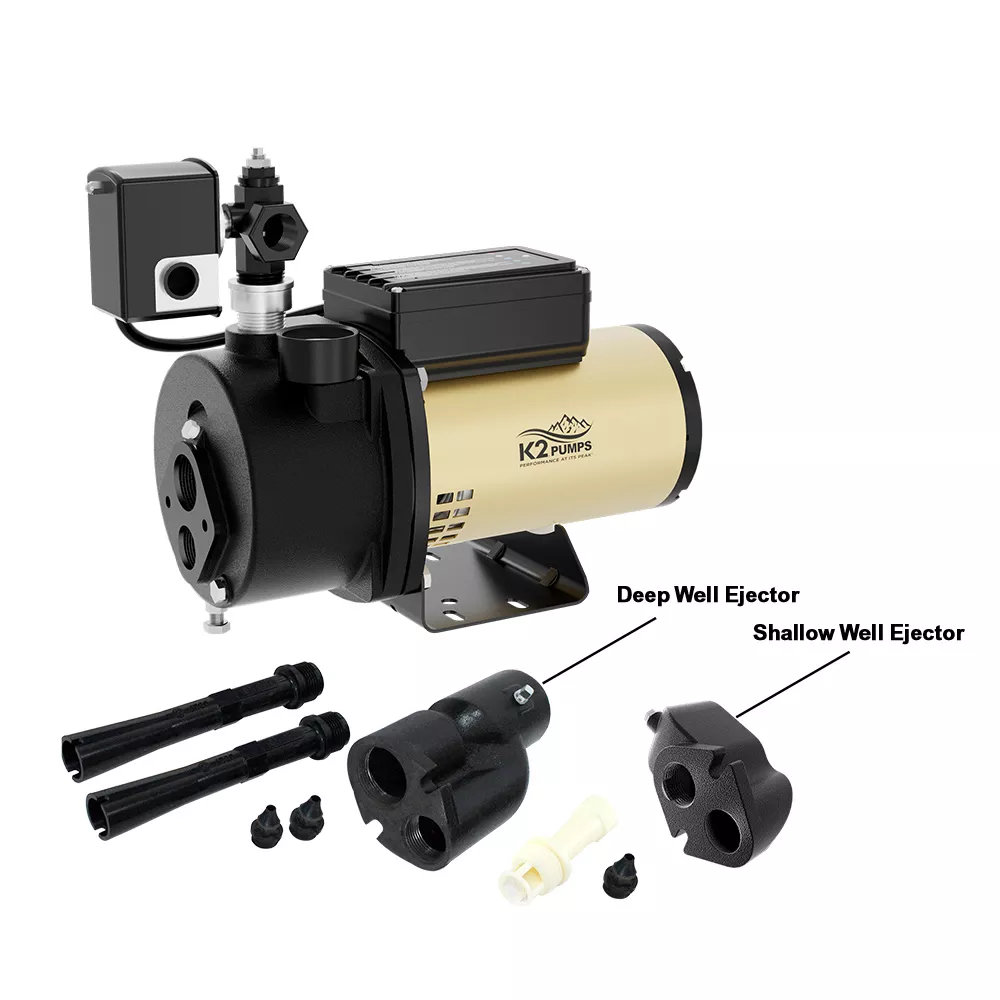

Includes Ejector kit and pressure regulator
1-1/4 in. NPT Suction and 1 in. NPT Discharge
3 Year Warranty

K2 Pumps 3/4 HP 115/230V Convertible Electric Jet Pump with Multi-Function Diagnostic Capabilities 20 GPM Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps

Specification	Description
Brand	K2 Pumps
Country of Origin	Imported
Amperage	15.8 A/7.9 A
Body Material	Cast iron
Compatible Pipe Material	PVC
Compatible Well Diameter	0 N/A
Discharge Connection	Threaded Female
Discharge Diameter	1 in.
Discharge Rate at 0 ft.	20 GPM
Discharge Rate at 25 ft.	9 GPM
Discharge Rate at 50 ft.	5.1 GPM
Features	115/230 Dual voltage motor, preset at 230V
Horsepower	3/4 HP
Impeller Material	Thermoplastic
Inlet Connection	Threaded Female
Inlet Diameter	1-1/4 in.
Maximum Flow Rate	20 GPM
Maximum Head Lift	90 ft.
Maximum Operating Depth	90 ft.
Maximum Operating Temperature	104 deg.
Minimum Operating Temperature	32 deg.
Power Type	Electric
Product Height	13 in.
Product Length	7.2 in.
Product Weight	47.3 lb.
Product Width	18.1 in.
Motor Type	CSIR
Voltage	115v/230v
Warranty	3 Year
Manufacturer PartNumber	WPD07502K
