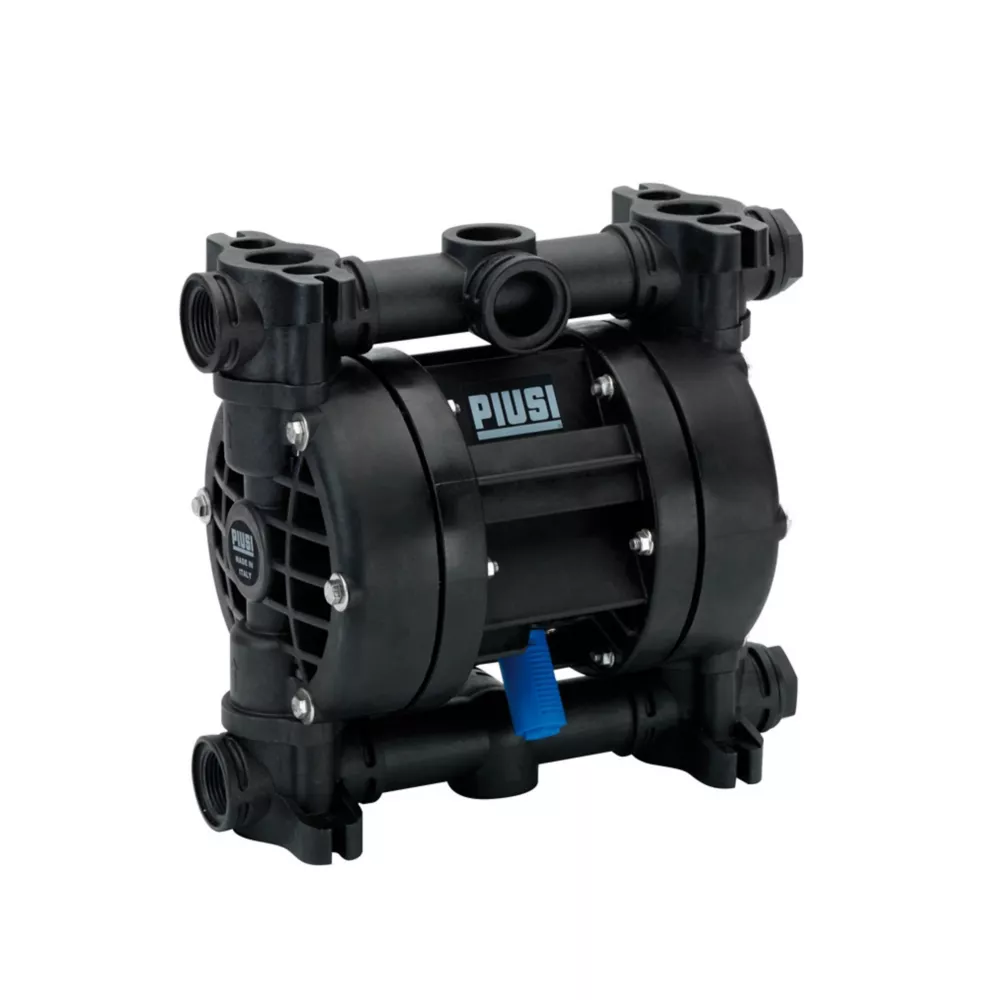

Piusi USA MP140 26 GPM Air Operated Double Diaphragm DEF Transfer Pump Fuel Transfer Pumps Truck & Automotive

The MP140 Double Diaphragm 26GPM DEF Transfer Pump is designed to assure the utmost reliability and highest performance levels. The pump's sturdy central technopolymer body, the lateral half-shells, the suction and delivery manifolds, plus the use of high quality diaphragms make it possible for the fluid transfer pump to transfer water and chemicals such as DEF, antifreeze, and windshield washer fluid. The Piusi MP air-operated diaphragm DEF fluid transfer pump features an air motor feeding inversion system (IAMA) that allows rapid tuning of pump speed and flow rate by adjusting the quantity of air supplied.

1"NPT inlet/outlet for easy connectivity
Fluid transfer pump offers 26GPM at 100 PSI to provide efficient performance
3/8 in. air connection
Self-priming DEF transfer pump
ATEX certification for severe duty in potentially explosive zones
Can be run dry without causing damage
Built-in diffuser
Air-operated diaphragm pump for transferring DEF, water, antifreeze and windscreen washer fluid
Allows precise speed regulation without pressure loss

Piusi USA MP140 26 GPM Air Operated Double Diaphragm DEF Transfer Pump Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Piusi USA
Country of Origin	Imported
AC or DC Powered	AC
Body Materials	Technopolymer
Compatible Fluids	Diesel Exhaust Fluid
Discharge Connection	Threaded Female
Discharge Diameter	1 in.
Duty Cycle	S 1 continuous
Features	Self-Priming
Horsepower	2HP motor required
Hose Diameter	1 in.
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Intended Use Grade	Commercial
Maximum Flow Rate	26 GPM
Maximum Head Lift	6 ft.
Maximum Operating Pressure	100 PSI
Maximum Operating Temperature	120 deg. F
Minimum Operating Pressure	100 PSI
Minimum Operating Temperature	10 deg. F
Power Cord Length	0 ft.
Power Type	Air operated
Product Height	12 in.
Product Length	16 in.
Product Weight	13 lb.
Product Width	15 in.
Warranty	2 year
Manufacturer PartNumber	F00208P50

Piusi USA MP140 Double Diaphragm DEF Transfer Pump 26 GPM Air-Operated Specifications expand/collapse Specification Description Brand Piusi United States Country of Origin Imported AC or DC Powered Technopolymer Body Materials Compatible Fluids Diesel Exhaust Fluid Discharge Connection Female Threaded Discharge Diameter 1 in. Duty Cycle S 1 Continuous Features Self-Priming Power 2HP Motor Required Hose Diameter 1 in. Inlet Connection 1 in. Threaded Female Inlet Dia. Intended Use Commercial Grade Maximum Flow Rate 26 GPM Maximum Head Lift 6 Feet Maximum Operating Pressure 100 PSI Maximum Operating Temperature 120 deg. F Minimum operating pressure 100 PSI Minimum operating temperature 10 deg. F Power cord length 0 ft. Power Type Pneumatic Operation Product Height 12 in. Product length 16 in. Product weight 13 lbs. Product width 15 in. 2 year warranty Manufacturer part number F00208P50
