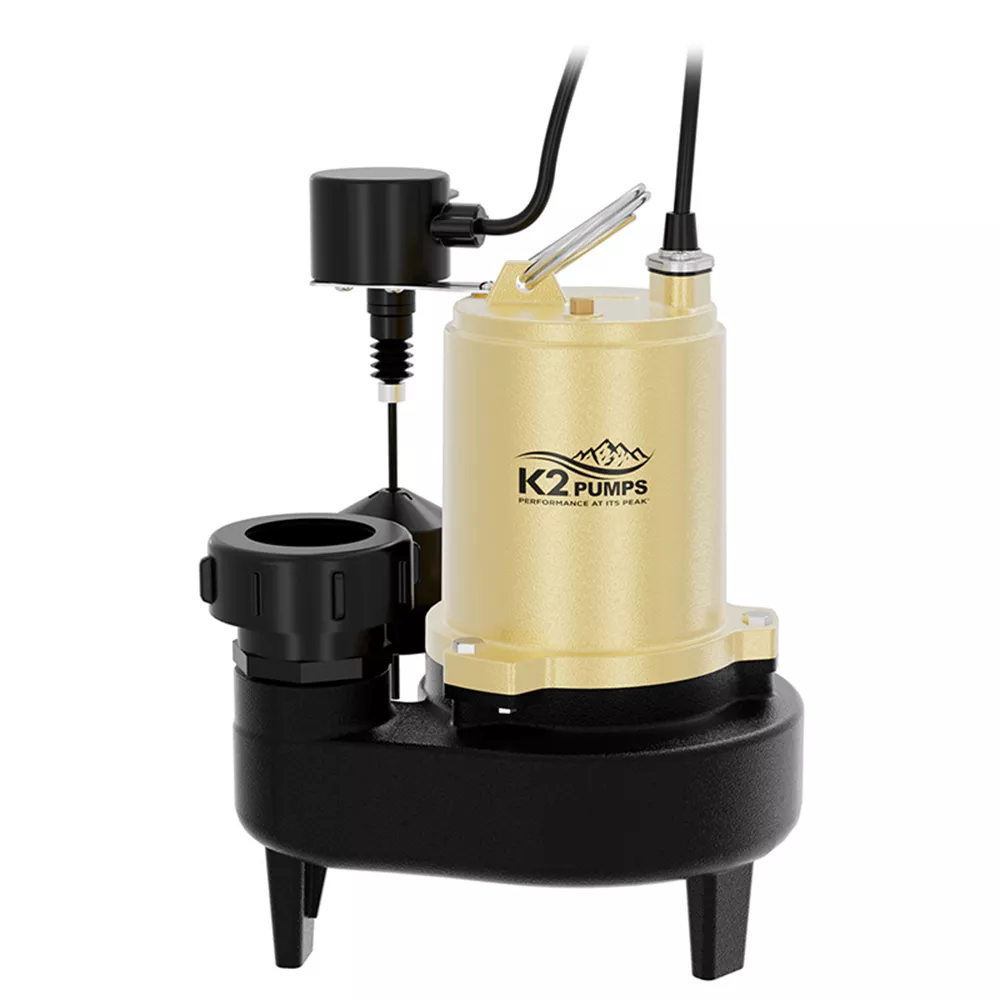

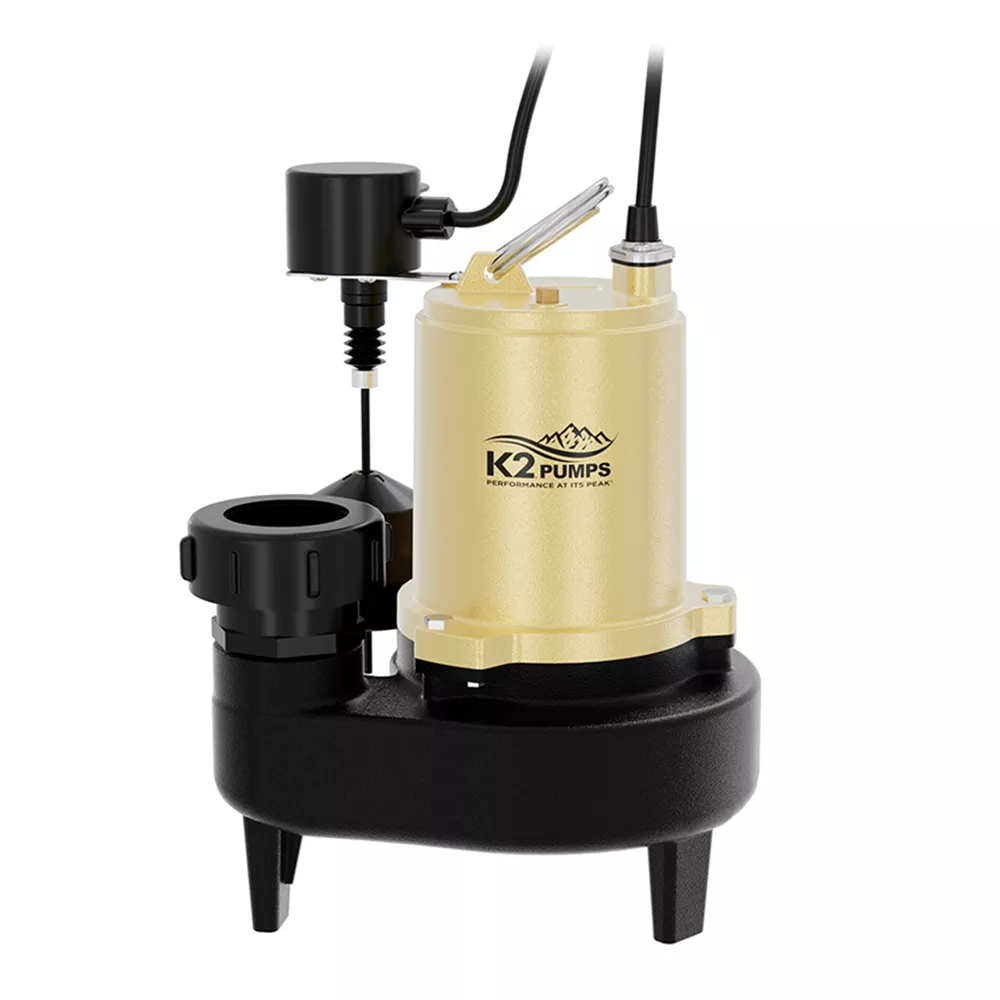

K2 Pumps SWW05001VPK 1/2 HP Cast Iron Sewage Pump with Vertical Piggyback Switch Sump Pumps Farm & Ranch

The K2 Pumps 1/2 HP sewage pump is constructed of heavy-duty cast iron which is ideal for applications requiring a rugged submersible pump. The innovative quick-connect fitting features a metal ring with teeth that firmly grip PVC pipes. The pump discharges up to 9,000 GPH at 0 ft. of lift, with a maximum lift of 20 ft. It features a non-clog vortex impeller that will handle 2 in. solids. Powered by an energy-efficient, oil-filled PSC motor.

Constructed of heavy-duty cast iron
Discharges up to 9,000 GPH at 0 ft. of lift, with a maximum lift of 20 ft.

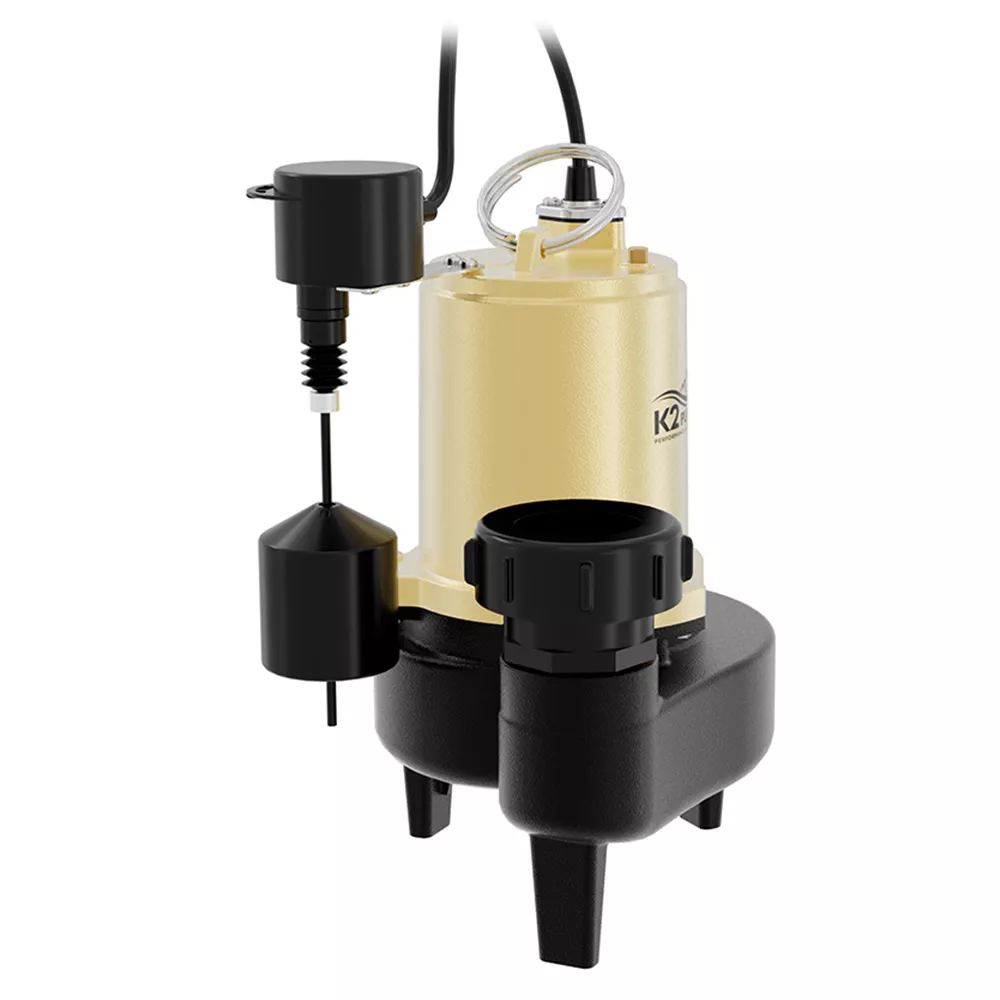

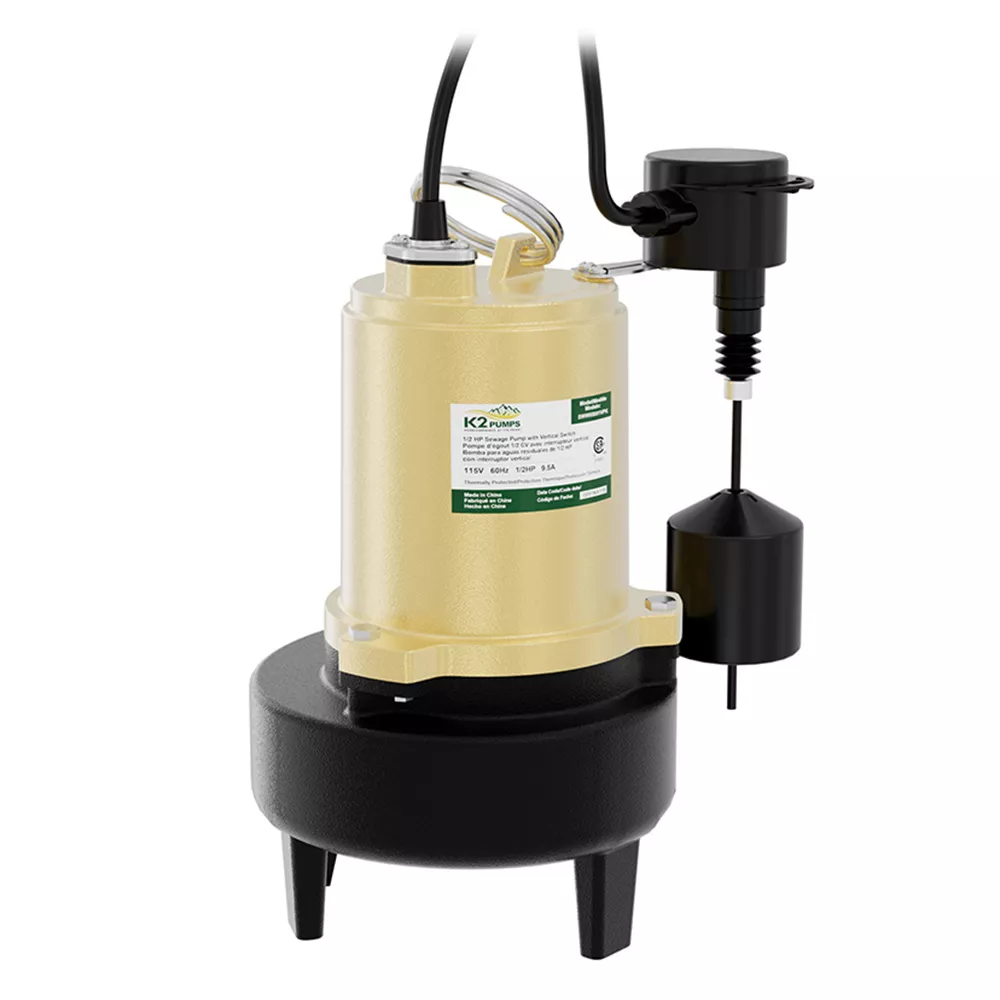

Piggyback vertical float switch for manual or automatic operation
Includes a Quick Connect fitting which eliminates the need for PVC primer, glue or plumber's tape
Non clog vortex impeller handles up to 2 in. solids
2 in. FNPT Discharge
Comes with a 10 ft. power cord
5 Year Warranty

K2 Pumps SWW05001VPK 1/2 HP Cast Iron Sewage Pump with Vertical Piggyback Switch Sump Pumps Farm & Ranch> Tanks & Pumps> Water Pumps> Sump Pumps

Specification	Description
Brand	K2 Pumps
Country of Origin	Imported
Amperage	9.5 Amp
Basin Diameter	18 in.
Body Material	Cast iron
Compatible Pipe Material	PVC
Discharge Connection	Threaded Female
Discharge Port Diameter	2 in.
Discharge Rate at 0 ft.	150 GPM
Discharge Rate at 10 ft.	90 GPM
Engine Displacement	0 N/A
Features	2 in. Quick Connect Fitting eliminates the need for PVC primer, glue or plumber's tape
Horsepower	1/2 HP
Hose Diameter	2 in.
Impeller Material	Thermoplastic
Inlet Connection	None
Inlet Diameter	7.64 in.
Maximum Flow Rate	150 GPM
Maximum Head Lift	20 ft.
Maximum Operating Pressure	0 N/A
Maximum Operating Temperature	131 deg.
Maximum Solids Diameter	2 in.
Maximum Suction Lift	20 ft.
Minimum Operating Pressure	0 N/A
Minimum Operating Temperature	32 deg.
Power Cord Length	10 ft.
Power Type	Corded/Plug-in
Product Height	11.4 in.
Product Length	14.56 in.
Product Weight	44 lb.
Product Width	10.37 in.
Pump Mechanism	Centrifugal
Motor Type	Permanent Split Capacitor (PSC)
Switch-Off Height	7.5 in.
Switch-On Height	16.5 in.
Voltage	115 V
Warranty	5 Years
Manufacturer PartNumber	SWW05001VPK
