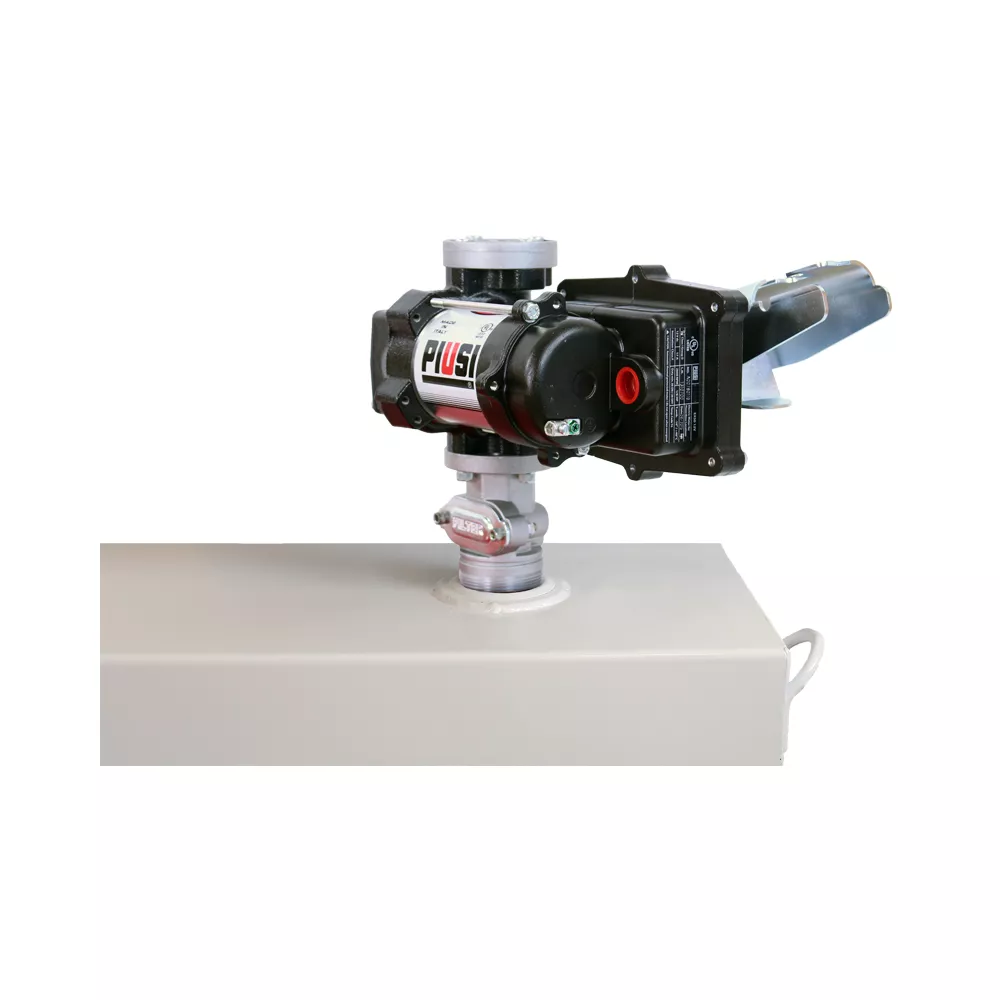

Piusi USA EX50 UL 1/8 HP 120V Electric Fuel Pump 15 GPM Pump Only Fuel Transfer Pumps Truck & Automotive

The 15GPM EX50 120V UL Fuel Transfer Pump is an electric fuel transfer pump designed for dispensing gasoline, diesel and kerosene. Utilizing a grooved rotor and spring-loaded vanes, it is able to deliver higher flow rates at the nozzle; even with all of the common accessories (longer hose, filter, meter, auto nozzle). A true 15GPM at the nozzle!

High efficiency electric fuel transfer pump delivers up to 15GPM at the nozzle
Voltage: 120V/60Hz
Amperage: 1.7A
UL/cUL-listed fuel transfer pump motor suitable for Class 1, Group D areas
30% more compact with 30% more flow rate
Bypass valve built-in to accommodate your needs
Flanged components can be mounted or replaced without the use of sealant, making connections quick and secure
Thermal overload protection to prevent overheating
Bung mount with integrated filter strainer keeps the pump free from debris

Piusi USA EX50 UL 1/8 HP 120V Electric Fuel Pump 15 GPM Pump Only Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Piusi USA
Country of Origin	Imported
AC or DC Powered	AC
Amperage	1.7A
Body Materials	Cast iron
Compatible Fluids	Gasoline
Discharge Connection	Threaded Male
Discharge Diameter	1 in.
Duty Cycle	30 min. on30 min. off
Features	Self-Priming
Horsepower	0.125 HP
Hose Diameter	0.75 in.
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Intended Use Grade	Commercial
Maximum Flow Rate	15 GPM
Maximum Head Lift	6 ft.
Maximum Operating Pressure	16 PSI
Maximum Operating Temperature	110 deg. F
Minimum Operating Pressure	1 PSI
Minimum Operating Temperature	10 deg. F
Power Type	Electric
Product Height	16 in.
Product Length	24 in.
Product Weight	30 lb.
Product Width	11 in.
Voltage	120V
Warranty	2 year
Manufacturer PartNumber	F0037450C

Piusi USA 1/8 HP 120V Electric EX50 UL Fuel Pump, 15 GPM, Pump Only Specifications expand/collapse Specification Description Brand Piusi USA Country of Origin Imported AC or DC Power Supply AC Amps 1.7 A Body Materials Cast Iron Compatible Fluids Fuel Discharge Fitting Male Threaded Discharge Diameter 1 in. Duty cycle 30 min. on 30 min. off Features Self-Priming Power 0.125 HP Hose Diameter 0.75 in. Inlet fitting Female threaded Inlet diameter 1 in. Intended Use Commercial Grade Maximum Flow Rate 15 GPM Maximum Head Lift 6 Feet Maximum Operating Pressure 16 PSI Maximum Operating Temperature 110 deg. F Minimum operating pressure 1 PSI Minimum operating temperature 10 deg. F Power Type Electric Product Height 16 in. Product length 24 in. Product weight 30 lbs. Product width 11 in. Voltage 120 V Warranty 2 years Manufacturer part number F0037450C
